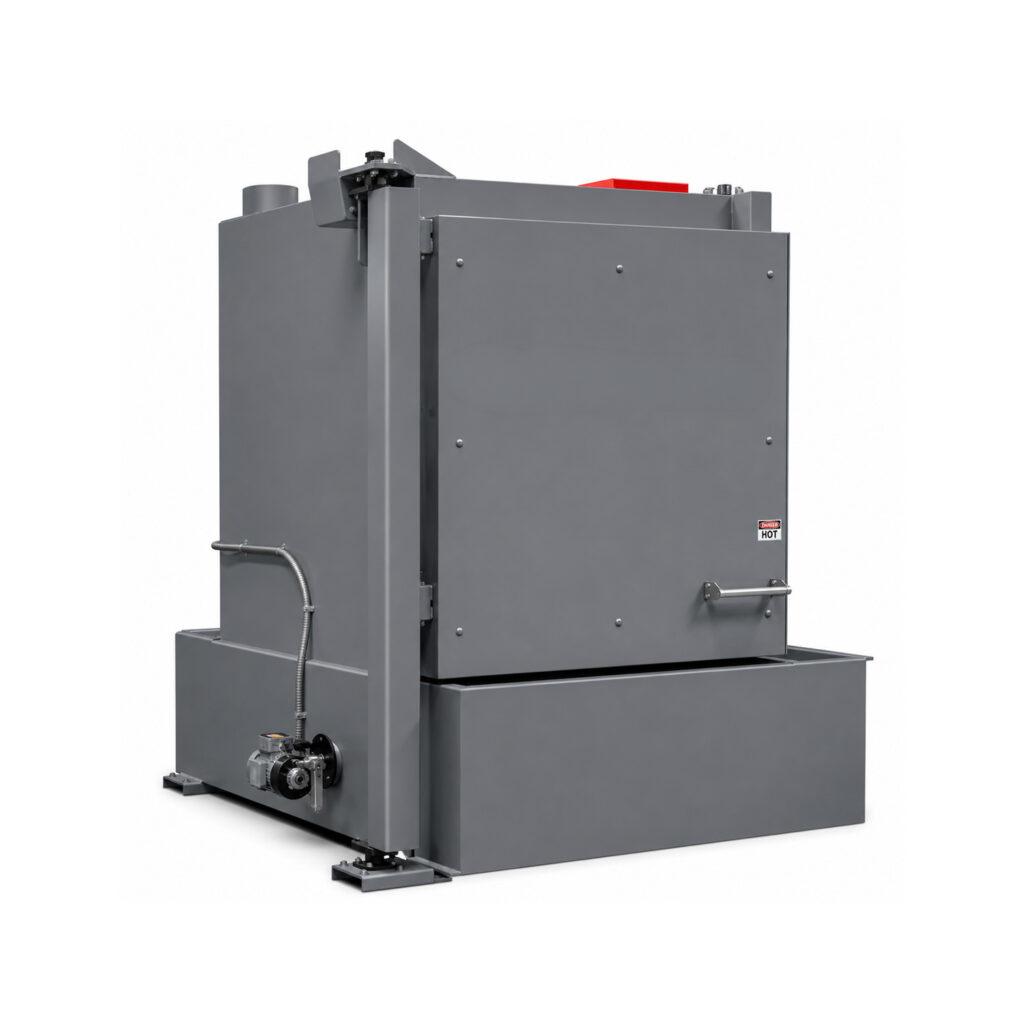

RETRACTABLE TURNTABLE WASHER WVN-55RWB

Door mounted rotary table for loading with overhead hoist, all steel cabinet construction.

Request A Quote

Operations

Features

200-gallon solution tank
Working height above the table 55″
Large volume oscillating spray manifold for faster cleaning
Non-clogging adjustable composite nozzles
Cycle timer 0-60 minutes
Gas models come standard with an ecology burn off box
Tank clear out is to the side for easy access, and sloped for easy clean out
Sludge rakes are standard so large amounts of sludge can be removed without draining the tank

Specifications

Work Envelope Diameter
44 x 55 in
1118 x 1398 mm
Pump
15 hp
Table Weight Capacity
1500 lbs
Length
98 in
12490 mm
Width
120 in
3048 mm
Height
136 in
3454 mm

Standard Tooling
