Table Washer WVN-5000

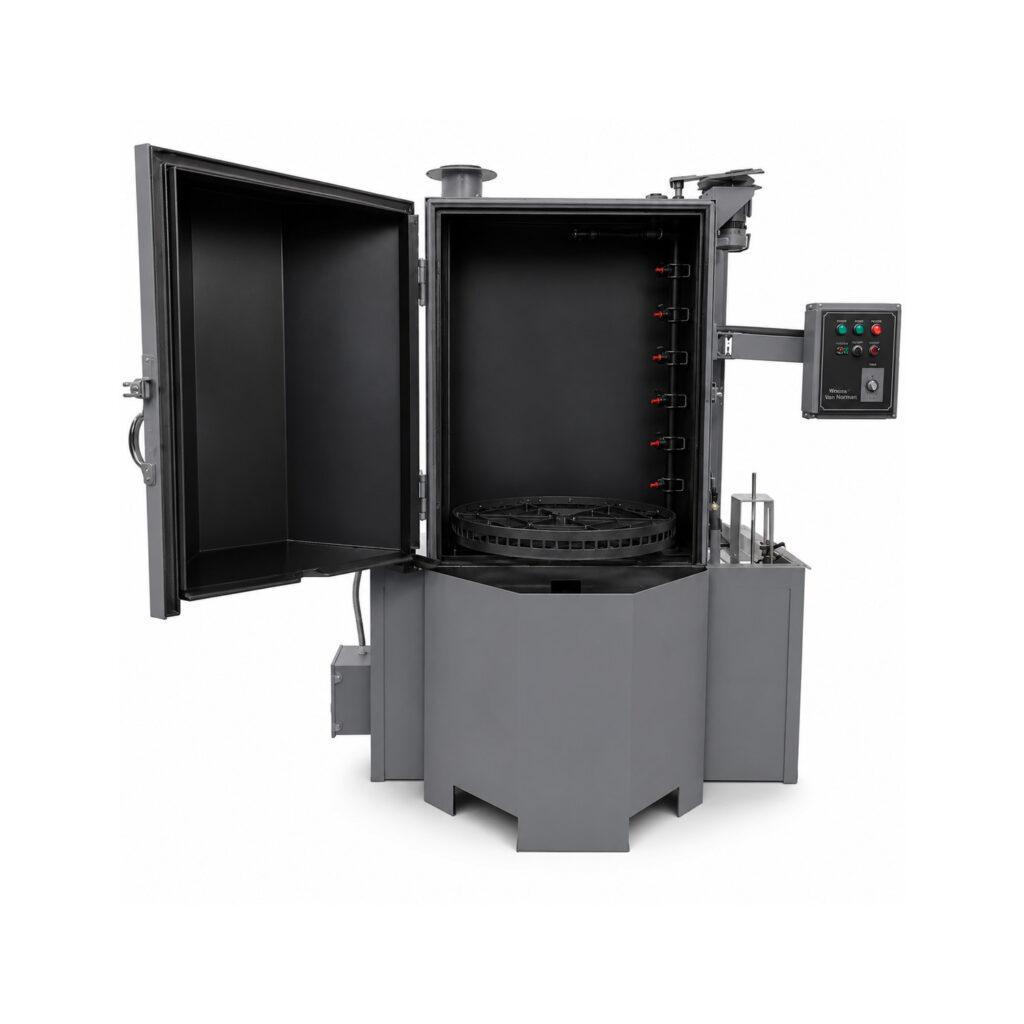

The WVN5000 is a state-of-the-art rotary washer designed to clean engine heads and blocks and a variety of smaller parts after machining. Parts are positioned on a rotating turntable where jets of hot water spray from the top, sides and bottom and detergent quickly removes grease, oil and dirt.

Request A Quote

Fill out the form below to request a quote for the Table Washer WVN-5000.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

The WVN-5000 is a state-of-the-art rotary washer that cleans large engine parts and a variety of smaller parts after machining. Parts are positioned on a rotating turntable where jets of hot water spray from the top, sides and bottom and detergent quickly removes grease, oil and dirt.

Special Features Included
Electric Heater: Optional
Gas Heat: Yes
Dig Thermostat: Yes
Autofill/Low Water Assy: Optional
Oil Skimmer: Optional
Exhaust Assy: Optional
Canister Filter**: Optional
Oscillating Manifold: Yes

• 10 ga. Steel Cabinet Construction for Long Life.
• Oscillating Jets for Better Cleaning.
• Insulated Tank – Lower Energy Costs.

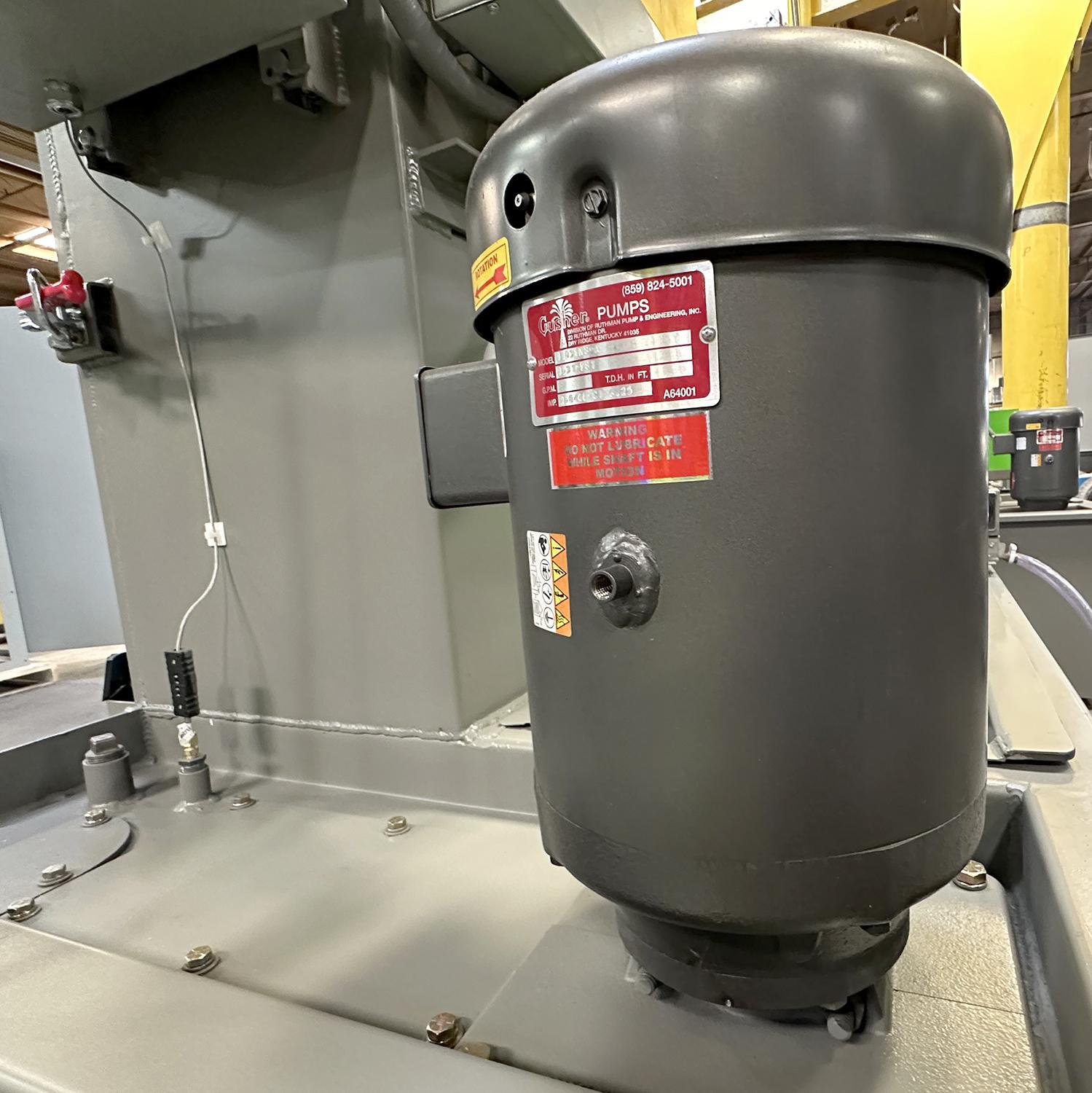

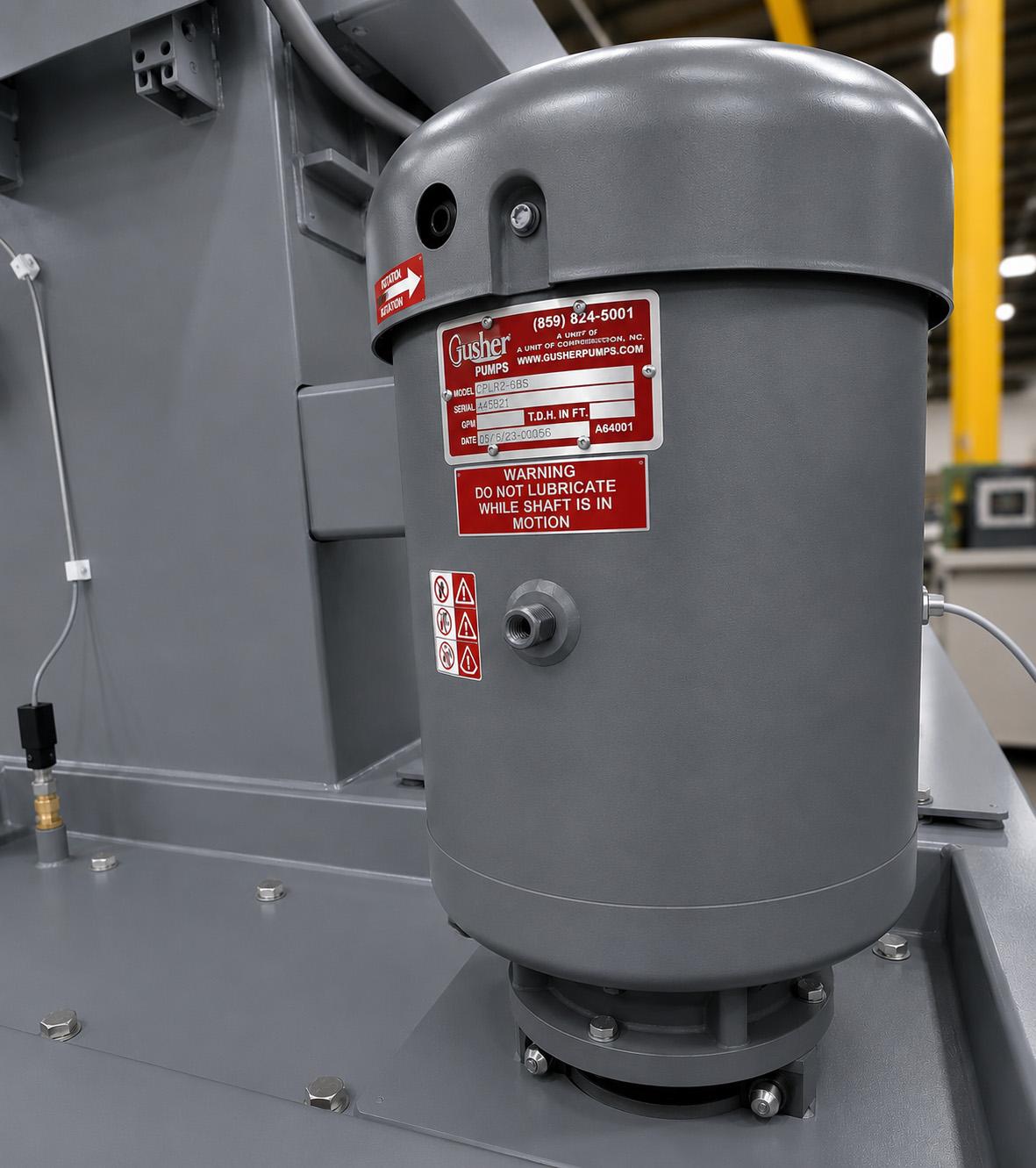

• Sealless Pump – Less Maintenance
• Cleans All Type Parts: Starters, Alternators,
Blocks, Heads, Transmissions
• Fast pay-back
• Operator friendly
• High quality construction

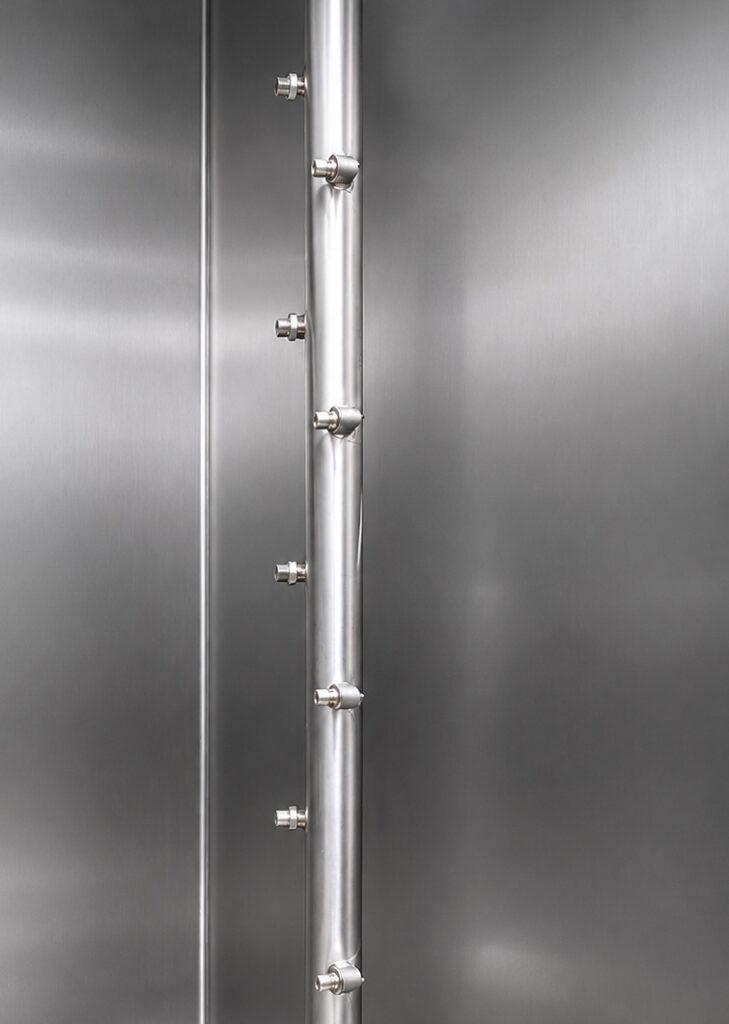

• Replaceable adjustable nozzles
• High heat for fast thorough cleaning.
• Simple to operate



– Oil Skimmer
– W3225 Aluminum Soap 50lbs
– W3226 Cast Iron Soap 50lbs
– 1ph Power
– Head Rack

Features and Options

Pump:
Electrical Requirement:
Total Amp Draw:
No. of Nozzles:
Heat Element:

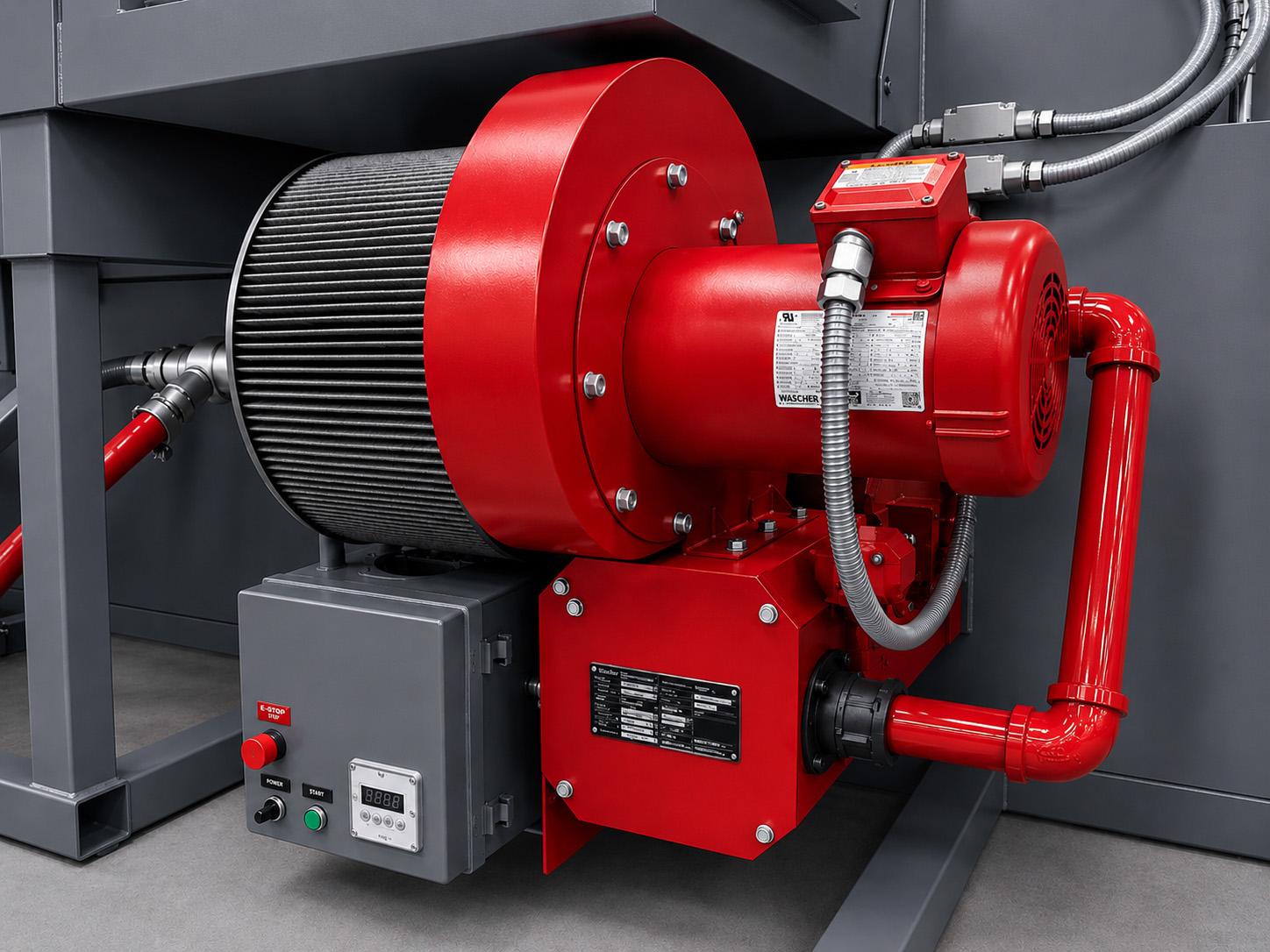

Gas Burner:
Machine Weight:
Shipping Weight:

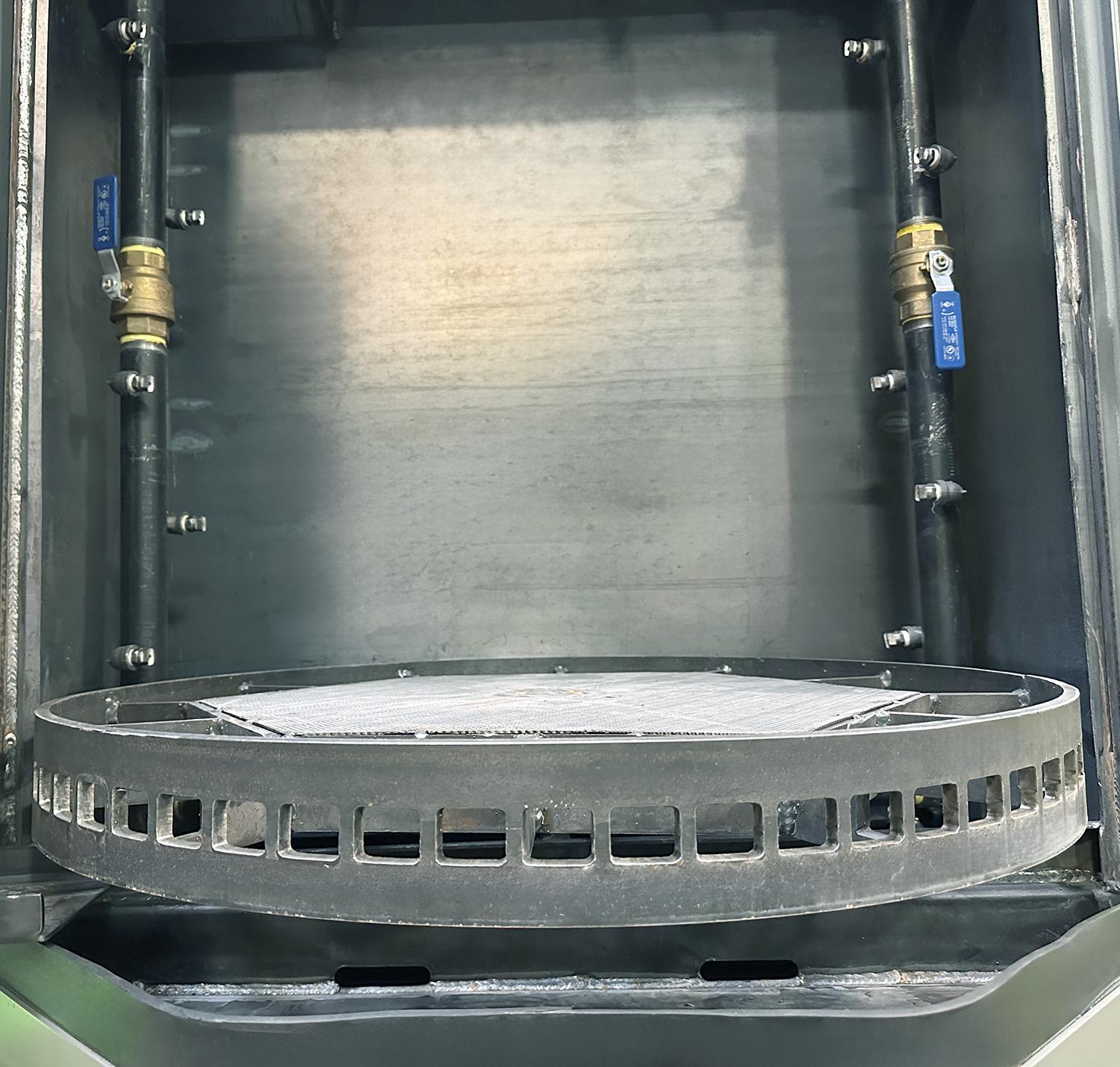

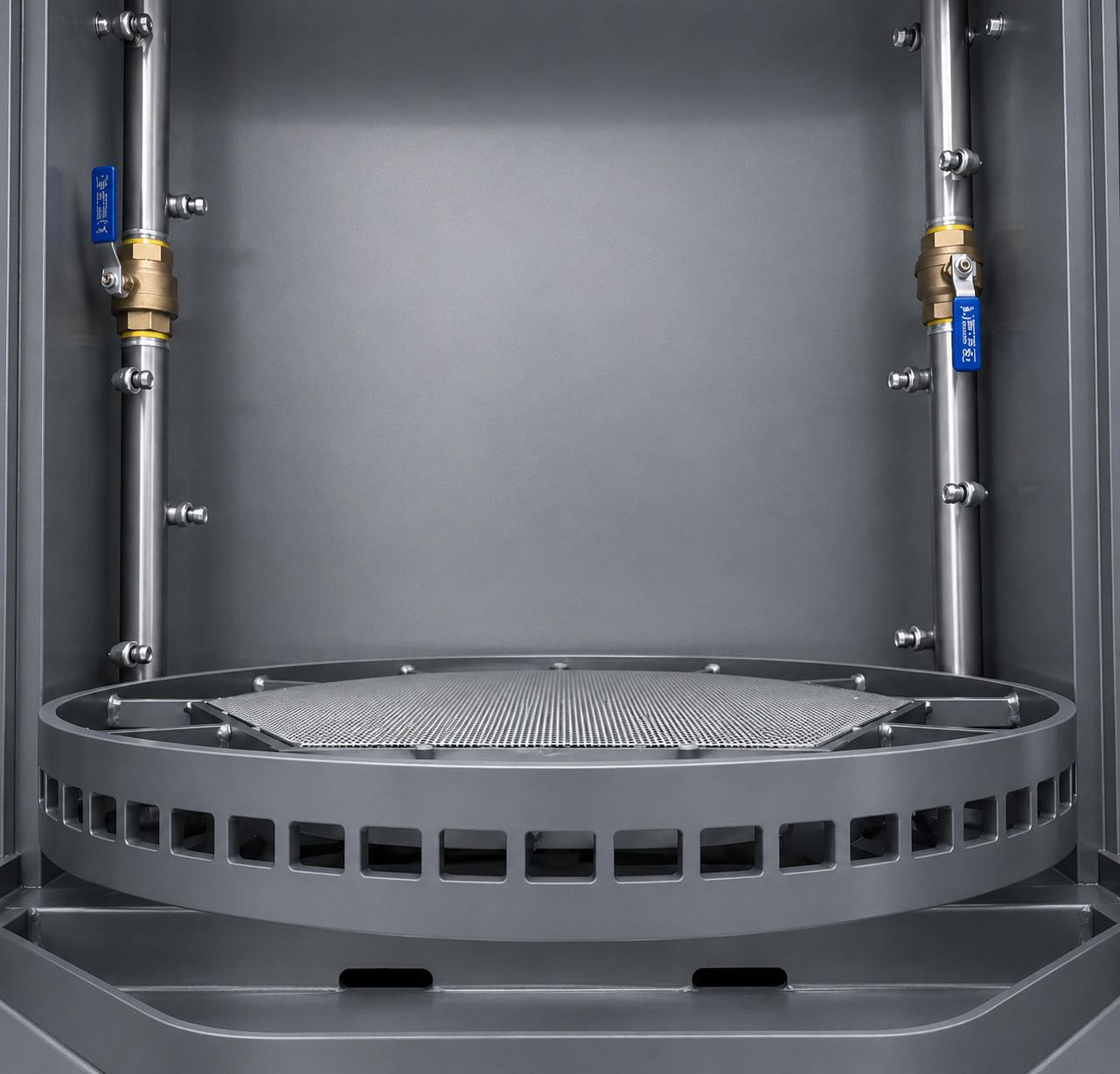

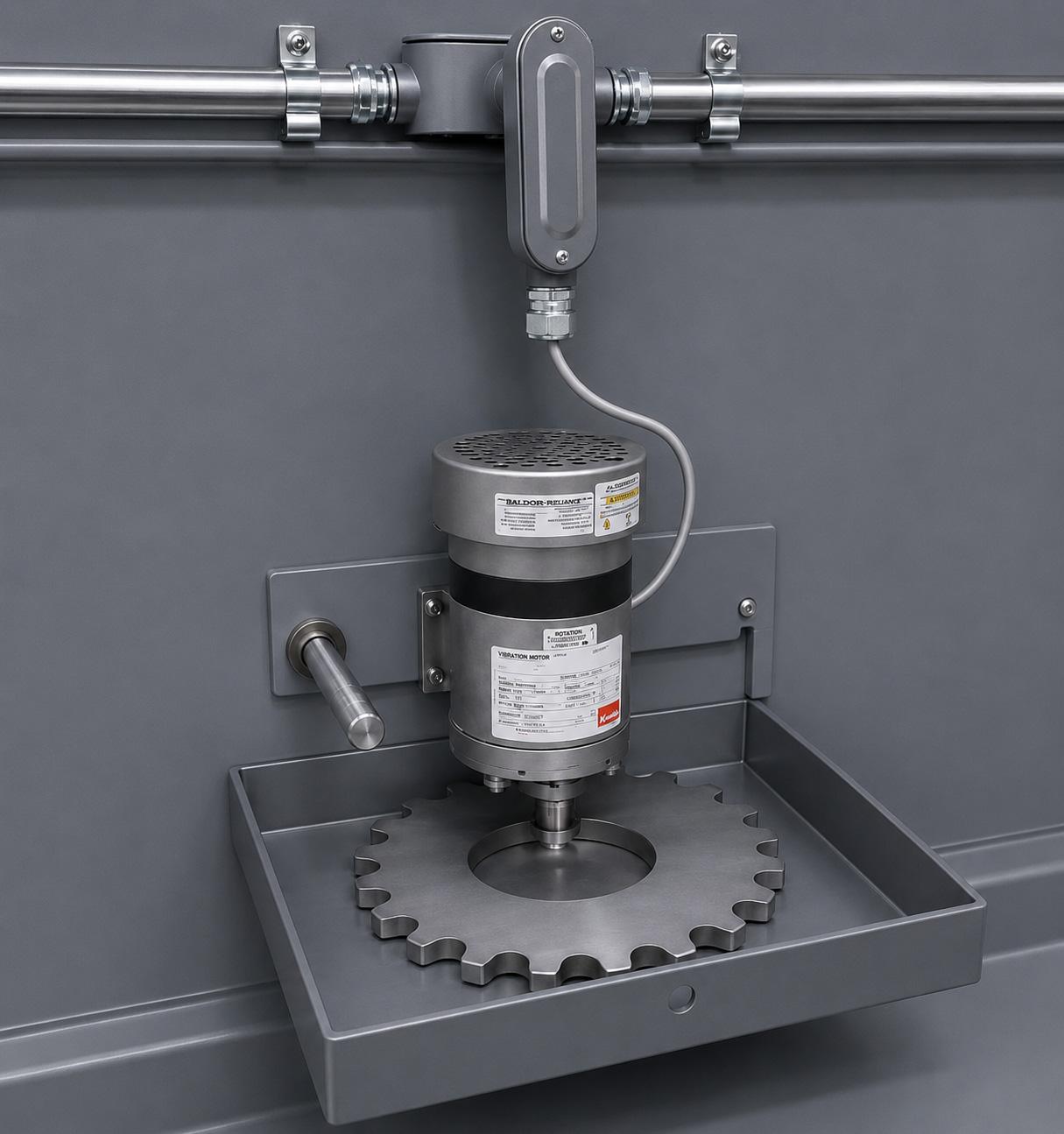

Turntable:
Height Capacity:
Weight Capacity:
Fluid Capacity:

5 HP, 47 PSI
230V/3PH/60HZ
60 Amps
14
18 kW, Electric
80, 000 BTU
1,565 lbs.
1,680 lbs.
32″ diameter
32″
1,000 lbs.
80 Gallons
