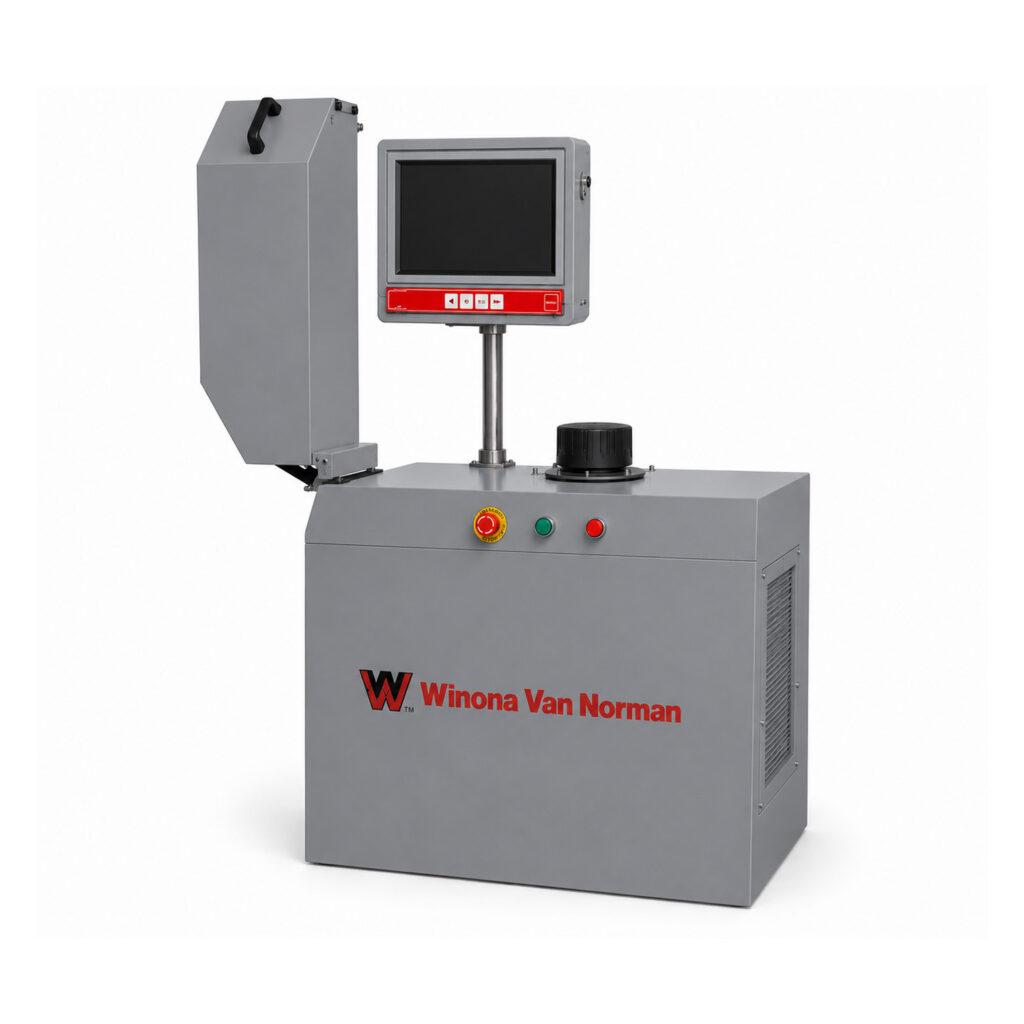

Balancer XLX-V
The Winona Van Norman Precision Electronic Balancer is engineered to deliver exceptional balancing accuracy for crankshafts, rotating assemblies, and other critical engine components. Designed for professional engine rebuilding, remanufacturing, and high-performance machine shops, this advanced balancing system helps eliminate harmful vibration that reduces engine performance and accelerates component wear. Properly balanced rotating assemblies contribute to smoother engine operation, increased horsepower, improved fuel efficiency, and extended engine life.
Built with advanced electronic balancing technology, the Precision Electronic Balancer combines highly accurate measurement capabilities with intuitive controls for fast, repeatable results. Its precision sensors quickly identify imbalance, allowing technicians to make accurate corrections with confidence. The machine accommodates a wide variety of rotating engine components, making it a versatile solution for automotive, diesel, marine, and industrial engine applications while maintaining the high level of precision demanded by today’s machine shops.
Designed for years of dependable service, the Winona Van Norman Precision Electronic Balancer combines rugged construction, sophisticated electronics, and user-friendly operation to maximize productivity while minimizing setup time and rework. Whether balancing crankshafts or complete rotating assemblies, it delivers the accuracy, repeatability, and long-term reliability professionals rely on to produce smoother-running, more efficient, and longer-lasting engines.
Request A Quote
Product Information
Operations
Balancing is an extra service that can be sold with a very top quality rebuild to give that extra edge of economy, performance, and durability today’s sophisticated customers are looking for. By promoting these benefits you can earn extra profits on every job. The work is easy and does not require a skilled machinist since almost anyone can learn to use the XLX-V quickly.
Specifications
Sophisticated electronics PLUS extremely versatile and yet so simple to operate.
Direct readout – NO calibration necessary.
Balances at ANY speed – exclusive feature. A wide variety of balancing jobs are possible the most versatile machine. Automatic speed compensation – DOES NOT require setting a specific balancing RPM.
Can balance workpieces inboard and outboard exclusive feature.
Includes 5 potentiometers for plane separation electronics – between counterweights to accurately determine left to right percentage of influence.
The three EXTRA potentiometers give you the capability of balancing a wide variety of workpieces other then crankshafts.
Super accurate – will measure minimum unbalance of .03 gram inches.
Electronic sensor pickup determines precise angle setting to eliminate possible errors in locating weight removal position. This electronic sensor pickup is not attached directly to the crankshaft which could further influence an unbalanced condition.
Features
Standard Tooling
Part # Description
862579 : Drill press assembly
814356 : Photo sensor assembly service manual
862550 : Tooling package
801804 : Bobweight card, V8 & V6 odd fire/Pkg 50
801805 : Bobweight card, V6 even fire/Pkg 50
801944 : Clay
810183 : Leveling pads
810765 : Way oil (1 quart)
813123 : Drill chuck with key
813124 : Drill chuck arbor
815207 : Belt, 0.75″x65″
815208 : Belt, 1.0″x65″
815288 : Reflective tape
862523 : Degree scale assembly
Features and Options
Max. Mass of Workpiece:
Max. Diameter of Workpiece:
Height of Workpiece:
Spindle Speed:
Motor Power:
Min. Achievable Residual Unbalance Amount:
92 lbs.
1 – 20″, 2 – 31.5″
6.25″
800 RPM
1.5 kW
3g mm/kg
