Balancer XLX-TC
Category: Dynamic Balancers

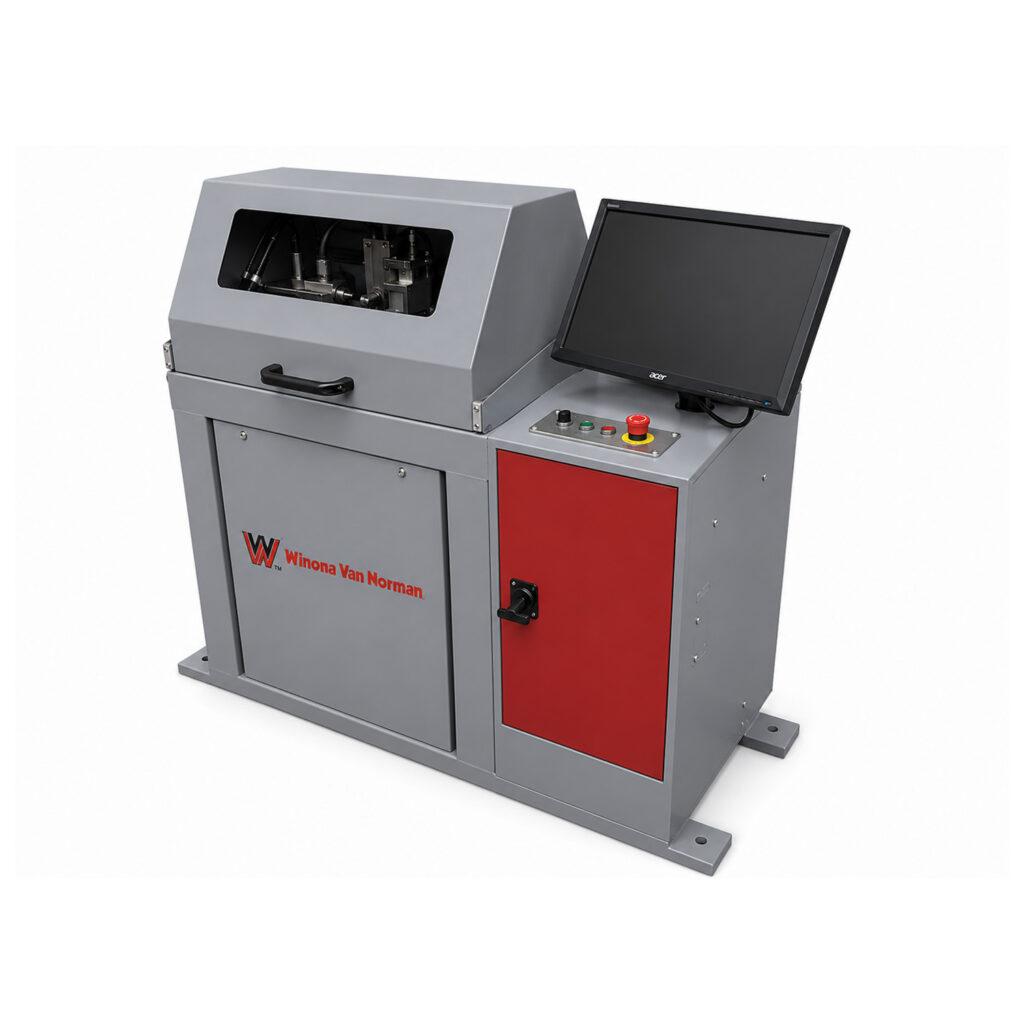

The Winona Van Norman XLX-TC Balancer is designed to balance small rotating assemblies, like turbo chargers. Balanced components will last longer and operate more effectively, due to less stress. The XLX‐TC is highly accurate to 0.15g‐in/kg.
Request A Quote
Fill out the form below to request a quote for the Balancer XLX-TC.
Product Information
Operations
Specifications
Features
Durable and reliable sensor possesses high sensitivity and good linearity.
Permanent calibration brings high accuracy.
Special clamp offers higher accuracy and easier operation.
Advanced electrical measuring system and friendly man-machine interface.
Standard Tooling
Technical Specifications
MAXIMUM WORKPIECE WEIGHT
35 lbs
15.8 kg
MAXIMUM DIAMETER OF BEARING JOURNALS
1.5 in
38 mm
MAXIMUM DISTANCE BETWEEN SUPPORTS
15.8 in
401 mm
MAXIMUM WORKPIECE DIAMETER
11 in
280 mm
DRIVE MOTOR HP
1/3 HP
DISTANCE BETWEEN TWO SUPPORT BEARINGS
2 5/16 – 15 3/4
JOURNAL DIAMETER SCOPE OF WORKPIECE
3/16 – 1 1/2
DIAMETER SCOPE OF DRIVING BELT
5/8 – 5 7/8
ROTATIONAL SPEED WHEN THE DIAMETER OF DRIVING BELT IS 4in (r/min)
570,1200 ^1
MOTOR POWER
0.23 kw
MIN ACHIEVABLE RESIDUAL UNBALANCE AMOUNT (emar)
≤ 0.3g mm/kg
