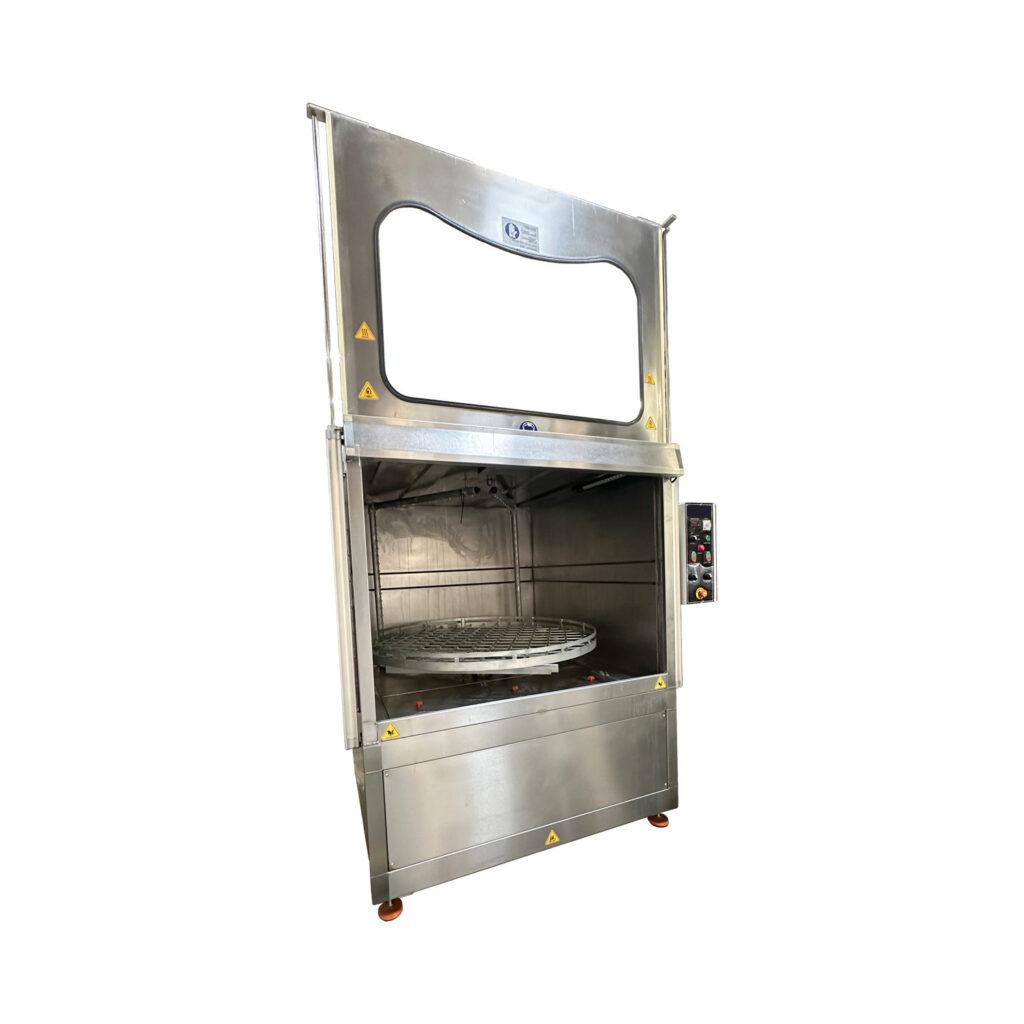

Stainless Steel Table Washer WVN7235SS

The Winona Van Norman stainless steel table washers are designed to clean oil, grease and grime from automotive and industrial parts with easy operation and low maintenance.

Request A Quote

Fill out the form below to request a quote for the Stainless Steel Table Washer WVN7235SS.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Quick to heat and maintain temperature, these units are a great addition to any shop floor looking for cleaner parts.

All machines come standard with :

  • 220V/3HP/60V cycle voltage
  • Thermostat with temp range of 0-248 F
  • Cycle timer range of 0-30 min
  • Specifically designed for washing heads, blocks and other engine components.
  • Set the time. Walk away 60-minutes cycle timer
  • 140° operational temp.
  • No waiting. 4.9 to 18 Kw electric heating elements guarantee quick-solution heat up and maintain steady temperatures throughout use.

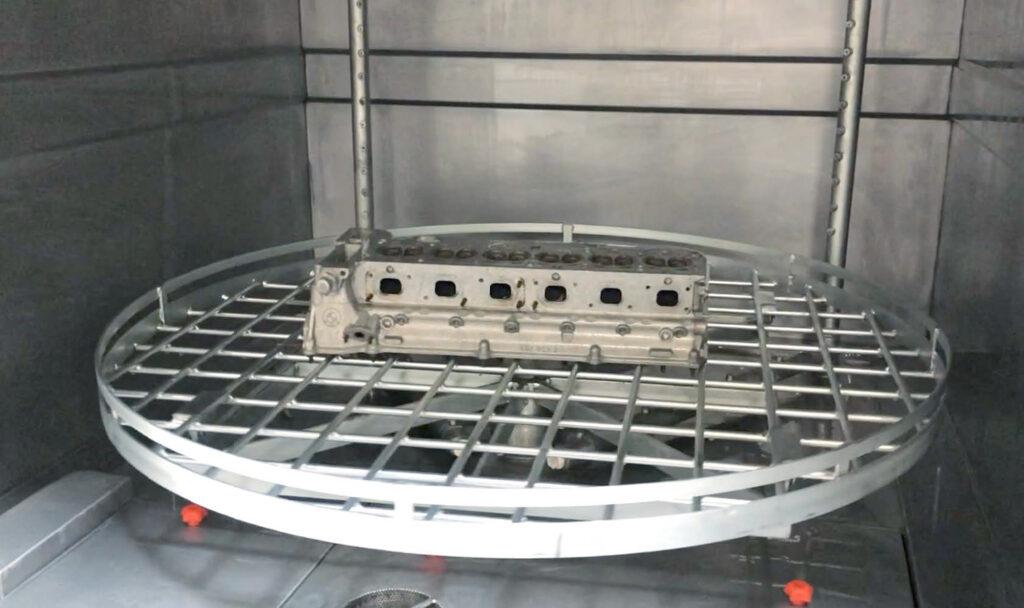

  • Low maintenance table. Direct drive table won’t slip.
  • Range of table capacity. From 265 lbs. up to 1400 lbs.
  • No gaskets to replace. Double-lipped door seal prevents leaks.
  • No clogs. Large diameter nozzles flood parts with solution.
  • No trouble. Stainless steel construction for long life.
  • Save clean-out time. Side drains and full tanks access at the front of the machine.

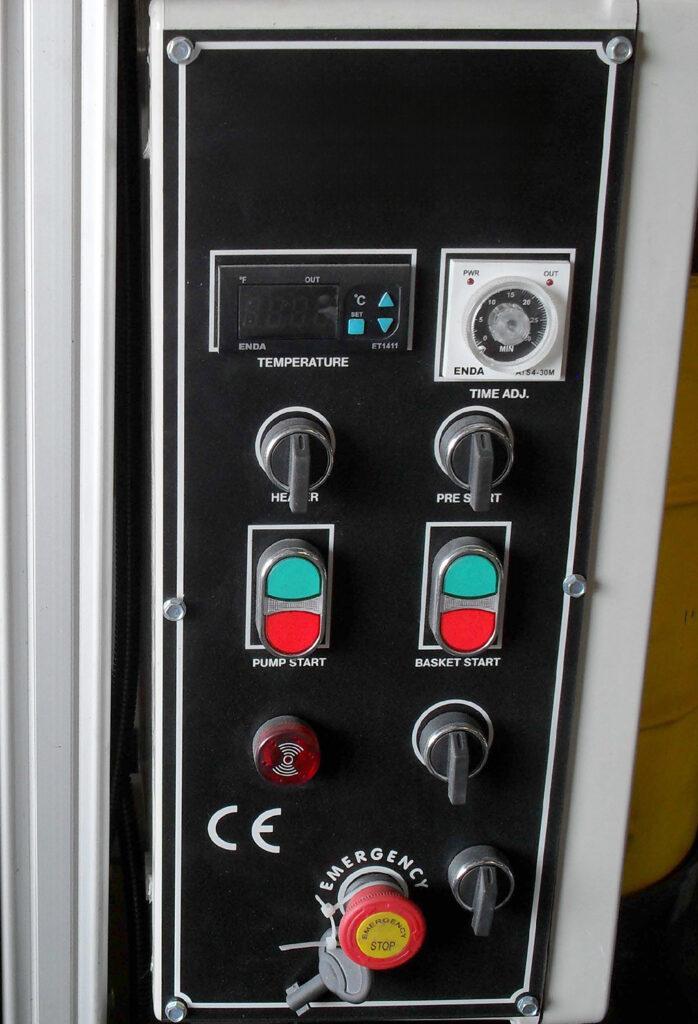

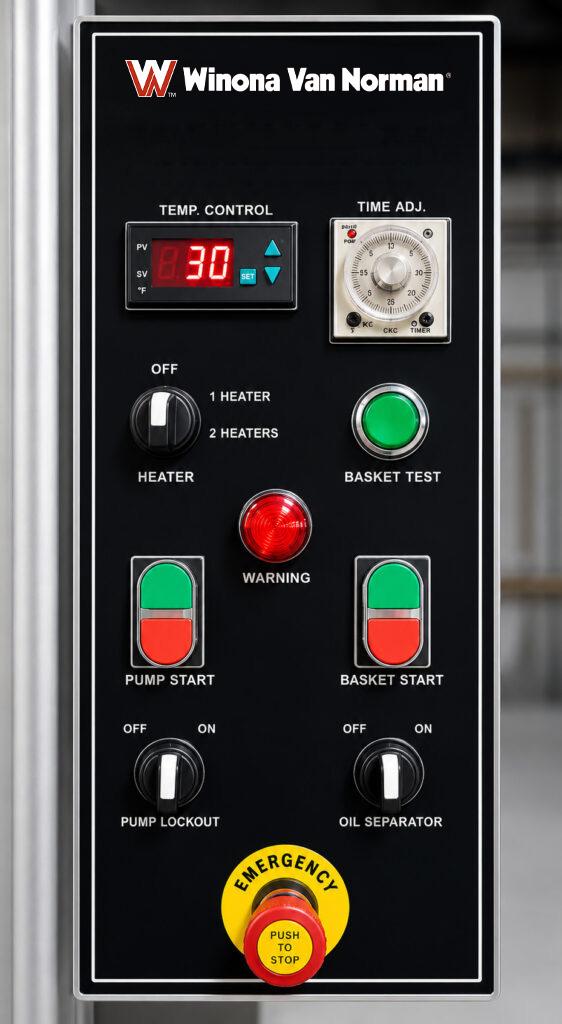

  • No guessing. Operator is always in control of solution temperature with adjustable thermostat.

Options :

  • Fresh water rinse
  • Ambient dryer
  • Disk and belt oil-skimmer
  • Detergents
  • Automatic sludge dragger

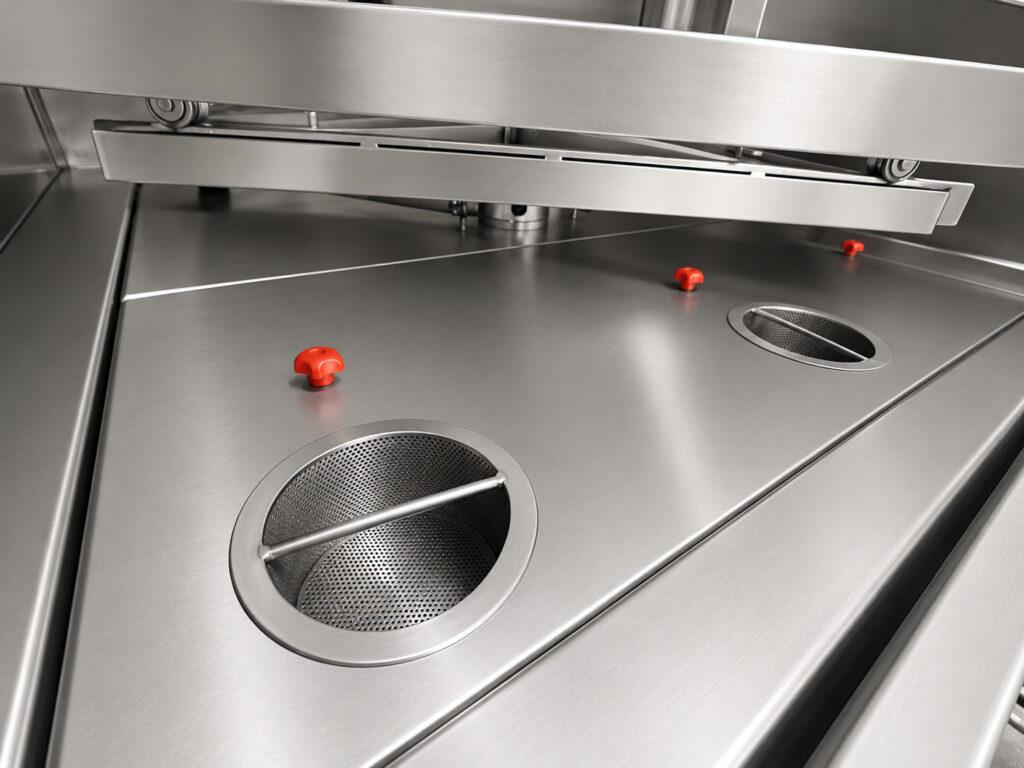

  • Built-inline canister filter for fine micron filtration
  • Power stream exhaust
  • Custom designs and multi stage

Technical Specifications

Dimensions
97"x87"x85"
Tank Capacity
105 GAL
Table Capacity
1870 lbs
Table Diameter
72.8"

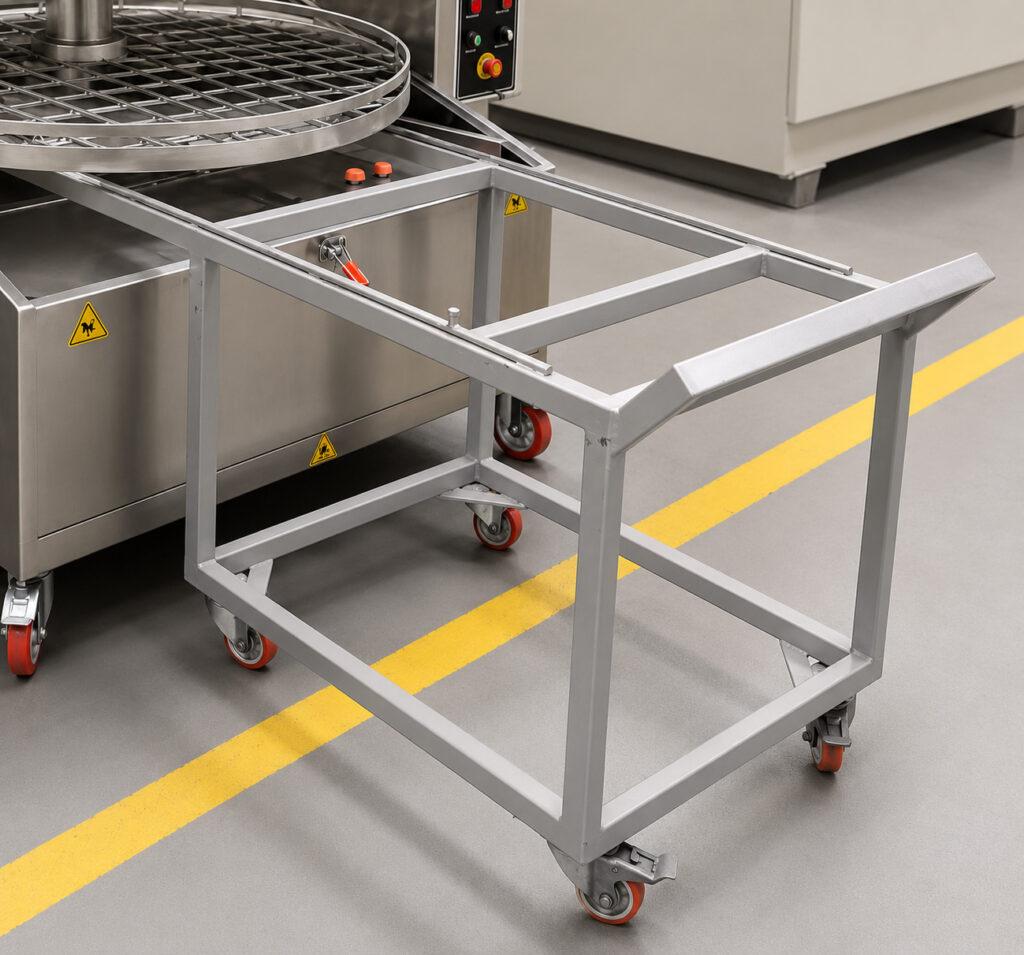

Loading Cart
Included
Pump Pressure
45 PSI
HP
3 HP x 2
Heat
15 Kw
Oil Skimmer
Included
