Stainless Steel Table Washer WSSW7235

The Winona Van Norman SSW7235 Stainless Steel Washer is engineered for ultra-large, high-volume cleaning of the biggest engine blocks, cylinder heads, and industrial components. Its extra-large 72-inch diameter by 35-inch high cleaning chamber, combined with a 360° high-pressure spray system, delivers thorough removal of oil, grease, carbon, and debris, making it ideal for industrial rebuild shops, heavy equipment facilities, and high-production environments.

Constructed entirely from corrosion-resistant stainless steel, the SSW7235 offers long-term durability and can withstand aggressive cleaning solutions. With recirculating filtration to maintain clean wash solution and intuitive controls for adjustable temperatures and wash-cycle timers, it provides reliable, repeatable, and efficient cleaning, ensuring spotless parts and smooth workflow shift after shift.

Request A Quote

Fill out the form below to request a quote for the Stainless Steel Table Washer WSSW7235.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Quick to heat and maintain temperature, these units are a great addition to any shop floor looking for cleaner parts.

All machines come standard with :

  • 220V/3HP/60V cycle voltage
  • Thermostat with temp range of 0-248 F
  • Cycle timer range of 0-30 min
  • Specifically designed for washing heads, blocks and other engine components.
  • Set the time. Walk away 60-minutes cycle timer
  • 140° operational temp.
  • No waiting. 4.9 to 18 Kw electric heating elements guarantee quick-solution heat up and maintain steady temperatures throughout use.
  • Low maintenance table. Direct drive table won’t slip.
  • Range of table capacity. From 265 lbs. up to 1400 lbs.
  • No gaskets to replace. Double-lipped door seal prevents leaks.
  • No clogs. Large diameter nozzles flood parts with solution.
  • No trouble. Stainless steel construction for long life.
  • Save clean-out time. Side drains and full tanks access at the front of the machine.
  • No guessing. Operator is always in control of solution temperature with adjustable thermostat.

Options :

  • Fresh water rinse
  • Ambient dryer
  • Disk and belt oil-skimmer
  • Detergents
  • Automatic sludge dragger

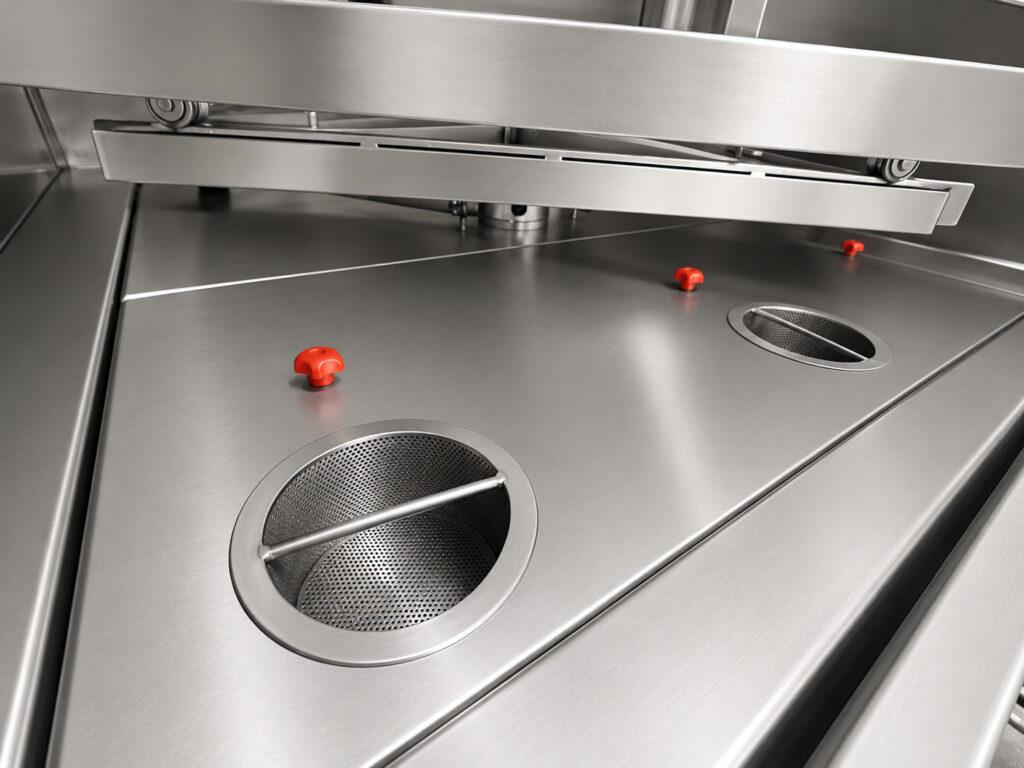

  • Built-inline canister filter for fine micron filtration
  • Power stream exhaust
  • Custom designs and multi stage

Features and Options

Overall Dimensions:
Tank Capacity:
Table Capacity:
Table Diameter:

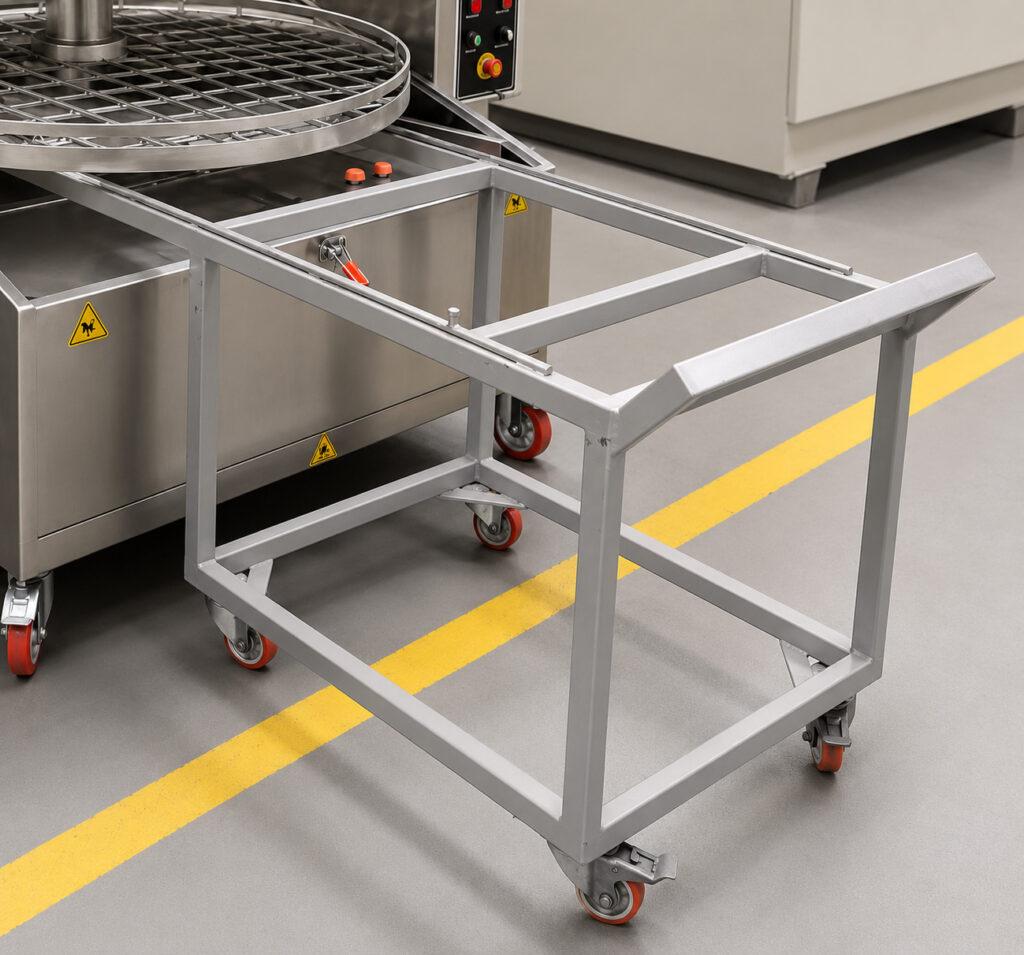

Loading Cart:
Oil Skimmer:

97″ w x 87″ d x 85″ h
105 Gallons
1,870 lbs.
72.8″
Included
Included
