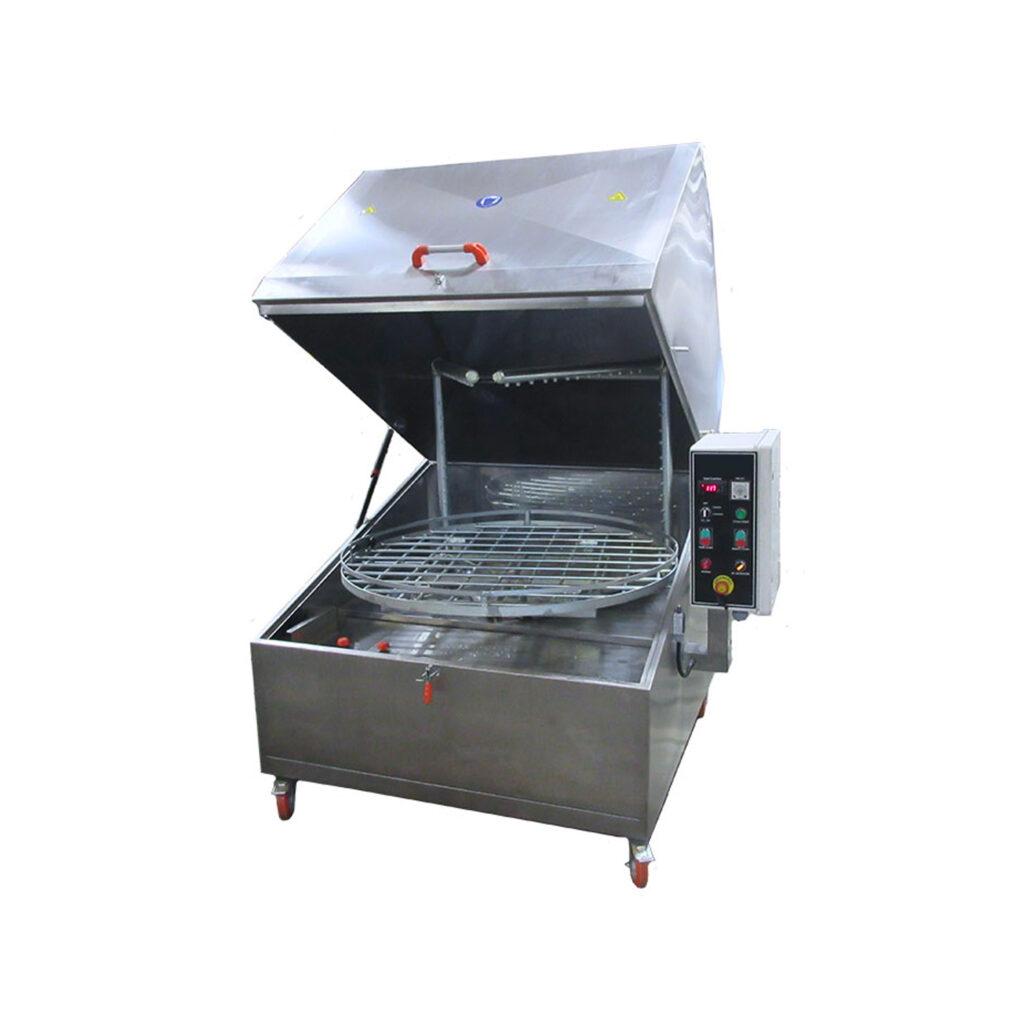

Stainless Steel Table Washer WVN4523SS

The WVN‐SSW Stainless Steel Washer line was designed specifically for washing heads, blocks and other engine components. Parts can be easily positioned on the rotating turn table where jets of hot water spray from the top, sides and bottom. The right combination of heat, power and detergent makes the WVN‐SSW line the ‘cleanmachine’ your company needs.

60‐minute cycle timer ‘No waiting’ electric heating elements assure quick‐solution heat ups and maintains the steady temperature required throughout use. The adjustable thermostat always keeps the operator in control of solution temperatures. The direct drive table is low maintenance and won’t slip. Double-lipped door prevent leaks without gaskets. Large diameter nozzles flood parts with solution. Side drains and full tank access are at the front of the washer. The WVN‐SSW Washers are built for a long service life with 10‐gauge stainless.

Request A Quote

Fill out the form below to request a quote for the Stainless Steel Table Washer WVN4523SS.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Quick to heat and maintain temperature, these units are a great addition to any shop floor looking for cleaner parts.

Loading Cart: Included
Motor Driven Table: Included
Oil Separator: Included
Material: 304 Stainless Steel
Liquid Level Control: Included

All machines come standard with :

  • 220V/3HP/60V cycle voltage
  • Thermostat with temp range of 0-248 F
  • Cycle timer range of 0-30 min
  • Specifically designed for washing heads, blocks and other engine components.
  • Set the time. Walk away 60-minutes cycle timer
  • 140° operational temp.
  • No waiting. 4.9 to 18 Kw electric heating elements guarantee quick-solution heat up and maintain steady temperatures throughout use.
  • Low maintenance table. Direct drive table won’t slip.
  • Range of table capacity. From 265 lbs. up to 1400 lbs.
  • No gaskets to replace. Double-lipped door seal prevents leaks.
  • No clogs. Large diameter nozzles flood parts with solution.
  • No trouble. Stainless steel construction for long life.
  • Save clean-out time. Side drains and full tanks access at the front of the machine.
  • No guessing. Operator is always in control of solution temperature with adjustable thermostat.

Options :

  • Fresh water rinse
  • Ambient dryer
  • Disk and belt oil-skimmer
  • Detergents
  • Automatic sludge dragger
  • Built-inline canister filter for fine micron filtration
  • Power stream exhaust
  • Custom designs and multi stage

Technical Specifications

Dimensions
69"x52"x65"
Tank Capacity
105 GAL
Table Capacity
990 lbs
Table Diameter
45.2"
Loading Cart
Included
Pump Pressure
45 PSI
HP
3 HP
Heat
15 Kw
Oil Skimmer
Included
