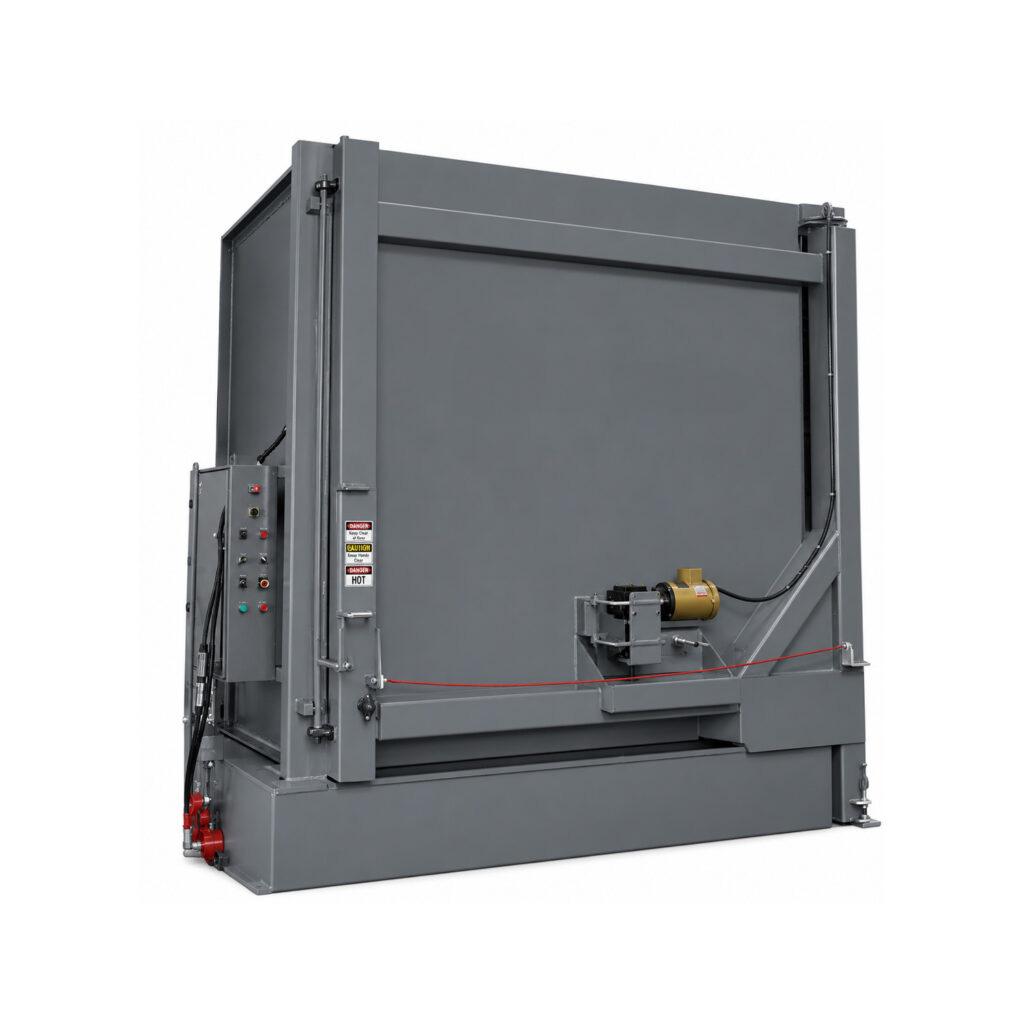

Table Washer WVN-72RWB
The Winona Van Norman 72-RWB Table Washer is a heavy-duty, high-capacity rotary parts washer designed to efficiently clean large engine components, industrial parts, and heavy equipment with exceptional consistency. Engineered for demanding engine rebuilding and industrial applications, the 72-RWB uses high-pressure heated water and detergent to remove grease, oil, carbon, dirt, and machining debris, leaving parts clean and ready for inspection, assembly, or further processing.
Featuring a 72-inch diameter motor-driven, door-mounted rotary table, the washer provides excellent support for large and heavy components while allowing easy loading with an overhead hoist. As the turntable rotates, strategically positioned high-volume spray manifolds and non-clogging nozzles direct heated cleaning solution from the top, bottom, and sides, ensuring complete 360-degree coverage of every part. The insulated cabinet and solution tank improve thermal efficiency, while available natural gas, propane, or electric heating options quickly bring the solution to operating temperature and maintain consistent cleaning performance throughout the workday.
Built with rugged steel construction for years of dependable service, the Winona Van Norman 72-RWB Table Washercombines powerful cleaning performance with operator-friendly controls and low-maintenance operation. Its large-capacity design, efficient wash system, and durable construction make it the ideal solution for facilities requiring fast, reliable cleaning of oversized engine components and industrial parts.
Request A Quote
Product Information
Operations
Specifications
Features
200 gallon solution tank
55″ working height above the table
Large volume oscillating spray manifold for faster cleaning
Non-clogging adjustable composite nozzles
Cycle timer 0 – 60 minutes
Gas models comes standard with an ecology burn-off box
Tank clear out is to the side for easy access, and slopped for easy cleaning
Sludge rakes are standard so large amounts of sludge can be removed
Door mounted rotary table
10 gauge steel construction
Standard Tooling
Features and Options
Work Envelope:
Pump:
Table Weight Capacity:
Overall Dimensions:
Heat:
Thermostat:
Oscillating Manifold:
72″ diameter x 80″ h
20 HP
5,000 lbs.
132″ l x 216″ w x 132″ h
Electric
Digital
Yes
