Tube Hone WVN-500

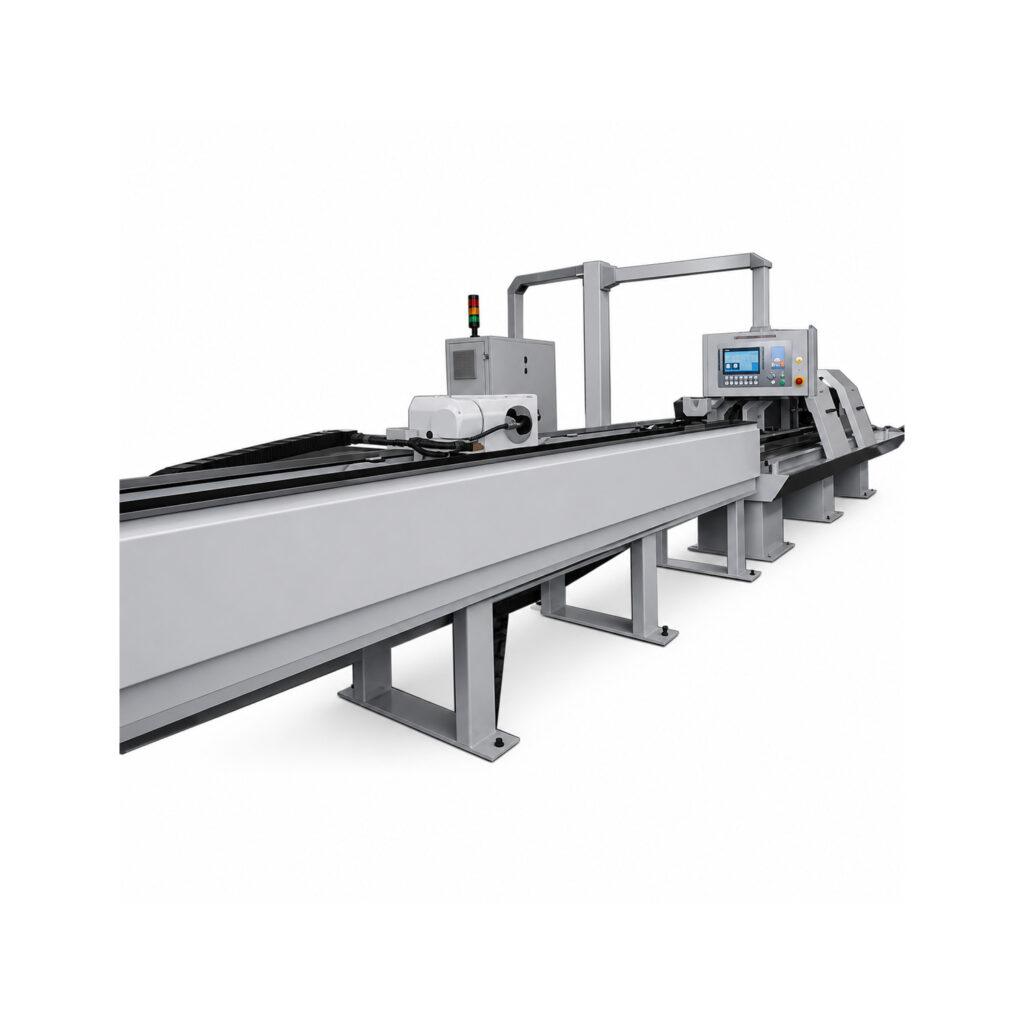

The Winona Van Norman WVN-500 Honing Machine is engineered to deliver exceptional precision, consistency, and surface finish quality for a wide range of honing applications. Designed for professional engine rebuilding, remanufacturing, and industrial machine shops, the WVN-500 utilizes a precision rotating abrasive honing system to enlarge and finish bores to exact dimensions. Whether machining engine components or precision industrial parts, it provides the accuracy and repeatability required for applications with demanding tolerance requirements.
Built for reliable performance, the WVN-500 produces consistent bore geometry, superior surface finishes, and precise dimensional control with every operation. Its heavy-duty construction minimizes vibration while promoting smooth, controlled material removal to maintain bore roundness, straightness, and size accuracy. The machine’s intuitive controls and efficient design allow operators to achieve high-quality results with minimal setup, making it well suited for both high-volume production environments and specialized precision machining.
Designed for years of dependable service, the Winona Van Norman WVN-500 combines rugged construction, precision engineering, and user-friendly operation to maximize productivity while reducing rework and downtime. Its ability to consistently deliver accurate bore sizing and exceptional surface finishes makes it an ideal solution for machine shops seeking reliable performance, repeatable results, and long-term value across a variety of honing applications.
Request A Quote
Product Information
Operations
The hone head inline movement is driven electronically. For example, the hone head rotation turns through a variable reducing motor that allows the hone head to cover the 1.58” – 32” honing range. Further, the R.P.M change is performed manually. Additionally, the hone head expansion is performed electronically by a motor and reducer directly from the control panel. There are two steady-rests, one of which is fixed at the end of the table, and the other that is adjustable to help support the work piece
Specifications
Features
The WVN-500 is known for its quick and easy setup and operation. It also features a touch screen operation panel, axial stroke and speed regulated from panel, and fast taper correction. Further, this is a low noise honing machine with a high axial and rotation torque to decrease time. Its high precision electro-mechanical expansion system is driver controlled and comes with an easy tube clamping device.
Standard Tooling
The control box is located in the center of the machine, in which the height and orientation makes it easy to access. The machine runs on an automatic preset timer cycle. This machine includes custom software tailored for your application. Standard equipment included in the WVN-500 are filters and honing oil.
Features and Options
Max. Movement of the Head:
Maximum Length of Honing:
Min. Diameter for Honing:
Max. Diameter for Honing:
Max. Diameter of Workpiece:
Max. Diameter of the Workpiece on Table:
Hone Head Rotation:
Variable Drive Velocity:
Drive Motor:
Rotation Motor:
Expansion Motor:
Pump Motor:
Pump Volume:
Voltage:
hand Controls:
Machine Dimensions:
Electrical Control Box Dimensions:
Filter box Dimensions:
Oil Deposit Reservoir:
Min. Space Required:
Machine Weight:
Maximum Stroke:
Max. Weight Admitted on Table:
252″
240″
1.58″
32″
40″
52″
13 – 350 RPM
18′ – 98′ / minute
10 HP
7.5 HP
1 HP
0.75 HP
16 Gallons / minute
230V/3PH/60HZ
120 VAC
59′ x 3’3″ x 6’7″
32″ x 20″ x 40″
40″ x 24″ x 20″
50 Gallons
62′ x 10′
7.875 lbs.
N/A
10,000 lbs.
