Table Washer WVN-36RWB
The Winona Van Norman 36-RWB Rotary Table Washer is a high-performance parts cleaning system engineered to deliver fast, thorough, and dependable cleaning for engine rebuilding, remanufacturing, and industrial applications. Designed to remove grease, oil, carbon, dirt, chips, and other contaminants, the 36-RWB utilizes a powerful spray wash system to provide consistent, repeatable cleaning results that prepare components for inspection, machining, or assembly.

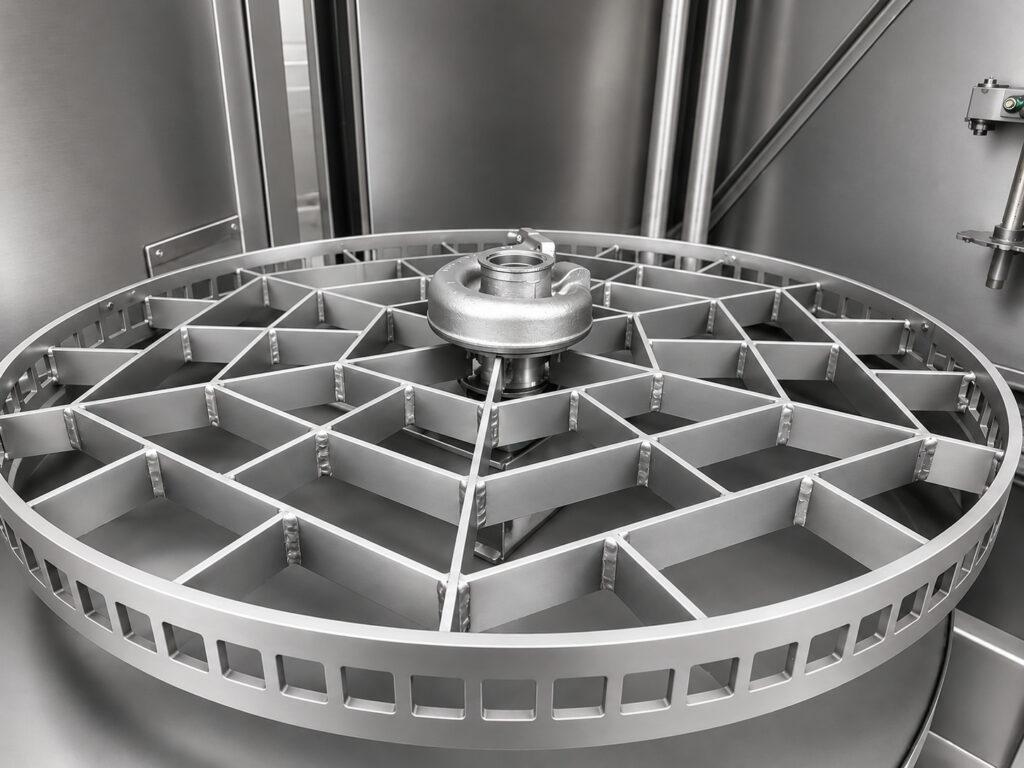

Built for durability and productivity, the 36-RWB features a heavy-duty 32-inch diameter motor-driven rotary table capable of supporting loads up to 1,000 pounds. The door-mounted turntable rolls outward with the access door, allowing convenient loading with an overhead hoist while minimizing operator effort. A large-volume oscillating spray manifold equipped with composite, non-clogging spray nozzles delivers complete cleaning coverage from the top, bottom, and sides of every component, ensuring faster and more effective contaminant removal. A built-in drip tray helps contain cleaning solution within the cabinet, promoting a cleaner and more efficient work environment.
Engineered for energy efficiency and long-term reliability, the cabinet and solution tank are fully insulated to maintain consistent operating temperatures while reducing energy consumption. Heating options include natural gas, propane, or electric, with a programmable seven-day timer and thermostat providing automatic temperature management and simplified operation. Designed with motor-driven agitation, user-friendly controls, and low-maintenance construction, the Winona Van Norman 36-RWB Rotary Table Washer delivers the cleaning performance, durability, and productivity professional machine shops rely on every day.
Request A Quote
Product Information
Operations
Specifications
Features
32″ diameter table constructed from heavy-duty grate mesh

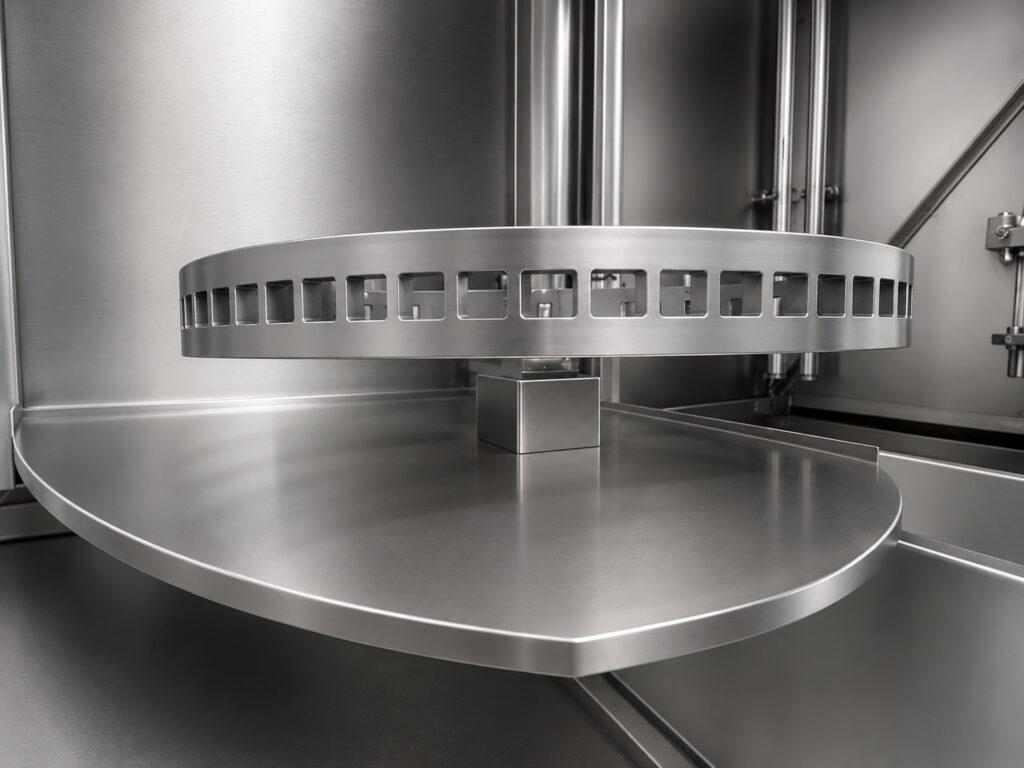

Drip tray contains solution within the cabinet

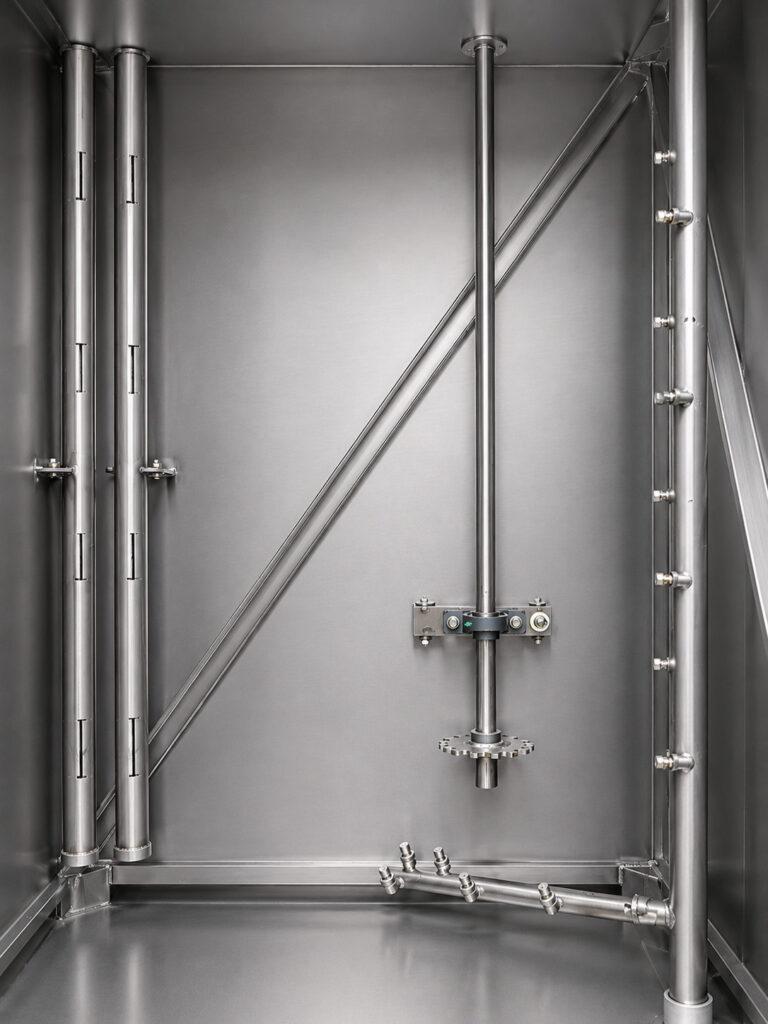

Large volume oscillating spray manifold for faster cleaning

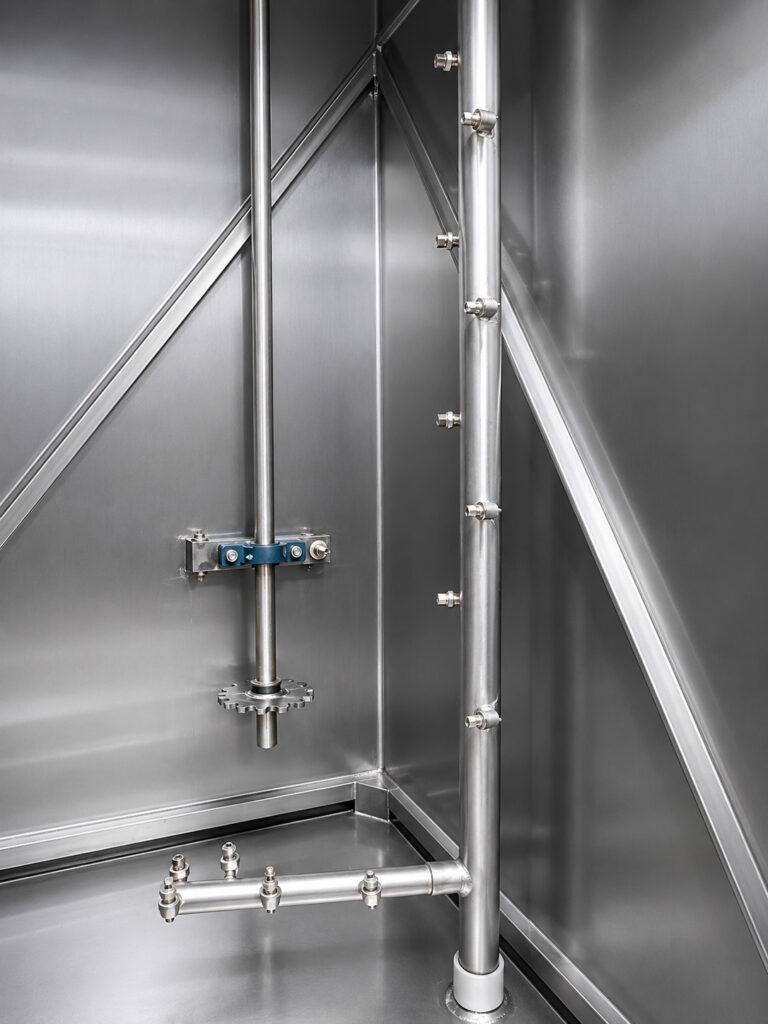

Composite non-clogging spray nozzles that direct sprays at the parts from top, bottom, and sides
Cabinet and solution tank insulated for thermal efficiency and insulation protected by steel skin
Natural gas or propane power burner, also with electric heat
Heats from ambient (60° F) to operating temperature in approximately one hour
Seven-day timer allows unattended heating
Thermostat maintains constant solution temperature.
Standard Tooling
Features and Options
Work Envelope:

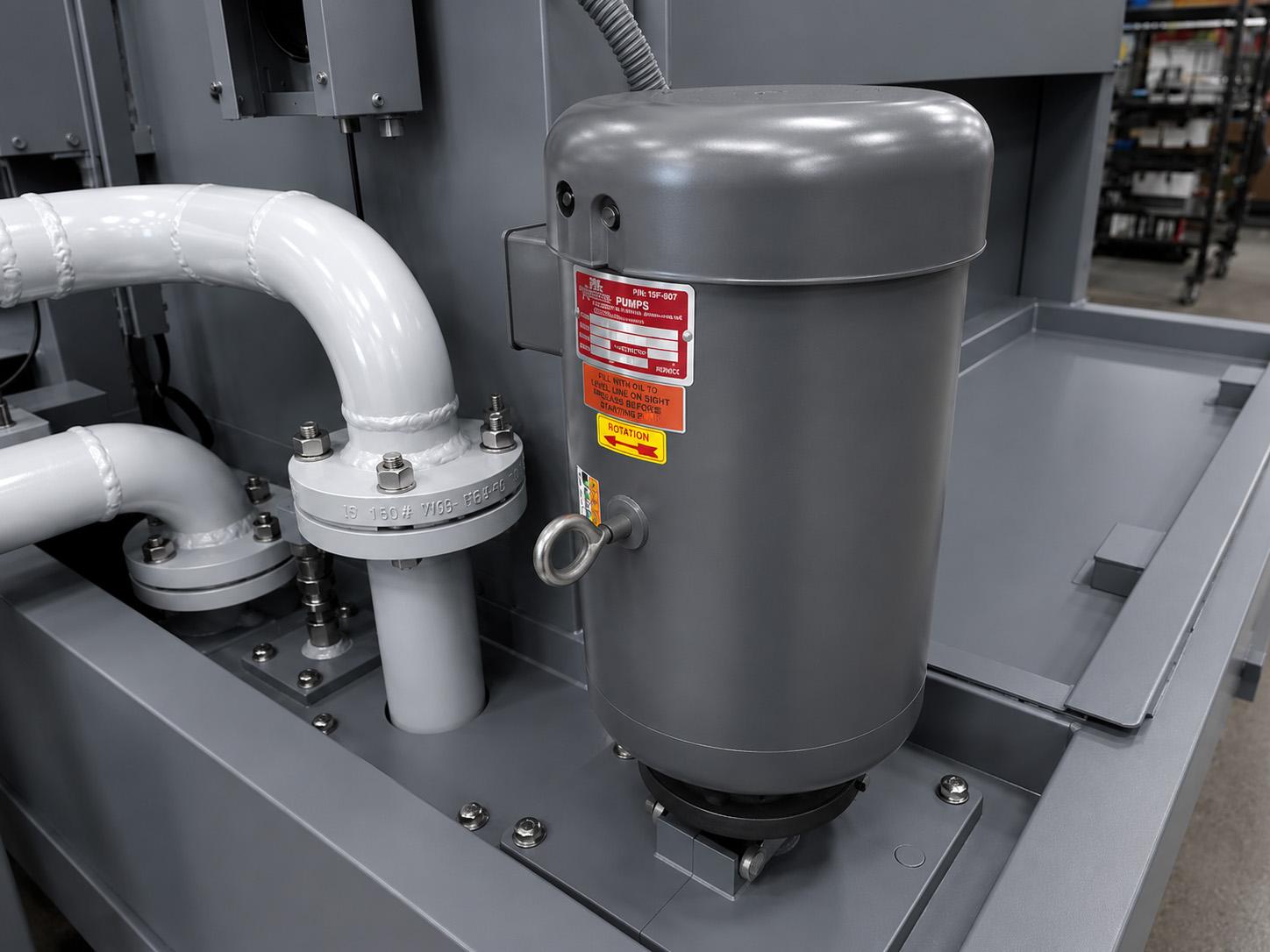

Pump:
Table Weight Capacity:
Overall Dimensions:
Heat:
Thermostat:
32″ diameter x 36″ h
10 HP
1,500 lbs.
82″ l x 100″ w x 104″ h
Gas
Digital
