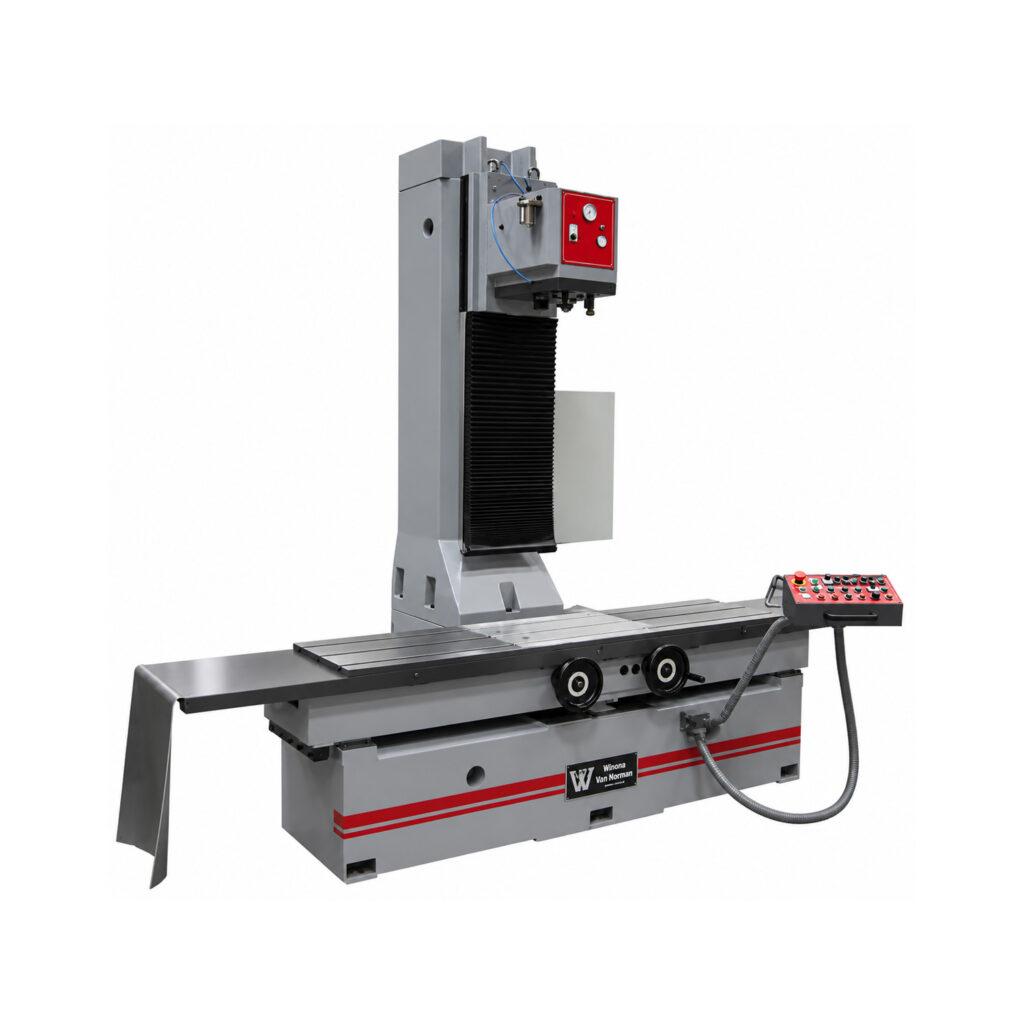

Vertical Bore VB320SF
The VB Series machines are industrial-quality boring mills designed specifically for automotive use. Their advanced design and rigid construction deliver superior accuracy over conventional boring bars. The extensive operator-convenience features greatly speed the boring process.
All VB Series machines have stationary boring heads with movable tables. Because the boring heads do not move, they are very sturdy and provide exceptional machining accuracy.
Set-up times are minimal because of the excellent universal holding fixtures and the highly functional design of the tables. They can be moved side-to-side and fore-and-aft to center each cylinder quickly even if the block is not mounted square on the table. A dial indicator integral to the boring head shows when each cylinder is centered perfectly for boring.
To extend tool life and permit close control of the surface finish, boring RPM and feed rate are adjustable through a wide range. This makes the VB Series machines very good for large overbores which require two passes. The first cut can be made very deep and fast to minimize the need for the second cut.
The micrometric manual feed allows accurate depth control for counterboring cylinder sleeves. All VB Series machines have adjustable automatic boring stops which free the operator to perform other tasks. The VB160SF has automatic retraction of the boring head while the VB420SF and VB500A have operator activated rapid retraction.
Request A Quote
Product Information
Operations
The VB 320SF has infinitely variable spindle rotation, table traverse, and boring feed. An added exclusive WVN feature is the electronic Dual Axis Variable Speed movement of the table. This allows the operator to position the work piece with joystick controls on the control panel. As a result, this dramatically reduces the effort required to center the spindle in cylinders for boring operation setup.
Specifications
Controls: Manual
Dimensions
Machine width : 122″ (3100 mm)
Machine depth : 58″ (1473 mm)
Machine height : 112″ (2845 mm)
Machine weight : 6 490 lbs (2943 Kg)
Features
Standard Tooling
The boring capacity range is 1.18″ to 14.” Maximum vertical travel of the power head is 36.3.” Standard equipment includes a 16″ CBN Milling Head, 22″ column to centerline distance at bottom of column, and 74.8″ of table travel gives ample capacity for 3412 and 3508 cat blocks.
