Ultrasonic ULS25

Category: Ultrasonic

Winona Van Norman provides the most state-of-the-art technology available in ultrasonic cleaning. Ultrasonic cleaning is a highly effective cleaning method that uses high-frequency sound waves to remove contaminants from objects submerged in a cleaning solution. This technique is widely used in various industries for its ability to clean complex and delicate items thoroughly without causing damage.

Request A Quote

Fill out the form below to request a quote for the Ultrasonic ULS25.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

The method of cleaning parts by the high-frequency sonic waves that induce a phenomenon called cavitation makes it possible to clean parts with all shapes, sizes and technical complexities, penetrating holes and cavities that are nearly impossible to reach using other methods.

The most effective cleaning in heavy-duty applications

Cleans openings less than 0.04″

Modular design that adapts to your production line

No damage to parts or equipment

Maintains a clean work environment

Nonabrasive method

Easy to use & low maintenance

Less detergent consumption and waste treatment

Savings on labor cost as the machine is competitive

Robust heavy duty design

Complements your existing processes

80% of time savings

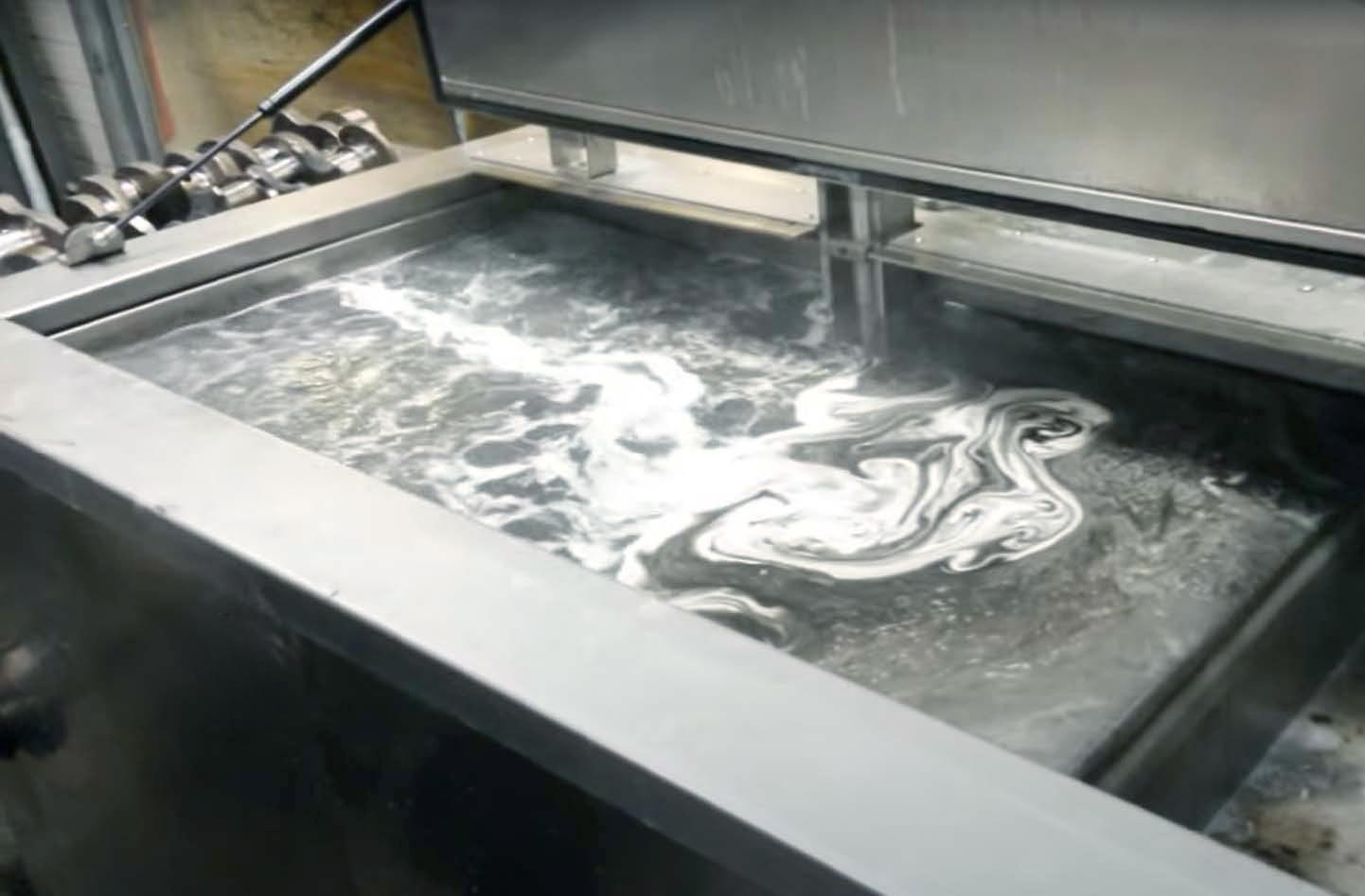

Oil separation with custom LS fluid dynamics of laminar flow.

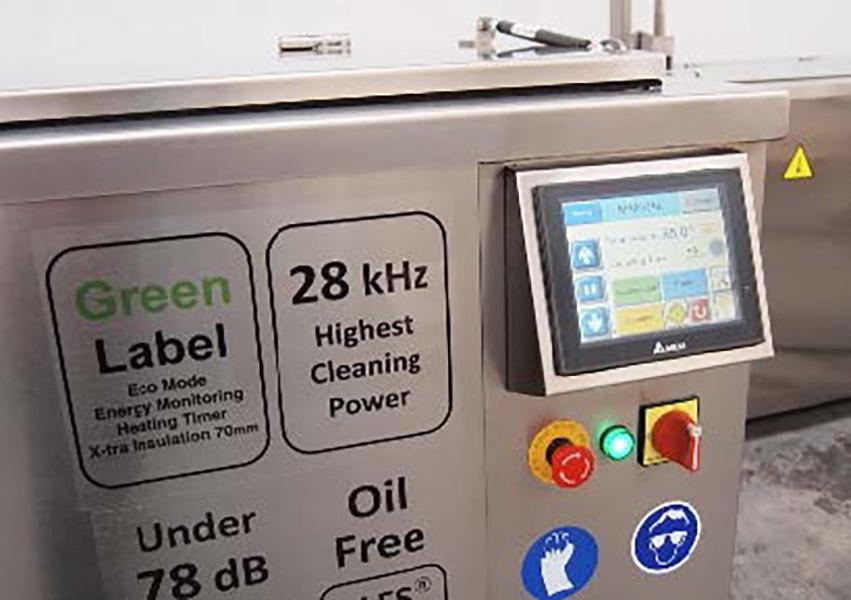

Green label features : insulated & perimeter sealed top lid – 2″ thermal & acoustic insulation – automatic nightly eco mode.

Digital & synchronized 28 Hz generators with sweep frequency programs for higher performance and smoother cavitation.

Replaceable 1 kW transducers sets. (screwed assembly at all sizes from 4 gal.)

Floating/PEEK water sensor level to protect heating system from boil-dry.

Insulated top lid.

Technical Specifications

Tank Dimensions (LxDxH)
23.6"x15.7"x18.3"
600x399x465 mm
Tank Gal
26
Loading Tray Dimensions
21.6"x12.6"
549x320 mm
Ultrasound Power
1 kW
Heating Power
3.75 kW
Lift Max Load
110 lbs
50 Kg
Automatic Top Lid
No
