Surface Milling / Grinding – SMXL

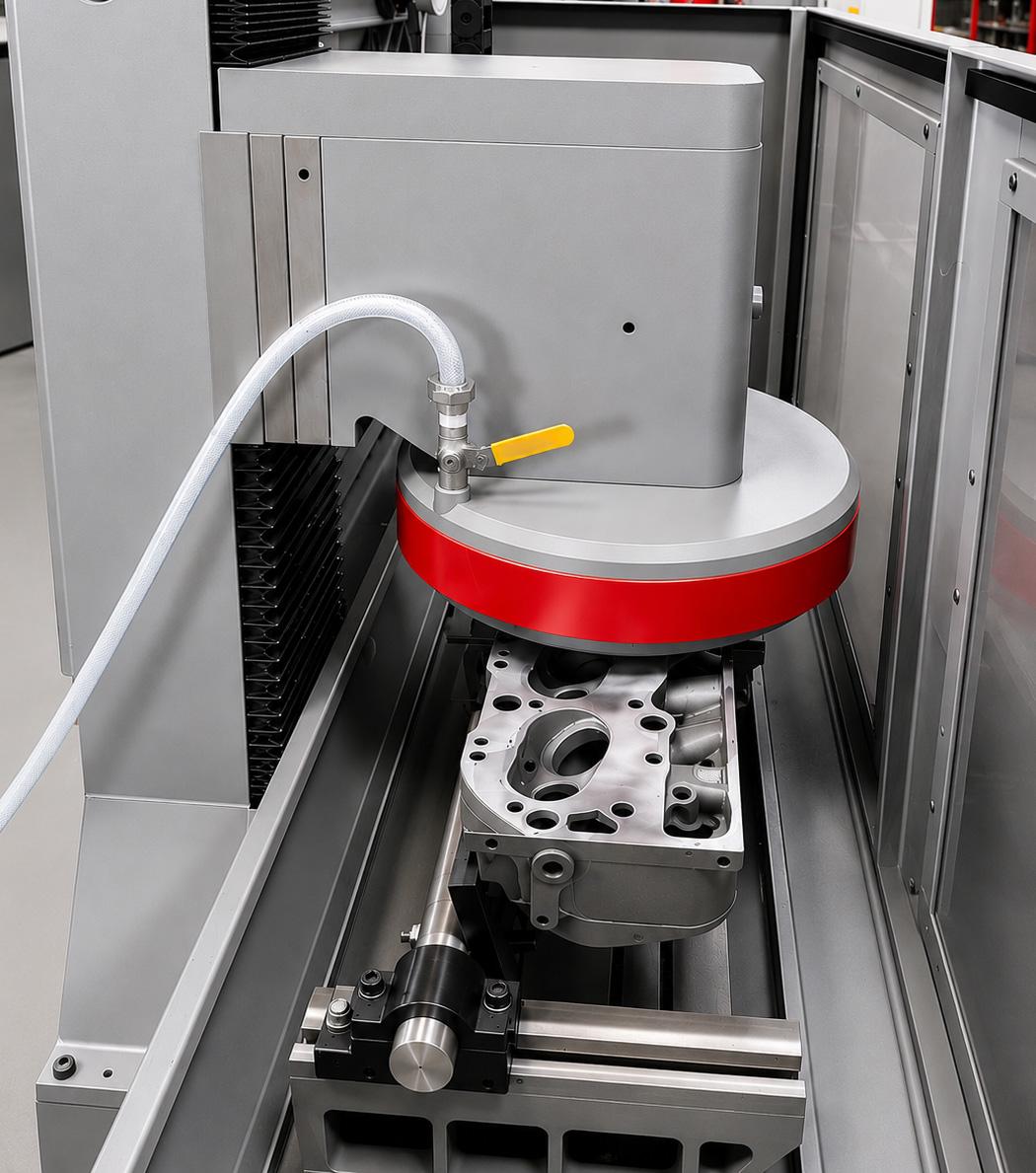

The Winona Van Norman SMXL Surface Milling / Grinding Machine is engineered to deliver exceptional precision, power, and versatility for resurfacing cylinder heads, engine blocks, manifolds, and other flat engine components. Combining high-performance milling and grinding capabilities into one machine, the SMXL allows machine shops to quickly transition between operations while consistently producing accurate surface finishes that meet the demanding requirements of modern engine rebuilding.
Built around a rigid, heavy-duty frame, the SMXL provides smooth, vibration-free operation for superior machining accuracy and repeatable results, even during demanding production schedules. Its advanced controls, precision table travel, and optimized material removal capabilities help maintain critical tolerances while improving productivity and reducing setup time.
Whether servicing automotive, diesel, industrial, agricultural, or high-performance engines, the Winona Van Norman SMXL delivers the durability, efficiency, and precision professional machine shops rely on to produce reliable, high-quality resurfaced components.
Request A Quote
Product Information
Operations

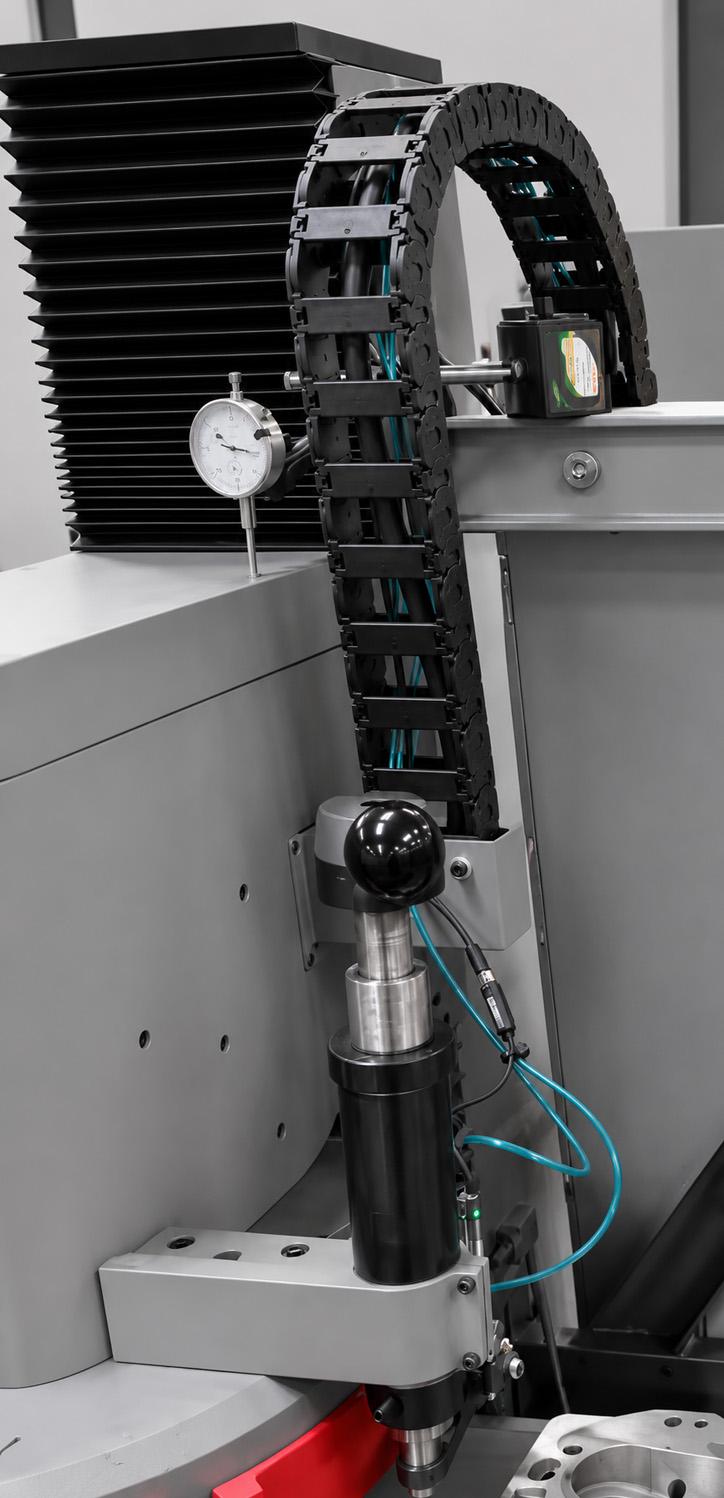

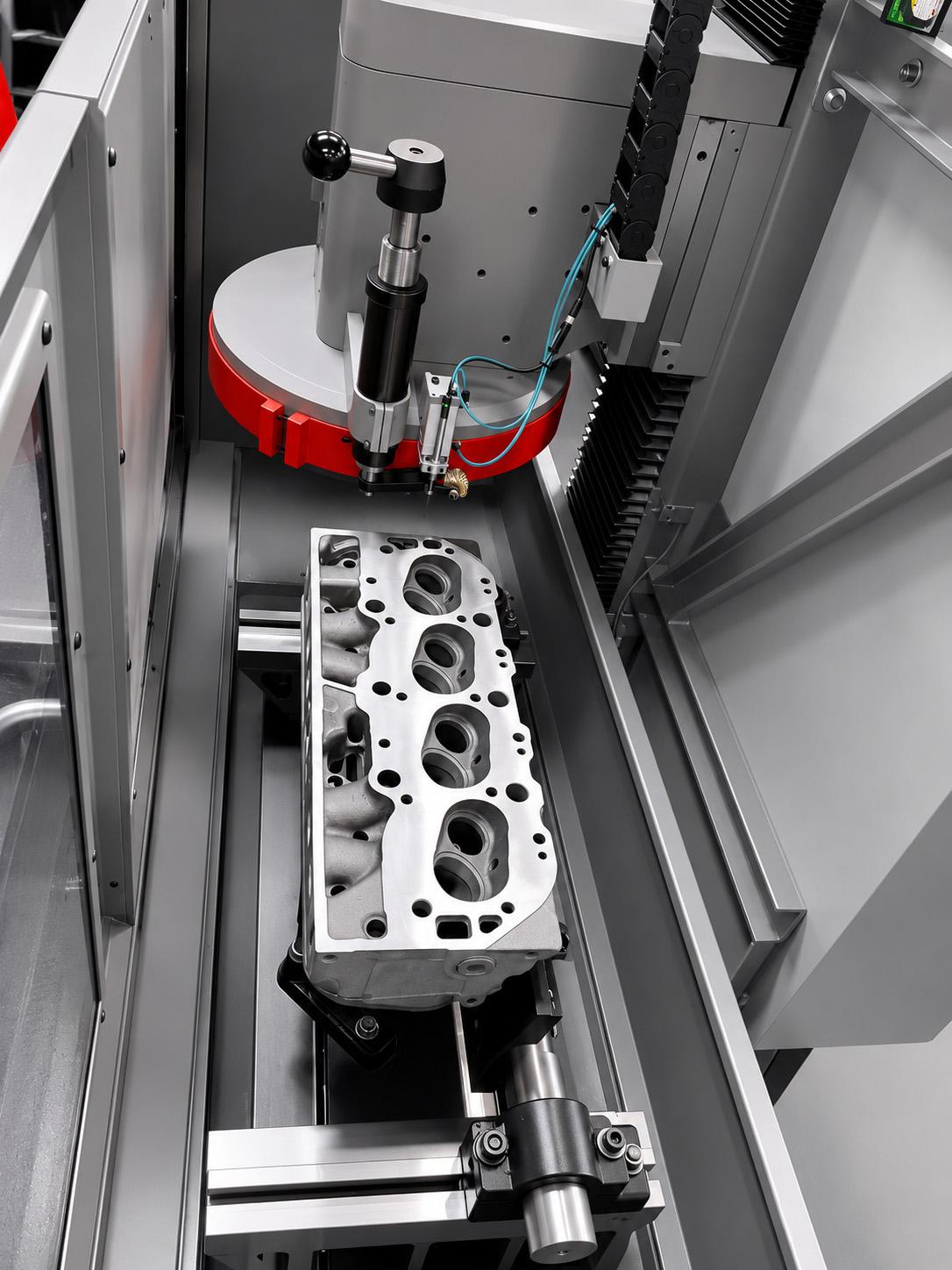

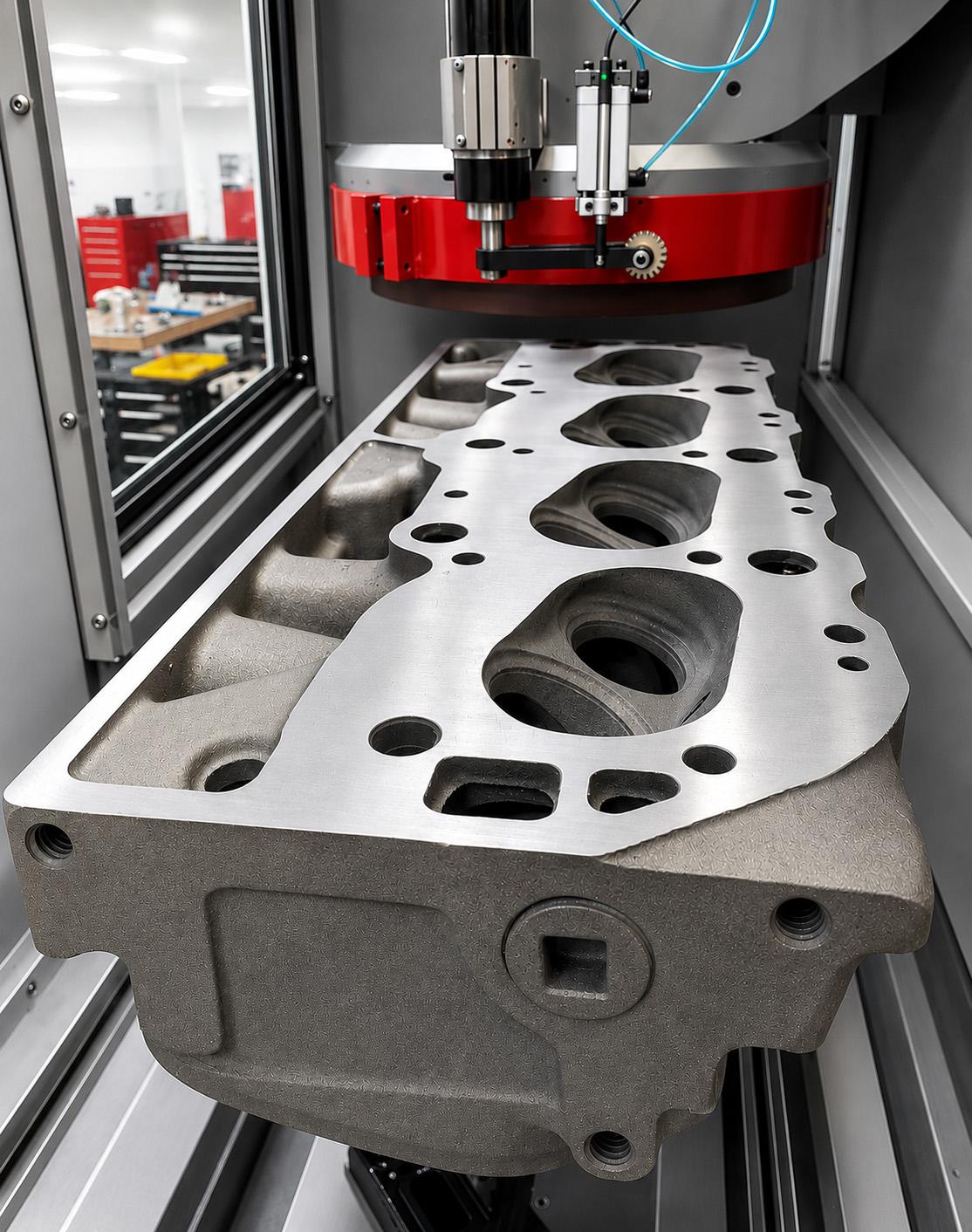

The automated probing fixture identifies the workpiece height, and the automated digital measurement probe compensates for uneven surface heights. Ultimately, making the SMXL the fastest floor to floor machine on the market.
Specifications
Features
PLC control system for easy program recall (quick milling operation)

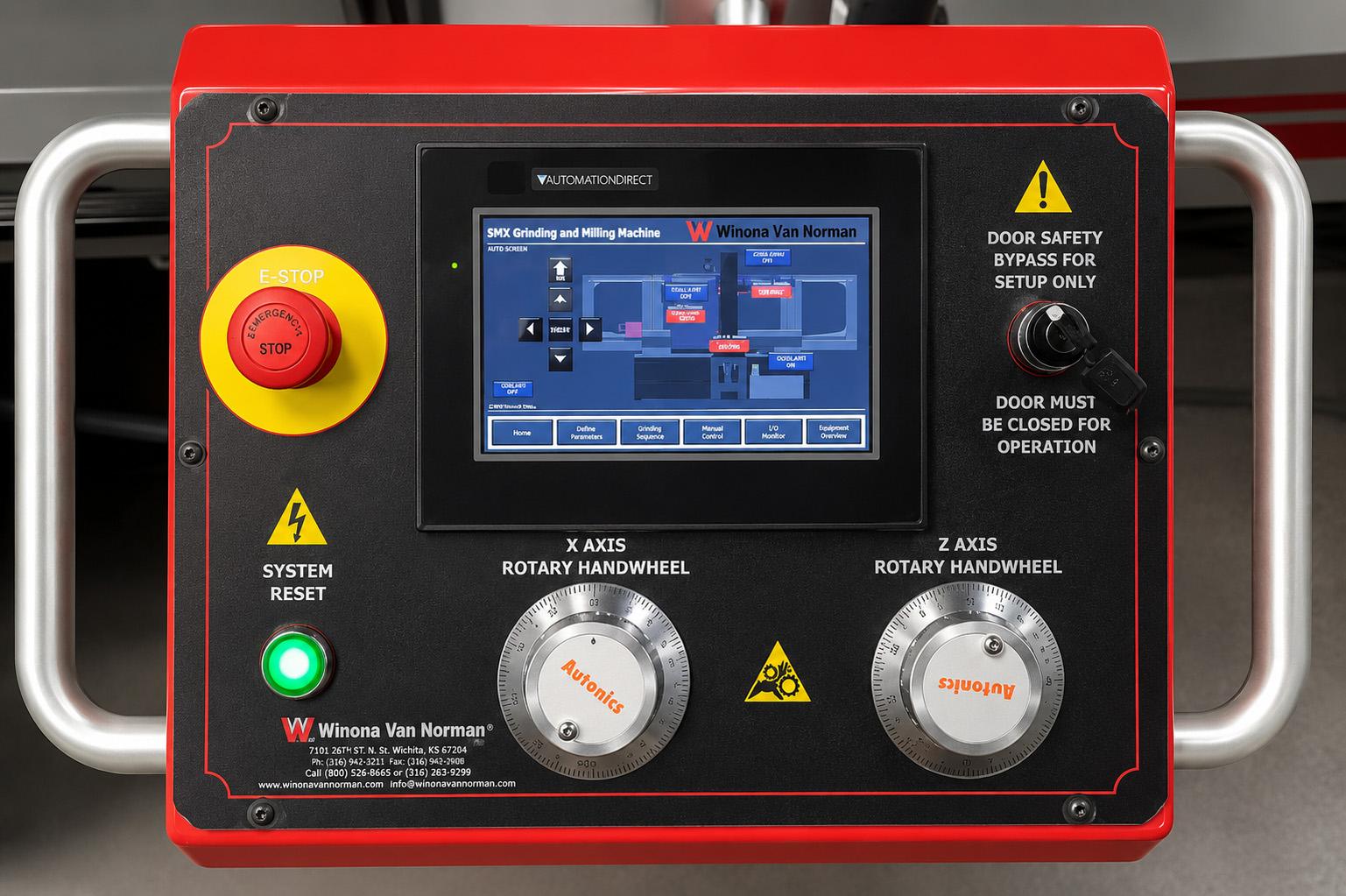

HMI with intuitive controls
Micro adjustment hand wheel
Diamond dresser
18″ CBN milling head
Dual CBN tool holders and inserts
Wheel head puller bar
Set of parallels (4.75″ x 23.5″)
Toe clamp set (4 pieces)
Edge clamp set (4 pieces)
Wheel balancing arbor
Operation manual
Standard Tooling
Features and Options
Table Travel:
Grinding Wheel Diameter:
Milling Head Diameter:
Table Length:
Wheel Head Motor:
Wheel Head Speeds:
Min. Work Height:
Max. Work Height:
Table Traverse Speeds:
Distance from Spindle CL to Column:
Coolant Motor:
Overall Dimensions:
Machine Weight:
Shipping Weight:
118″
18″ (STD)
18″ (STD)
64″ (Length of T-Slots)
10 HP
300 – 1,600 RPM (Variable Speeds)
5.25″
36.3″ (Without Parallels)
0 – 180″ / minute
15.38″
0.125 HP
125″ l x 74″ w x 90″ h
8,300 lbs.
9,100 lbs.
