Rod Boring / Grinding RB700

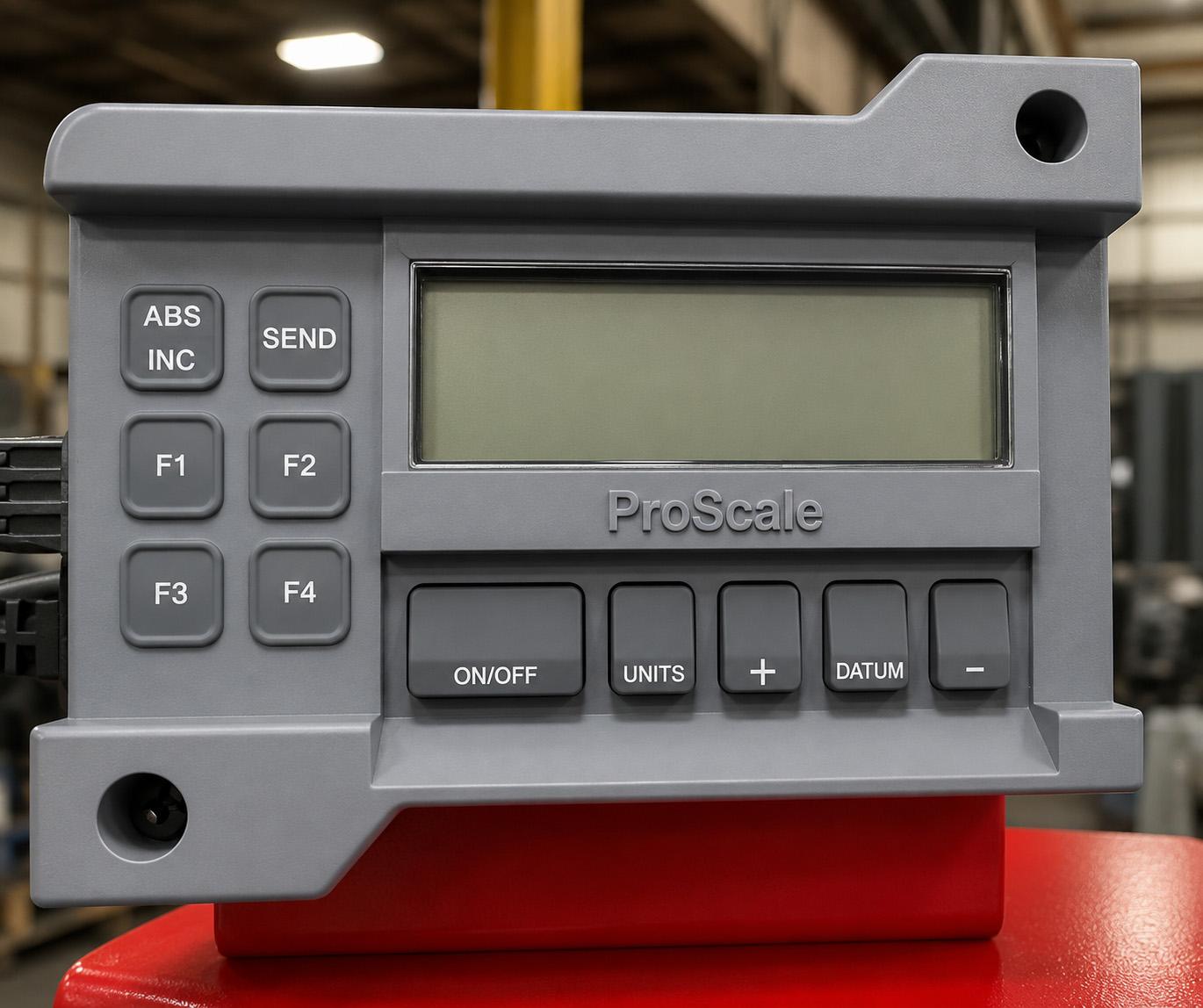

Variable boring spindle speed with electronic varistor and digital readout
Request A Quote
Fill out the form below to request a quote for the Rod Boring / Grinding RB700.
Product Information
Operations

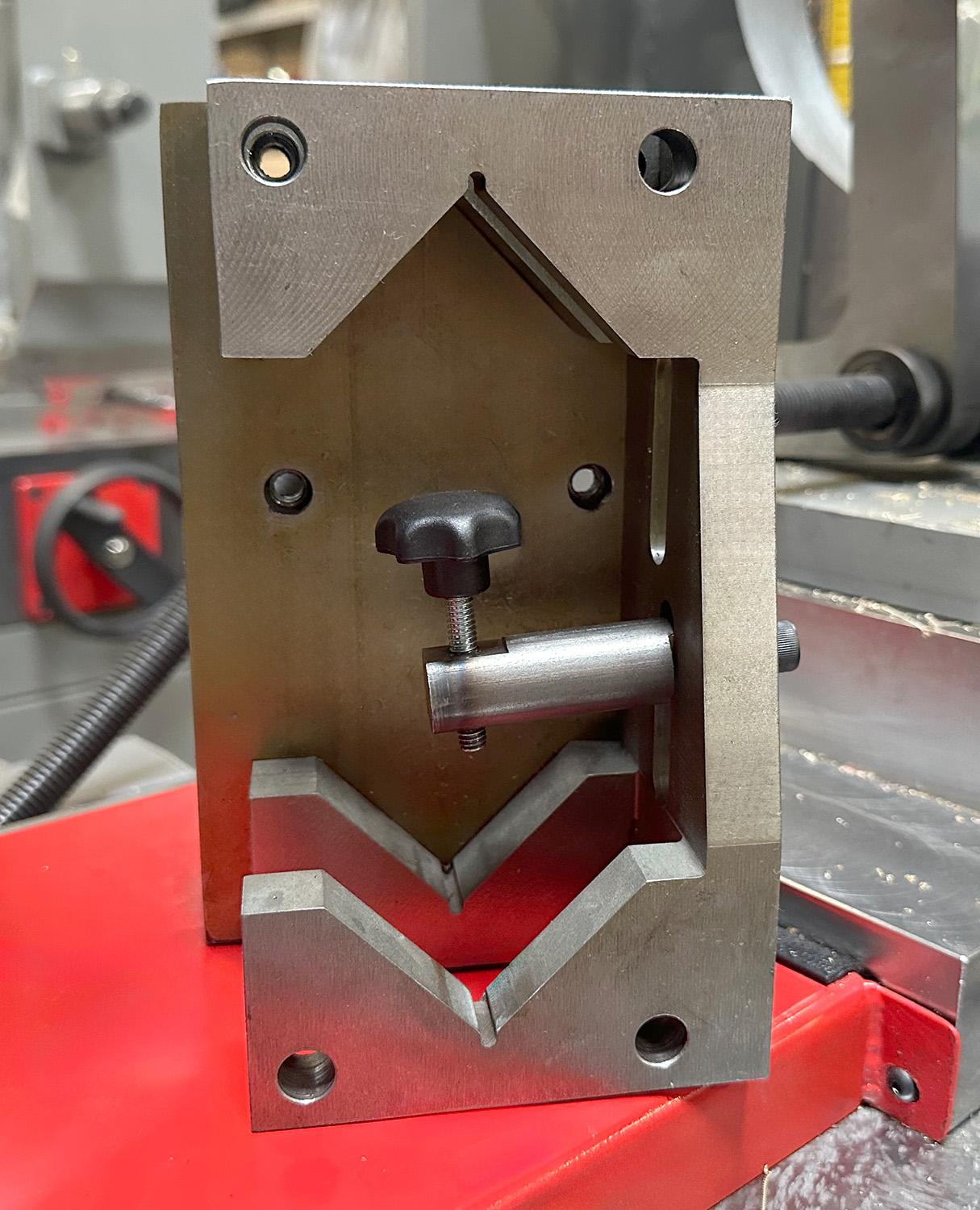

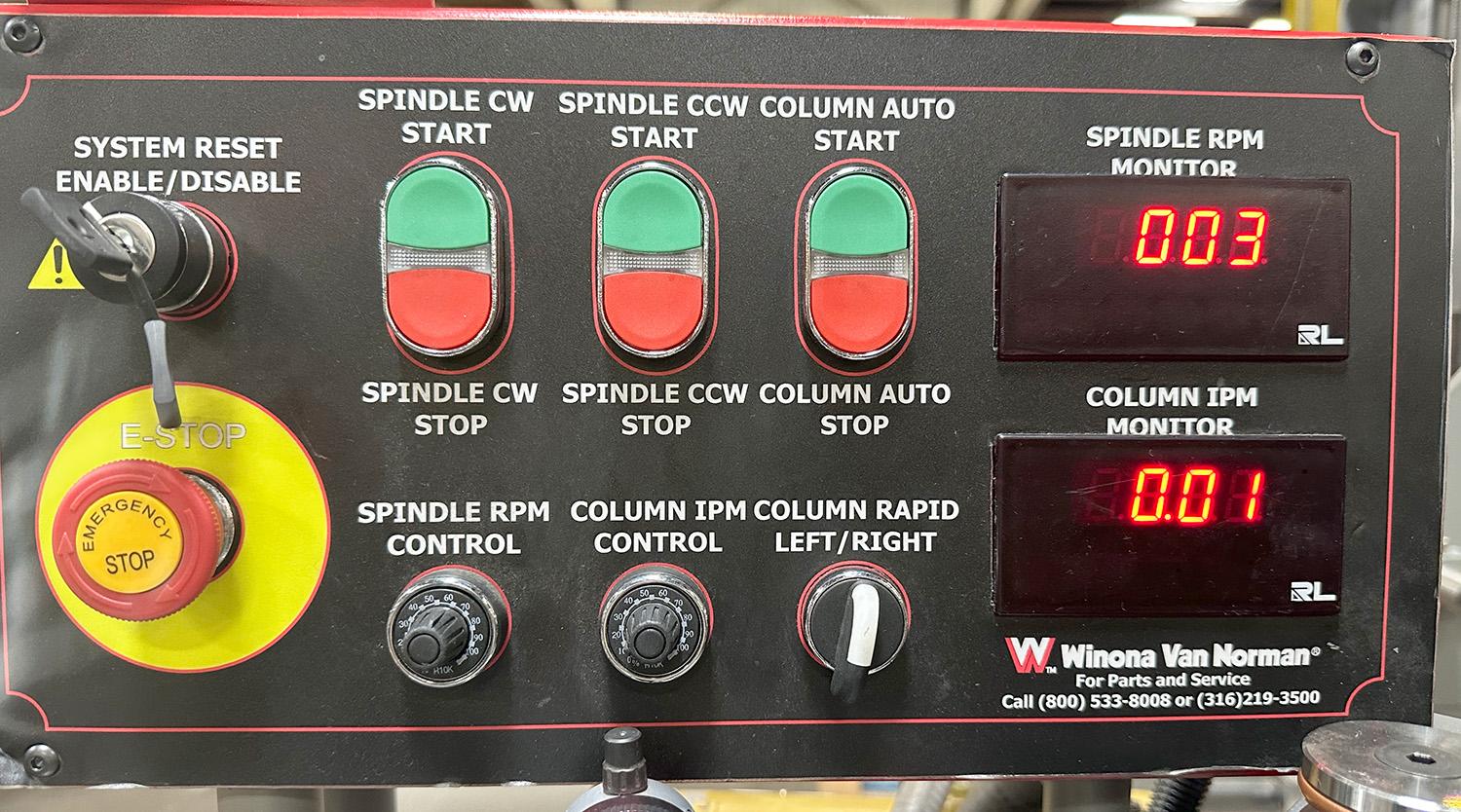

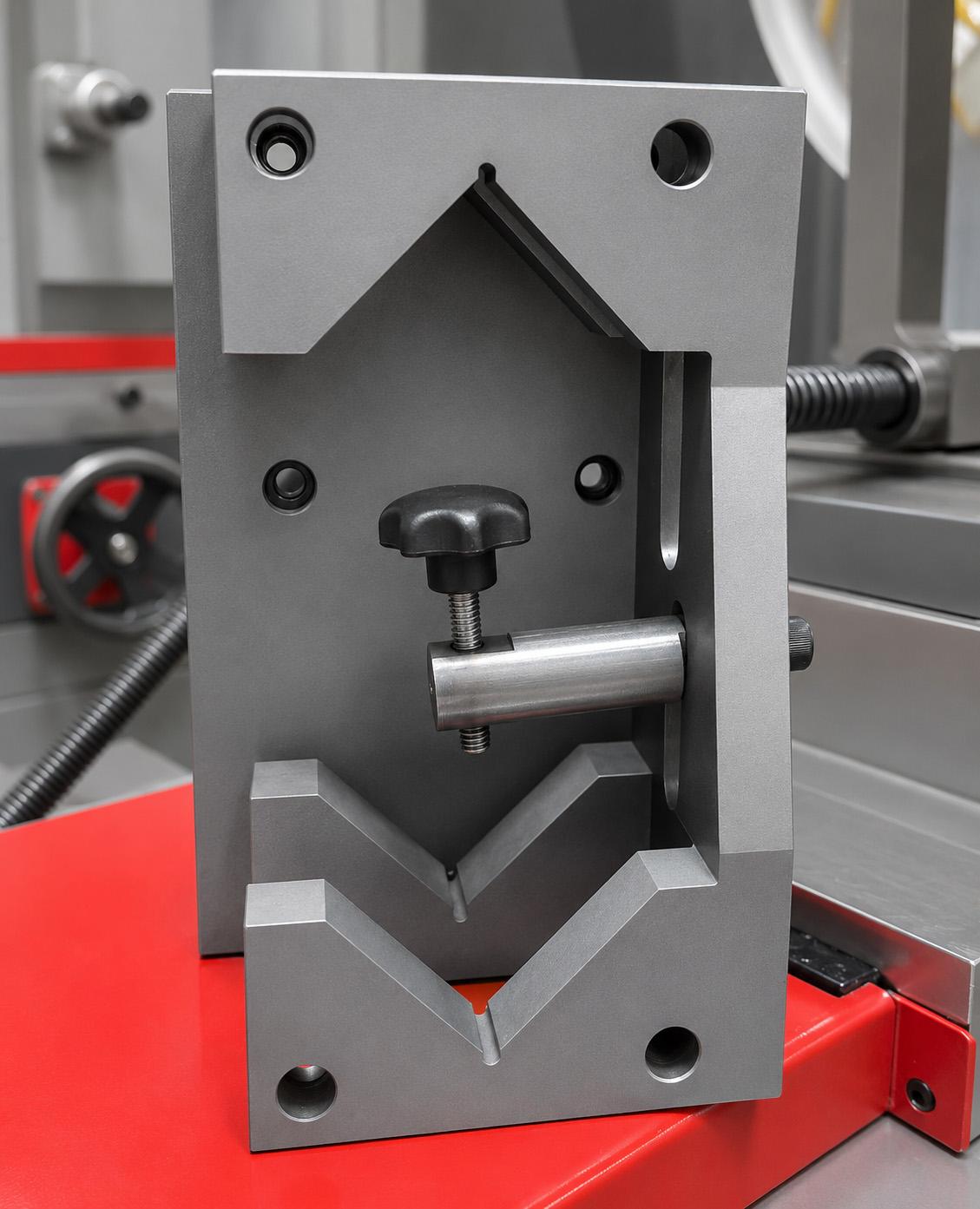

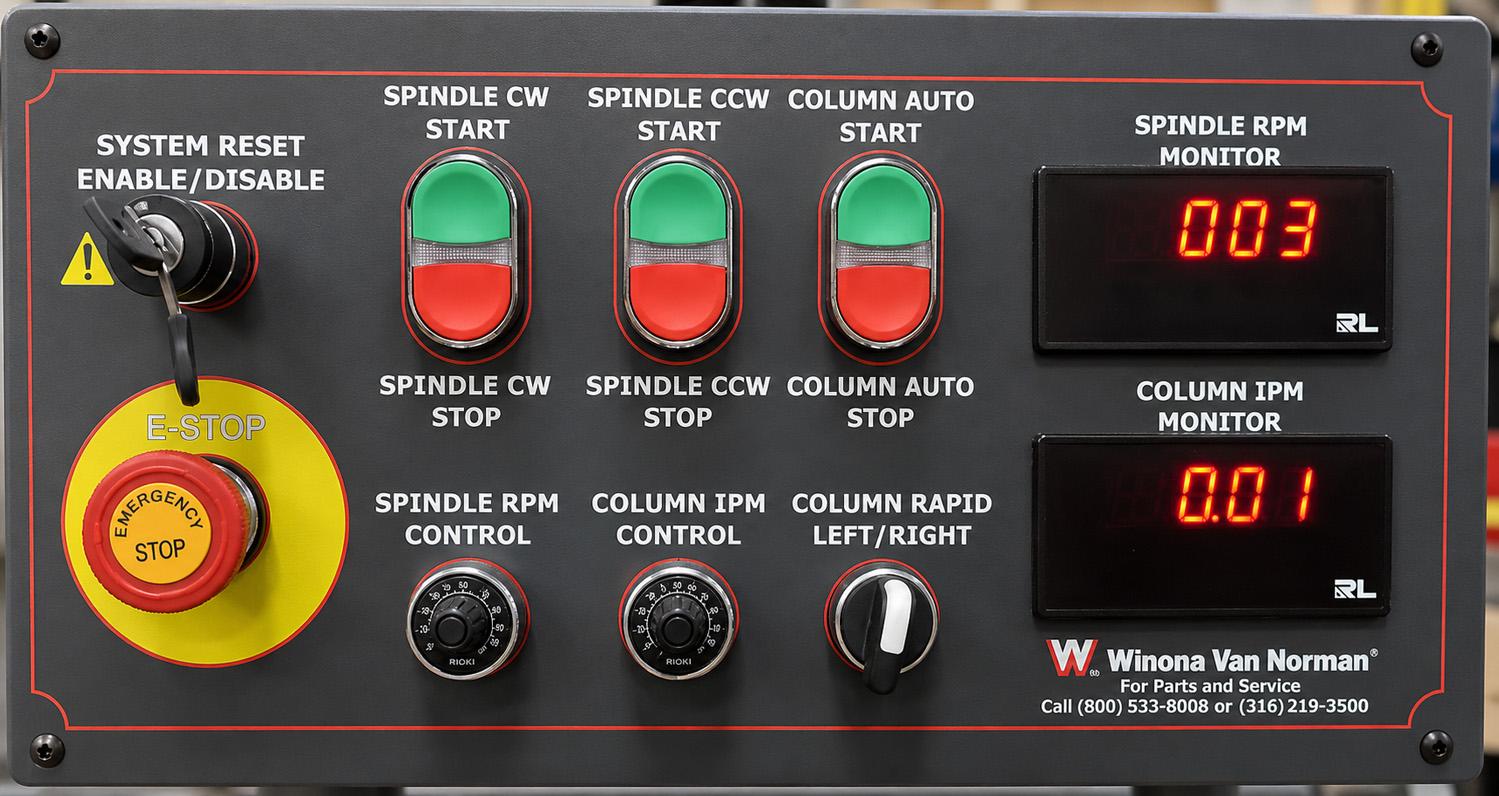

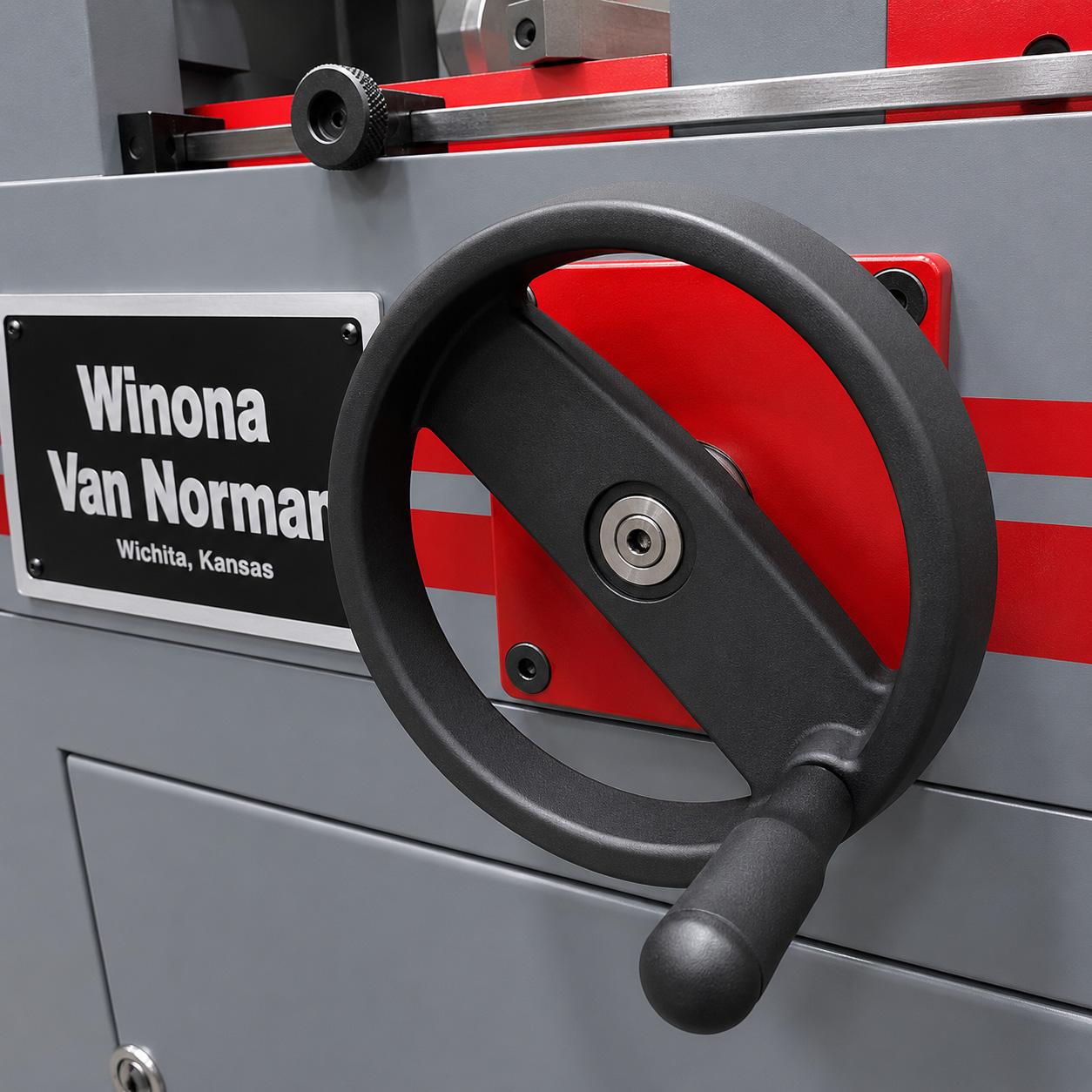

24V electrical control system, square with manual adjustment and variable automatic transversal adjustment for holding connecting rod, for fast and accurate centering.
Specifications
Features

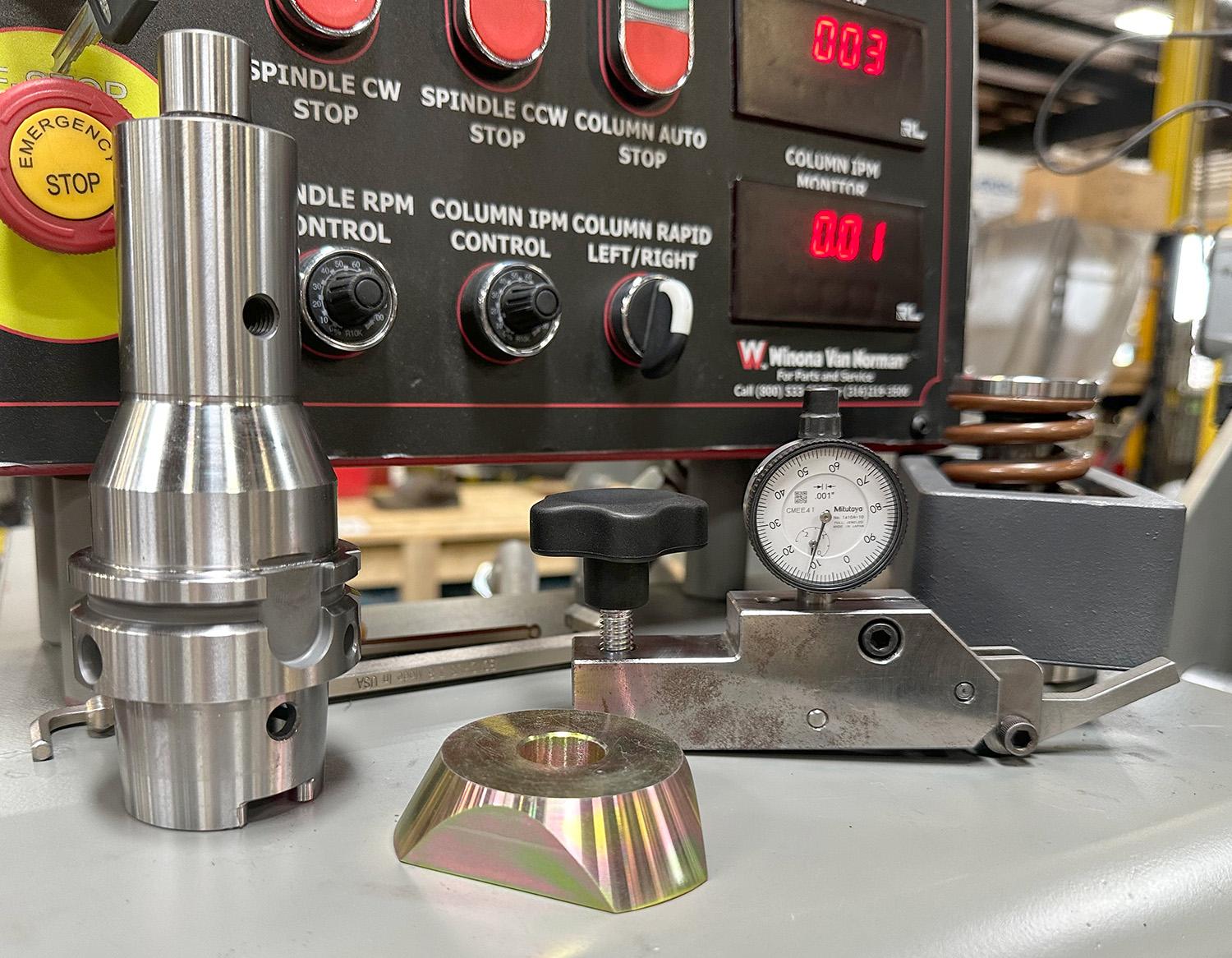

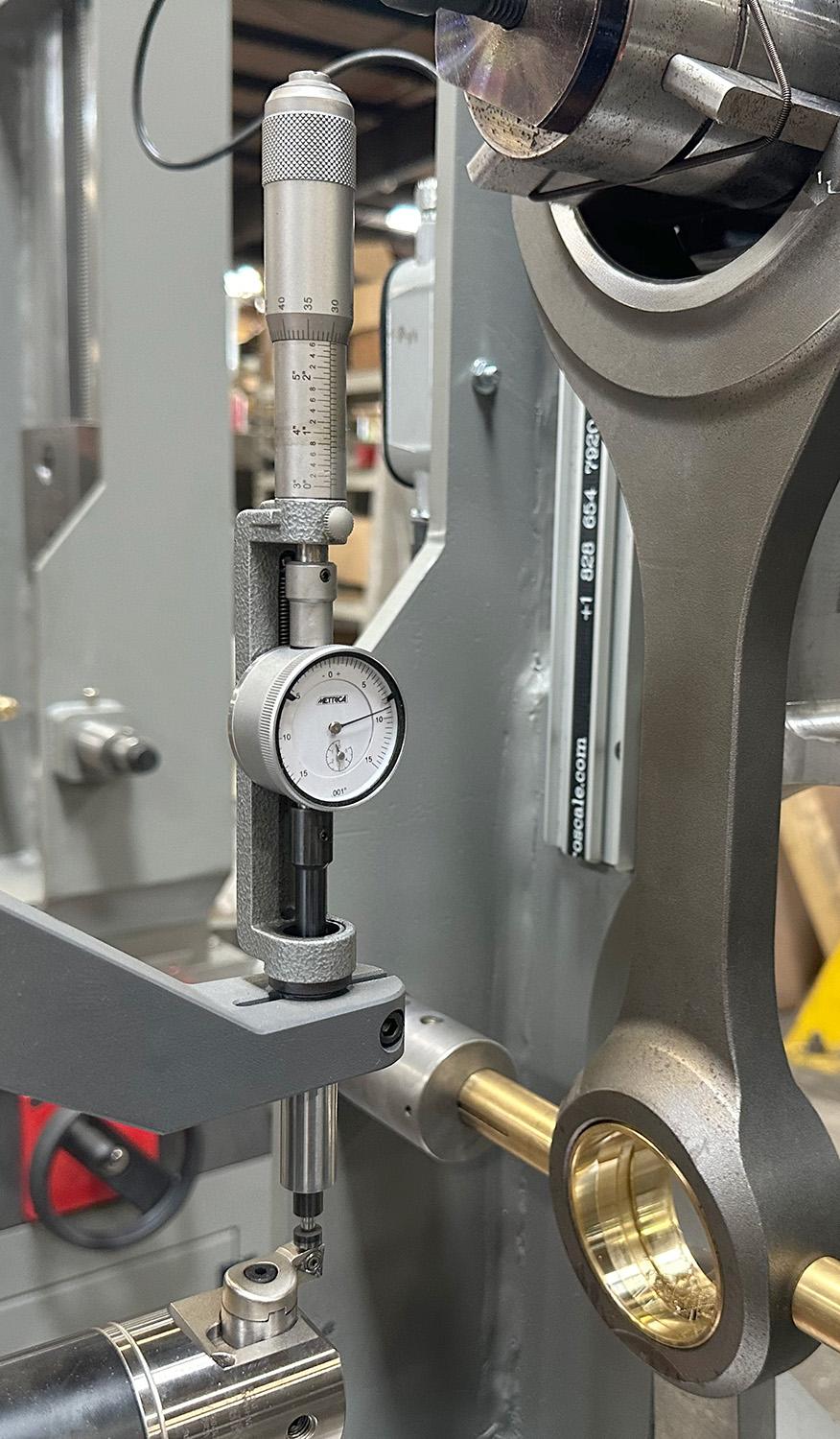

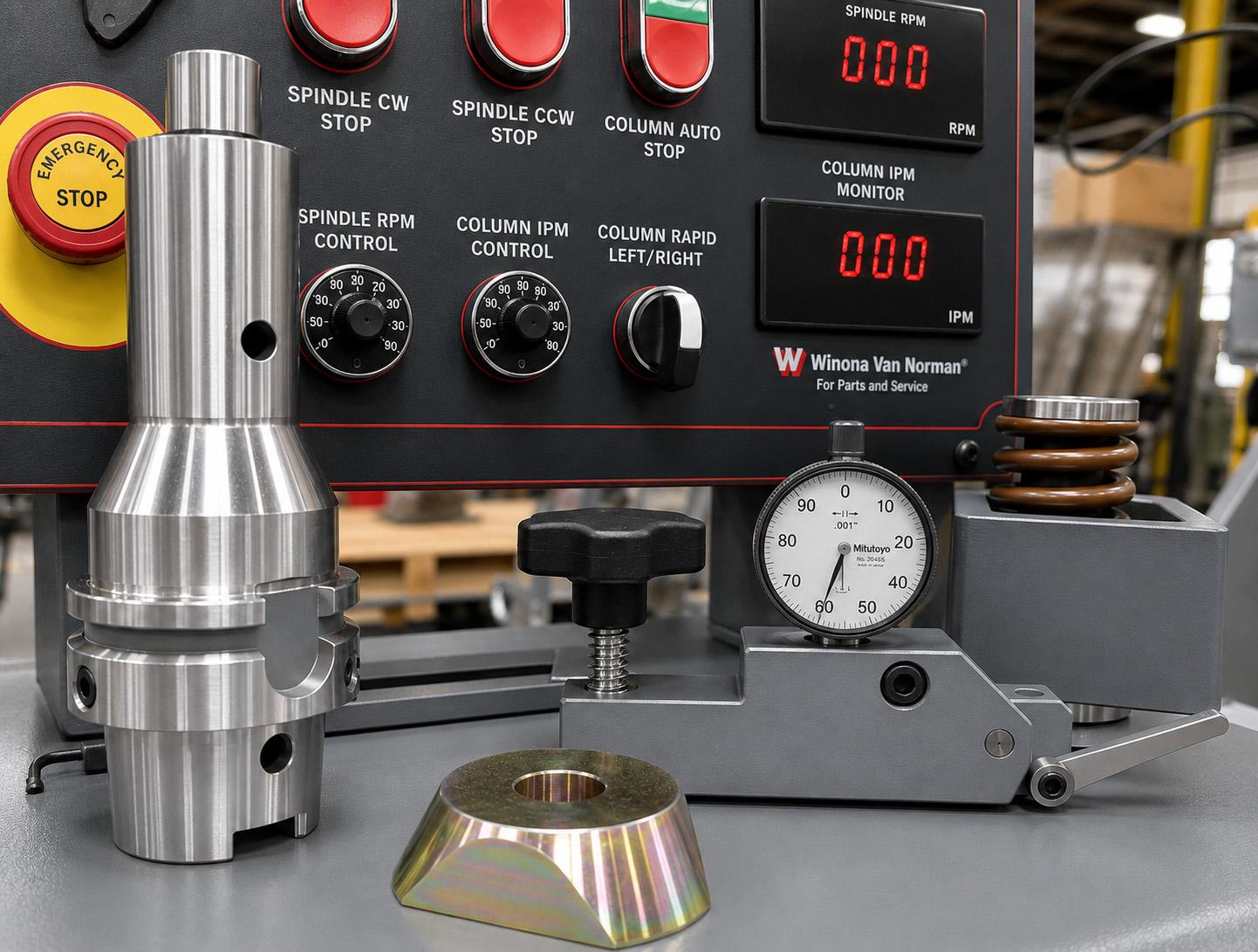

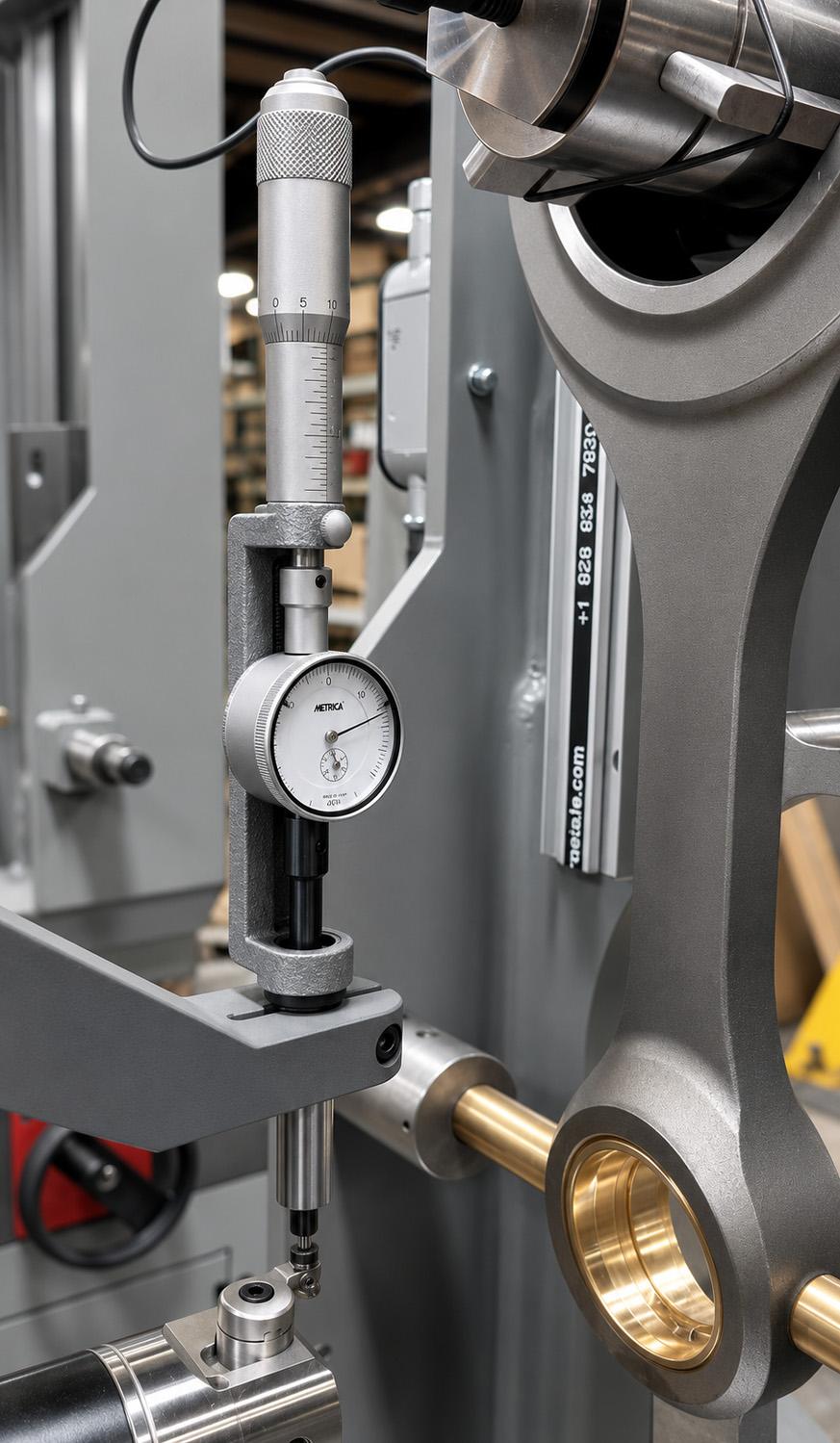

Electric limit switch to automatically set the boring depth. The standard version is equipped with an electronic variable feeding speed, centering device with dial gauge, and tool setting and calibrating device.
Standard Tooling
Technical Specifications
Spindle to Table Distance
5.9 in
150 mm
Minimum Boring Diameter
0.6 in
15 mm
Maximum Boring Diameter
6.3 in
160 mm
Minimum Grinding Diameter
N/A
Maximum Grinding Diameter
N/A
Minimum Center to Center Capacity
3.15 in
80 mm
Maximum Center to Center Capacity
25.6 in
650 mm
Spindle Rotation Speed
0-1200 RPM
Grinding Wheel Revolutions
N/A
Grinding Wheel Rotation
N/A
Feed Rate
0.47-5.9 in/min
12-150 mm/min
Grinding Movement
N/A
Maximum Rod Carriage Travel
12.6 in
320 mm
Boring Motor
2 HP
Table Motor
0.1 HP
Rotation Motor
N/A
Revolution Motor
N/A
Coolant Pump
N/A
Length
55 in
1400 mm
Width
27.5 in
700 mm
Height
77 in
1950 mm
Approx. Machine Weight
1433 lbs.
650 kg
Approx. Shipping Weight
1717 lbs.
780 kg
