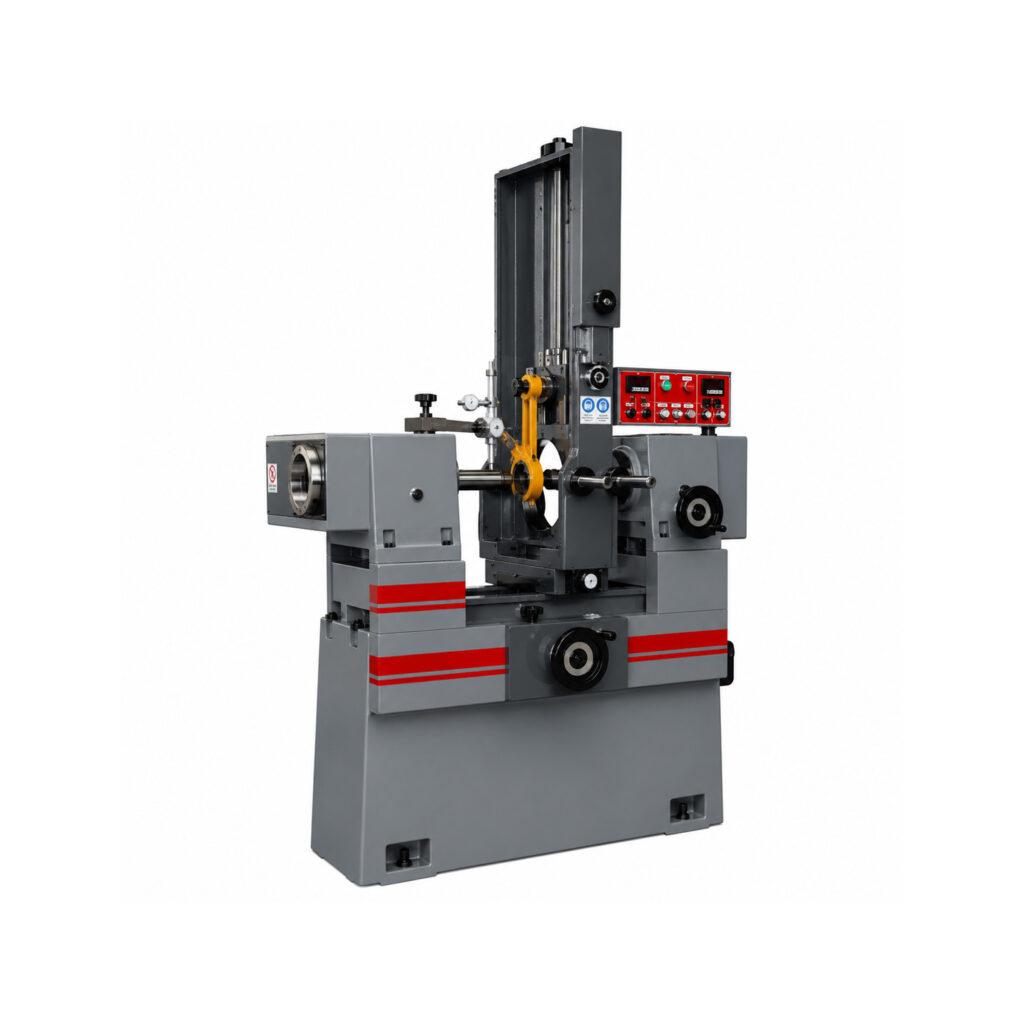

ROD BORING / GRINDING RB1500

Category: Rod Boring & Grinding

Large diesel and marine grinding

Request A Quote

Operations

Square for clamping connecting rods, centering device with dial gauge. In addition, a calibrating and tool setting device with a grinding wheel dresser and coolant system. Comes in a set of 8 tools with 12 grinding wheels for steel and 12 grinding wheels for cast iron.

Features

Specifications

Spindle to Table Distance
14.9 in
380 mm
Minimum Boring Diameter
0.6 in
15 mm
Maximum Boring Diameter
9.84 in
250 mm
Minimum Grinding Diameter
1.18 in
30 mm
Maximum Grinding Diameter
9.84 in
250 mm
Minimum Center to Center Capacity
6.3 in
160 mm
Maximum Center to Center Capacity
39.3 in
1000 mm
Spindle Rotation Speed
0-1200 RPM
Grinding Wheel Revolutions
80-160 RPM
Grinding Wheel Rotation
3300 - 4400 - 5300 - 6300 - 75000 - 9000
Feed Rate
0-6.5 in/min
0-165 mm/min
Grinding Movement
0.47 (12)
Maximum Rod Carriage Travel
16.54 in
420 mm
Boring Motor
2 HP
Table Motor
0.1 HP
Rotation Motor
1.4 HP
Revolution Motor
1.3 HP
Length
71 in
1800 mm
Width
36 in
900 mm
Height
94 in
2400 mm
Approx. Machine Weight
3792 lbs.
1720 mm
Approx. Shipping Weight
4100 lbs.
1860 mm
