Power Stroke Hone PS3301

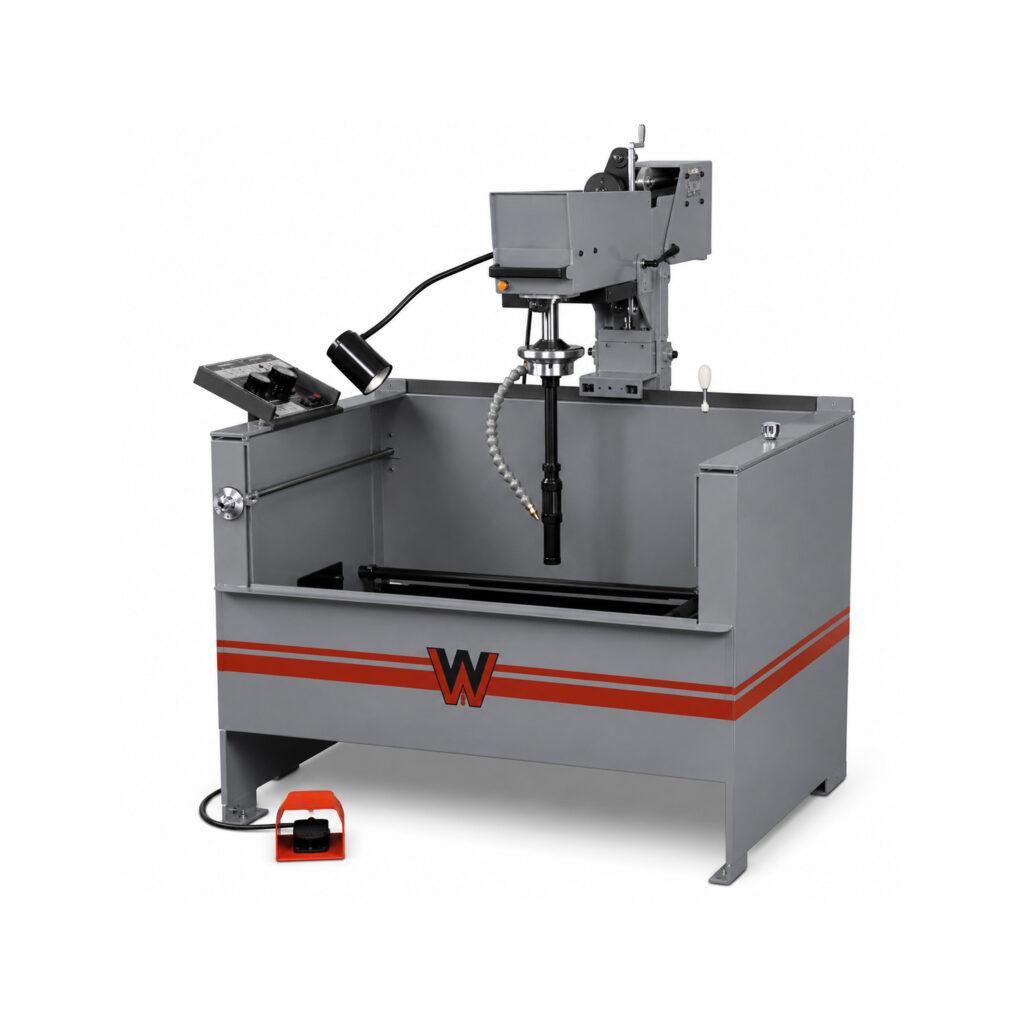

The Winona Van Norman PS2V Power Stroke Cylinder Hone is a true power stroke honing system engineered for precision honing of automotive and truck engine blocks. Designed for professional engine rebuilding, the PS2V combines advanced stroke control, smooth operation, and rugged construction to consistently produce accurate cylinder geometry and the ideal crosshatch finish required for optimal engine performance.
Featuring an adjustable stroke speed control and an air/oil-powered stroking system, the PS2V delivers smooth, consistent, and infinitely variable crosshatch angles to match a wide range of engine specifications. An adjustable positive bottom stop protects the honing head from contacting the engine block’s main webs, while the integrated rollover handle allows operators to quickly and precisely position the block for honing at virtually any cylinder angle.
To ensure superior surface finishes, the PS2V includes a dedicated honing oil filtration system that continuously supplies clean oil throughout the honing process. A convenient dwell control on the front panel allows the operator to pause the honing head anywhere within the cylinder for enhanced control and precision. Combining productivity, accuracy, and ease of use, the PS2V is an ideal solution for machine shops performing everything from standard rebuilds to high-performance engine machining.
Request A Quote
Product Information
Operations
Easy to load, you can be set up and be honing most blocks in 5 minutes.
Handcrank controls let you maneuver “V” blocks to the proper angle and position the hone head directly where you want it.
The large capacity coolant pump (8.3 GPM) gives you all the oil you need for cooling, lubrication, and cleaning.
The PS3301 comes complete with all the block fixturing, hold downs, tool tray, honing oil and stones needed to make your honing operation simple and profitable.
Specifications
Electrical : 110 Volt reauired
Spindle Motor : 1 HP
Stroke : adjustable to 12″ (304mm)
Honing Range : 1.75″-5.5″ (44.5-139.7mm)
Air : 100 PSI (2.7 CFM)
Machine Weight : 1300lbs (590kg)
Machine Lenght : 60″ (1524mm)
Machine Depth : 60″ (1524mm)
Machine Height : 75″ (1905mm)
Shipping Weight : 1495lbs (678kg)
Block Lenght : 42″ (1066mm) Max.
Reservoir Capacity : 13 Gallons
Features
Handles V6, V8, and inline blocks up to 34″ long
1 HP gear reduction drive motor and friction feed hone head – allows the operator to remove stock fast
Amp meter allows operator to maintain straight round cylinders without stopping to gauge
Stroke speed control knob adjusts stroke speed for any crosshatch angle
Positive bottom stop os adjustable and prevents hone head from hitting main webs
Up front carriage traverse handle allows operator to quickly and easily position hone head over cylinder
Convenient dwell button front control panel allows operator to dwell hone head anywhere in cylinder
Honing oil filter system ensures clean oil and consistent surface finish
Exterior cradle clamp handles make it easy to roll automotive V8 blocks from bank to bank
Standard Tooling
Part No. Item
2343 : Parallel Riser Set
2432 : Quick Clamp Knobs
2127 : Clamps Rods
6256 : V-Block Adjustable Clamp Bar
6120 : Bore Gauge Bracket
811020 : Friction Feed Hone Head Drive Shaft Assembly
3395 : Counter Weight
2163-1 : Honing Oil 5 Gallons
6068 : Honing Stone Tray
866889 : Friction Feed Unit
819132 : Universal Joint
6068-4 : Tool Tray
867143 : Oil Filter
3333 : Inline Block Camp
713005 : Power Foot Switch
1313 : Work Light
6300 : Oil Pump
867971 : 150 Grit Honing Stone Set 2.7-4.1″ (63-104mm) Diameter
863358 : 220 Grit Honing Stone Set 2.7-4.1″ (63-104mm) Diameter
867972 : 280 Grit Honing Stone Set 2.7-4.1″ (63-104mm) Diameter
Features and Options
Max. Block Length:
Max. Stroke:
Honing Range:
Hone Motor:
Coolant Capacity:
Air Requirement:
Machine Weight:
Shipping Weight:
Electrical:
42″
12″
1.7″ – 5.5″
1 HP
13 Gallons
100 PSI, 3 CFM
1,300 lbs.
1,495 lbs.
115V/3PH/60HZ or 220V/1PH/50HZ
