POWER STROKE HONE PS2V

Category: Cylinder Hones
Request A Quote

Operations

Features

Specifications

Maximum Block Length
43 in
1066 mm
Maximum Stroke with Powered Feed
14 in
356 mm
Maximum Stroke with Manual Feed
16 in
406 mm
Honing Range with Standard Equipment
2.7-5.5 in
69-140 mm
Honing Range with Optional Equipment
1.5-7.0 in
38-177 mm

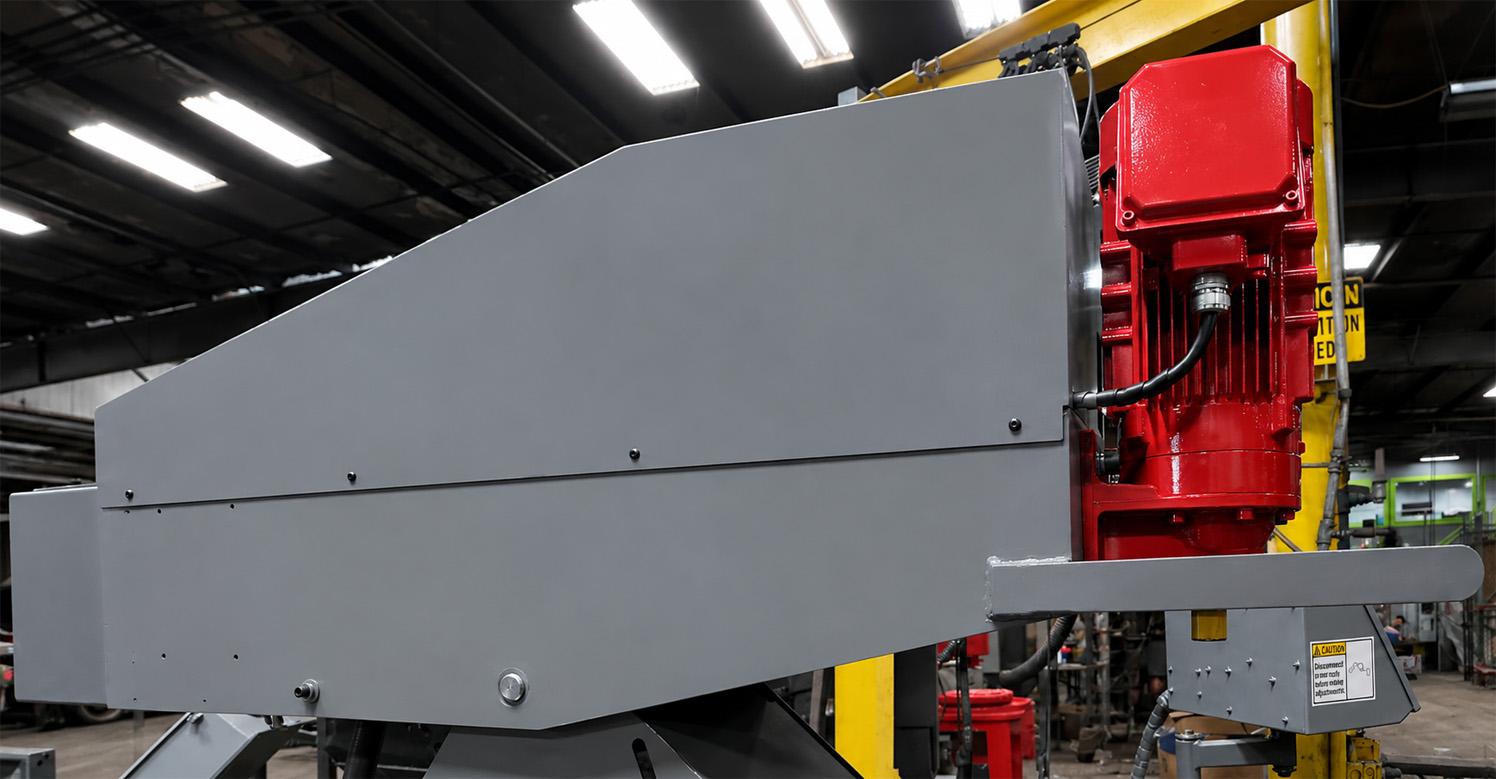

Hone Motor
2 HP
Honing Speed
120-240 RPM
Stroke Motor
0.33 HP
Stroke Speed
9-105 SPM
Coolant Capacity
65 Gal.
Coolant Flow
13.5 GPM
Door Opening
48 in
1219 mm
Length
68 in
1727 mm
Width
60 in
1524 mm
Height
70 in
1778 mm
Approx. Machine Weight
1450 Ibs.
657 kg

Standard Tooling
