Platen Grinder PG1232
The Winona Van Norman Belt Resurfacer is engineered to provide an economical, efficient, and reliable solution for resurfacing engine components and precision-machined parts. Designed for professional engine rebuilding, remanufacturing, and machine shop environments, the Belt Resurfacer delivers consistent surface finishes with minimal setup, allowing operators to quickly position parts and begin resurfacing. Its straightforward design makes it an ideal solution for increasing productivity while maintaining the accuracy required for quality engine repair.
Built for simplicity and ease of operation, the Belt Resurfacer requires very little preparation or adjustment, helping reduce setup time and maximize throughput. The intuitive operating controls allow technicians of all skill levels to achieve consistent, repeatable results with minimal training, making it an excellent choice for shops seeking dependable performance without the complexity of traditional resurfacing equipment. Its efficient grinding process improves workflow while reducing operator fatigue and downtime.
Constructed with rugged industrial components for long-term durability, the Winona Van Norman Belt Resurfacer combines user-friendly operation, low-maintenance design, and dependable performance to deliver outstanding value. Whether resurfacing cylinder heads, manifolds, or other precision engine components, it provides the productivity, consistency, and reliability professional machine shops rely on every day.
Request A Quote
Product Information
Operations

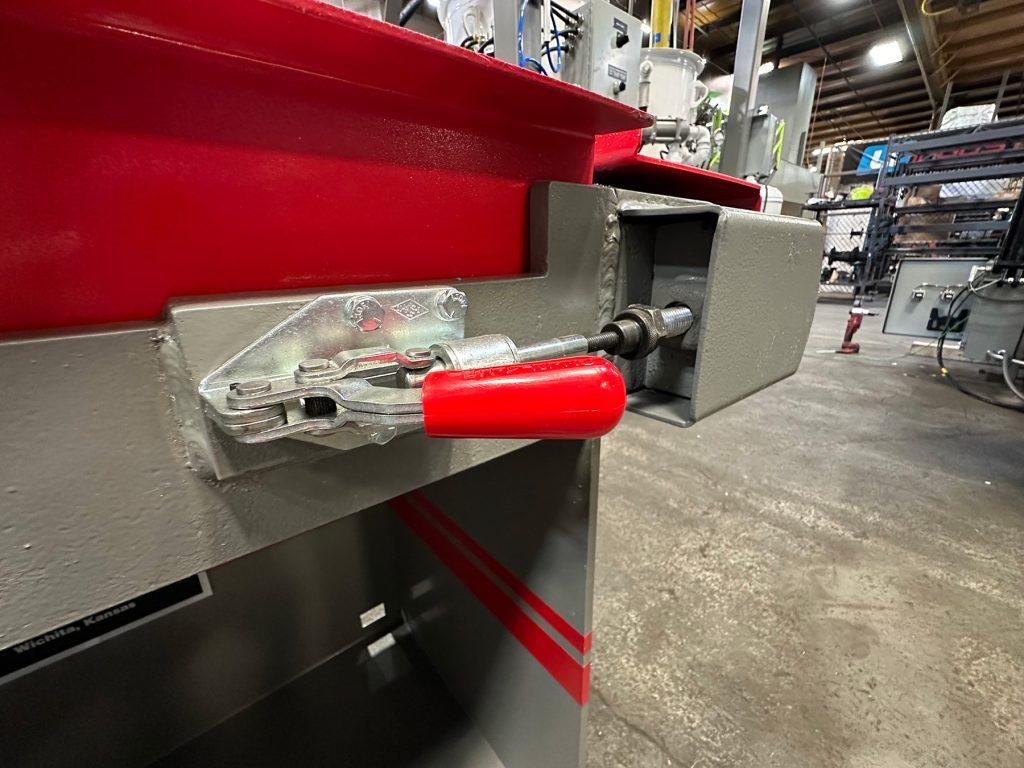

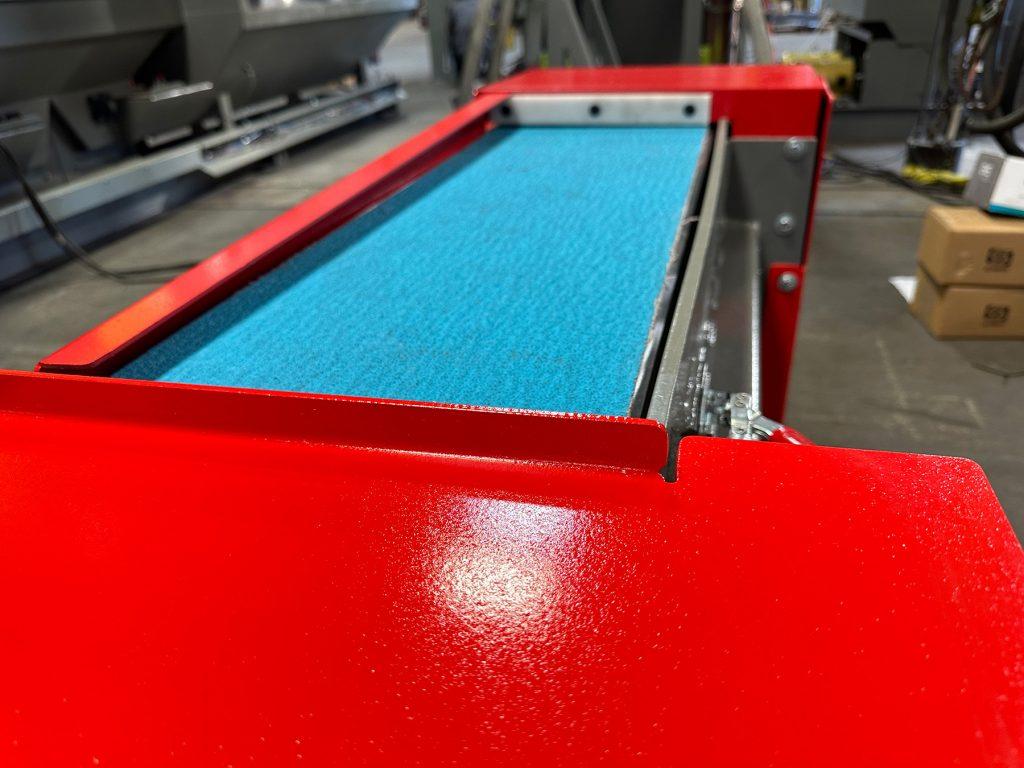

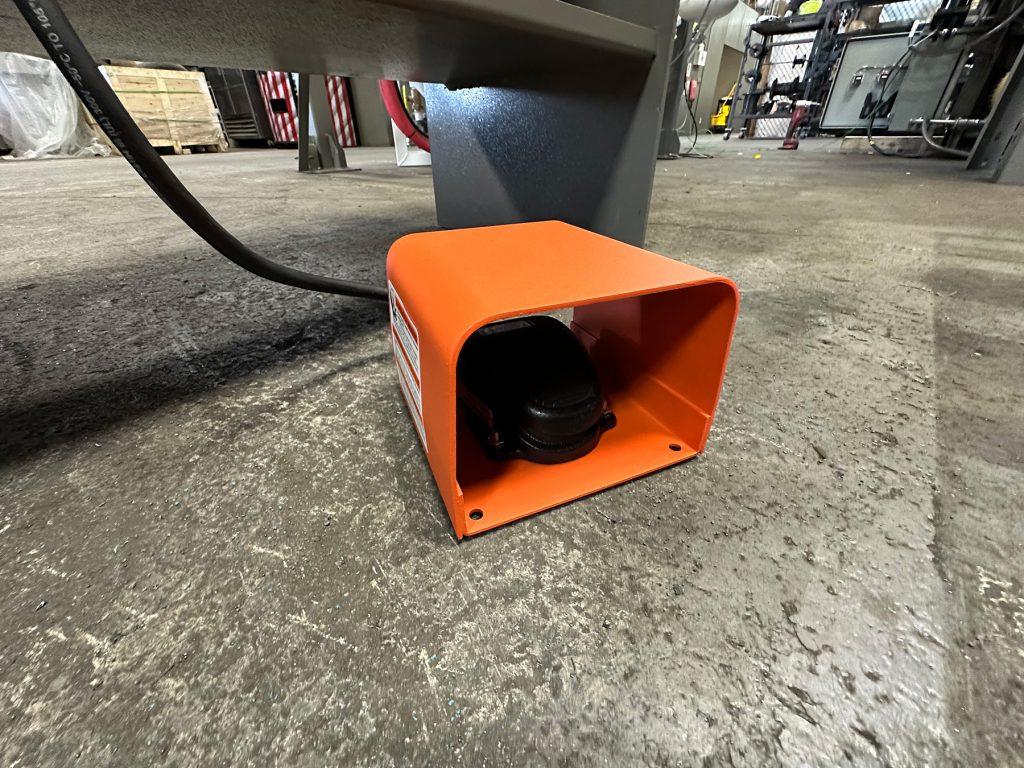

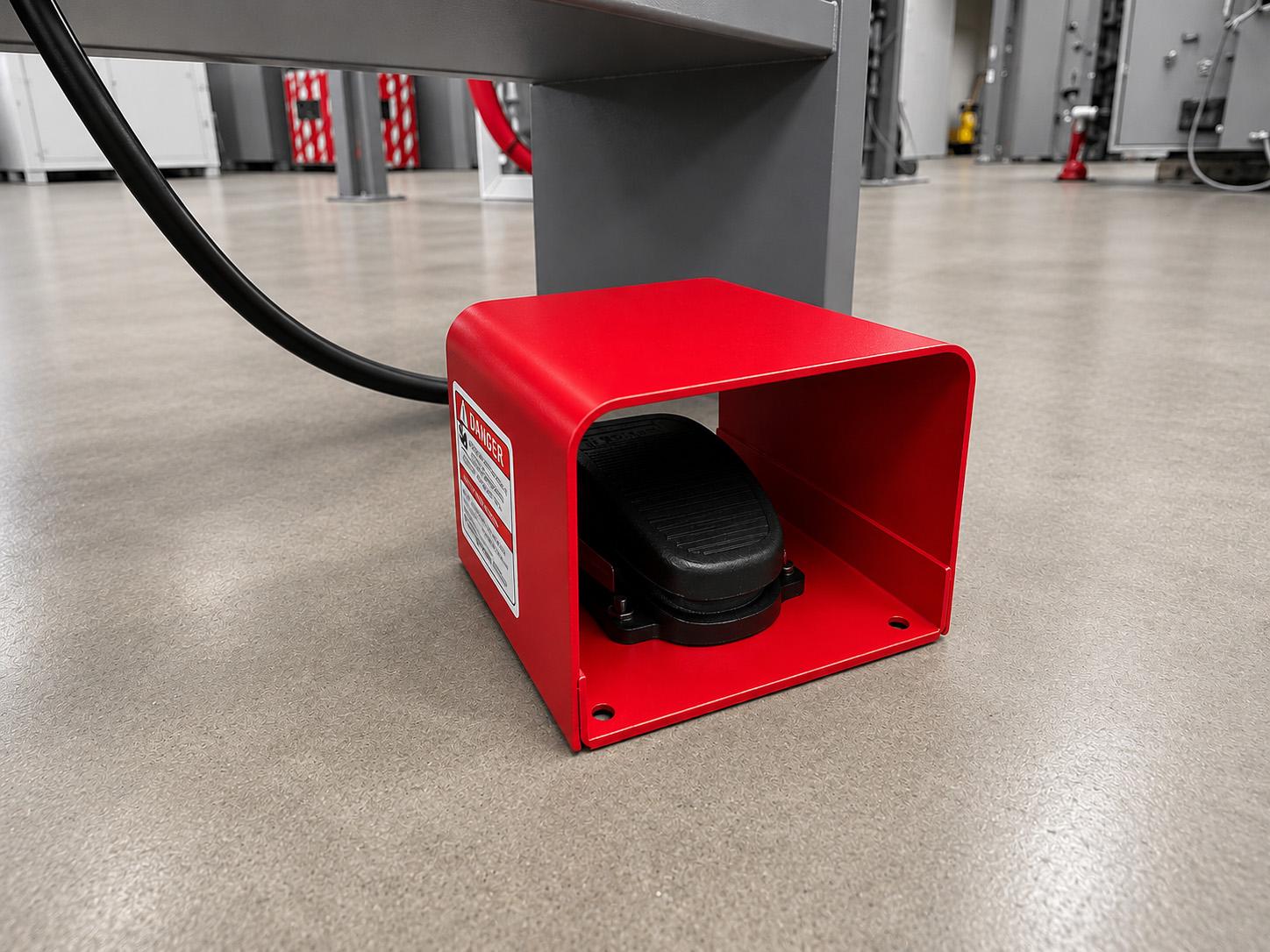

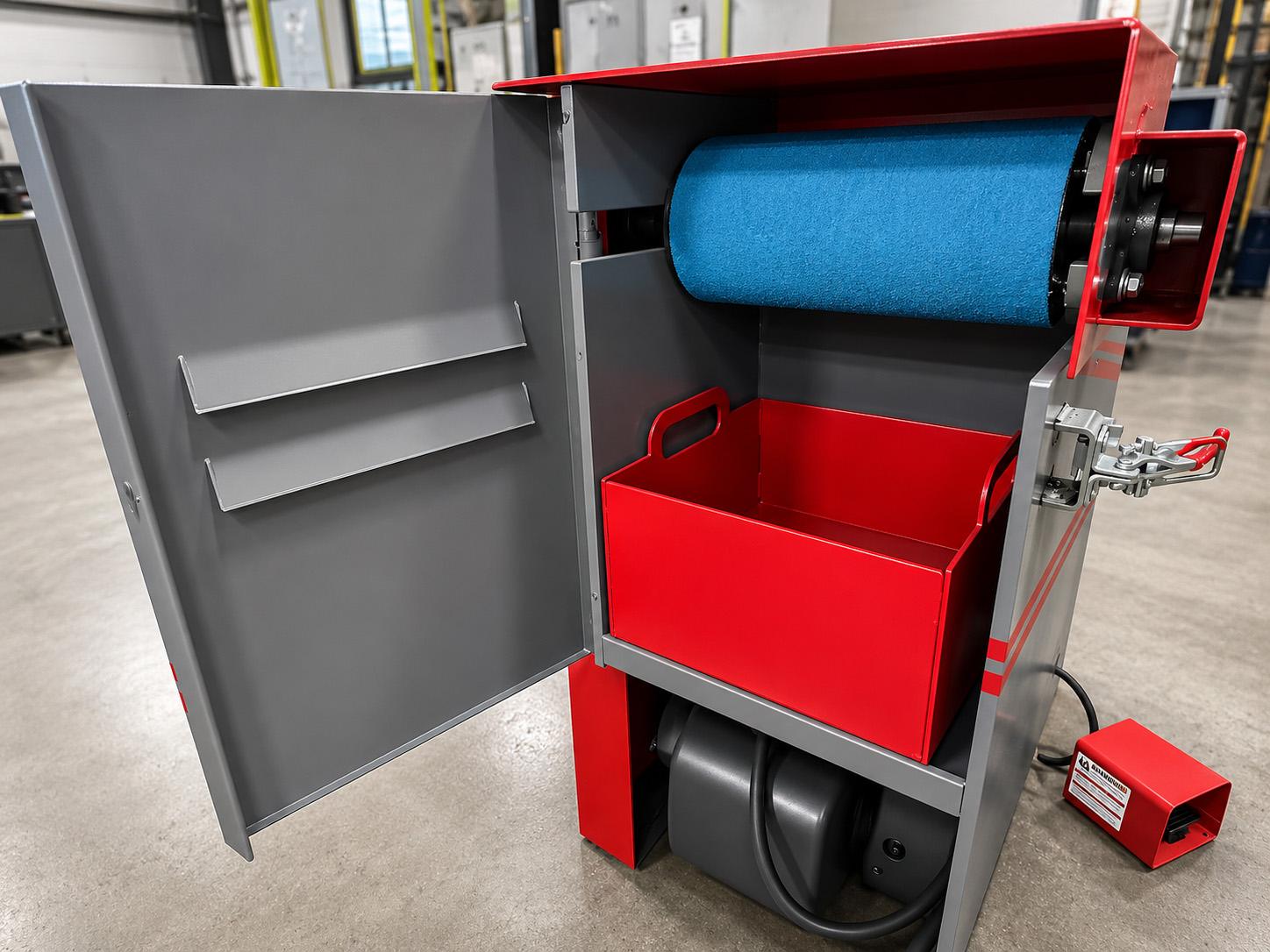

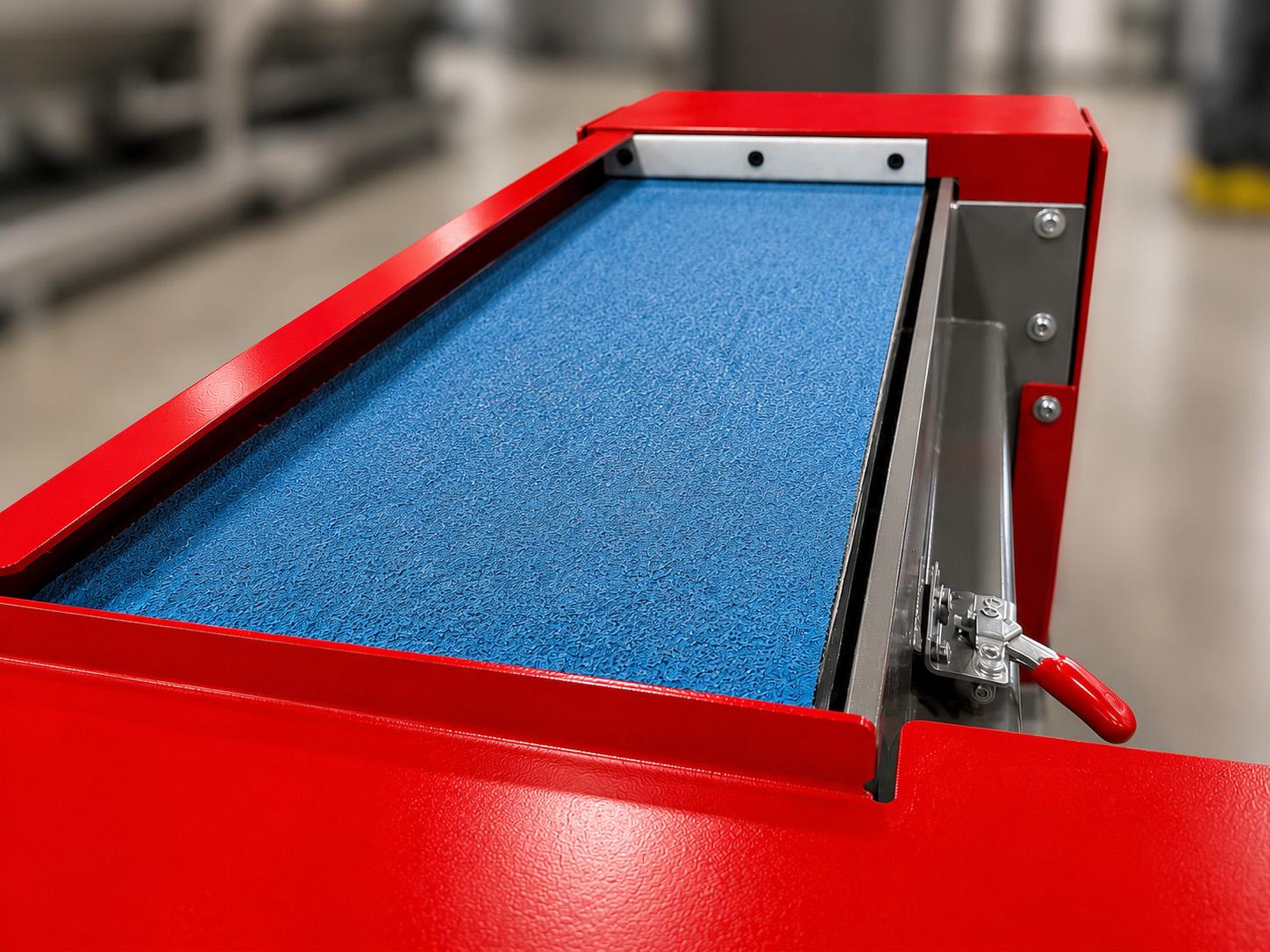

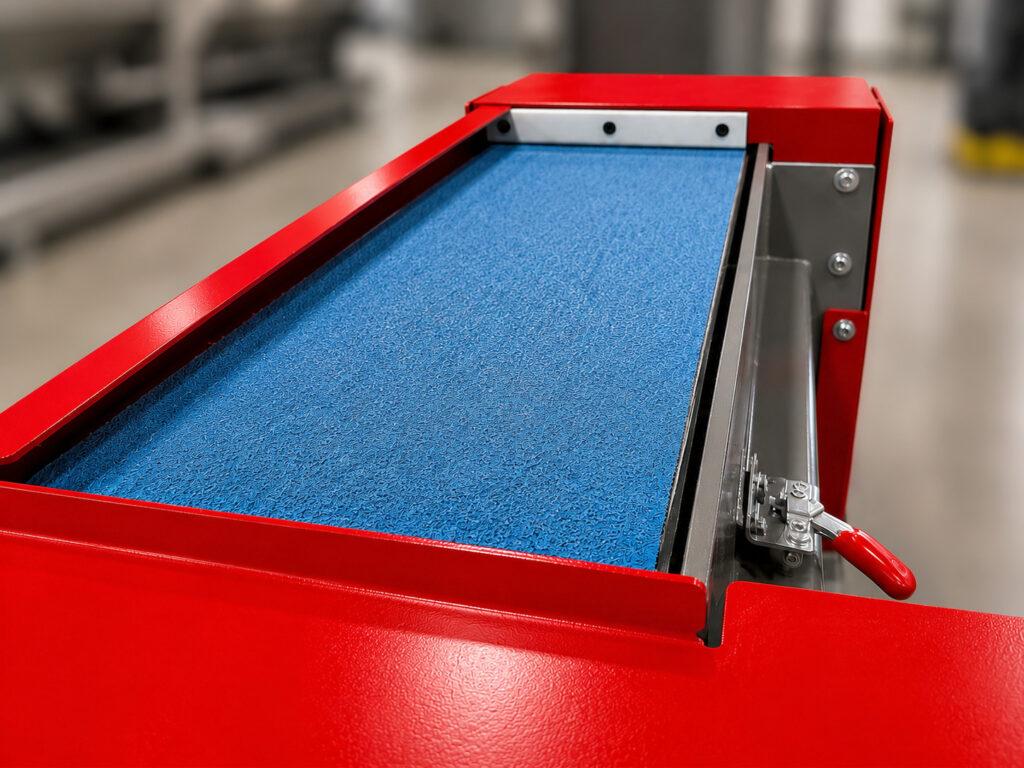

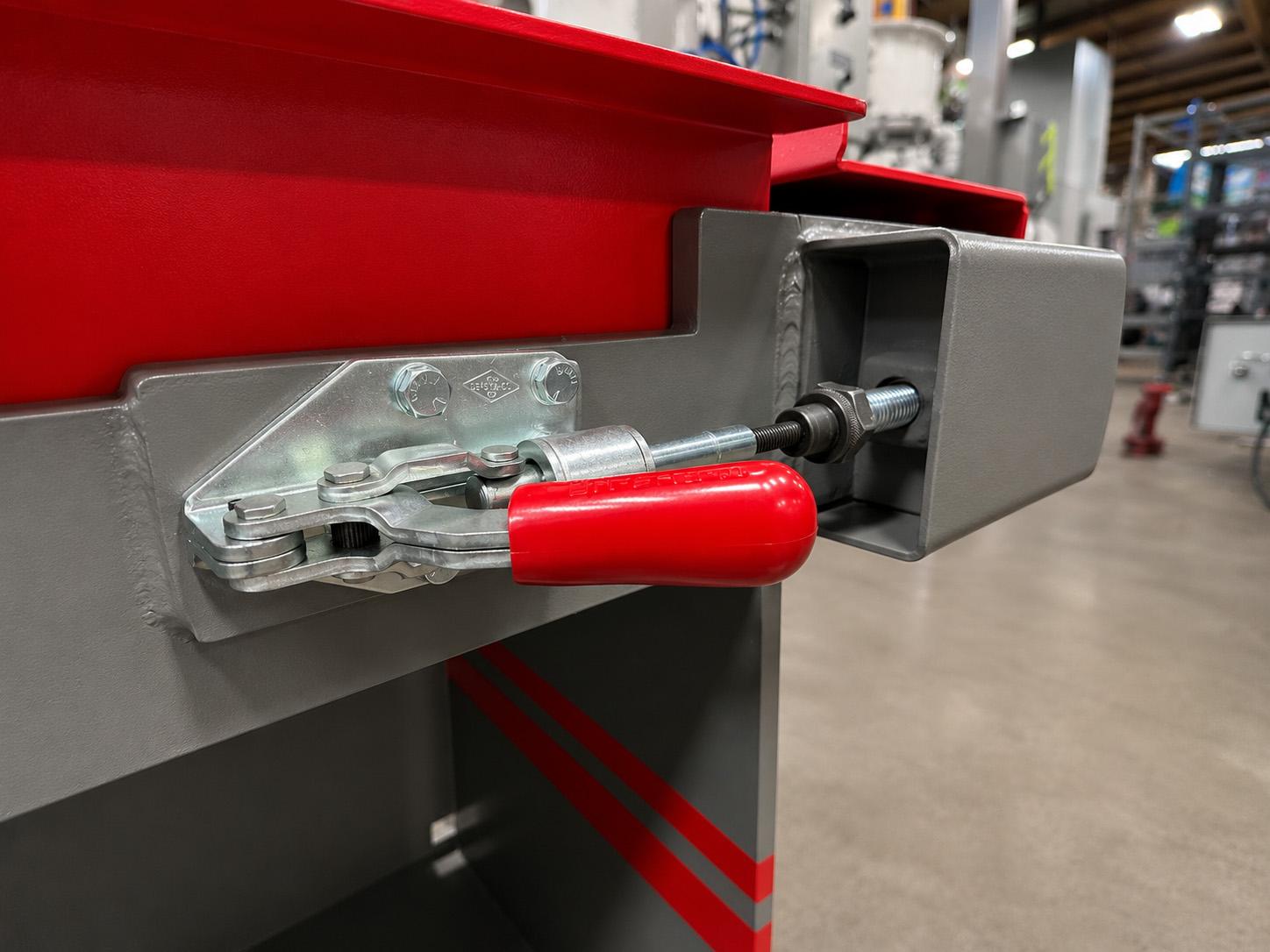

The hardened and precision ground platen allows for long life and flat surfaces. The removable dust tray within the cabinet helps trap dust and debris, with cam over adjustable quick tensioners for fast belt changes and tracking adjustments. The PG1232 comes equipped with a covered foot switch control for operator safety. 40, 60 and 80 grit belts available for doing cast iron or aluminum.
Specifications
Features
No set-up or preparation – just place the workpiece on the belt.
Great for odd, shaped parts.
Quick change belt – no parts or knobs to remove.
Fast gasket removal on deburring of parts.
Cleanout tray
External belt adjusters
Versatile
Easy operation
A must for every shop
No fixturing
Standard Tooling
Features and Options
Max. Workpiece:
Drive Motor:
Belt Speed:
Electrical:
Overall Dimensions:
Approx. Machine Weight:
11.75″ – 32″
3 HP
944 SFM
230V
62″ l x 20″ w x 37″ h
730 lbs.
