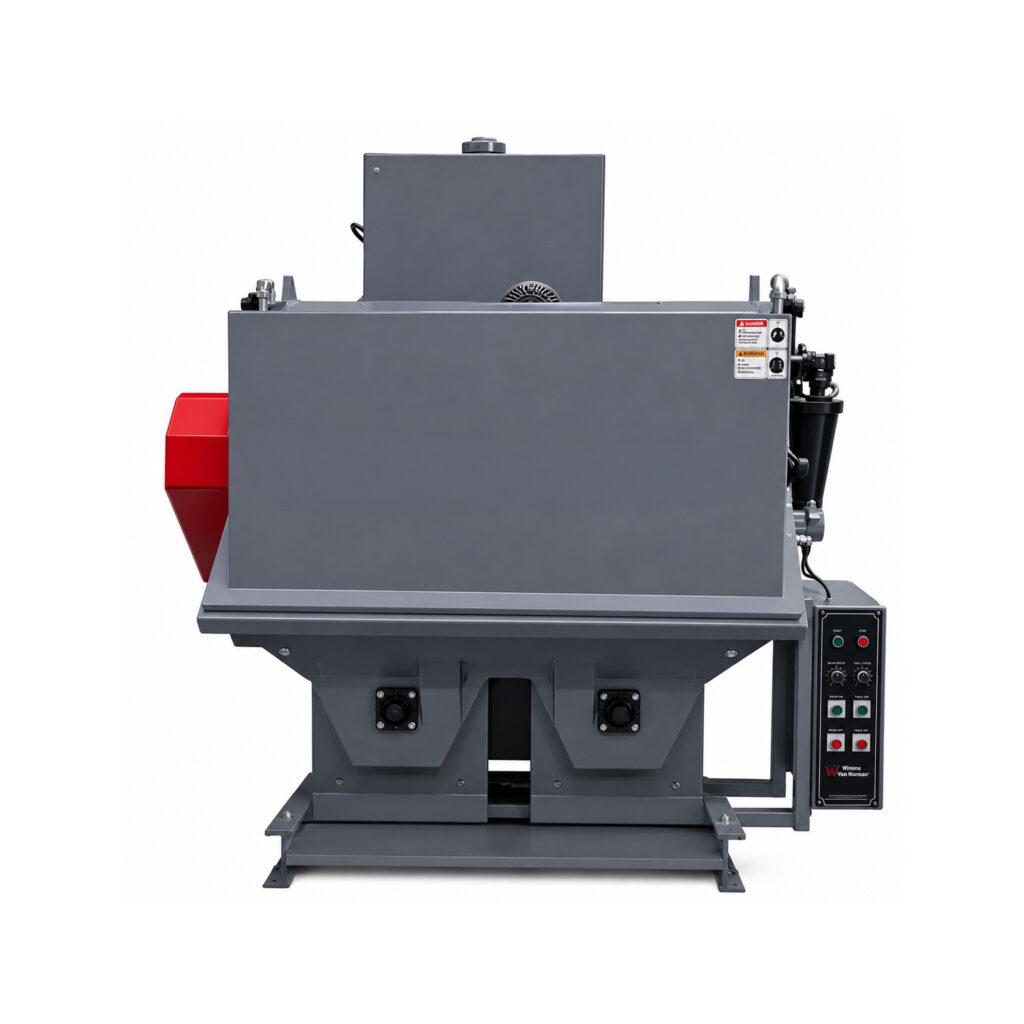

Fixtured Basket Blaster BH-08

Category: Shot Blasters

Winona Van Norman Fixtured Basket Blasters, like the WVNBH‐8, have easily replaceable cabinet liners and is versatile with easy basket jigging setup for any shape parts.

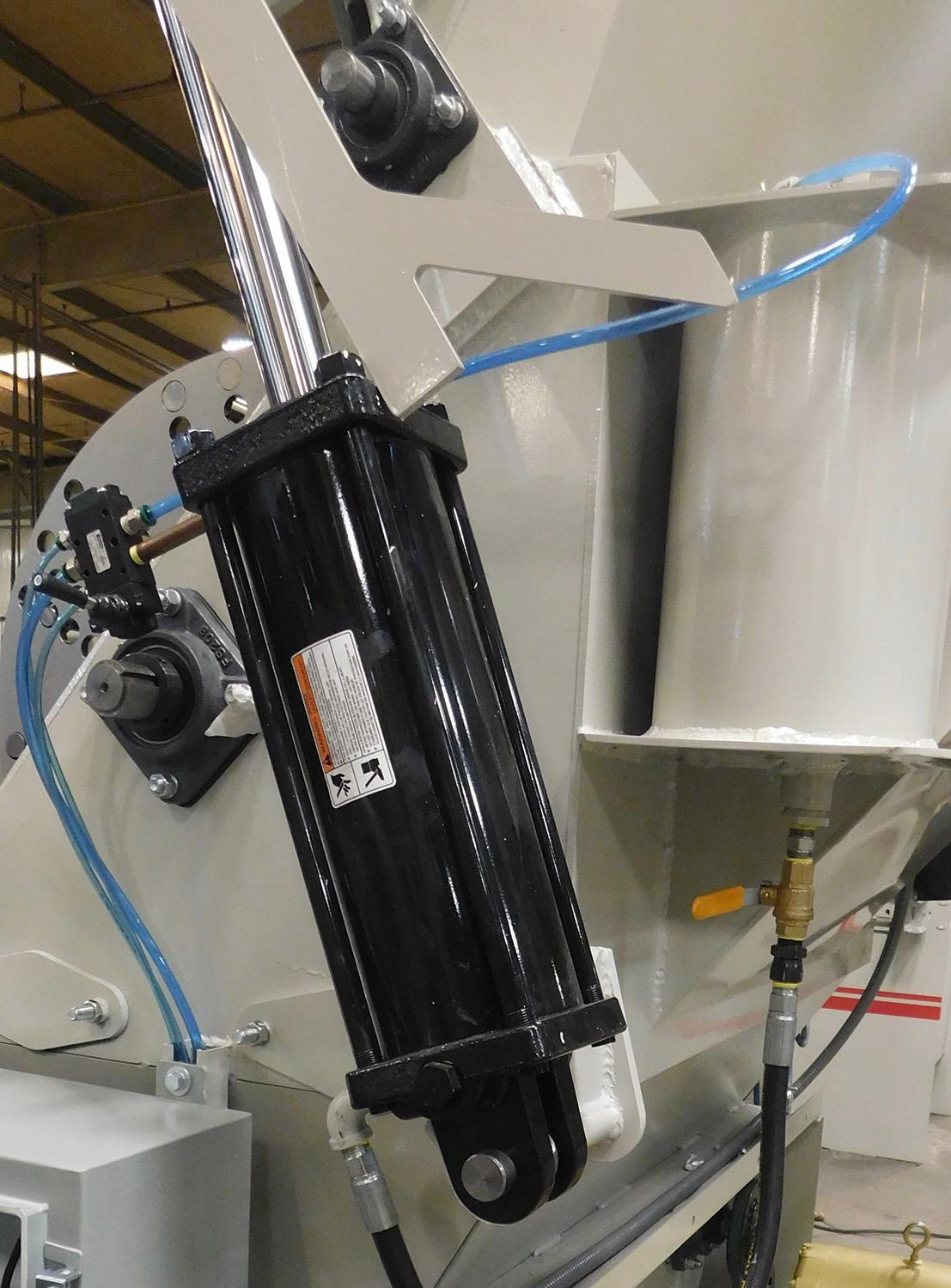

The simple one button push operation with adjustable cycle times doesn’t require extensive training. Dual hand safety controls on the clamshell design protects operators and a door locking valve prevents the door from closing in case of loss of air pressure. The TurboShot™ blast wheel is belt driven to protect the motor and make it easy to maintain. The blades on the TurboShot™ wheel are bi‐directional allowing for reversing blasting for an all angle clean.

Request A Quote

Fill out the form below to request a quote for the Fixtured Basket Blaster BH-08.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Operations
  • Fixture basket holds many sizes of parts that cannot be tumbled.
  • Lined with abrasive resistant material and rubber for long life.

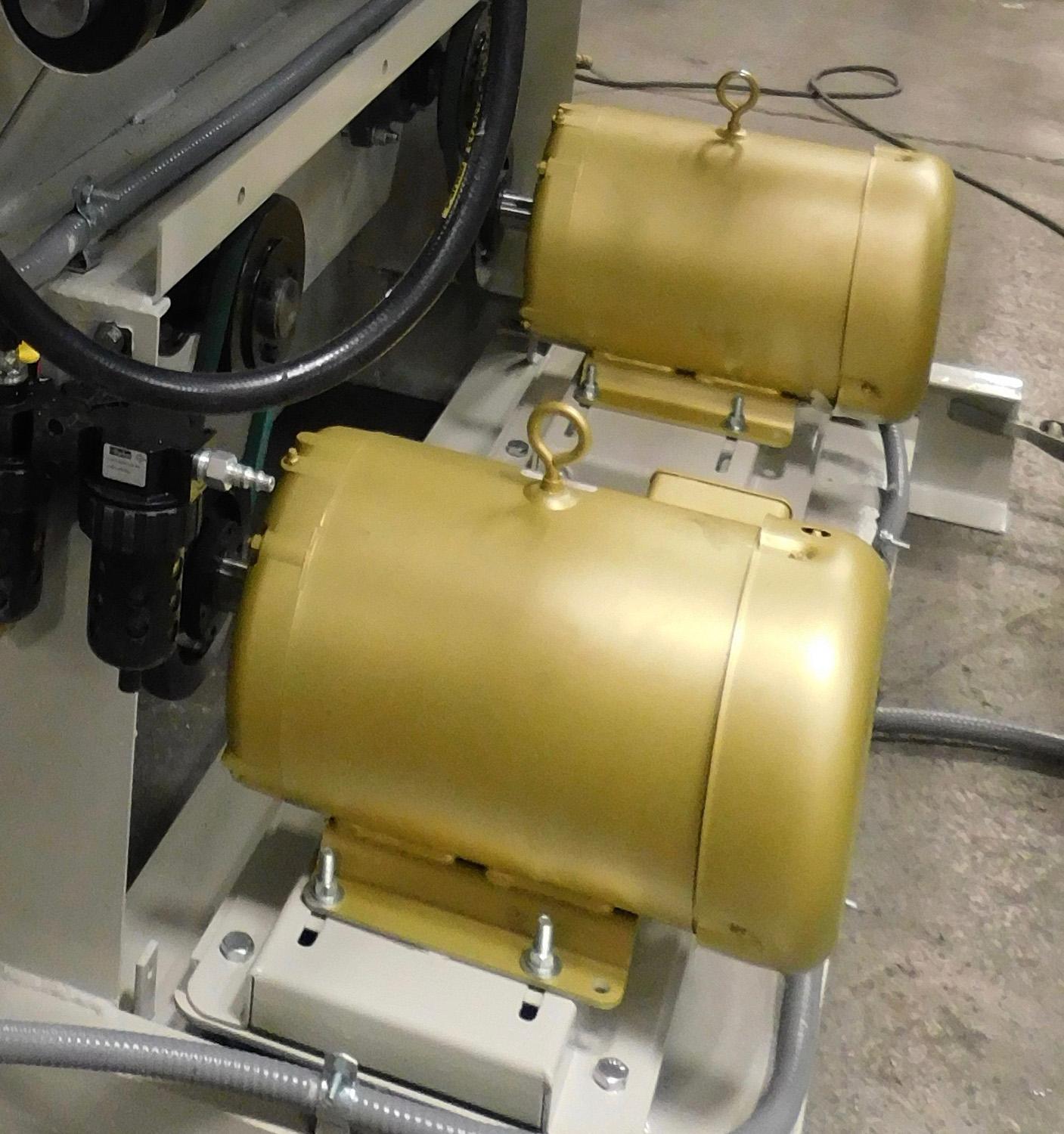

  • Superior cleaning action: While the basket turns, 2 impeller wheels throw shot in opposing direction and then reverses for even more complete coverage.
  • Basket is mounted on permanent heavy duty four bolt flange bearings.
  • Optional removable basket available.
  • Basket has removable spring loaded rods.
  • Automatic cycle timer.
  • Fork lift moving support built into blaster.
  • Includes dust collector as standard equipment and full load of abrasive media.
Specifications

Basket Dimension

60”L x 30” diameter

Work Space

54” x 27.125” diameter

Overall Dimensions

75″ x 51″ x 114″

HP of Blast Wheels (STD)*

2ea x 10HP

Basket HP (STD)

1/2HP (0.37 kw)

Basket Weight Capacity (Approx)

1000lbs

Dust Collector Std**

DC-3 (3HP)

Features

* Can change based on customer cleaning needs
** Dimension of machine doesn’t include dust collector
***Height is with door open on clamp shell doors

Standard Tooling

Technical Specifications

Work Envelope (CU. FT. of Basket)
24.59 cu. ft
Basket Dimensions (L x Diam.)
60 x 30 in
Overall Dimensions (L x W x H)
75 in x 51 in x 114 in
HP of Blast Wheels (STD)
2ea x 10 HP
Basket HP (STD)
½ HP (0.37 kw)
Basket Weight Capacity (Approx)
1000 lbs.
Dust Collector Std
DC-2 (2 HP)
