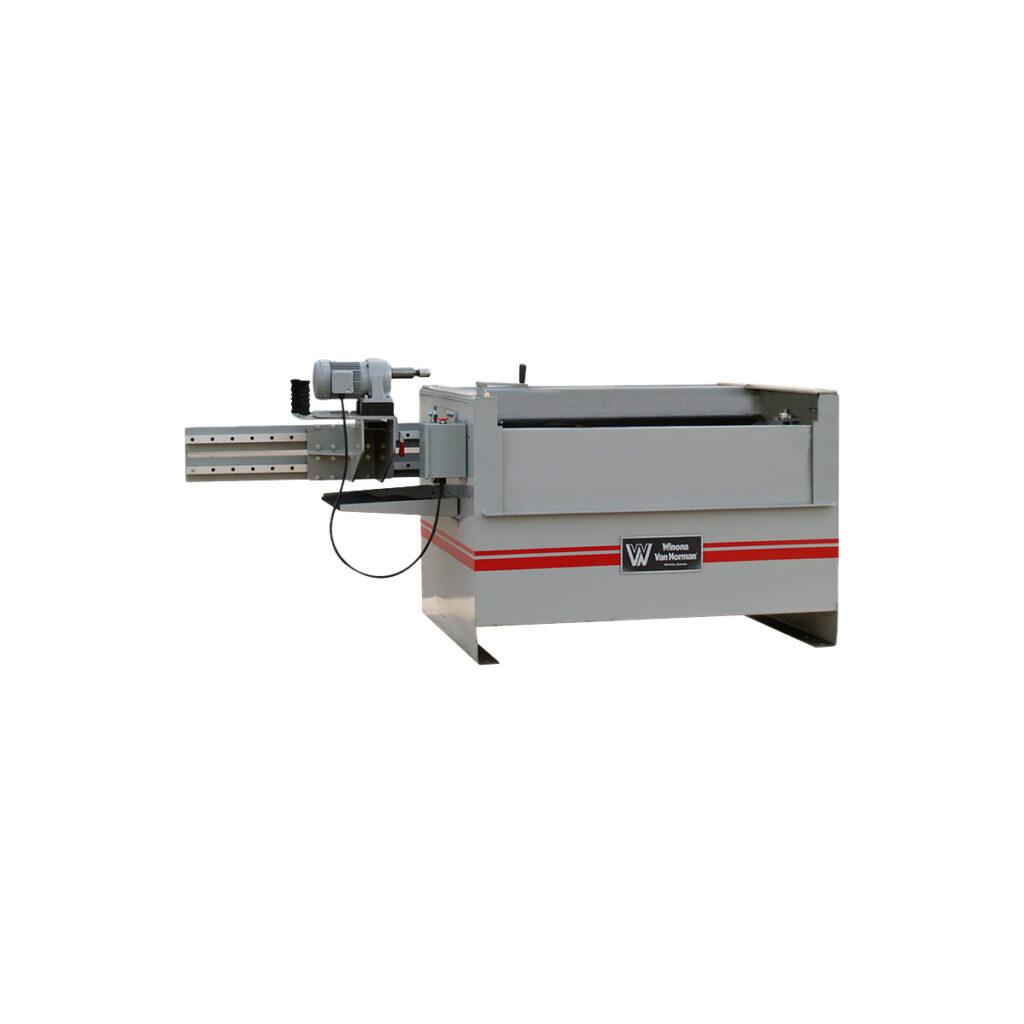

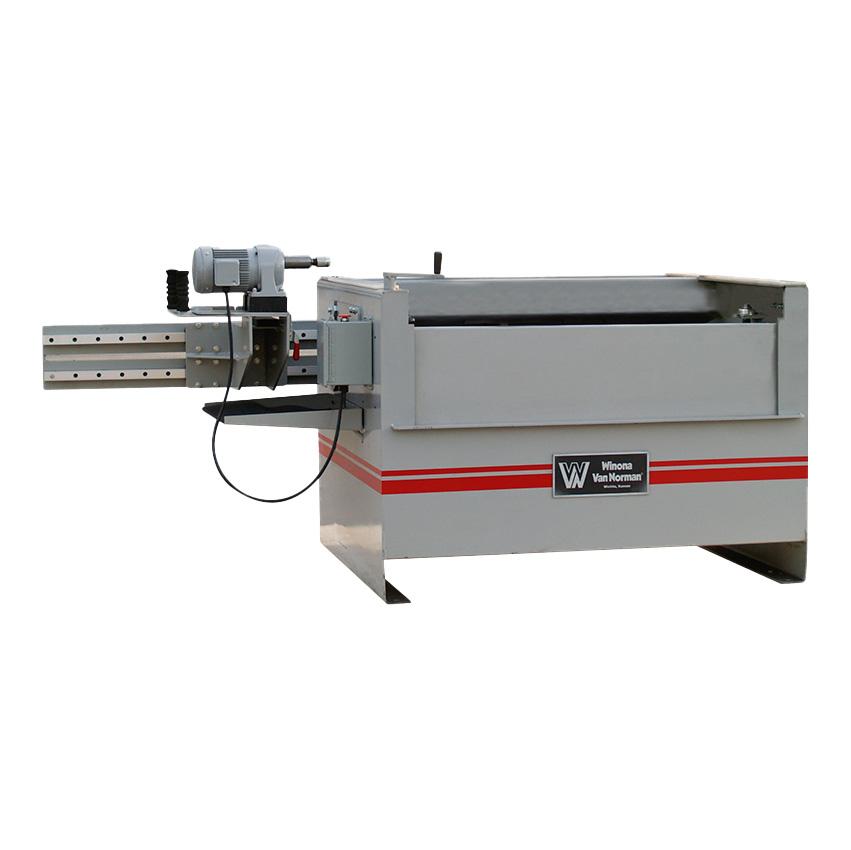

Line Hone LHX

Category: Block Honing, Honing

A line hone is a specialized machine used in engine work to precisely hone the main bearing bores of an engine block. This process ensures that the bores are perfectly aligned, sized, and finished to accept the crankshaft bearings. Proper alignment and surface finish of these bores are crucial for the smooth operation, longevity, and performance of the engine.

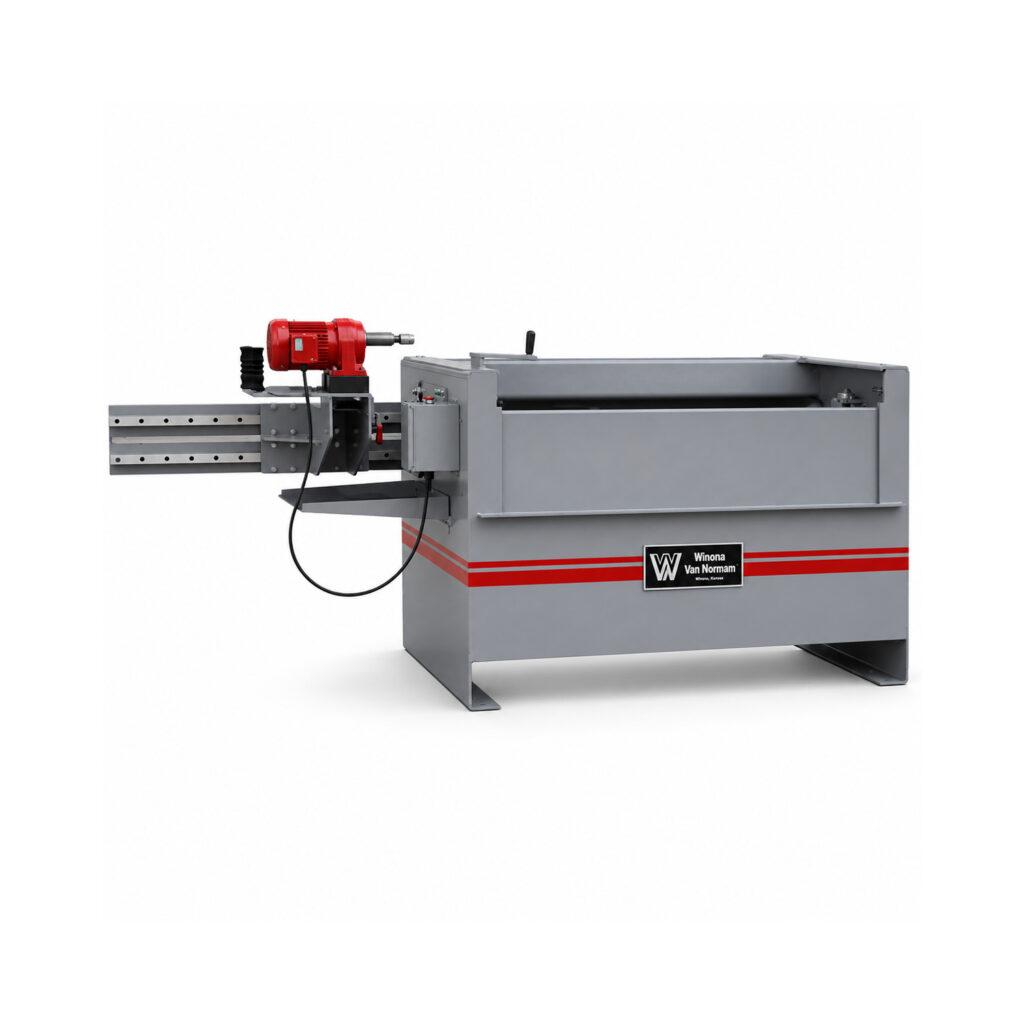

Meet Winona Van Norman: The LNX Line Hone

A line hone is an essential tool in engine work for ensuring the proper alignment, sizing, and finishing of main bearing bores. This process is critical for enhancing engine performance, durability, and reliability, making it a vital step in engine building, rebuilding, and maintenance.

Request A Quote

Fill out the form below to request a quote for the Line Hone LHX.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

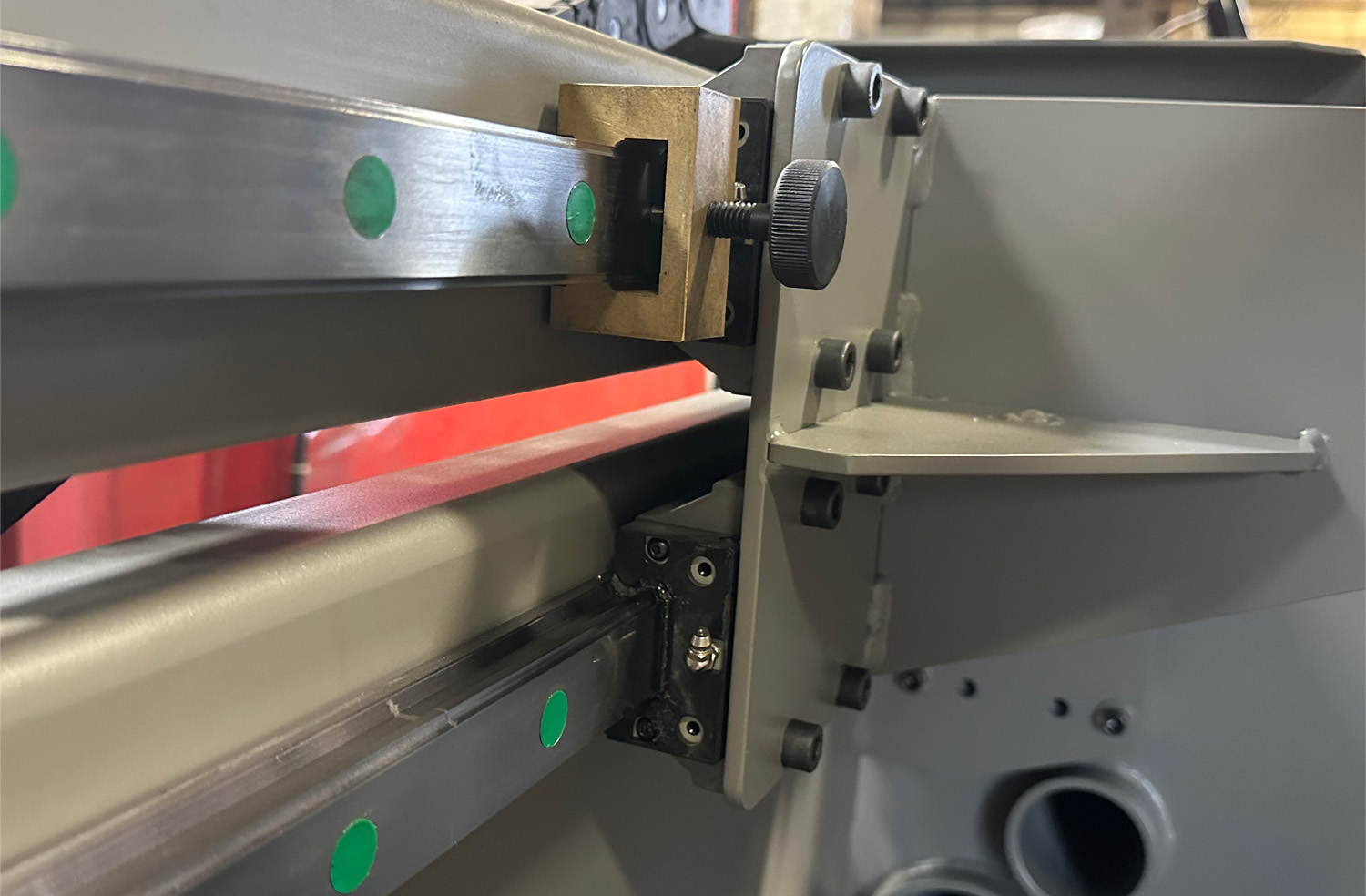

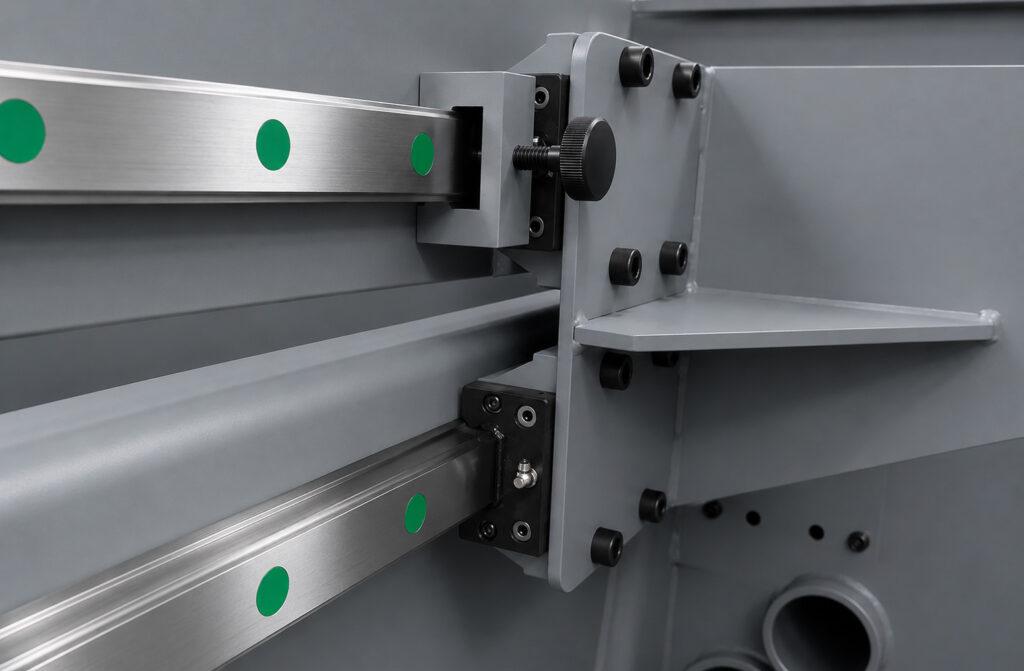

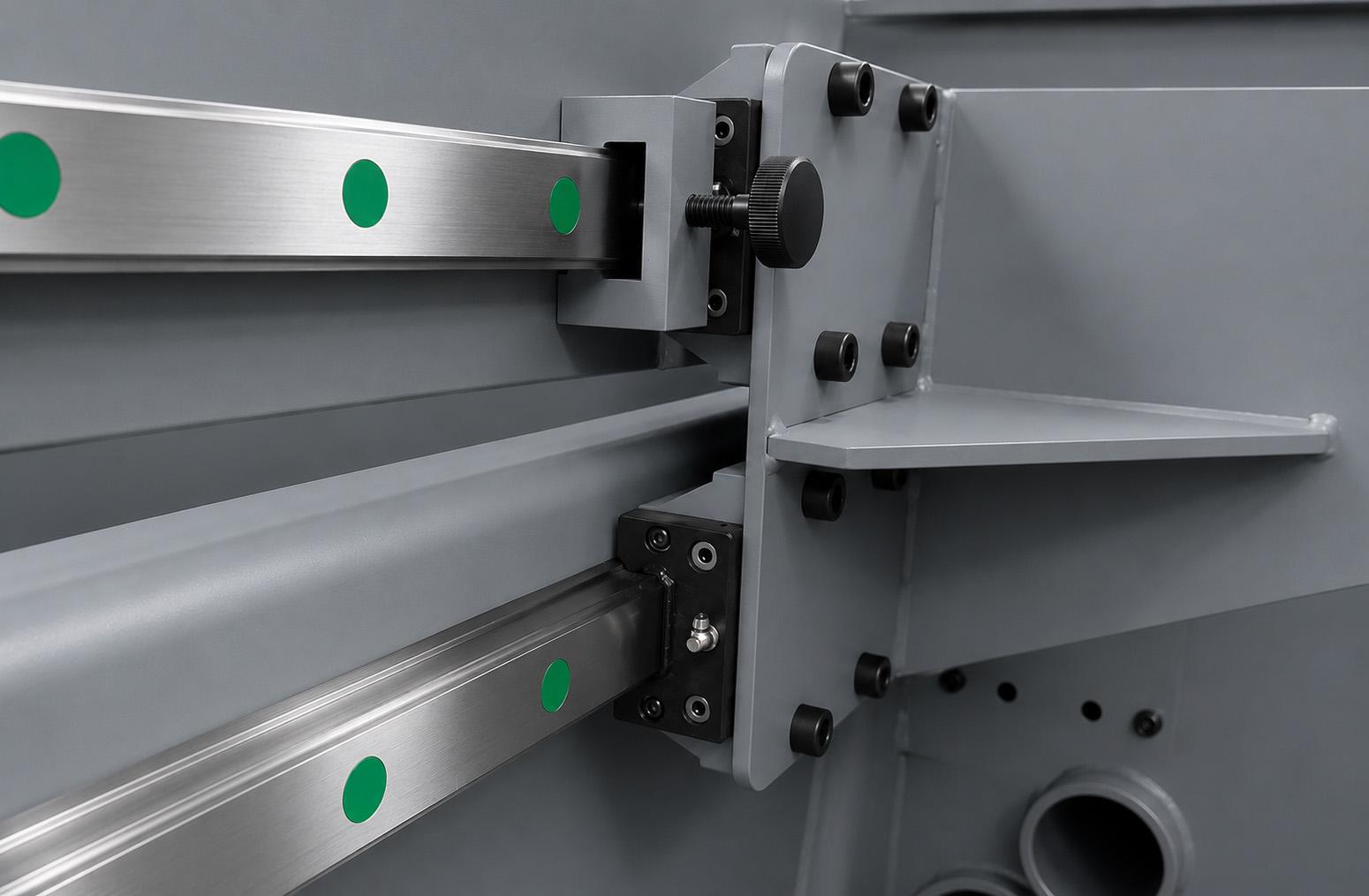

Heavy-duty 1/4″ steel construction ensures a rigid platform.

Elevating handle is up front and near operator for quick and easy height adjustment of blocks.

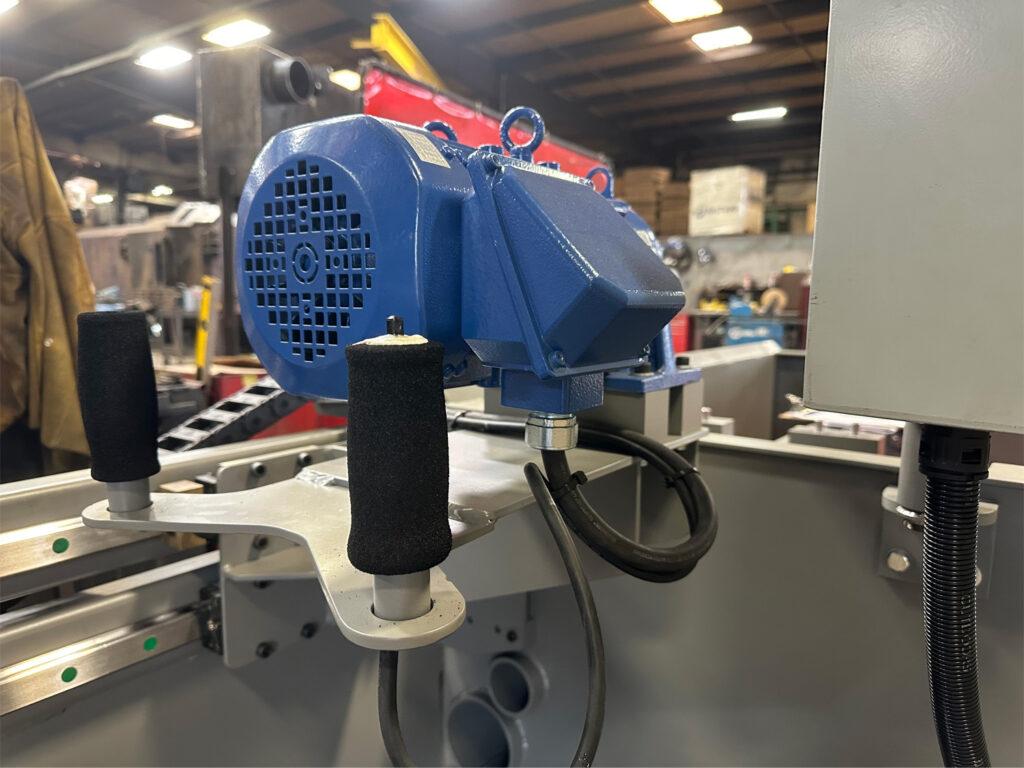

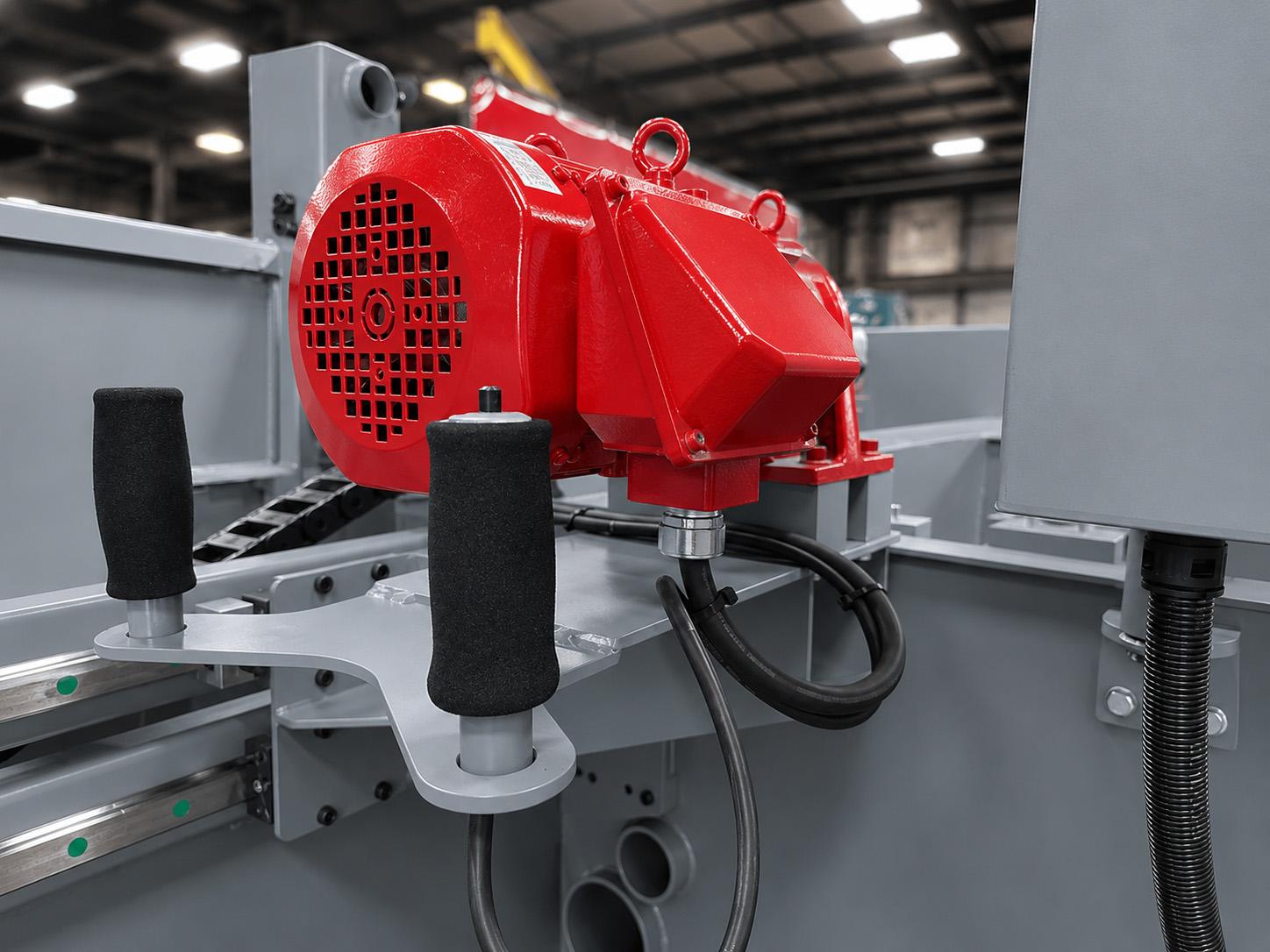

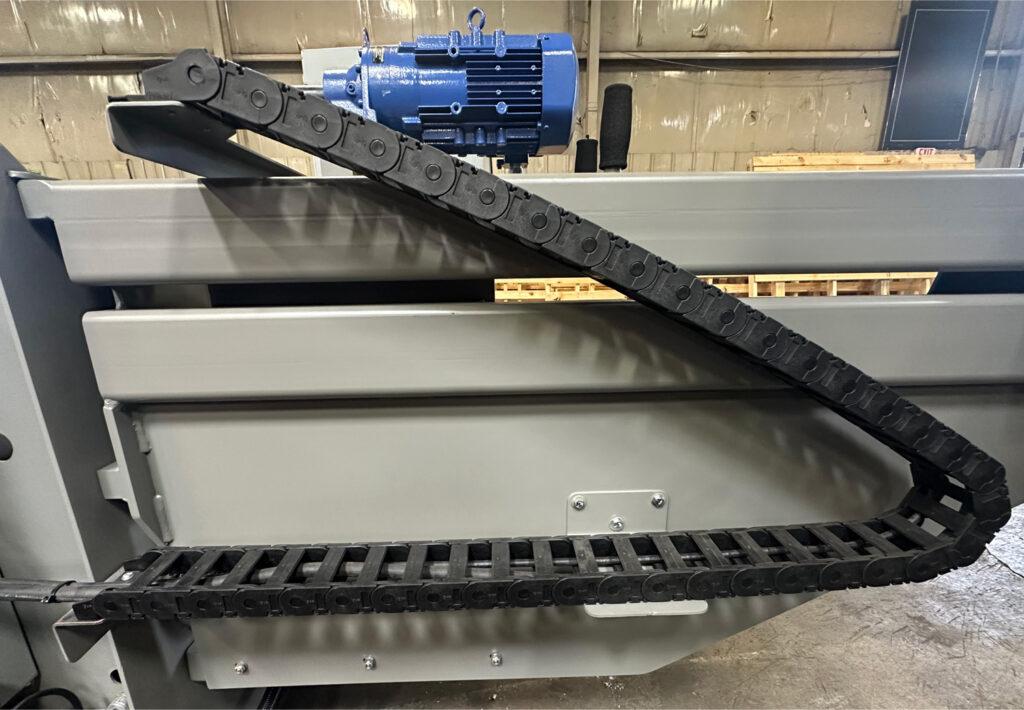

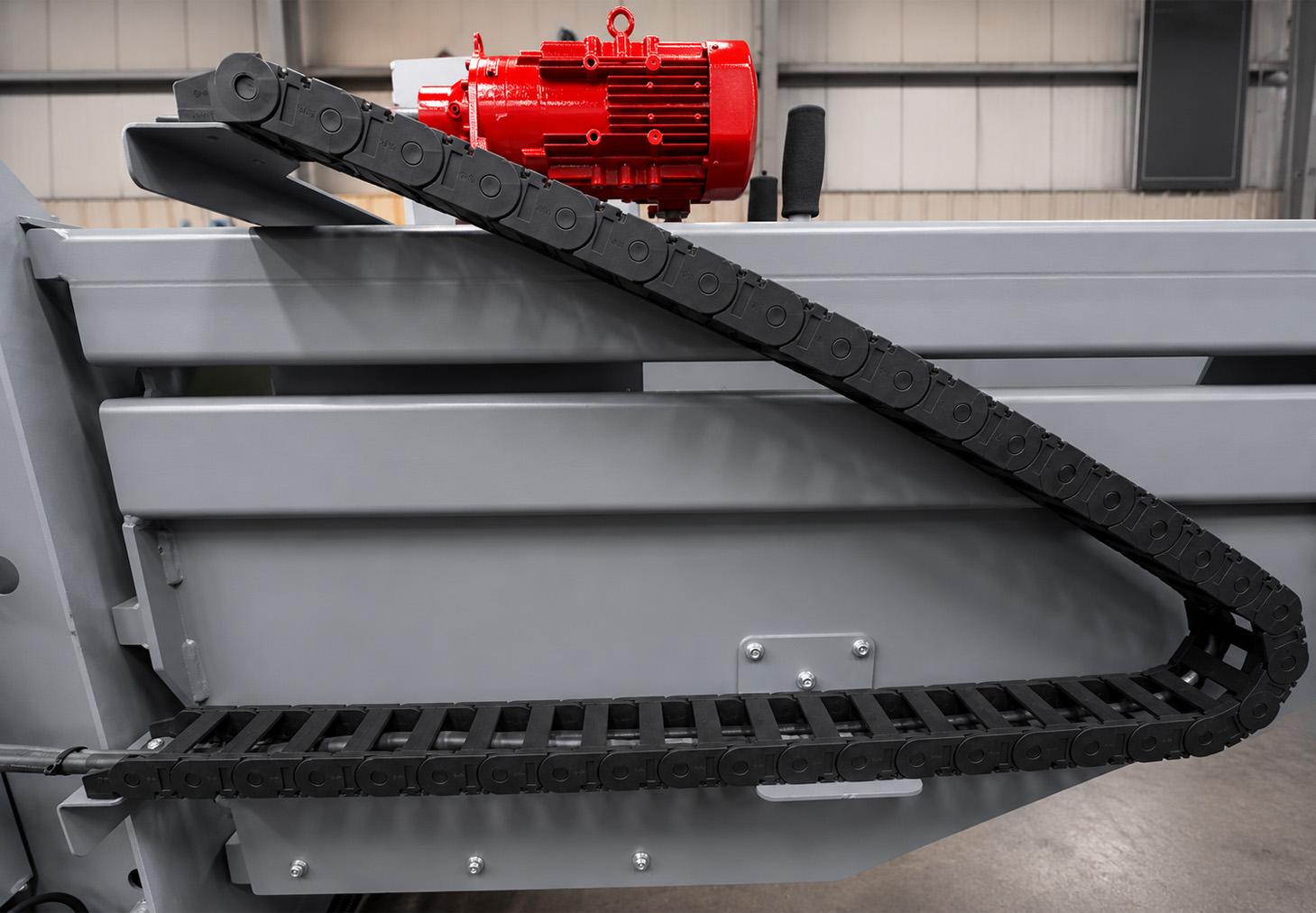

Heavy-duty variable speed 3/4 HP industrial drive motor is mounted on torque absorbing stroke arm. 120 Volt power requirements.

Oil drip trays on both ends of machine prevent oil runoff floor.

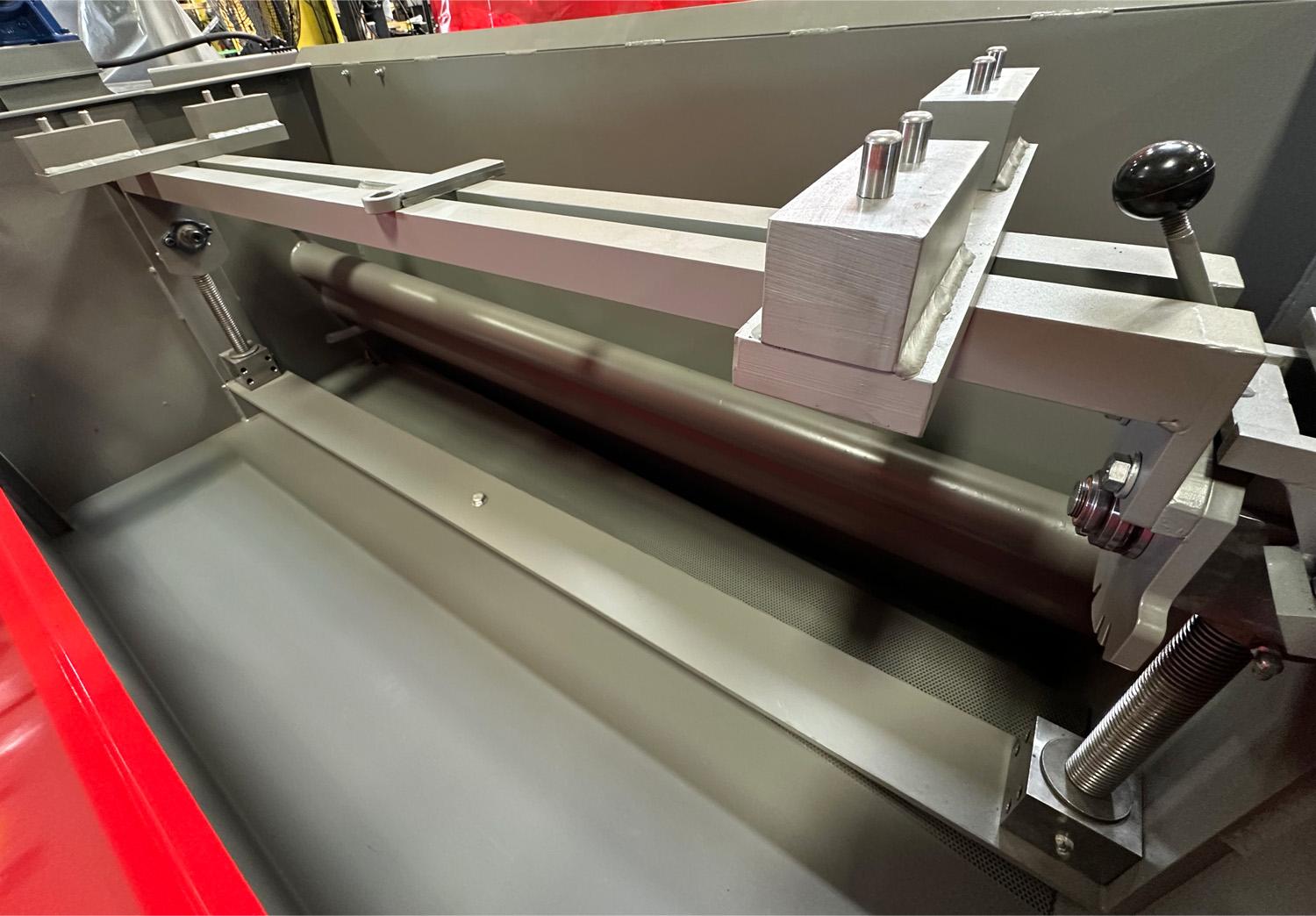

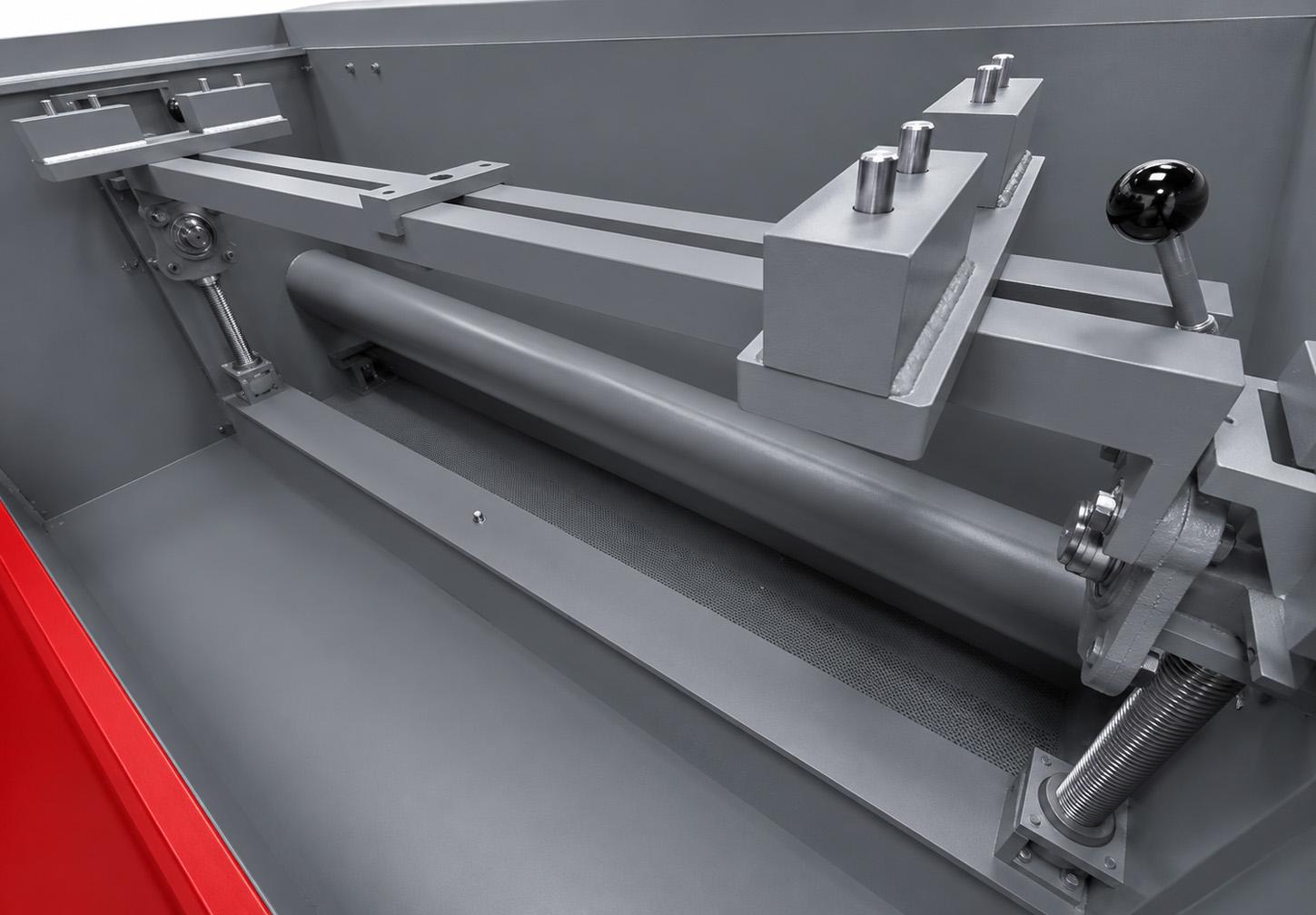

Adjustable block cradle accepts inline, 60° and 90° style blocks.

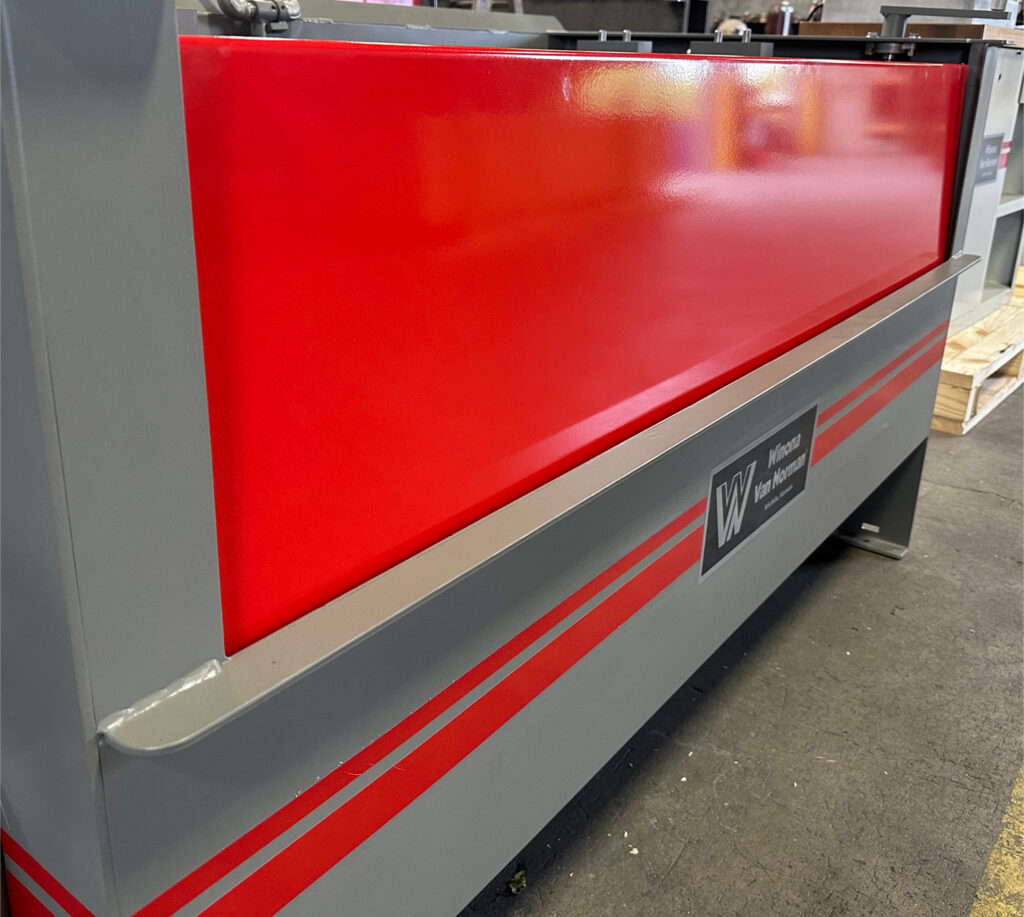

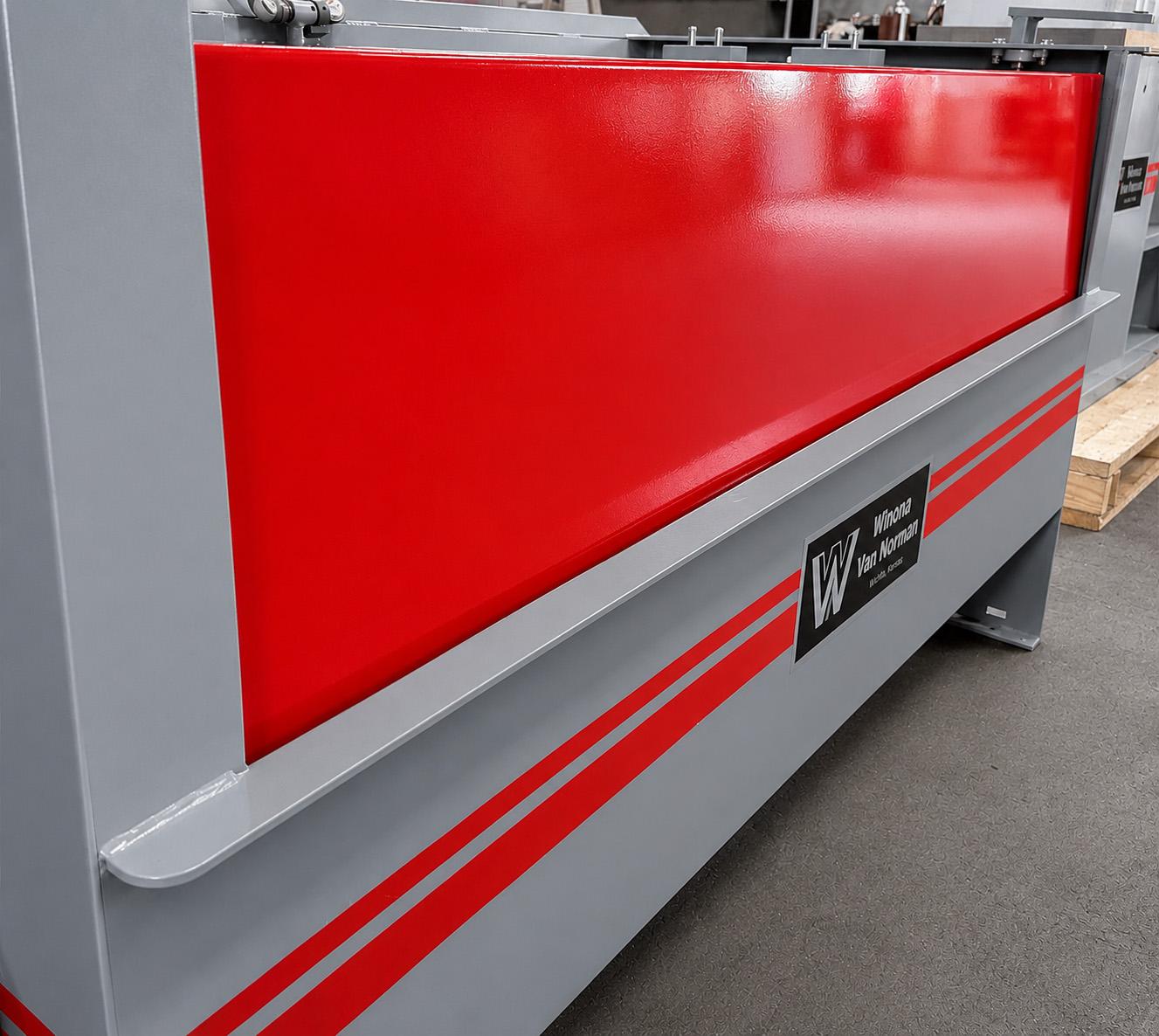

Front door drops down for easy access.

Oil filter system keeps honing oil clean and prevents foreign material from embedding in aluminum block main bores.

30 gallon oil reservoir reduces honing oil cost, saves money and shipping on 55 gallon drums.

Mandrels protected by in cabinet storage, keeps honing oil off floor. Storage easily accessed from front of the machine.

Dimensions

Lenght : 70.8″ (1798 mm)

Width : 39.4″ (1000 mm)

Height : 70.8″ (1798 mm)

Capacity

Lenght : 47.2″ (1199 mm)

Width : 15.7″ (399 mm)

Height : 11.8″ (300 mm)

Weight : 551 lbs (250 Kg)

9100 : Line hone drive assembly

9605 : Protective mandrel storage tubes (3)

2163 : 20 gallons honing oil

9185 : Dual oil drip trays

9220 : Adjustable oil flow control spray tee

6300 : Oil pump

867143 : Twin oil filtering system

9980 : V-block supports

9990 : Quick clamp hold downs

Technical Specifications

Maximum Stroke
23.6 in
600 mm
Rotation Speed
4 RPM
Heating Power
4.5 KWH
Hydraulic Power
4 RPM
Control Voltage
24 VAC
Rotation Speed
4 RPM
Heating Power
4.5 KwH
Electrical
220/380 V
50/60 Hz
Maximum Block Length
42 in
1066 mm
Maximum Block Weight
550 lbs.
250 kg
Maximum Line Stroke with Manual Feed
23.5 in
600 mm
Line Honing Range with Standard Equipment
1.8-5.5 in
45.7 mm -139.7 mm
Line Hone Motor
0.75 HP
0.5 KW
Line Honing Speed
18 RPM
18 RPM
Coolant Capacity
30 Gal.
113 L
Air Requirement
100 PSI 3 CFM
6.8 bar 3 CFM
Overall Dimensions (L x W x H)
108 in x 42 in x 50 in
2644 mm x 1067 mm x 1321 mm
Approx. Machine Weight
896 lbs.
406 Kg
Approx. Shipping Weight
1705 lbs.
774 Kg
