Glass Bead Blaster GB601

The Winona Van Norman GB601 Glass Bead Cabinet is engineered to safely and effectively remove rust, carbon, corrosion, paint, scale, and other surface contaminants while preserving the integrity of the base material. Its precision blasting process cleans components without distorting the base metal or affecting critical dimensional tolerances, making it ideal for engine rebuilding, restoration, and precision industrial applications.
Designed for versatility, the GB601 can be configured to operate with a variety of abrasive media—not just glass bead—to meet the specific requirements of different materials, surface finishes, and cleaning applications. Its durable construction and controlled blasting environment provide consistent cleaning results while extending media life and improving overall operating efficiency.
Built for professional machine shops and industrial facilities, the Winona Van Norman GB601 delivers the precision, flexibility, and dependable performance needed to prepare components for inspection, machining, coating, or assembly. Whether cleaning delicate precision parts or heavily contaminated components, the GB601 provides reliable, repeatable results with exceptional surface quality.
Request A Quote
Product Information
Operations
Specifications
Features
Finger-tip control of blow-off hose
16-Gauge galvanized steel walls coated with high temperature finish

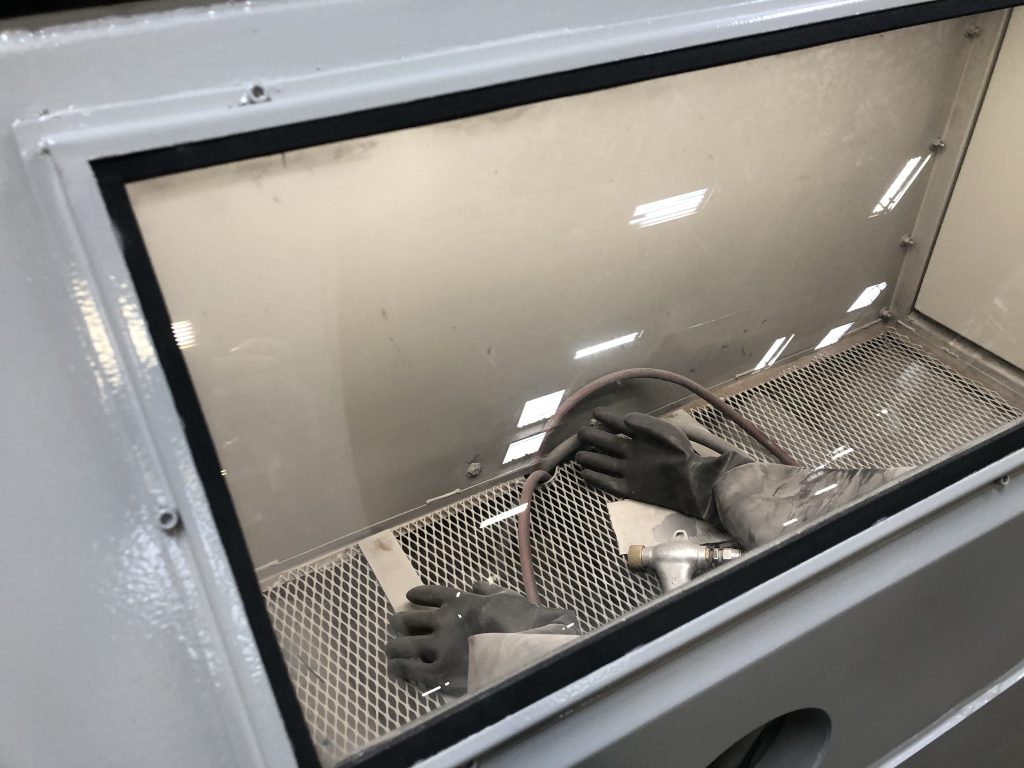

Working surface made of heavy gauge perforated plate
High level internal lighting for complete illumination of work
Finger-tip switch operates light and reclaim
Easy access, foot-controlled gun

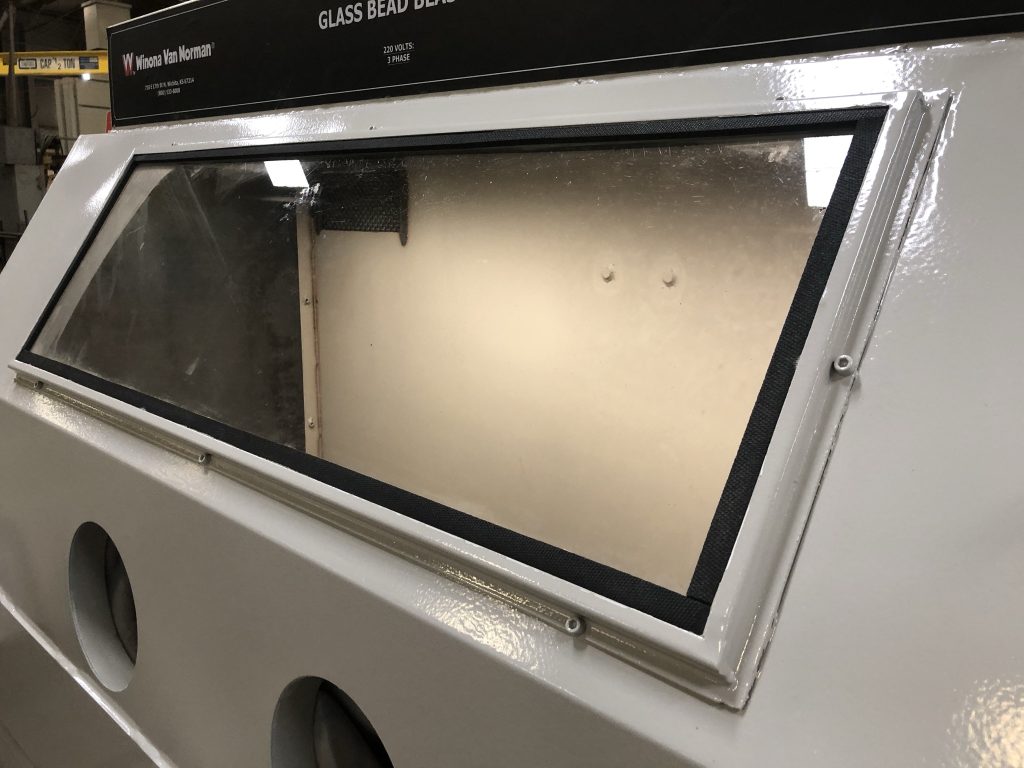

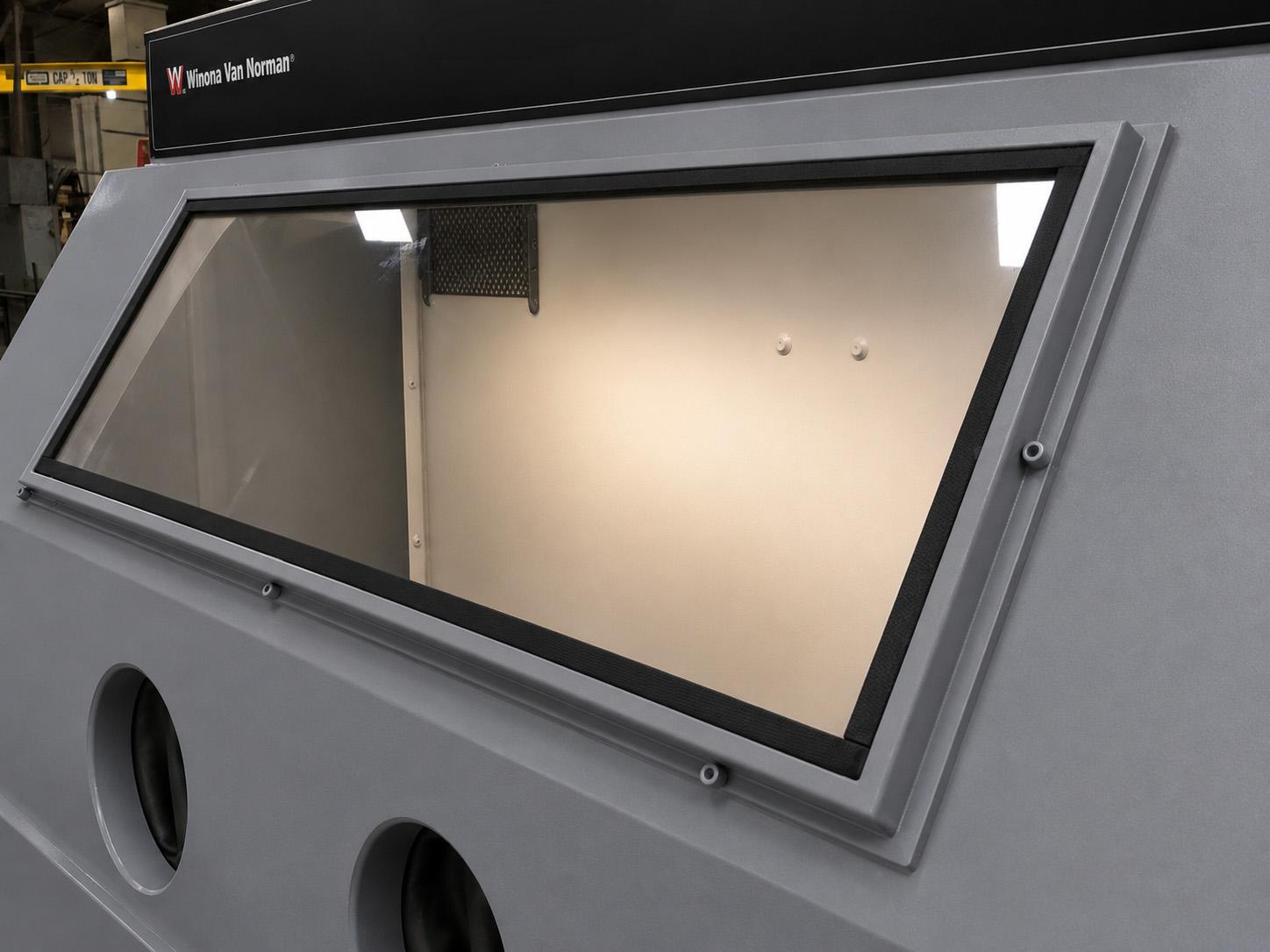

Large safety glass viewing window angled for optimum visibility

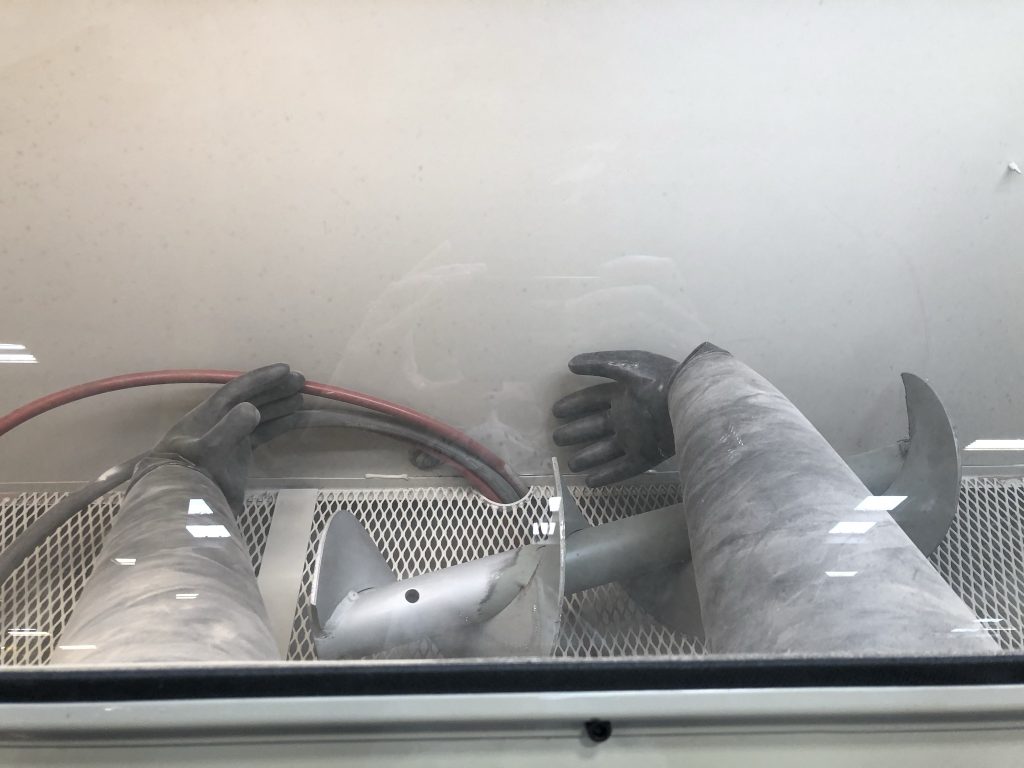

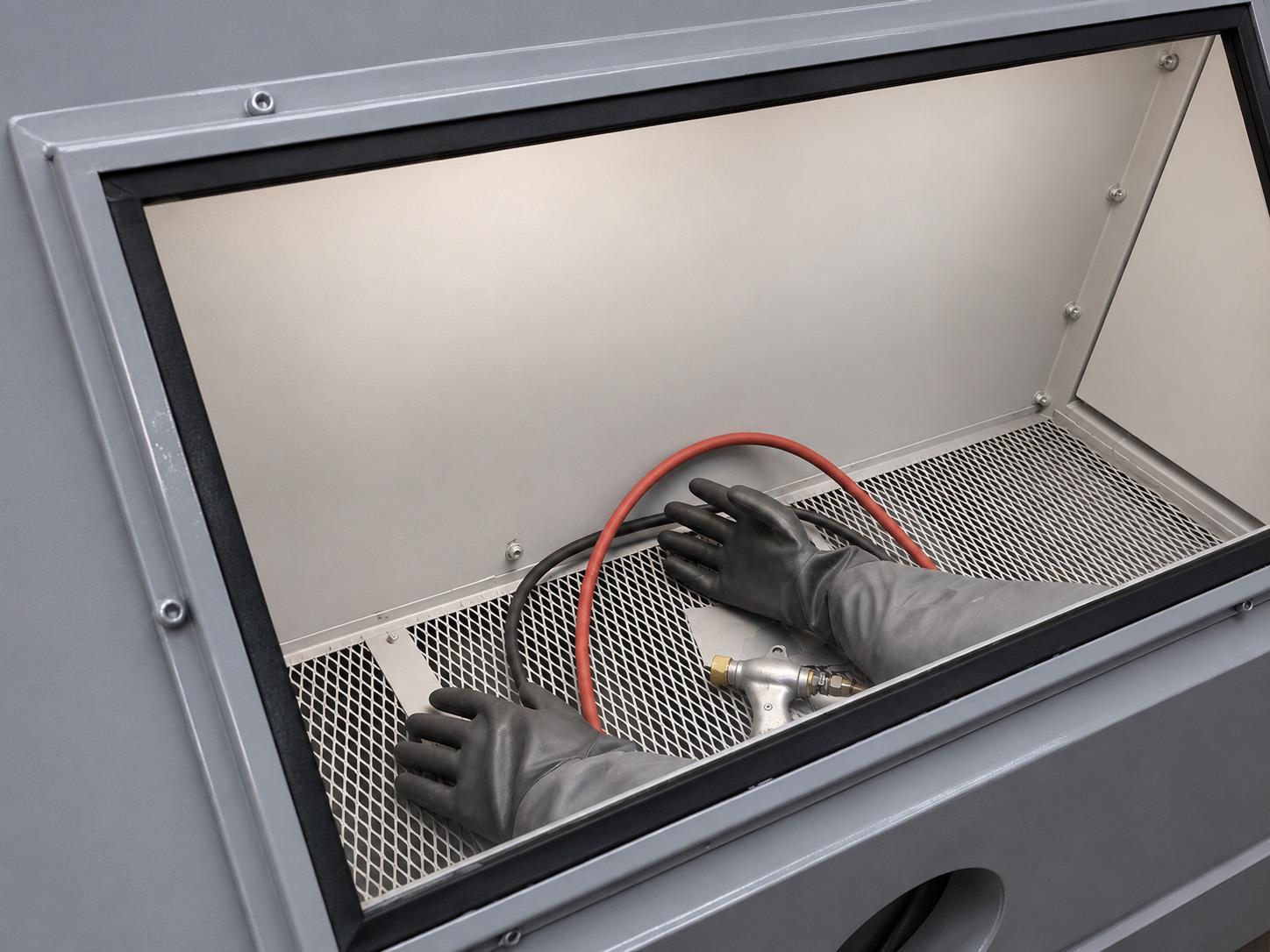

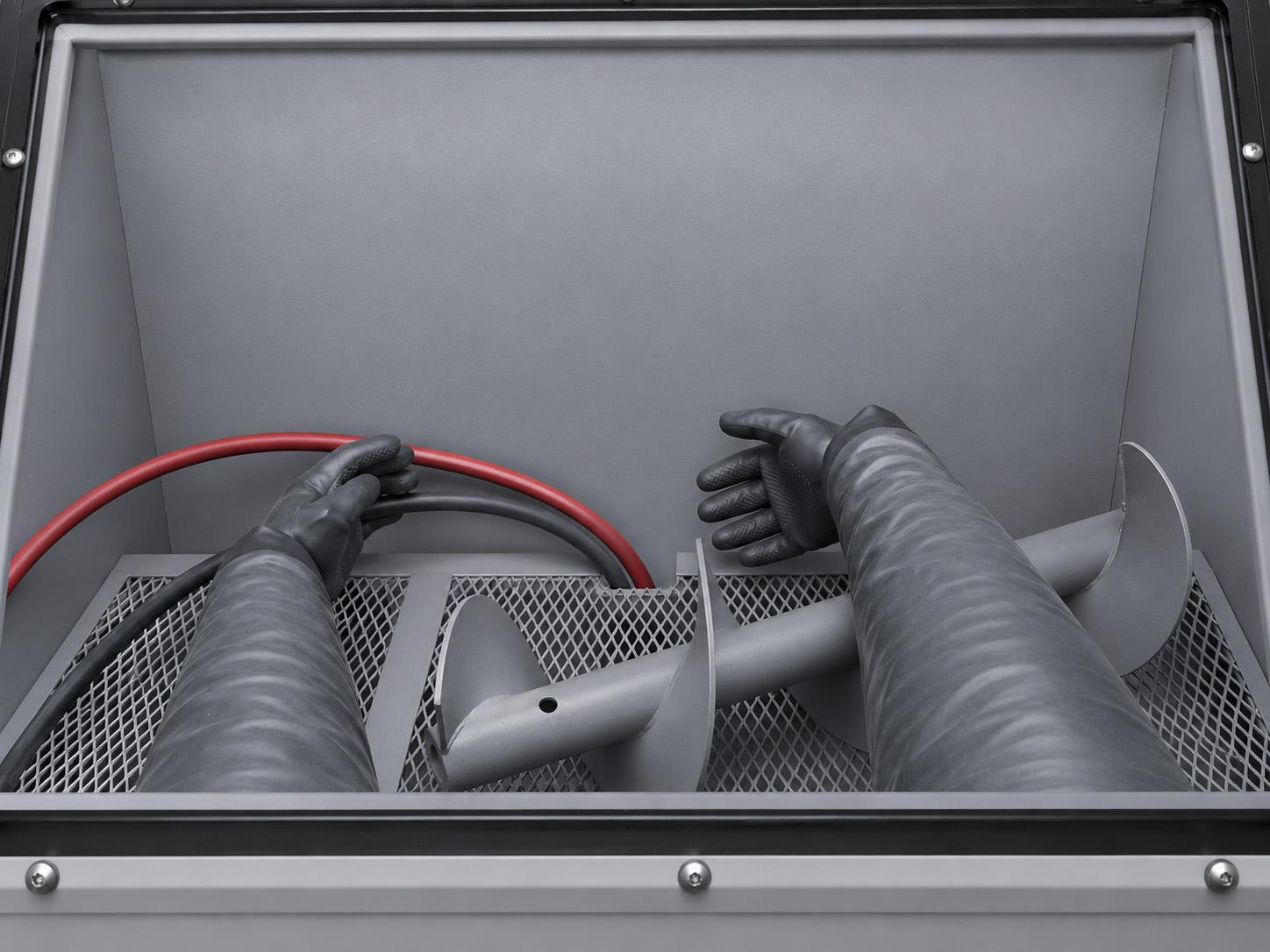

Special, elongated rubberized gloves secure to large arm ports for operator comfort
Dust Collector collects the debris from the blasting process for a safer work environment
Air regulating valve, gauge, and moisture trap

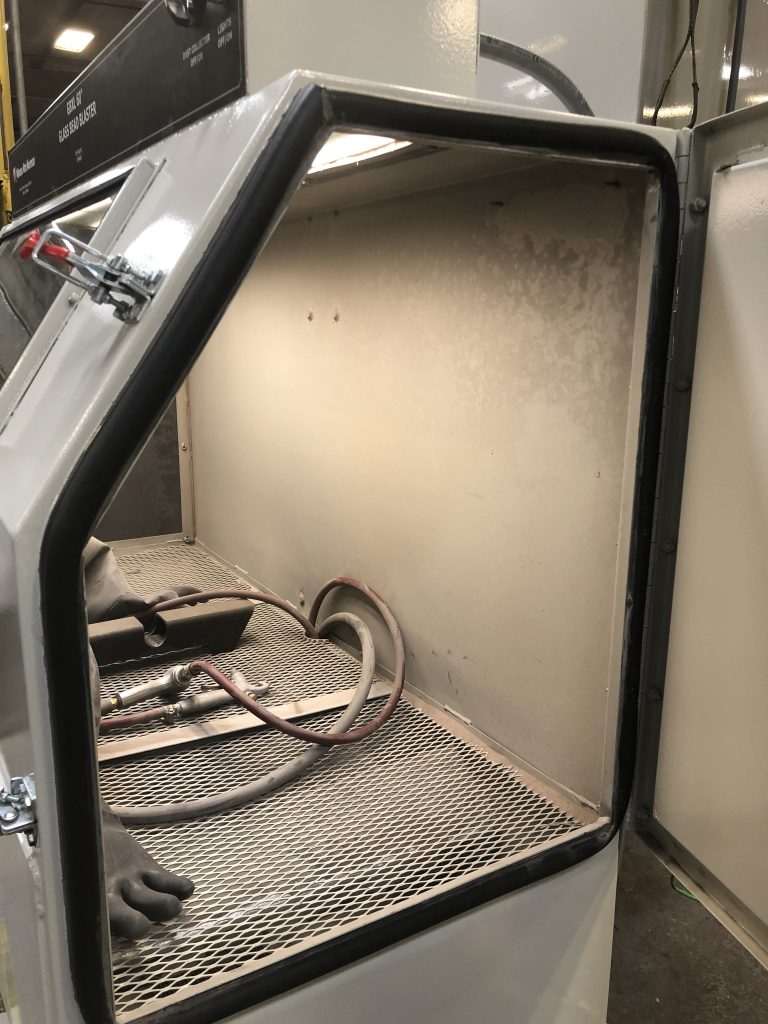

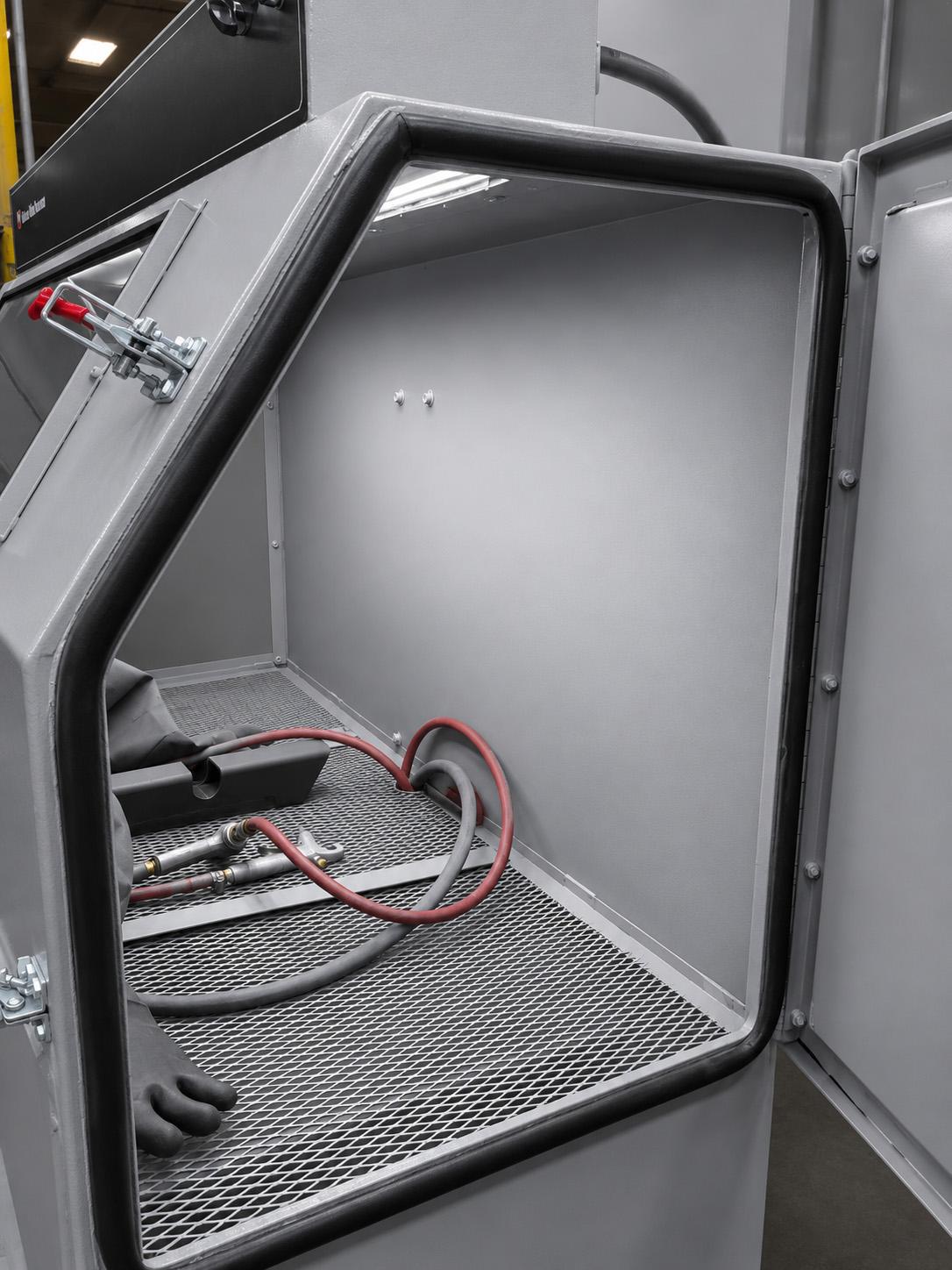

Two large end doors for easy loading/unloading. Flanged for positive seal with adjustable cabinet type lathes
Standard Tooling
Features and Options
Shipping Weight:
Electrical:
Reclaim System:
Working System:
Space Required:
Dimensions:
925 lbs.
110V/60HZ
600 CFM, 110V/60HZ
26″ x 42″
60″ x 72″
39.38″ w x 79.68″ h x 44.27″ d
