Flywheel Grinder FGX-10P

The FGX series Flywheel Grinder from Winona Van Norman is built from solid cast iron for durability and long-term reliability. Engineered for high productivity, it can resurface 8–10 flywheels per day, allowing the machine to pay for itself in just a couple of months. Ideal for high-volume shops or those expanding service offerings, adding flywheel grinding can significantly boost both efficiency and profitability.
Beyond flywheels, the WVN Flywheel Grinder restores flatness, enhances performance, and extends component life. Its precision and versatility make it suitable for resurfacing other automotive parts such as pressure plates and brake rotors, providing cost-effective maintenance and consistent, high-quality results—making it an essential tool for any automotive shop.
Request A Quote
Product Information
Operations
Setup is fast and accurate. Solid cast iron rugged design, exclusive cast in table support, industrial quality gear motor direct table drive for constant torque are features found only in the FG’s from Winona Van Norman. The FG Series will grind all your work pieces from the smallest automotive to the largest heavy duty.
Specifications
Part # : WVN9450006
HP : 10
POWERHEAD : Yes
AUTO FEED : No
Features

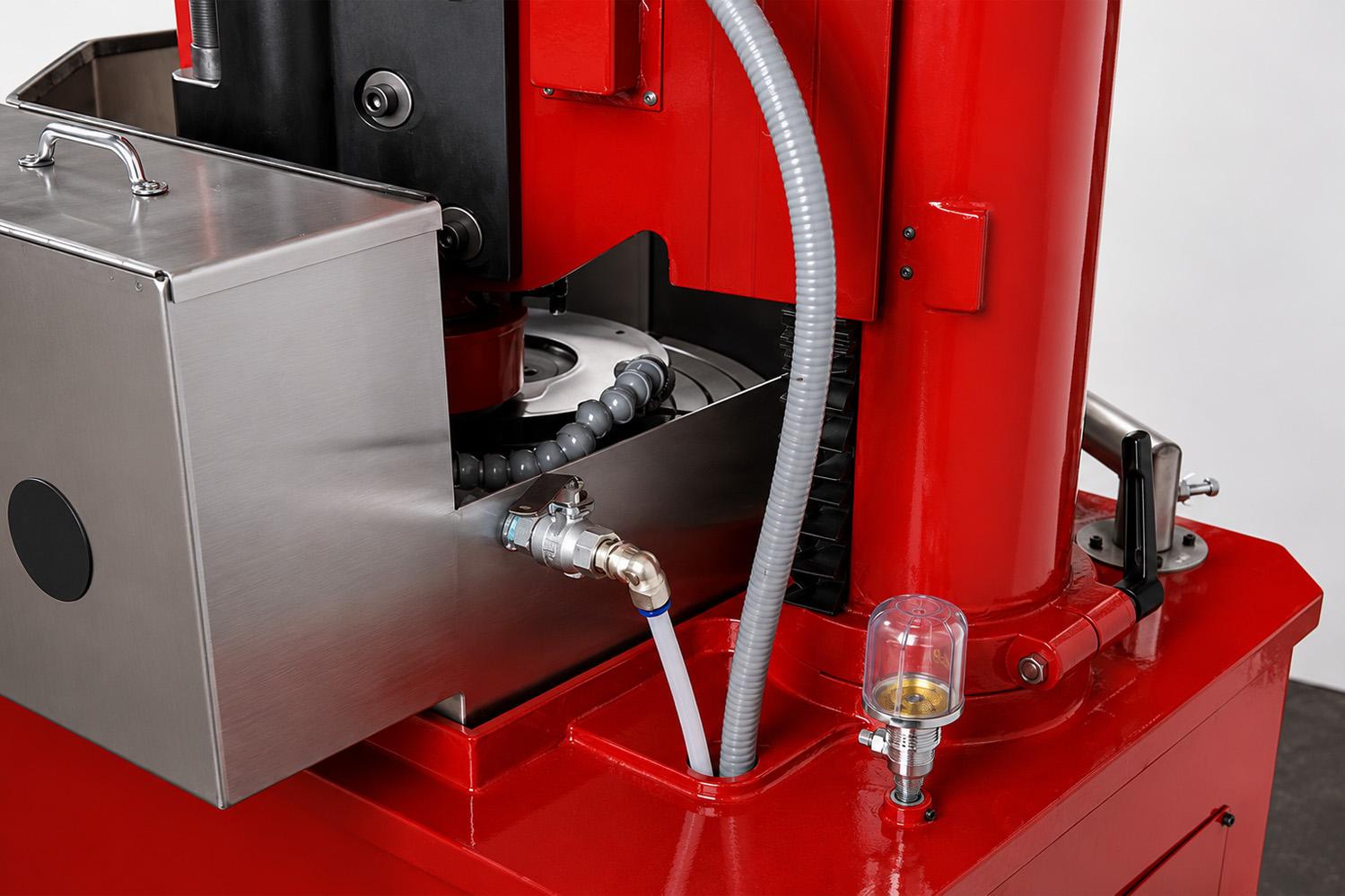

Stainless Steel Coolant Tank
Extra Precise Grinding Dial
Digital Amp Meter for
Spark-Out Control
Wheel Dresser
Radius Cutter
Modern Redesigned Electrical

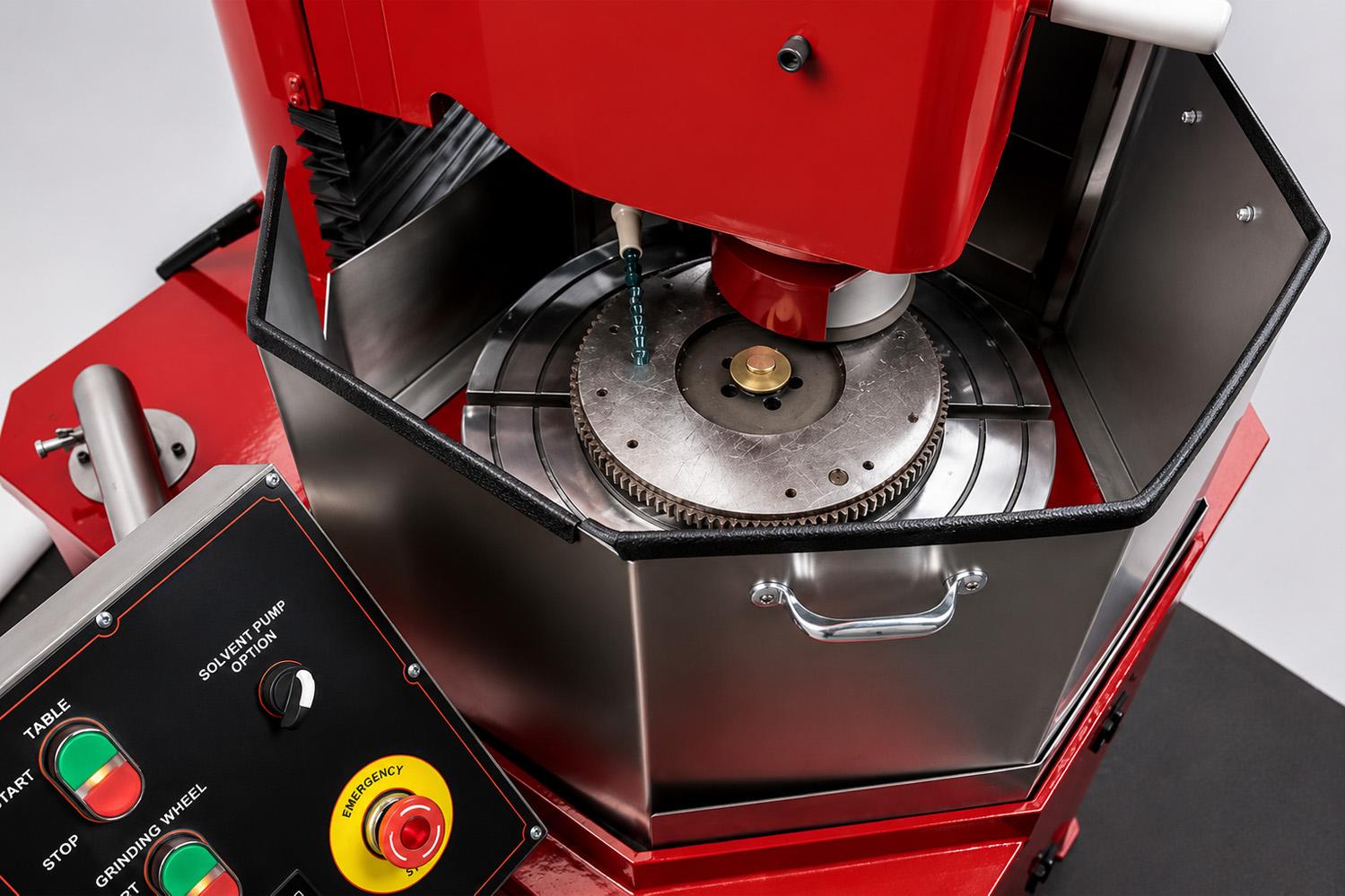

Stainless Grinding Shround
Precision Ball Screw and Linear Guiderail
Long Life Oil Bath Table Support

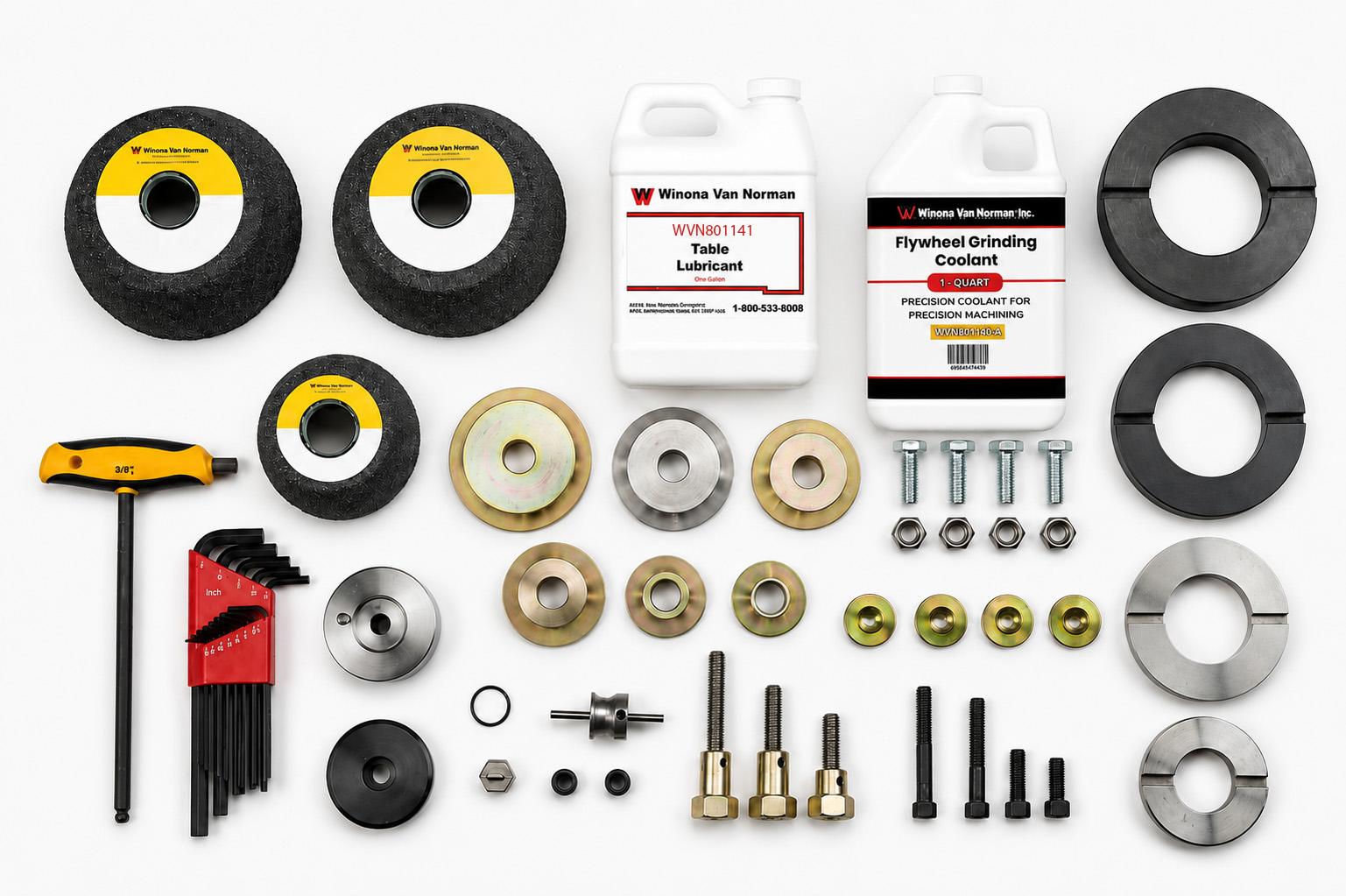

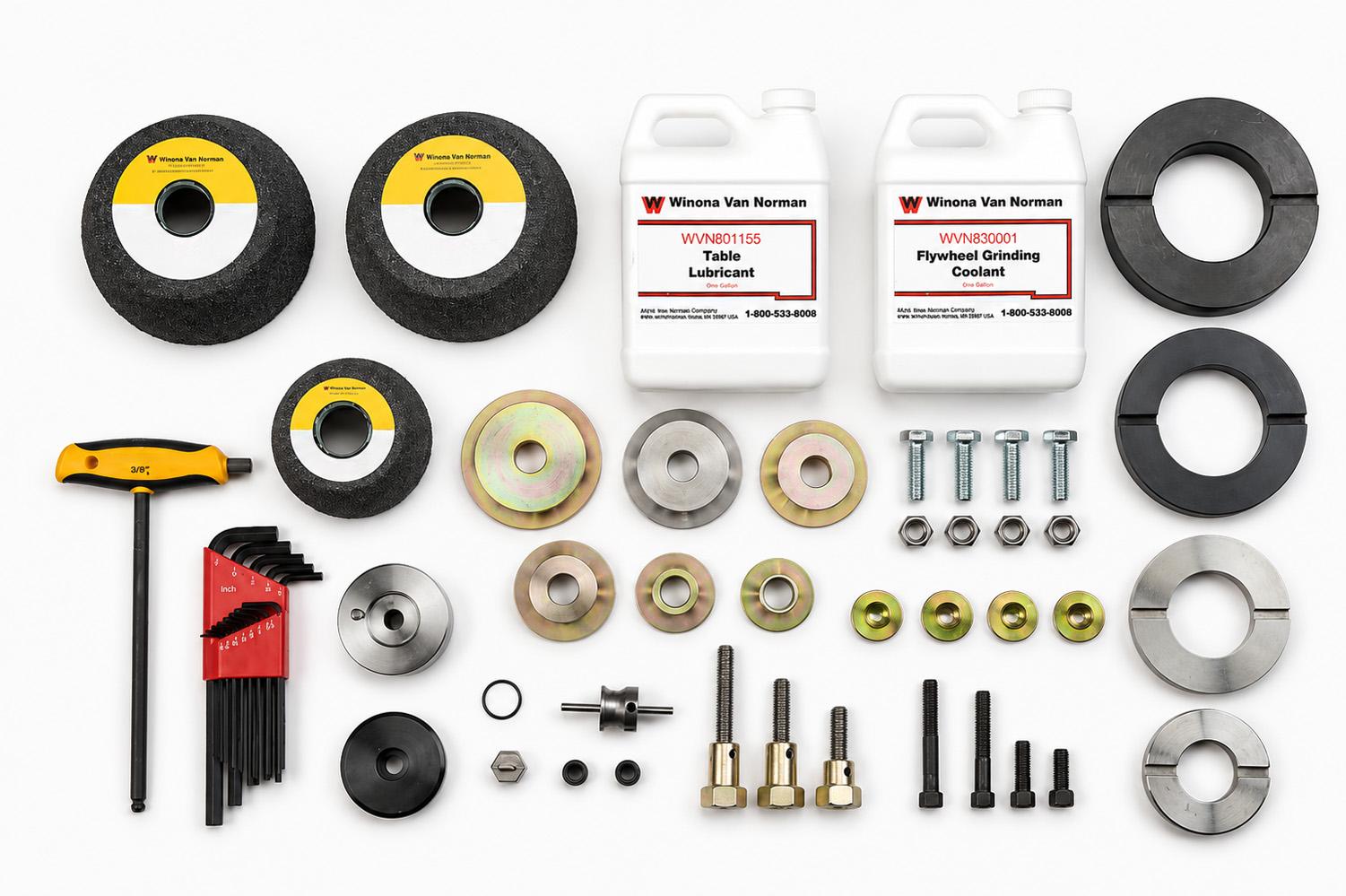

Standard Tooling
Features and Options
Table Diameter:
Flywheel Diameter Capacity:
Grining Motor Power:
Grinding Motor Speed:
Vertical Travel with 2.5″ Wheel:
Coolant Capacity (STD):
Coolant Flow per Minute:
Overall Dimensions:
Approx. Machine Weight:
Approx. Shipping Weight:
18″
24″
10 HP
10.5″
9.5 Gallons
19.5 Gallons
38″ l x 35″ w x 69″ h
1,550 lbs.
1,700 lbs.
