DIESEL FILTER PARTICULATE CLEANER DFPX

Request A Quote

Operations

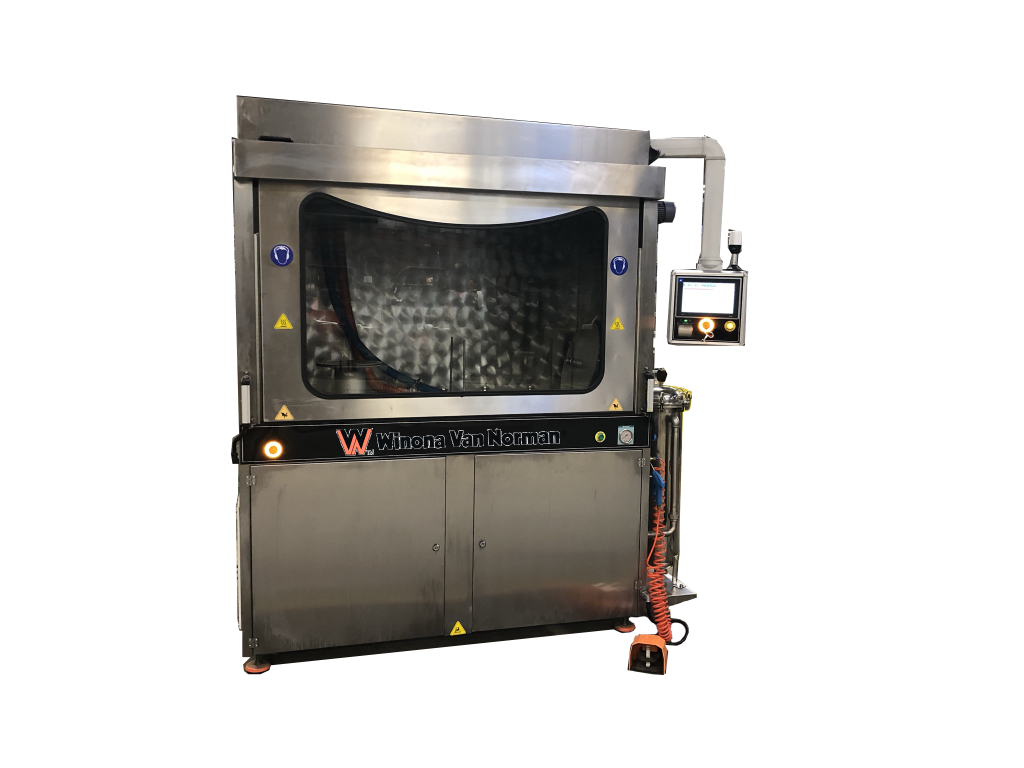

With the power to operate in automatic and manual mode, the PFX is perfect for cleaning and drying filters. On automatic mode, the machine examines the clogged filters and selects a suitable washing process, and automatically sets the cycle times. On manual mode, you can arrange processes and time yourself according to your experience.

Safety Light Curtain: Standard
Safety Relay: Standard
Drying System: Standard
Touch Screen: 10

Features

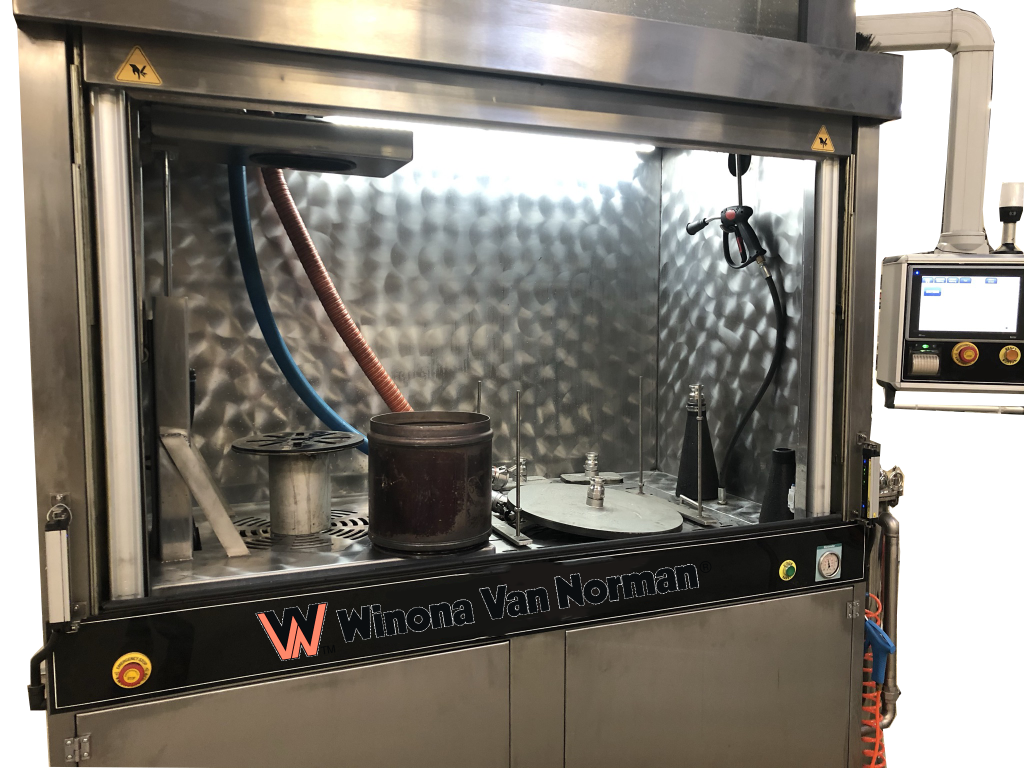

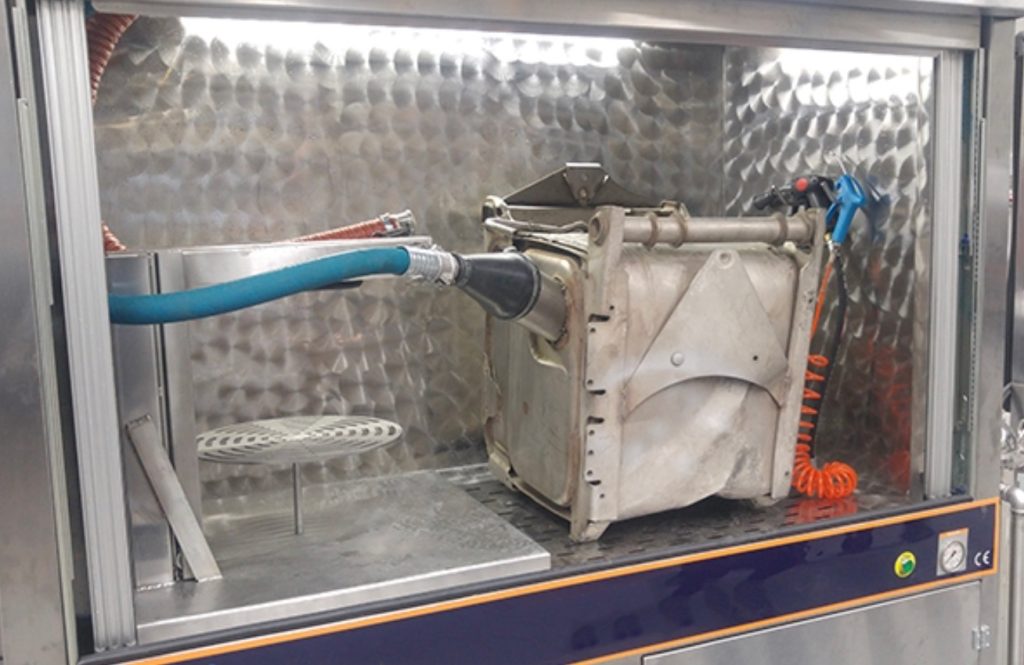

The PFX features a high‐pressure pump and water gun for cleaning outside the filter with ease.

Specifications

Overall Dimensions (L x W x H)
92 in x 50 in 100 in
2320 mm x 1270 mm 2250 mm
Loading Capacity
550 lbs.
250 kg
Height
40 in
1000 mm
Tank Capacity
65 Gal
246 L
Power
400V
Interior Lighting
70 Lux
Power Consumption
27 Amp
Minimum Air Requirement
3.5/85 CFM/PSI
(100/6 L/Bar)
Dimensions (L x W x H)
70 in x 24 in x 40 in
1800 mm x 600 mm x 1000 mm

Standard Tooling
