Dust Collector Cartridge DCC-1-A

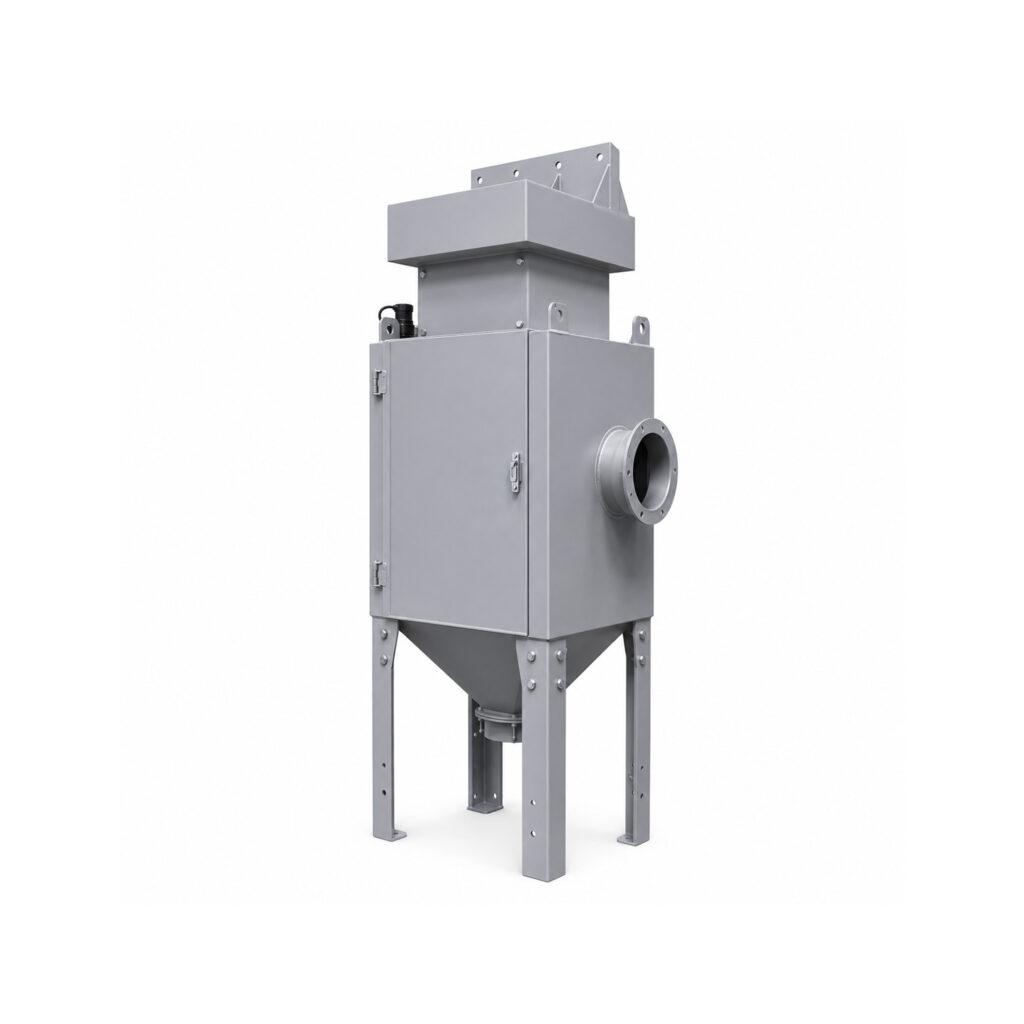

The Winona Van Norman DCC-1A is 480 cfm cartridge style dust collector. The Winona Van Norman DCC-1A uses one cartridge to collect the dust and debris from shot blasting and other industrial processes.

Request A Quote

Fill out the form below to request a quote for the Dust Collector Cartridge DCC-1-A.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Filter Removal Rack: Optional

Silencer: Optional

HEPA Filter: Optional

Rain Hood/Outdoor Kit: Optional

Fire Suppression System: Optional

Explosion Vent: Optional

Technical Specifications

Overall Dimensions (L x W x H)
36 in x 22 in x 98 in
914 x 559 x 2489 mm
Number of Cartridges/Filters
1
Filter Area
248 (sq. ft.)
Blower
2 HP
Approx. Blower
480 CFM
Approx. Shipping Weight
550 lbs.
250 kg
Duct Size
8 in
203 mm
Approx. Air Velocity
1376 ft./min.
420 m/min
Gallon Size for Dust
5 Gal
19 L
Standard Filter Part Number
903264
Washable Filter Part Number (Optional)
903372
