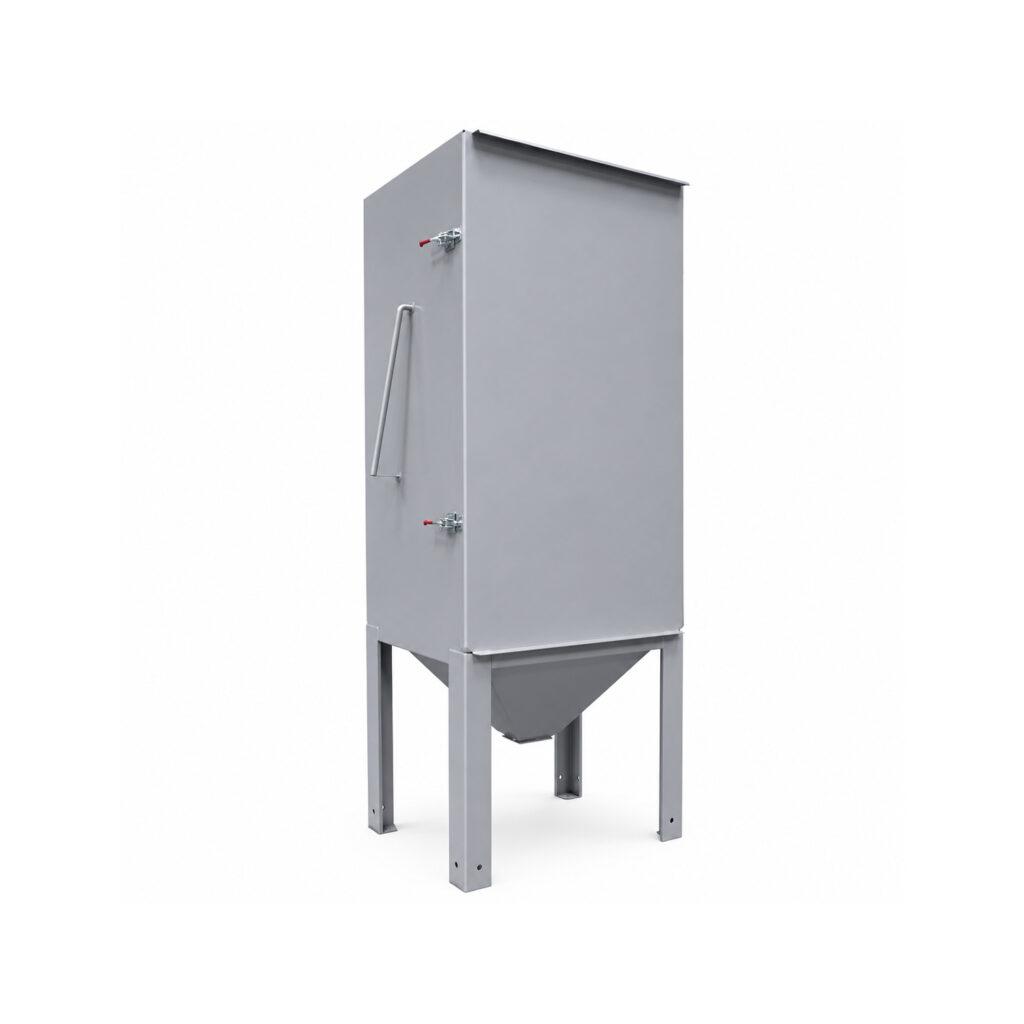

Dust Collector Baghouse DC-5
The Winona Van Norman DC-5 is a 800 cfm bag style dust collector. The dust collector uses fire retardant bags to collect dust and debris from blasting or other industrial practices.
Request A Quote
Fill out the form below to request a quote for the Dust Collector Baghouse DC-5.
Product Information
Operations
Specifications
Filter Bag Part Number: B98
Special Features Included
Silencer: Optional
Hepa Filter: Optional
Rain Hood/Outdoor Kit: Optional
Fire Suppression System: Optional
Explosion Vent: Optional
Maintenance/Service Platform: Optional
Features
Standard Tooling
Technical Specifications
Overall Dimensions (L x W x H)
64 in x 36 in x 130 in
1625 x 914 x 3302 mm
Number of Cartridges/Filters
8
Filter Area
224 (sq. ft.)
Blower
5 HP
Approx. Blower
800 CFM
Approx. Shipping Weight
1200 lbs.
544 kg
Duct Size
8 in
203 mm
Approx. Air Velocity
2293 ft./min.
699 m/min
Gallon Size for Dust
5 Gal
19 L
Demonstration
Video coming soon
