Dust Collector Baghouse DC-3

Category: Dust Collectors

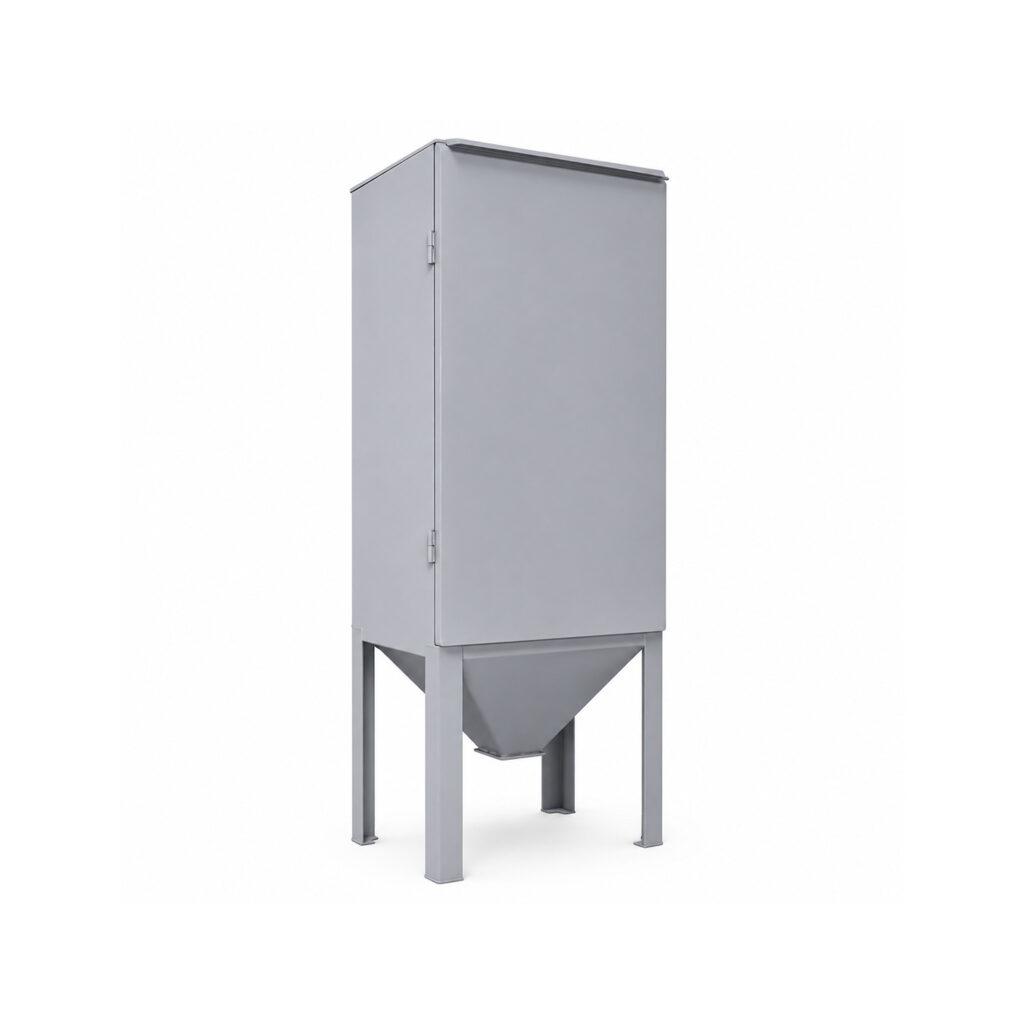

The Winona Van Norman DC-3 is a 725-cfm bag style dust collector. The dust collector uses fire retardant bags to collect dust and debris from blasting or other industrial practices.

Request A Quote

Fill out the form below to request a quote for the Dust Collector Baghouse DC-3.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Operations
Specifications

Filter Bag Part Number: B98
Special Features Included
Silencer: Optional
Hepa Filter: Optional
Rain Hood/Outdoor Kit: Optional
Fire Suppression System: Optional
Explosion Vent: Optional
Maintenance/Service Platform: Optional

Features
Standard Tooling

Technical Specifications

Overall Dimensions (L x W x H)
48 in x 36 in x 120 in
1219 x 914 x 3048 mm
Number of Cartridges/Filters
6
Filter Area
168 (sq. ft.)
Blower
5 HP
Approx. Blower
725 CFM
Approx. Shipping Weight
850 lbs.
385 kg
Duct Size
8 in
203 mm
Approx. Air Velocity
2078 ft./min.
633.4 m/min
Gallon Size for Dust
5 Gal.
19 L
