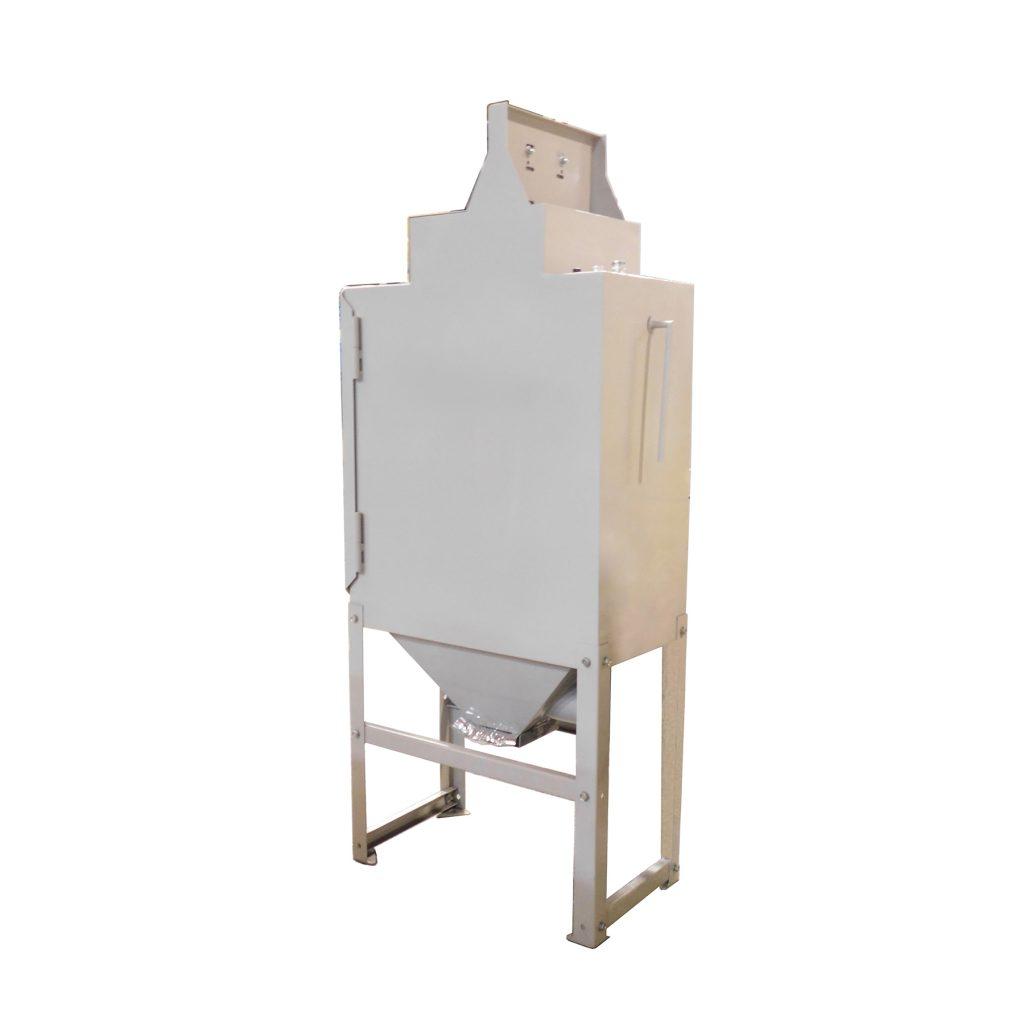

Dust Collector Baghouse DC-1/2
The Winona Van Norman DC-1/2 is a 200-cfm bag style dust collector. The dust collector uses fire retardant bags to collect dust and debris from blasting or other industrial practices.
Request A Quote
Fill out the form below to request a quote for the Dust Collector Baghouse DC-1/2.
Product Information
Operations
Specifications
Features
Filter Bag Part Number: B307
Special Features Included
Silencer: Optional
Hepa Filter: Optional
Rain Hood/Outdoor Kit: Optional
Fire Suppression System: Optional
Explosion Vent: Optional
Maintenance/Service Platform: N/A
Standard Tooling
Technical Specifications
Shipping Dimensions
20 in x 38 in x 78 in
508 x 965 x 1981 mm
Number of Cartridges/Filters
2
Filter Area
28 (sq. ft.)
Blower
1 HP
Approx. Blower
200 CFM
Approx. Shipping Weight
275 lbs.
125 kg
Duct Size
6 in
152 mm
Approx. Air Velocity
1019 ft./min.
310.6 m/min
Gallon Size for Dust
5 Gal.
19 L
Demonstration
Video coming soon
