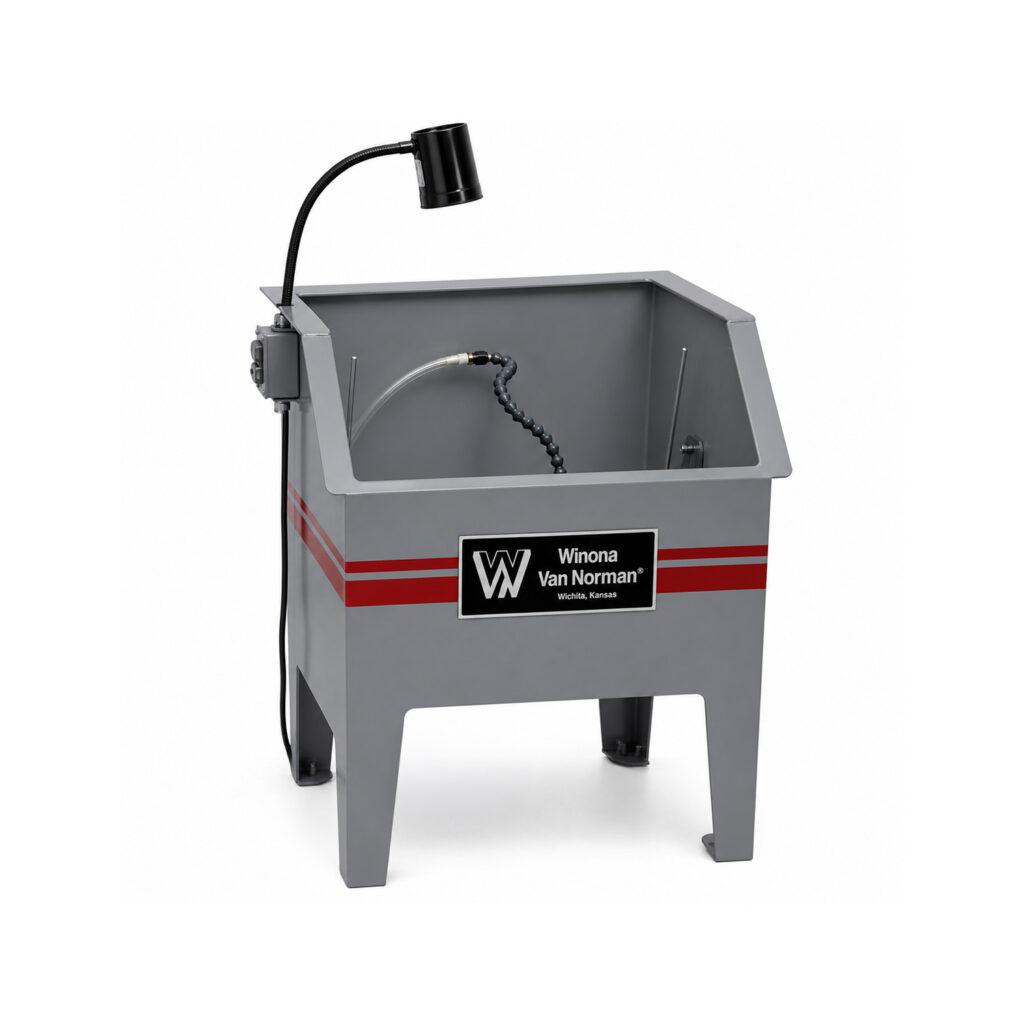

Hone Tank CHX
The Winona Van Norman CHX Hone Tank is specifically designed for precision valve guide honing, delivering the consistent surface finishes required for high-quality engine rebuilding. Engineered to help operators achieve a uniform RMS surface finish, the CHX Hone Tank improves accuracy, repeatability, and overall machining results.
Compatible with fixtures for most performance cylinder heads, the CHX Hone Tank is easy to operate, highly accurate, and built to fit the needs of shops of all sizes. Its dependable performance and efficient honing process make it a cost-effective investment that helps increase productivity while delivering professional-quality results.
Request A Quote
Product Information
Operations
1. SAFETY GOGGLES MUST BE WORN AT ALL TIMES WHILE OPERATING THIS MACHINE!
2. ITS A MANUAL HONING MACHINE WHERE YOU CAN GUIDE THE VALVE FOR HONING THE PART.
3. ENSURE THAT THE PART IS COMPLETELY HONNED AS THE GUIDE VALVE CAN REACH WITHIN THE MACHINE.
4. THE BEST RMS SURFACE FINISH CAN BE ACHIVED WITH PROPER HONING.
Specifications
The machine is made with respect to appropriate standards and safety rules.
However, when the machine is operated, the life of the operator, some components or the machine itself may be subjected to damage or danger.
1. The machine must only be used for the aim it has been designed for.
2. It should be used according to the instruction given in the user’s manual.
3. The machine should be operated by personnel who can be aware of the risks that are likely to occur.
4. In case, any functional disorder happens on the machine particularly the one that might endanger the machine’s safety, the machine must immediately be stopped, and the problem should then be solved.
Apart from the recommended materials, if other materials are to be worked on the machine, there should be a written confirmation from the manufacturer so that the new materials can be used.
If the machine is used in operations out of which it is made for, the manufacturer or its representatives will not be responsible for any damage that may occur.
Risk due to wrong use of the machine is beared by the user. Working of the machine within the designed limits is explained in the user’s guide.
Features
Standard Tooling
Features and Options
Dimensions:
Approx. Machine Weight:
Approx. Shipping Weight:
Electrical:
26″ l x 19″ w x 33″ h
110 lbs.
190 lbs.
110V/3PH/60HZ
