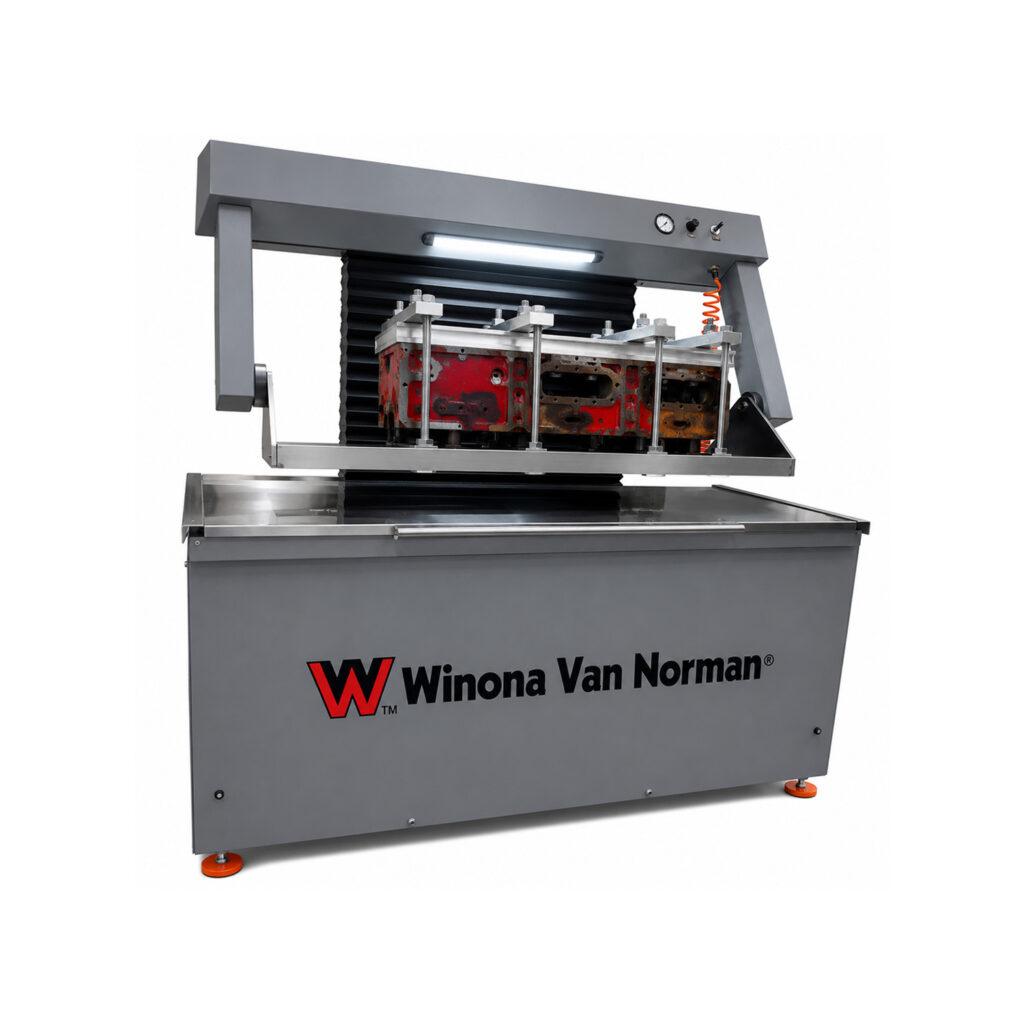

Pressure Tester – CHT1240

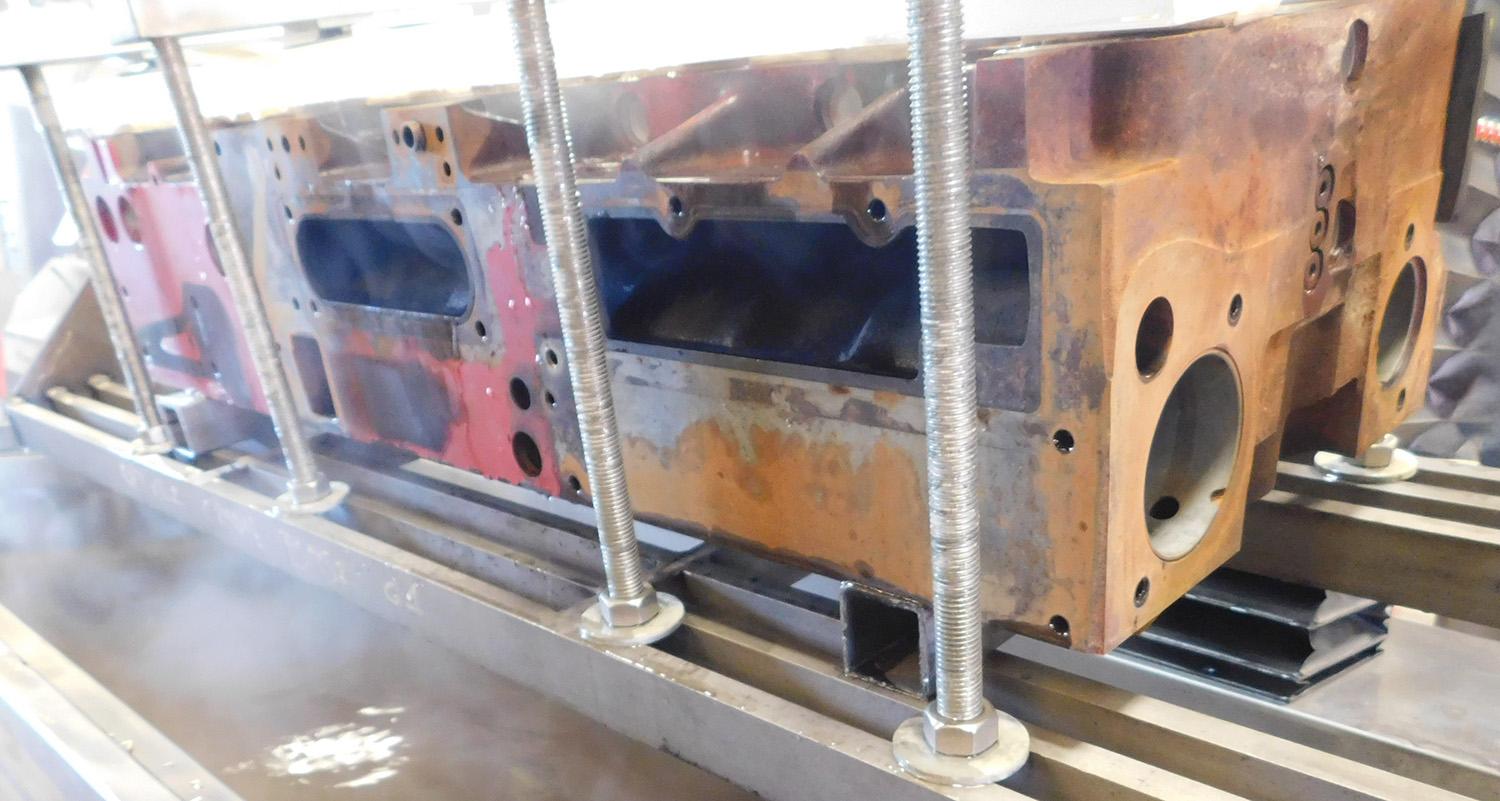

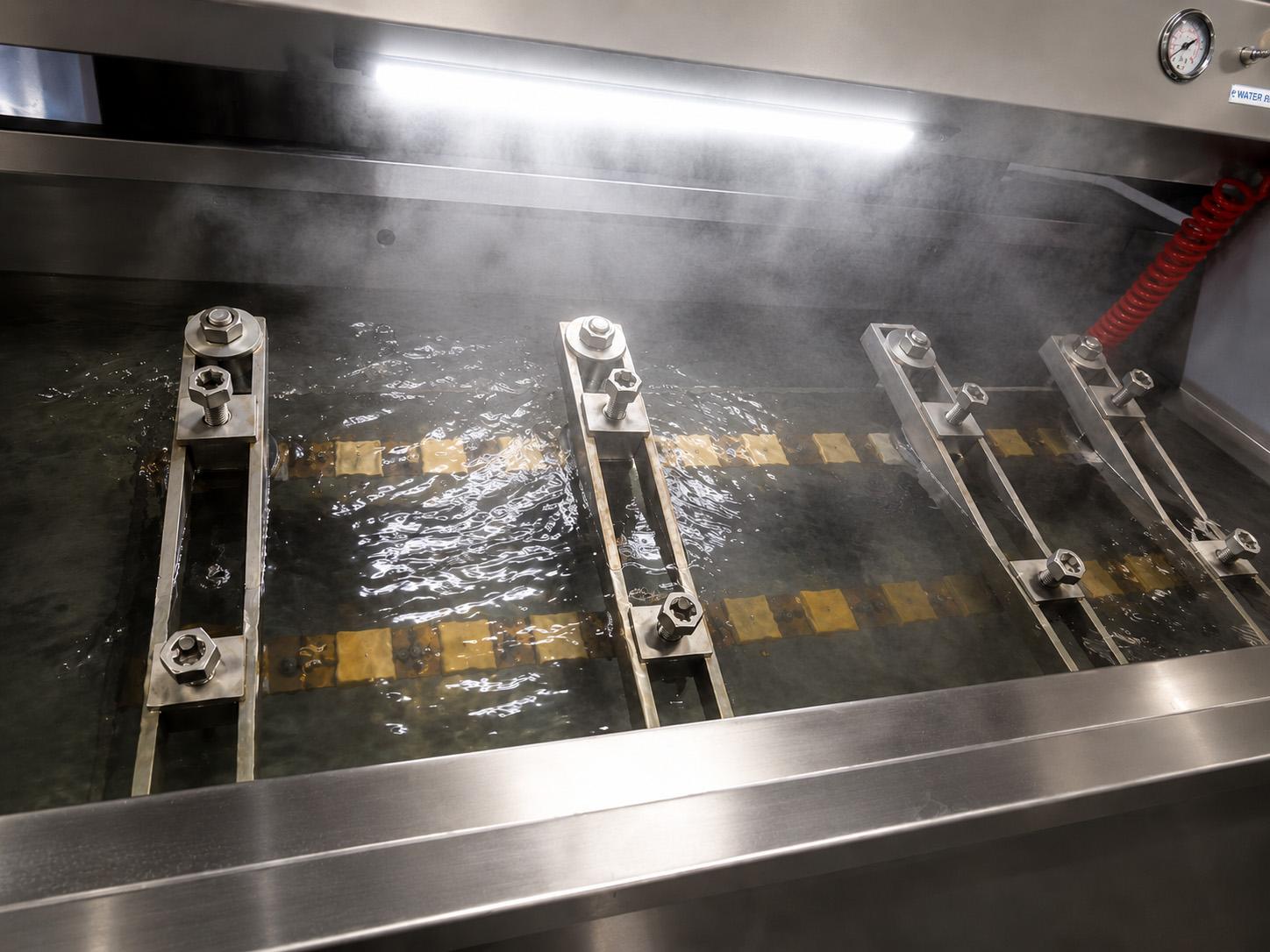

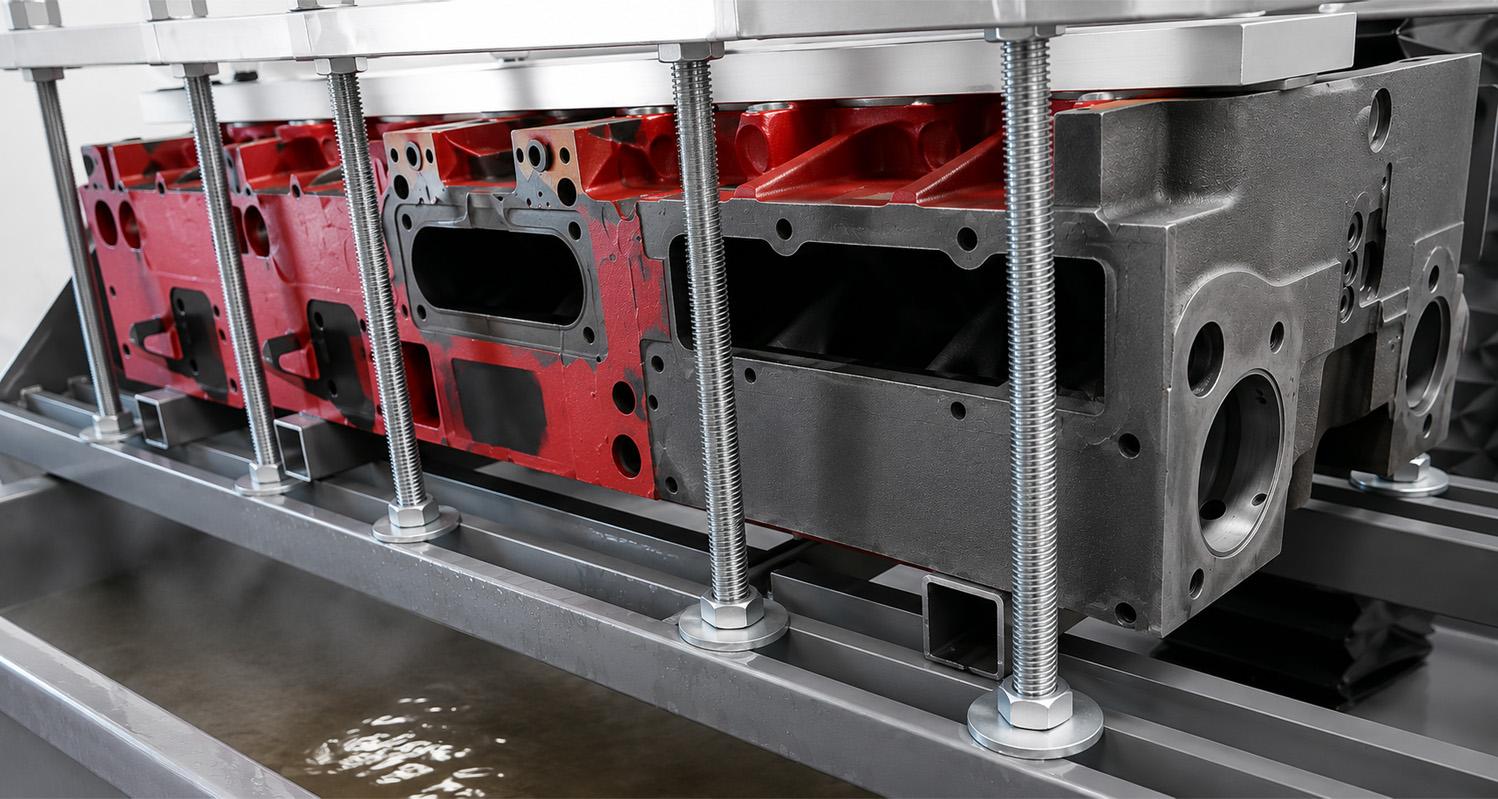

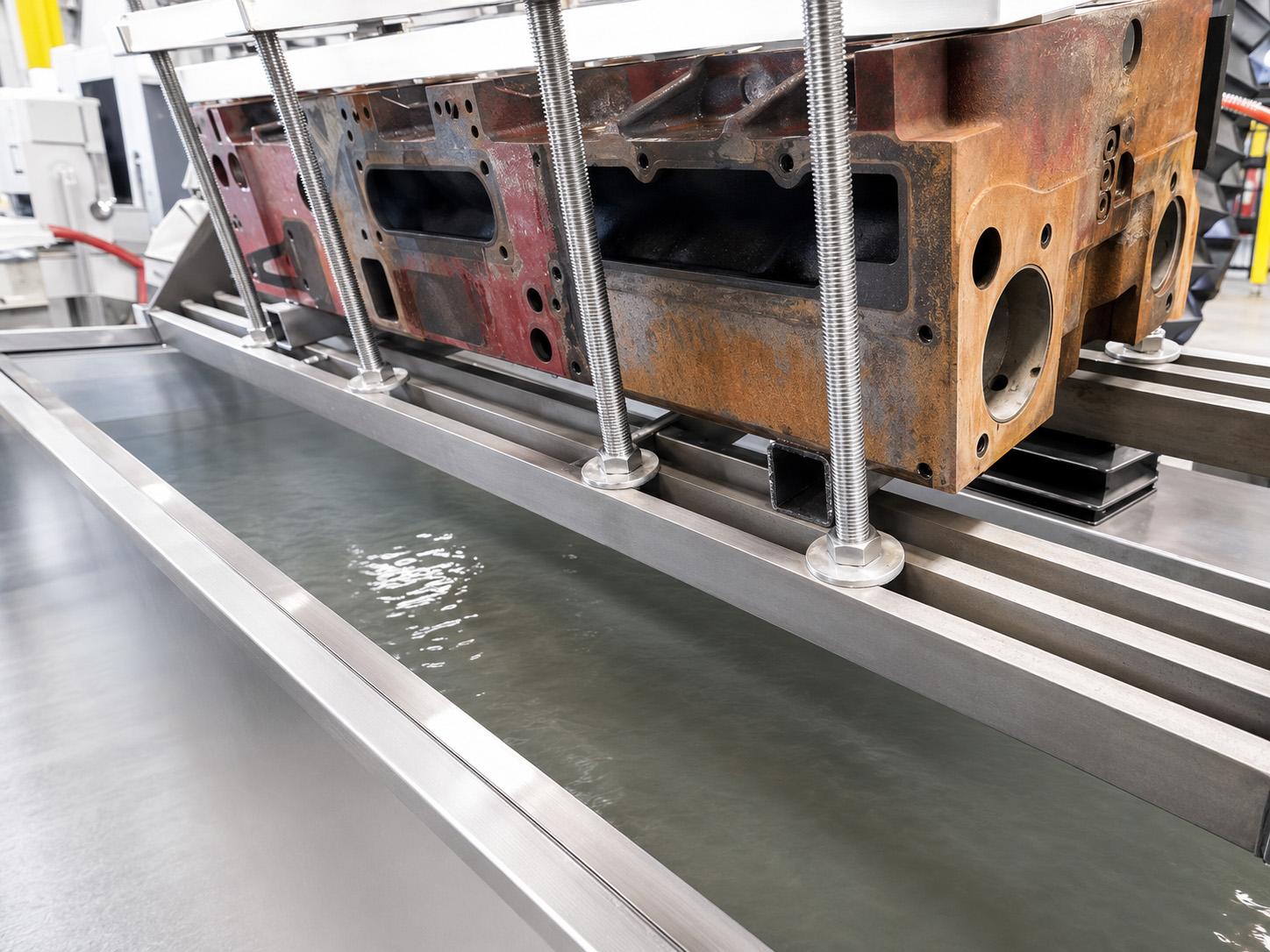

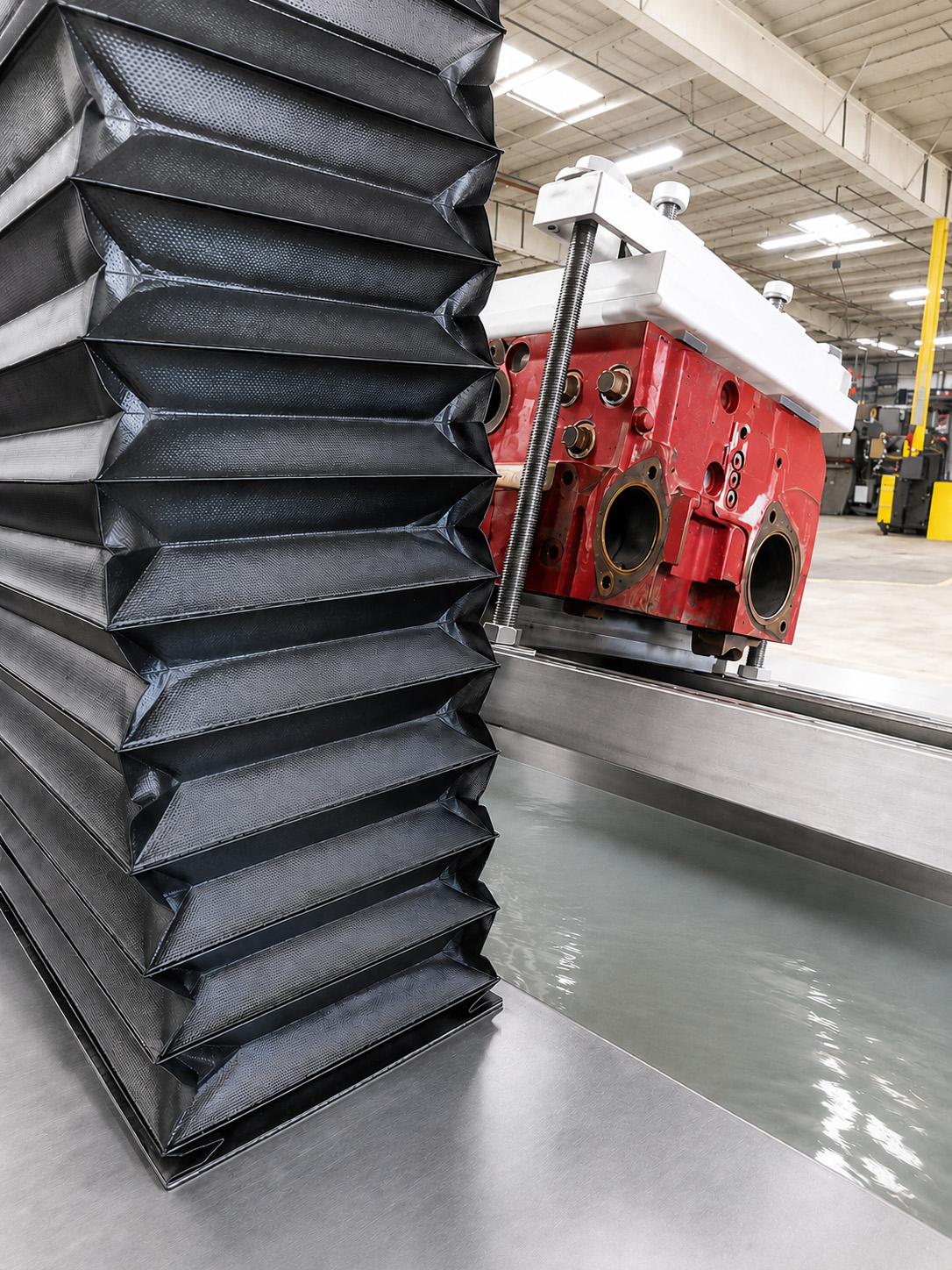

The Winona Van Norman CHT1240 Pressure Tester is designed to quickly and accurately detect leaks, cracks, and other defects in cylinder heads before they are returned to service. By pressurizing the cylinder head and submerging it in a heated water tank, the CHT1240 allows operators to visually identify escaping air bubbles, making it easy to pinpoint even small leaks or hidden cracks that could lead to engine failure.
Pressure testing is an essential step in the engine rebuilding process, ensuring cylinder heads maintain proper sealing, cooling system integrity, and overall performance. The CHT1240 provides fast, accurate, and repeatable testing to verify repair quality, reduce costly comebacks, and improve diagnostic confidence. Built for professional engine rebuilding operations, it is an indispensable tool for shops committed to delivering reliable, high-quality engine rebuilds.
Request A Quote
Product Information
Operations
The machine is designed for easy operation, with a minimum maintenance and optimized for safety.
Specifications
Features
Transparent acrylic plate (14.5″ x 7″ x 1″)
Transparent acrylic plate (20″ x 6″ x 1″)
Transparent acrylic plate (20″ x 10″ x 1″)
Transparent acrylic plate (29″ x 7.5″ x 1″)
Transparent acrylic plate (30″ x 9.5″ x 1″)
Roll of rubber to make custom plugs (15.7″ x 7.9″ x 0.25″)
Plate for backing for custom plugs (15.7″ x 7.9″ x 0.25″)
Pieces of custom metal in/out ports
Rubber cones with metal backing
Pneumatic connections with o-rings
1/4 Gallons of rust and corrosion inhibitor
Set of bolts and buts for fastening
Inline water filter
Stainless-steel cradle, solution tank and hardware

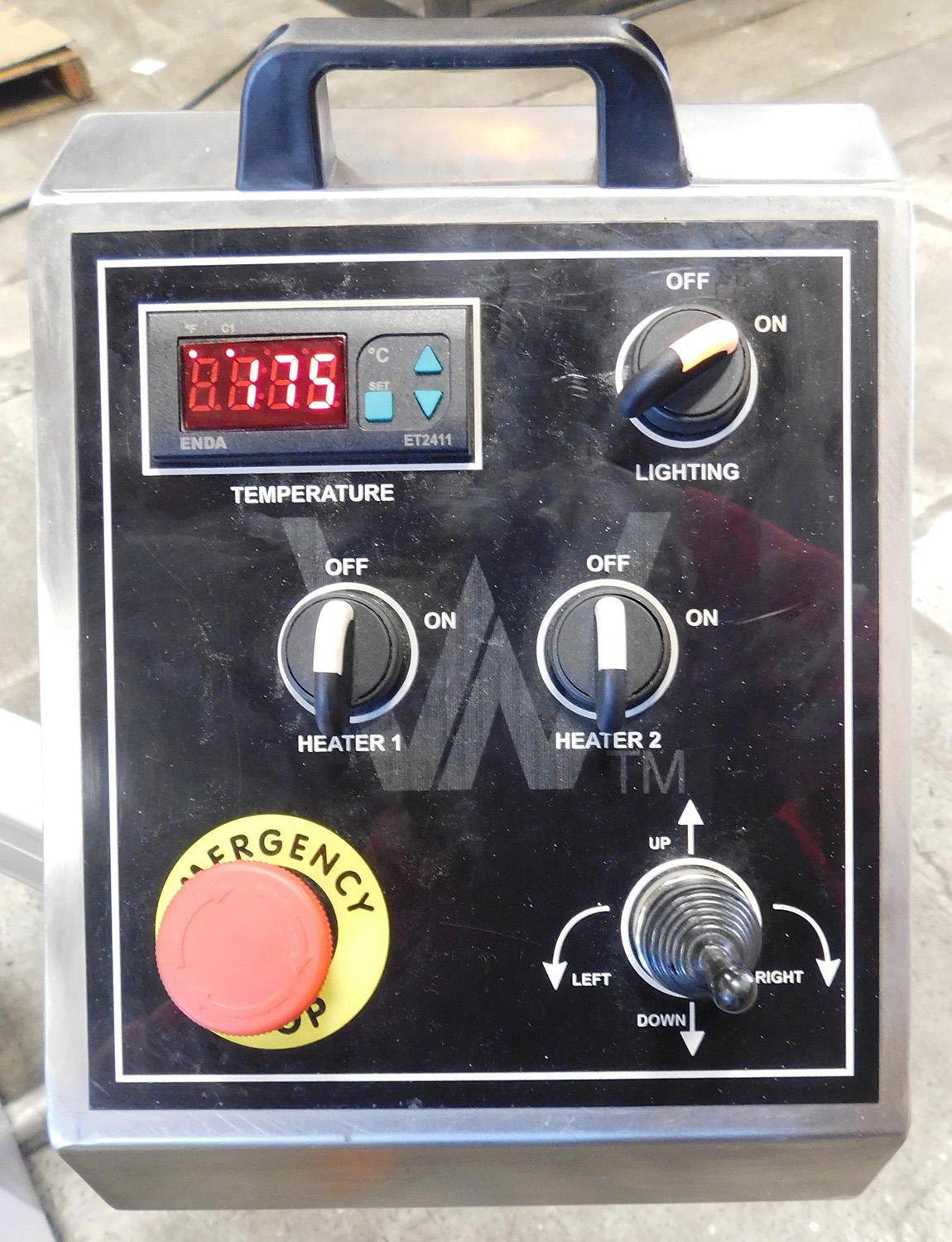

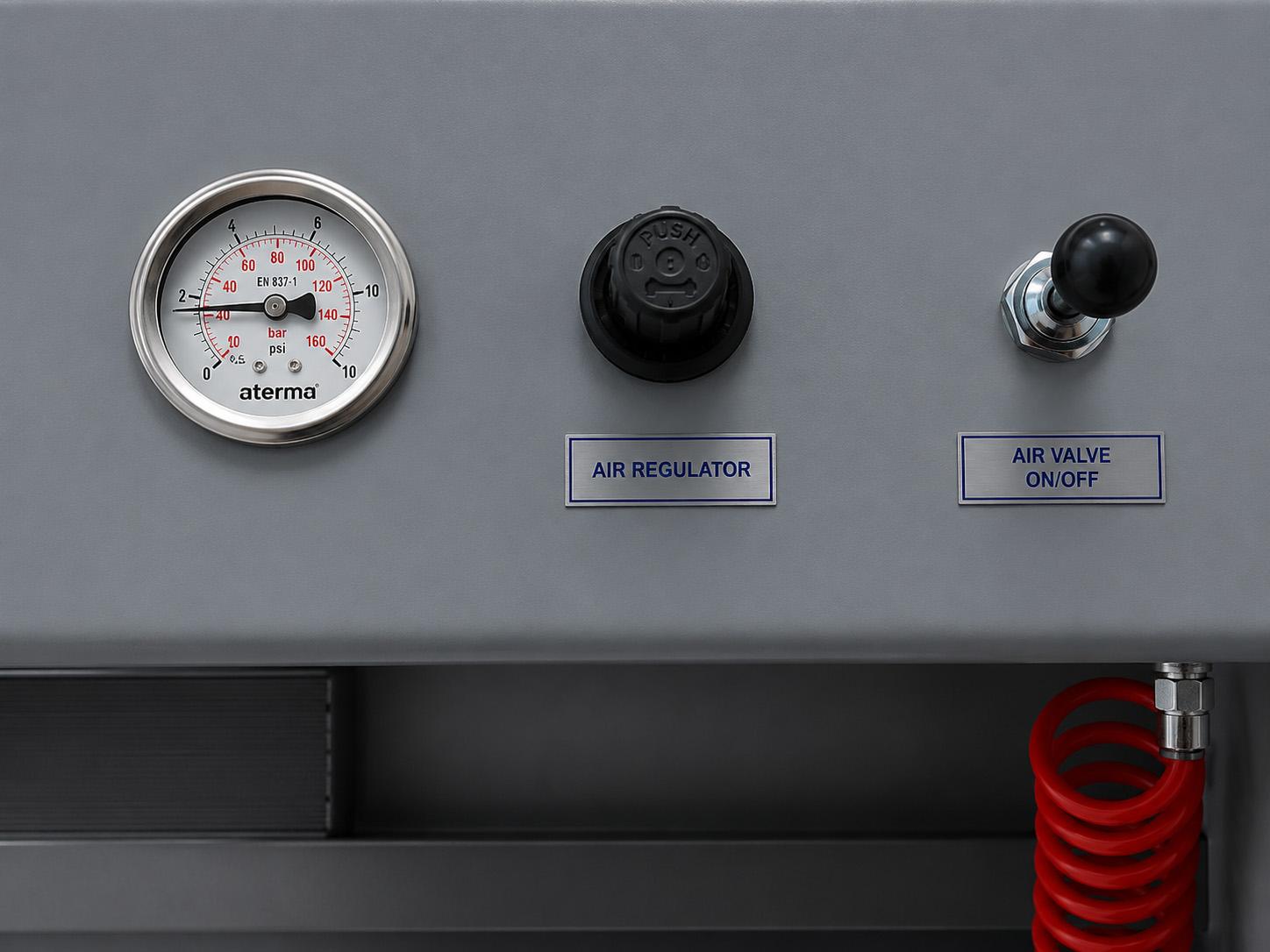

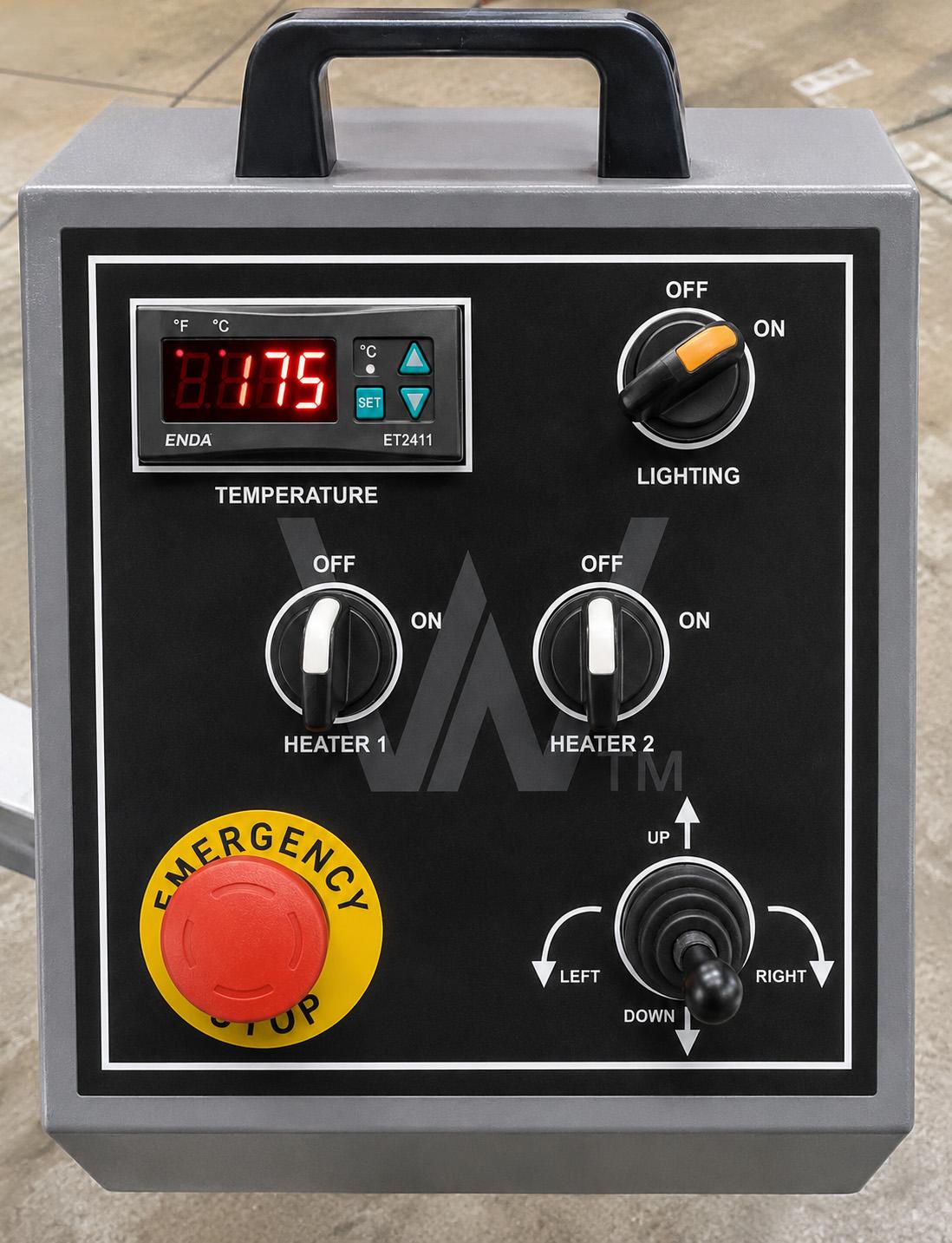

Pressure regulation and control panel
Inline centered pressure lines for no tangle rotation
Standard Tooling
Preheating Programmer.
2 – Plane Supports
2 – Slanted Head Supports
8 – Long-Threaded Bars w/Accessories
8 – Short-Threaded Bars
4 – Clamp Bars
2 – Quick Clamps
2 – Transparent Plates
1 Set – Rubber Plug (90 pieces)
1 – Rubber Sheet for Making Custom Plugs
1 – Operation Manual & Maintenance Manual
1 Set – Cylinder Head Plates
Features and Options
Max. Stroke:
Rotation Speed:
Heater:
Turning Power:
Electrical:
Tank Capacity:
Pump:
Max. Workpiece:
Overall Dimensions:
Approx. Machine Weight:
Heat:
Standard Hydraulic System:
Thermostat:
23.6″
4 RPM
4.5 kW
0.18 kW
220V or 380V/3PH/60HZ
110 Gallons
4 HP
275 lbs.
77.2″ l x 37.8″ w x 67.5″ h
896 lbs.
Electronic Thermostat
Able to be Rotated 360-degrees
0 – 180-degrees Fahrenheit
