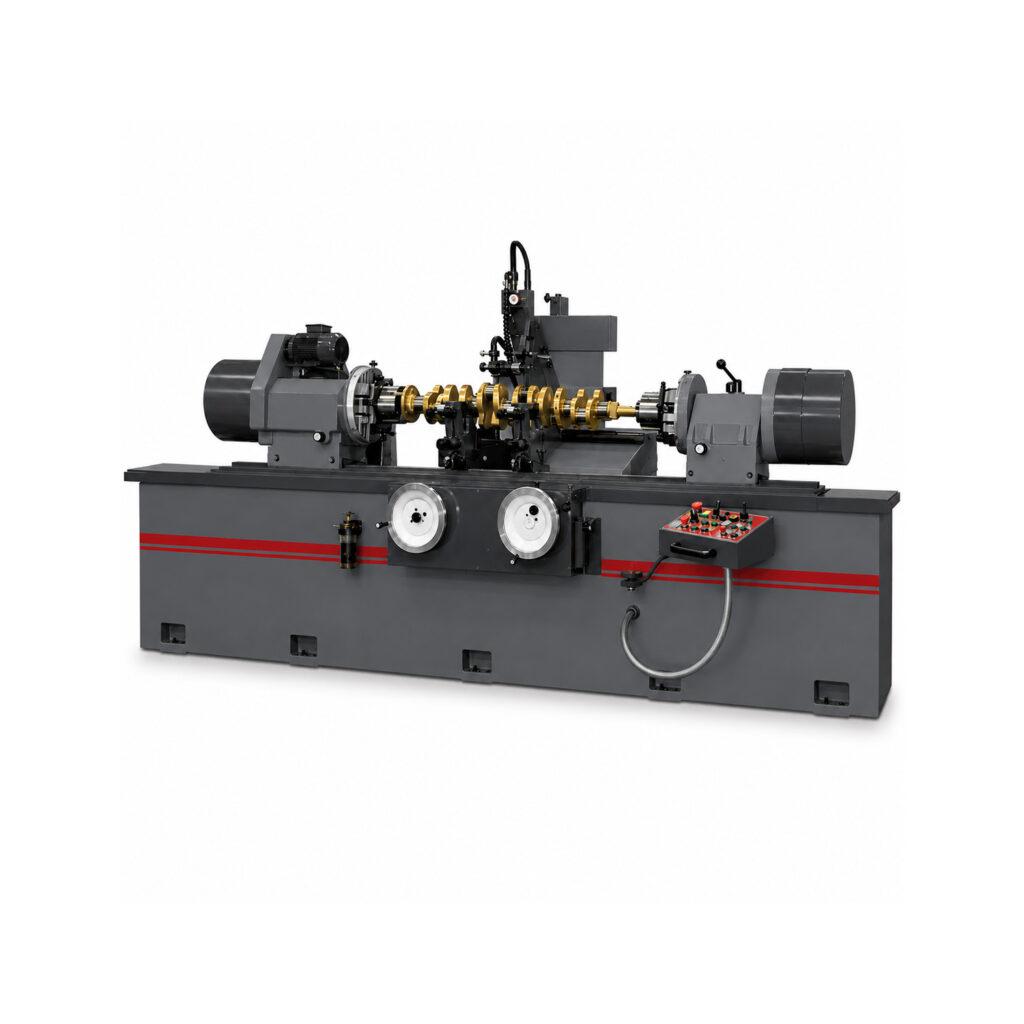

Crankshaft Grinding Machine CGX300-2200

These machines are constructed with a heavy, robust design and widely spaced ways, ensuring stable operation and precise alignment of the wheel head to the table. This solid construction enhances accuracy and reliability during crankshaft grinding operations.
In addition to their durable build, the machines feature user-friendly controls that simplify operation. The precision incremental in-feed lever provides easier and more accurate adjustment than traditional handwheels, allowing operators to achieve the exact desired journal size with greater ease and consistency.
Request A Quote
Product Information
Operations
Four indexing locations on the head stock with the air operated index pins make it faster to dial in the crankshaft properly. Easily adjusted outboard counterweights never need to be supplemented by inboard weights.
Specifications
One full stroke of this lever moves the wheelhead precisely .0004,” and it can be used in steps to move the wheelhead .0001,” .0002,” or .0003.” The superior accuracy of this machine allows double plunge grinding precisely to the same size leaving no lap line.
Features
Linear encoders for X-Z axis and digital readout XYZ
Hydraulic wheel dresser
Narrow steady rest dia 50-180
Standard steady rest dia 50-180 mm
Standard Tooling
Features and Options
Height of Centers on Table:
Max. Distance Between Centers:
Max. Distance Between Self Centering Chucks:
Max. Diameter Admitted on Table:
Max. Head Offset:
Max. Diameter Ground Using a New Grinding Wheel:
Diameter of Grinding Wheel:
Standard Grinding Wheel Thickness:
Min. Grinding Wheel Thickness:
Max. Grinding Wheel Thickness:
Max. Weight Admitted Between Centers:
Max. Weight Admitted Between Steady Rest:
Diameter of Self Centering Chucks:
Variable Headstock Rotation Speeds:
Grindhead Motor Power:
Head Stock Motor Power:
Z Axis Motor Power:
X Axis Motor Power:
Air Pressure for Head Displacement:
11.8″
86.6″
84.6″
23.6″
5.5″
15.78″
32″
0.98″
0.78″
2.75″
661 lbs.
1,322 lbs.
7.87″
80 RPM
7 kW
9 kW
9 kW
9 kW
87 PSI
