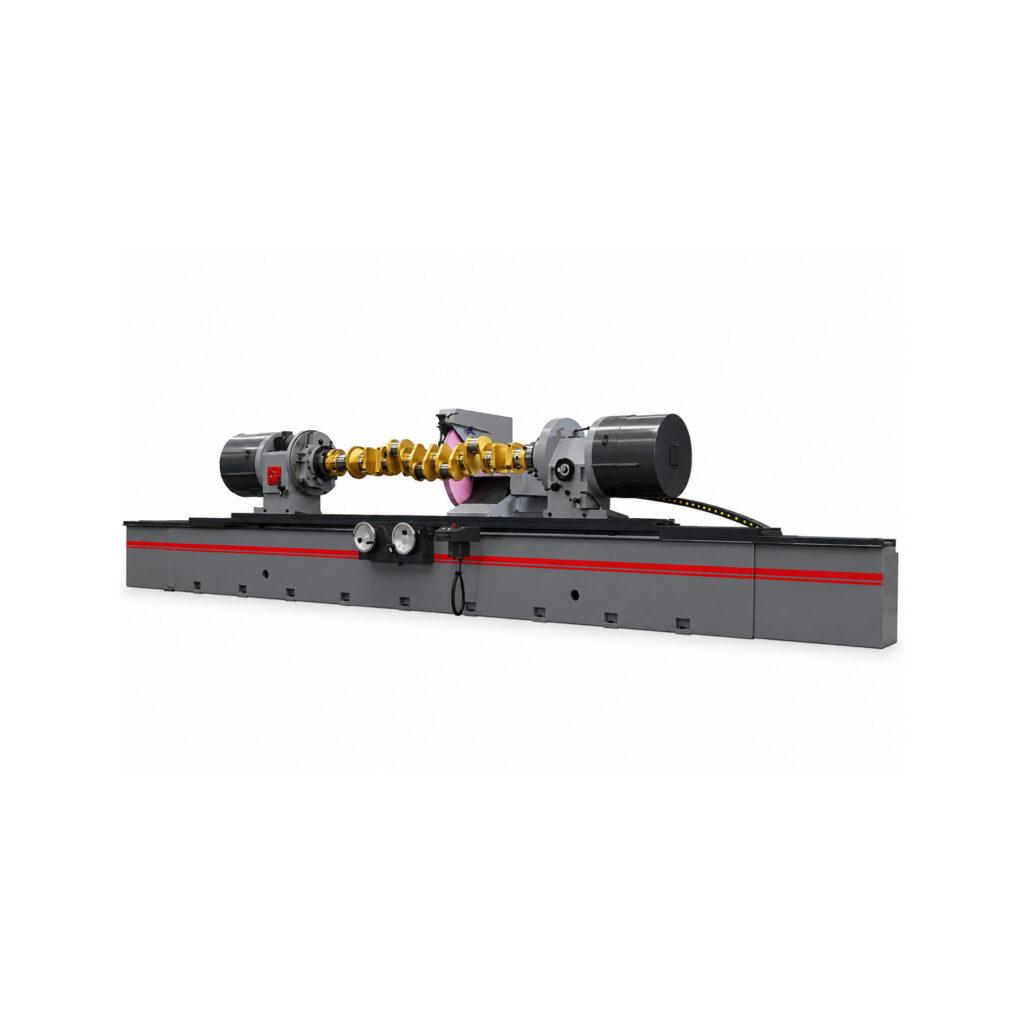

Crankshaft Grinding Machine CGX460-4100

These crankshaft grinding machines are designed for durability and precision, featuring heavy construction and widely spaced ways to ensure accurate alignment of the wheelhead to the table. Easily adjustable outboard counterweights eliminate the need for inboard weights, simplifying setup and improving balance for consistent, reliable grinding results.

User-friendly controls, including a precision incremental in-feed lever, allow operators to make more accurate adjustments than traditional handwheels, ensuring precise double plunge grinding without lap lines. This design enhances machine longevity, extends grinding wheel life, and provides improved safety for both the operator and the equipment, making it a dependable solution for high-quality crankshaft grinding.

Request A Quote

Fill out the form below to request a quote for the Crankshaft Grinding Machine CGX460-4100.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Four indexing locations on the head stock with the air operated index pins make it faster to dial in the crankshaft properly.

– Heads movement on air cushion
– Hydraulic system and coolant system
– Centralized automatic lubricant system
– Crankshaft centering fixture with dial indicator
– Crankshaft journal checking square
– Head offset measuring device with indicator
– Wheel face, side and radius dresser
– Template for levelling the machine
– Motor pulley for reduced grinding wheel
– Chuck with diameter on request

Steady rests:
Heavy Steady rest
    Light steady rest (35kg)
    Steady rest for big diameter
  + other steady rests capacity on request

– Driving dogs and driving plates for drivers
– Conic centers and blunt center for workhead
– Corundum grinding wheel
– Wheel balancing arbor and grinding wheel hub puller

Features and Options

Height of Centers on Table:
Mxa. Distance Between Centers:
Swing Over Table:
Max. Head Offset (Stroke / 2):
Max. Diameter Admitted on STD Steady Rests:
Max. Workpiece Diameter on a New Wheel:
Max. Weight Admitted with Steady Rest:
Diameter of Grinding Wheel:
Min. Grinding Wheel Thickness:
Max. Grinding Wheel Thickness:
Grinding Wheel Peripheral Speed:
Grinding Wheel Motor Power:

18.1″
161.4″
36.2″
8.6″
9.8″
17.7″
98.4″
44.8″
0.98″
2.7″
33 m/s
11 kW
