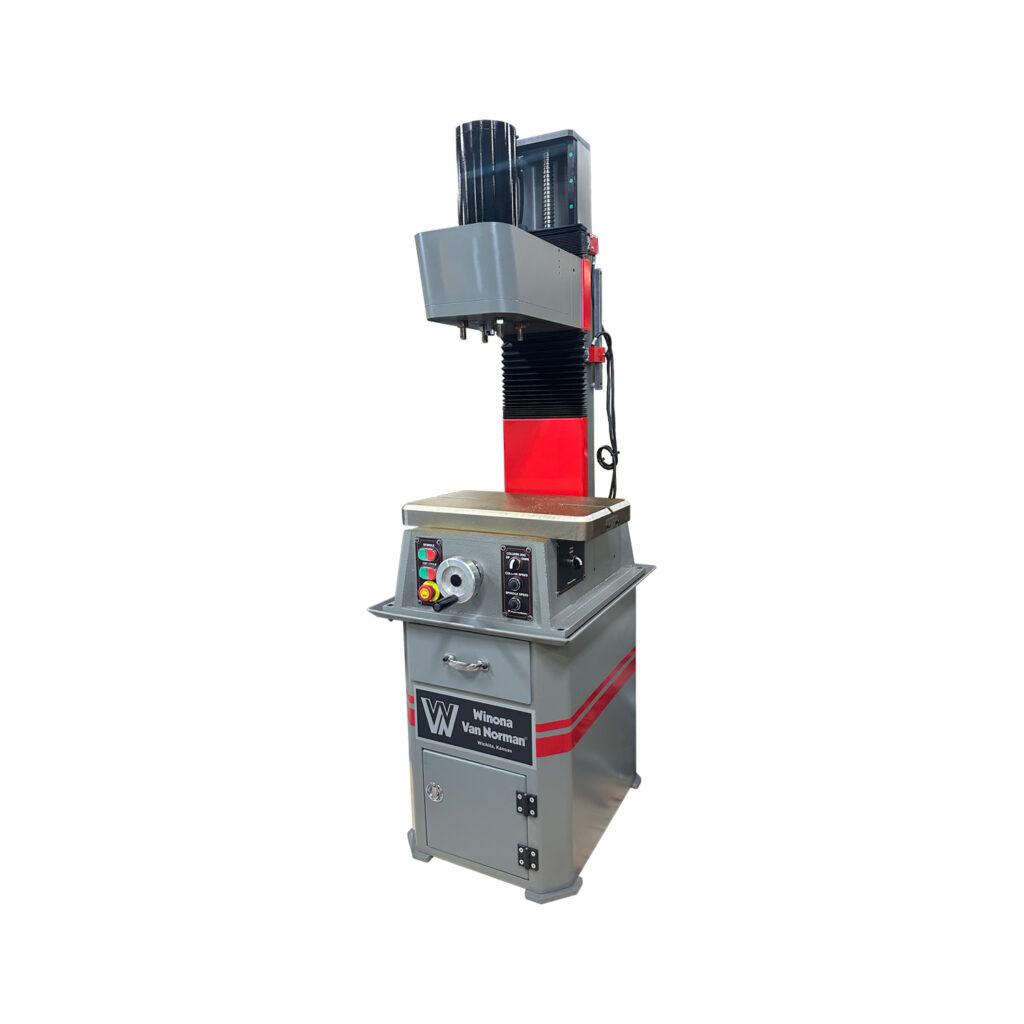

Boring Machine CBMX

The CBMX is the fastest and most efficient boring machine you can buy to bore motorcycle and small engine cylinders. The simple and accurate setup combined with rapid and flexible operation make the new replacement of the CB1401 a profitable investment in shop productivity.
Request A Quote
Fill out the form below to request a quote for the Boring Machine CBMX.
Product Information
Operations

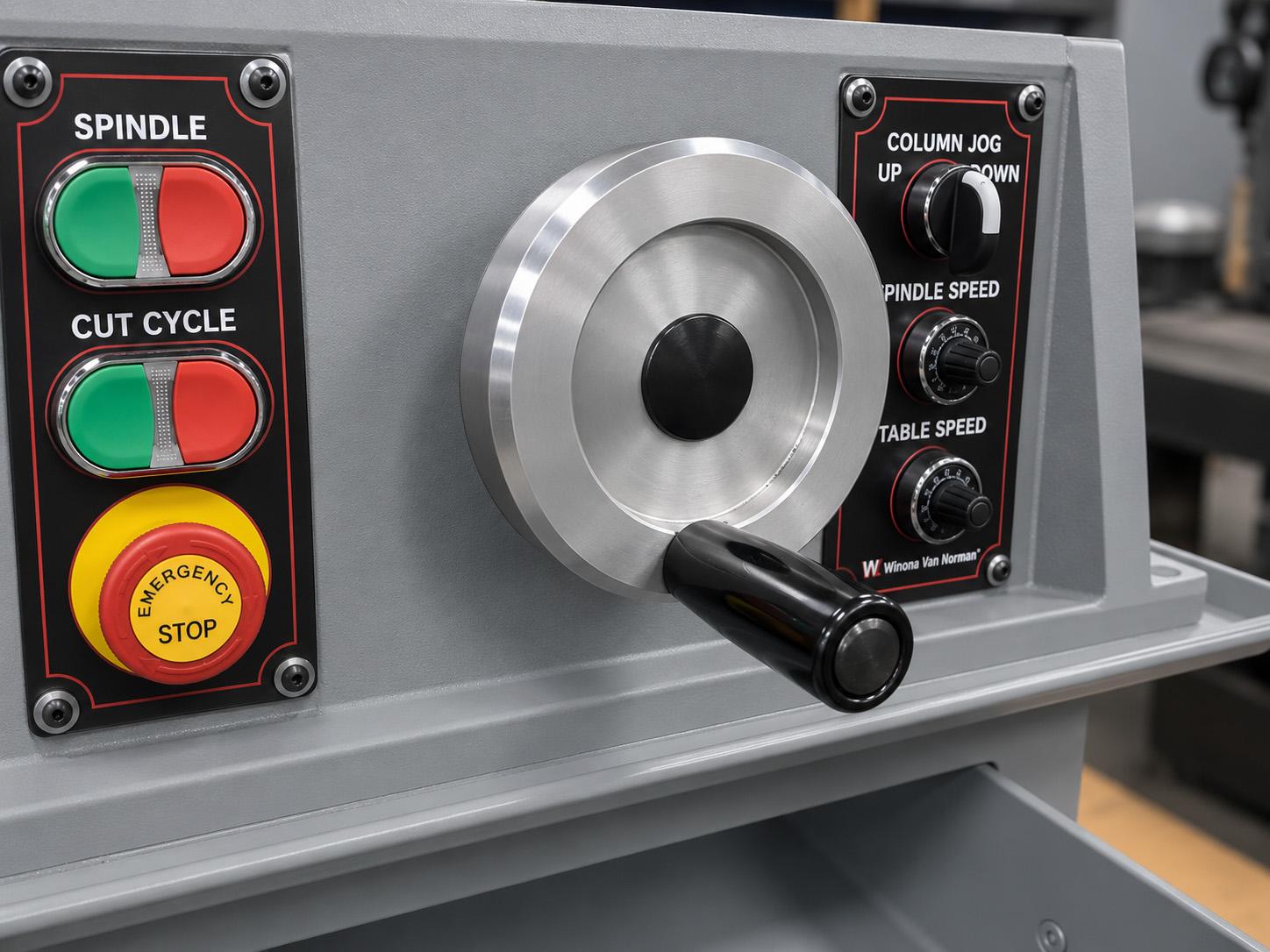

Cylinders from 1.5″ to 4″ can be resized and the anti-vibration damper allows up to .060″ to be removed in one pass. In addition, two spindle speeds and infinitely variable feed rate allow the operator to obtain the exact surface finish desired.
Specifications
Features

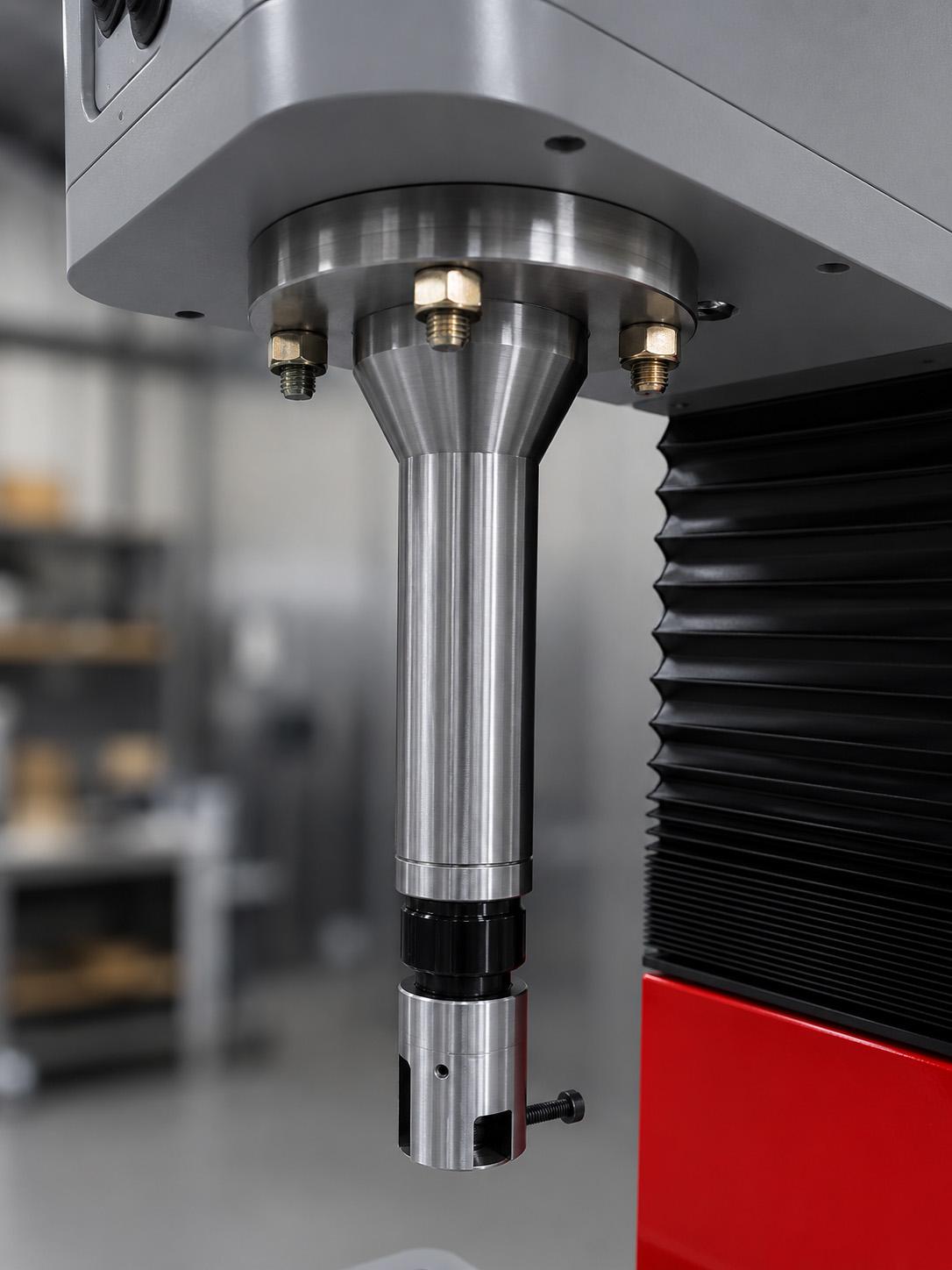

The hard-chromed spindle and pressure lubricated adjustable support bearings assure long and trouble-free operation. Stop sending out a profitable portion of your service business and invest in the CB1401.
Standard Tooling
Technical Specifications
Boring Range
1.5-4 in
38 – 101 mm
Stroke
8 in
203 mm
Spindle Diameter
1.48 in
37.6 mm

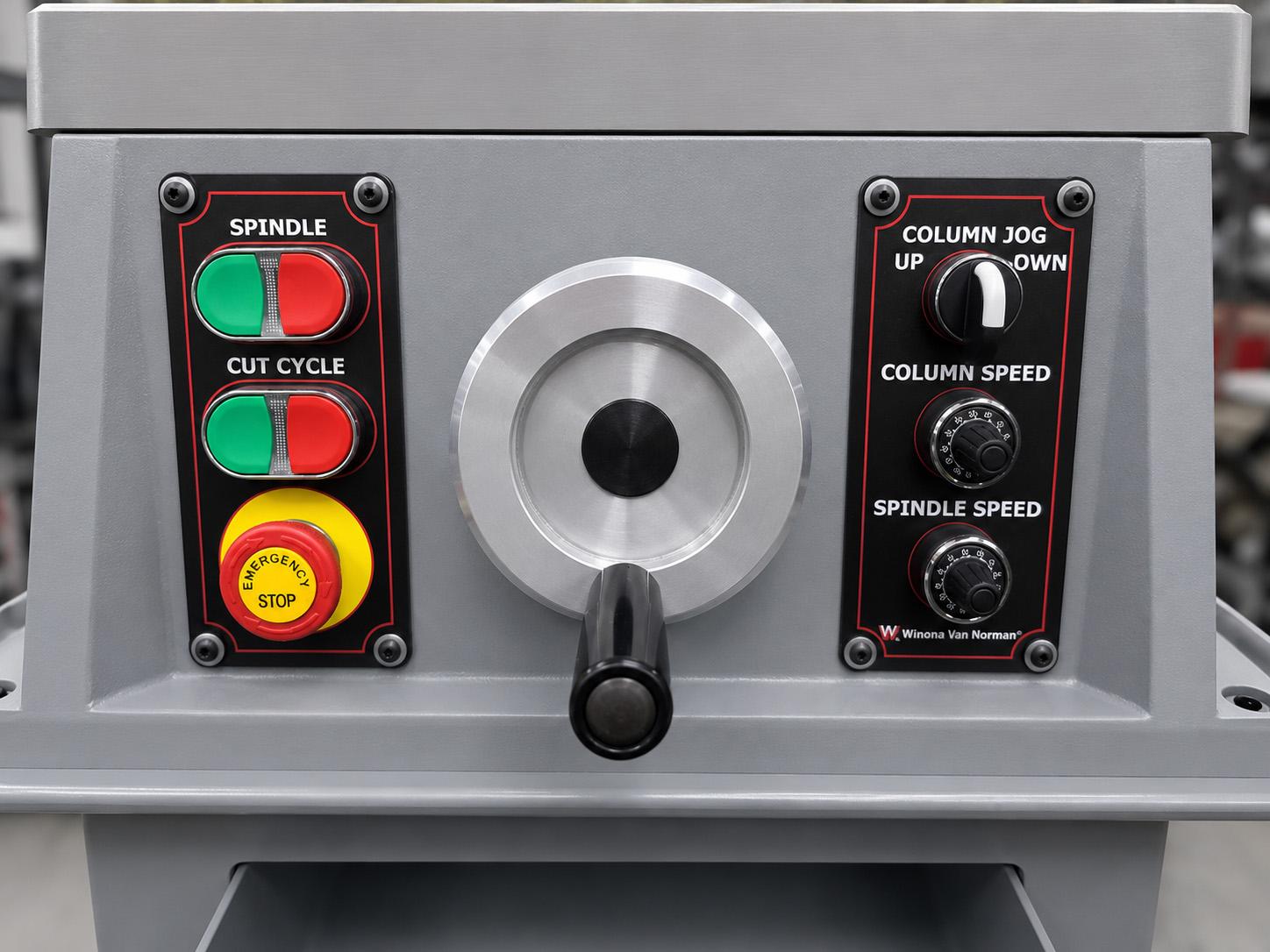

Spindle Speed
168, 254 RPM
Feed Rates
Infinitely Variable

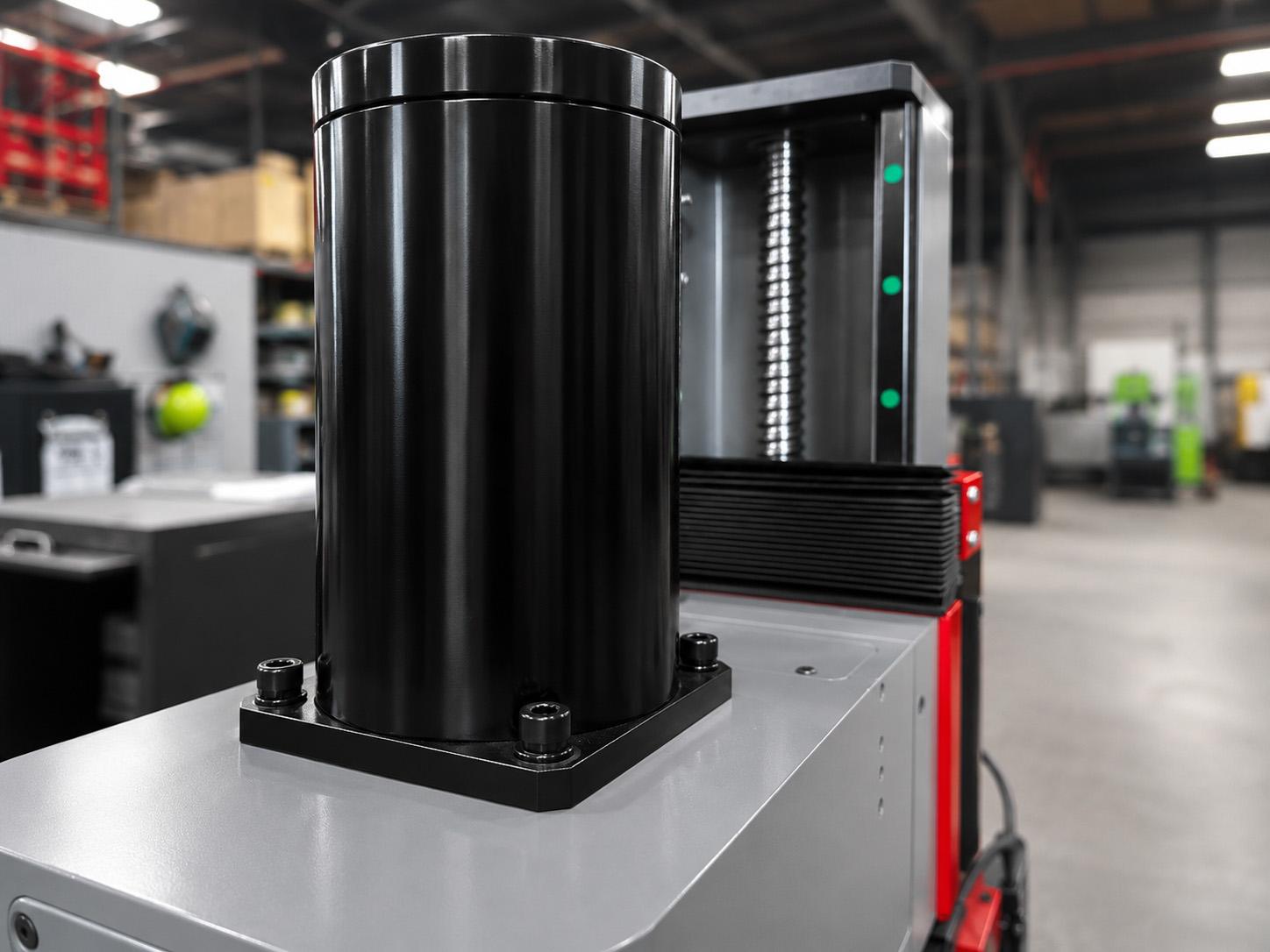

Spindle Motor
½ Hp
Power Requirements
110V / 1 PH / 60Hz OR 50 Hz

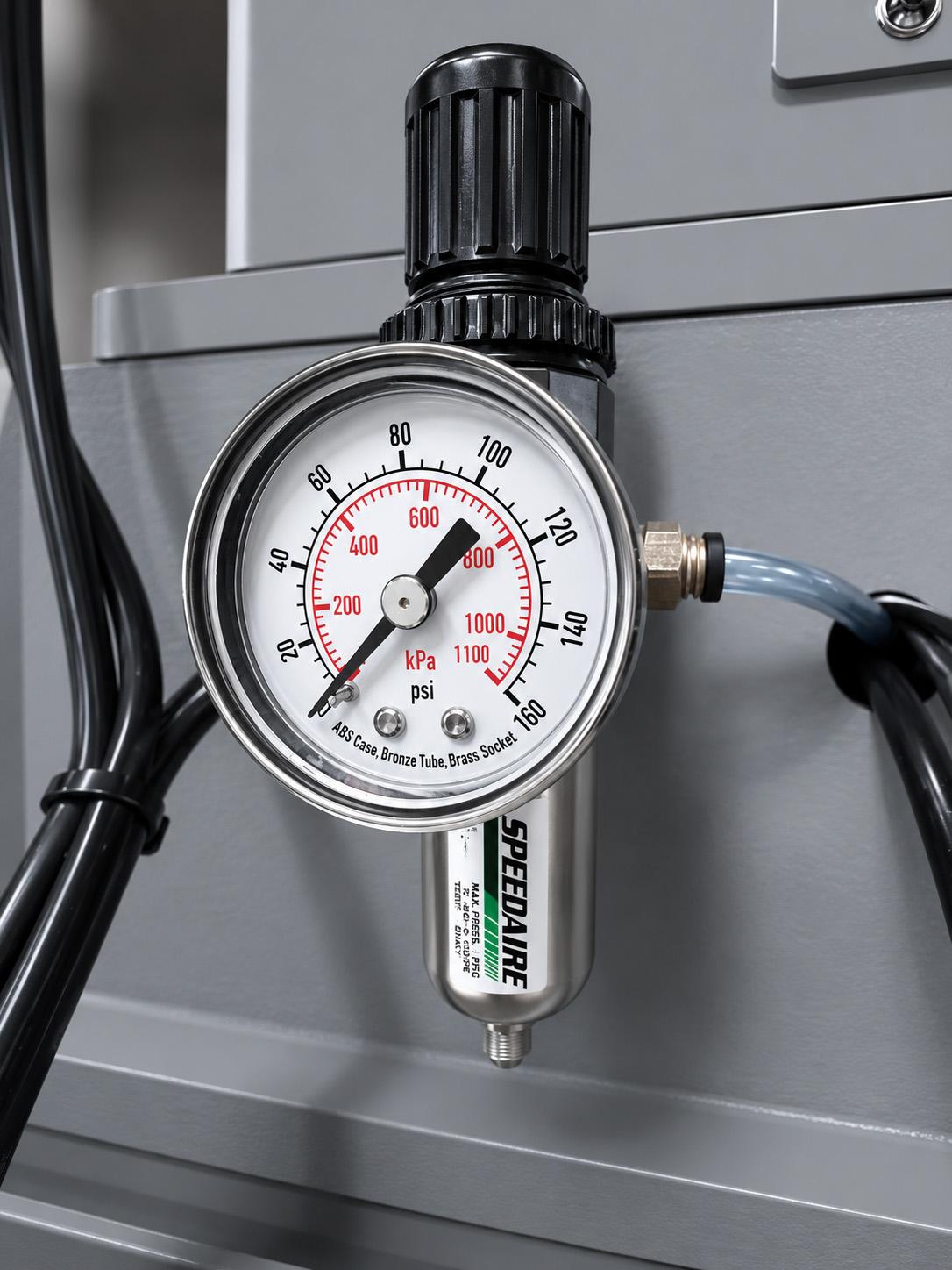

Air Requirements
80 PSI (5.5 Bar)
Dimensions
36 in L x 18 in W x 42 in H
941 mm L x 457 mm W x 1066 mm H
Approx. Machine Weight
550 Ibs.
249 kg
