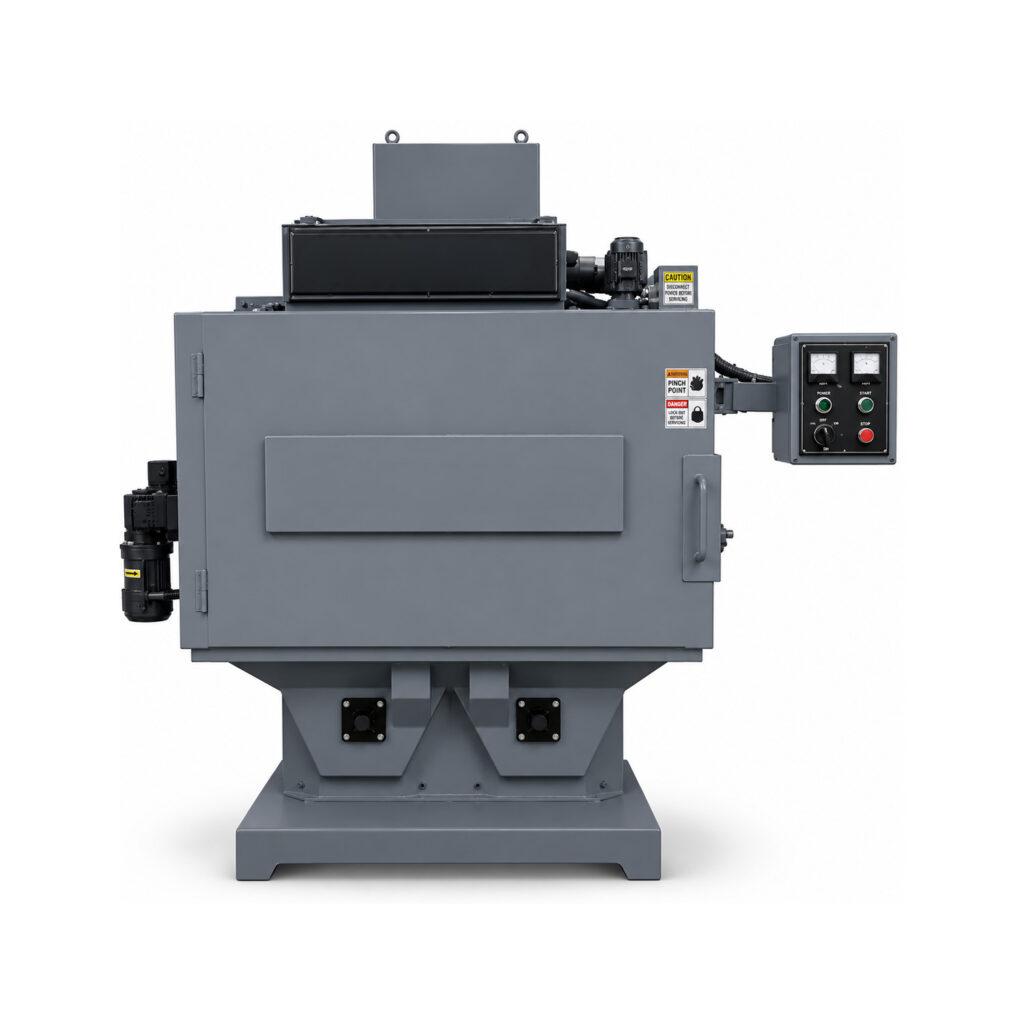

Fixtured Basket Blaster BH-04-E

Category: Shot Blasters

Winona Van Norman Fixtured Basket Blasters, like the LWVNBH‐04‐E, have easily replaceable cabinet liners and is versatile with easy basket jigging setup for any shape parts.

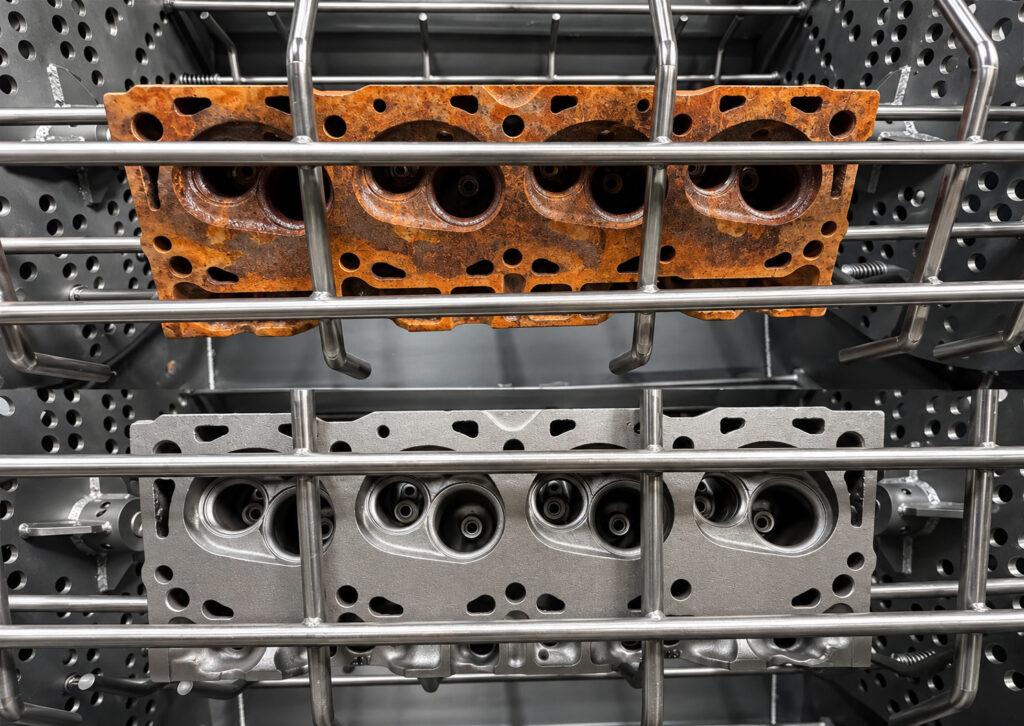

Originally designed to accommodate engine blocks and heads but much more versatile than just automotive applications. The simple one button push operation with adjustable cycle times doesn’t require extensive training. The TurboShot™ blast wheel is belt driven to protect the motor and make it easy to maintain. The blades on the TurboShot™ wheel are bi‐ directional allowing for reversing blasting for an all angle clean. See also the WVNBH4 with pneumatic clam shell door.

Request A Quote

Fill out the form below to request a quote for the Fixtured Basket Blaster BH-04-E.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

  • Reversing Blast Wheels for All Angle Cleaning
  • Versatile – Easy Basket Jigging Setup for Any Shape Parts

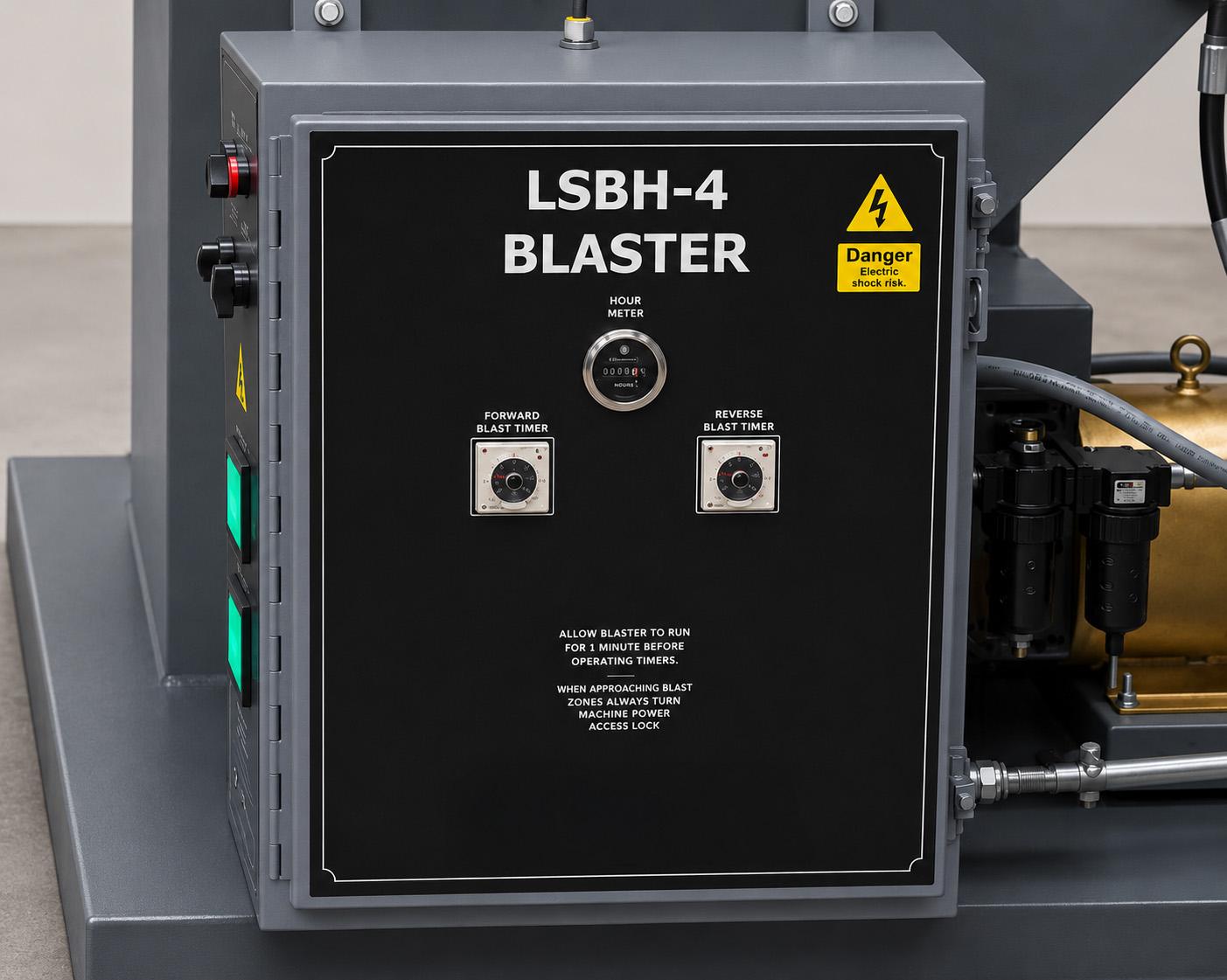

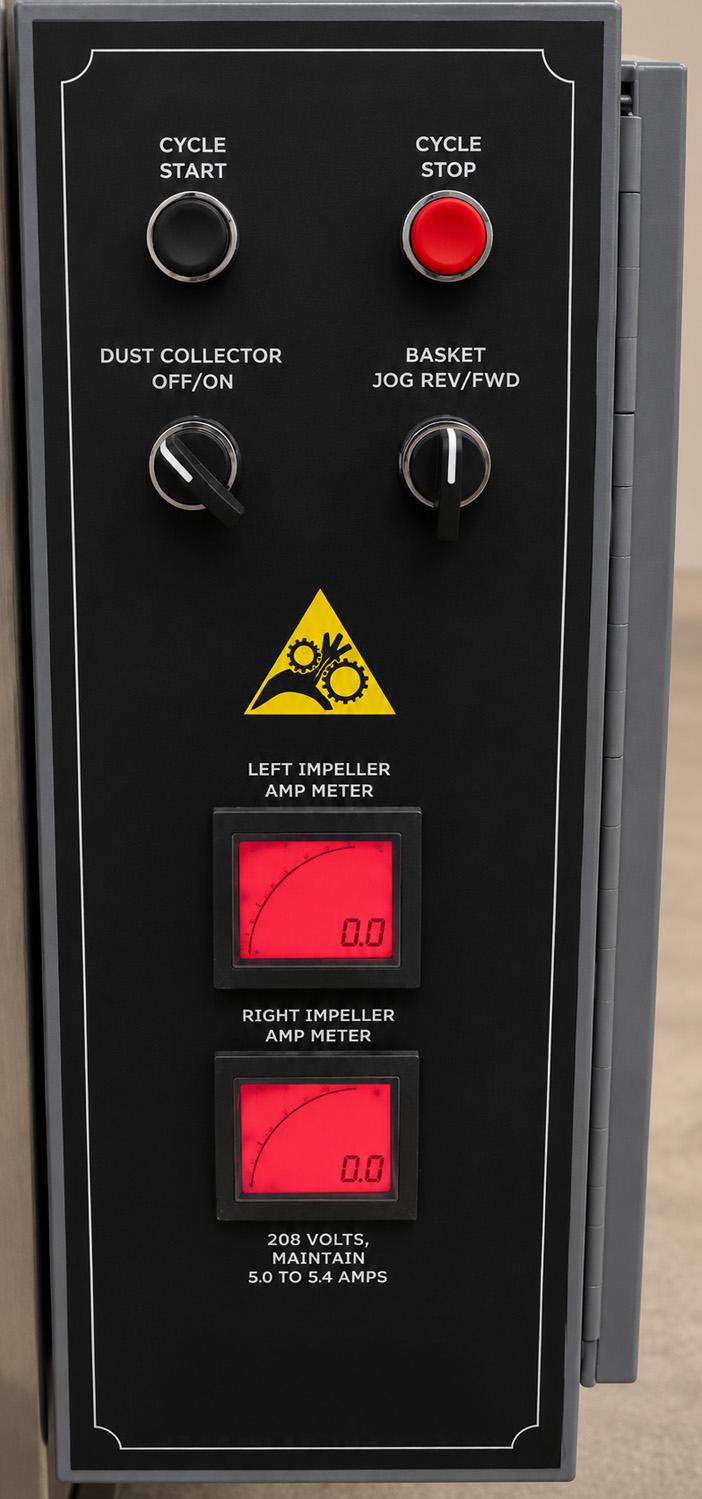

  • Simple One Button Push Operation with Adjustable Cycle Times
  • Spring Loaded Bars for Fast Load / Unload

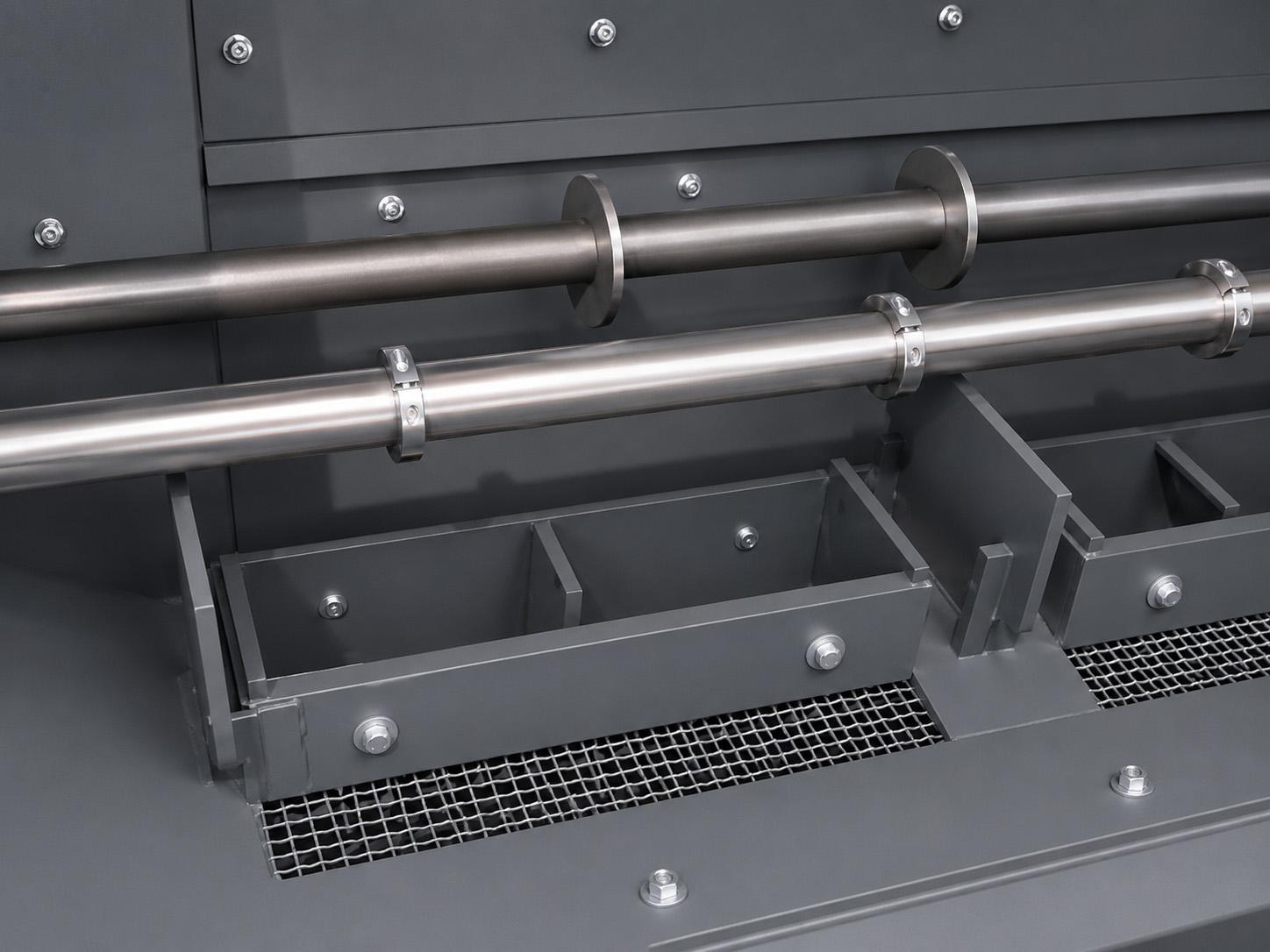

  • Heavy Duty Manganese Fixture Rods for Long Life

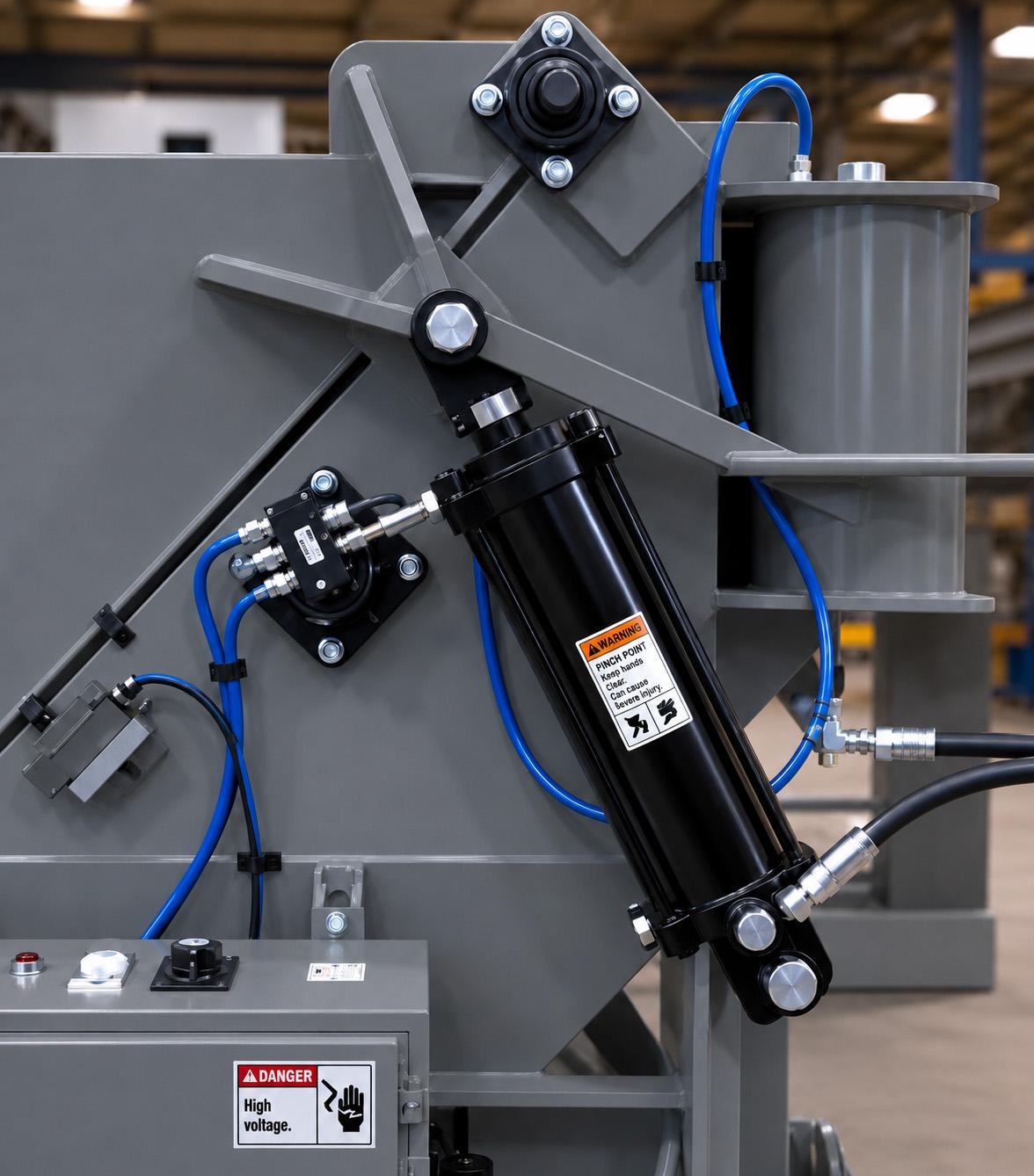

  • Optional Clamshell Door for Easy Access and Overhead Loading
  • Easily Replaceable Cabinet Liners

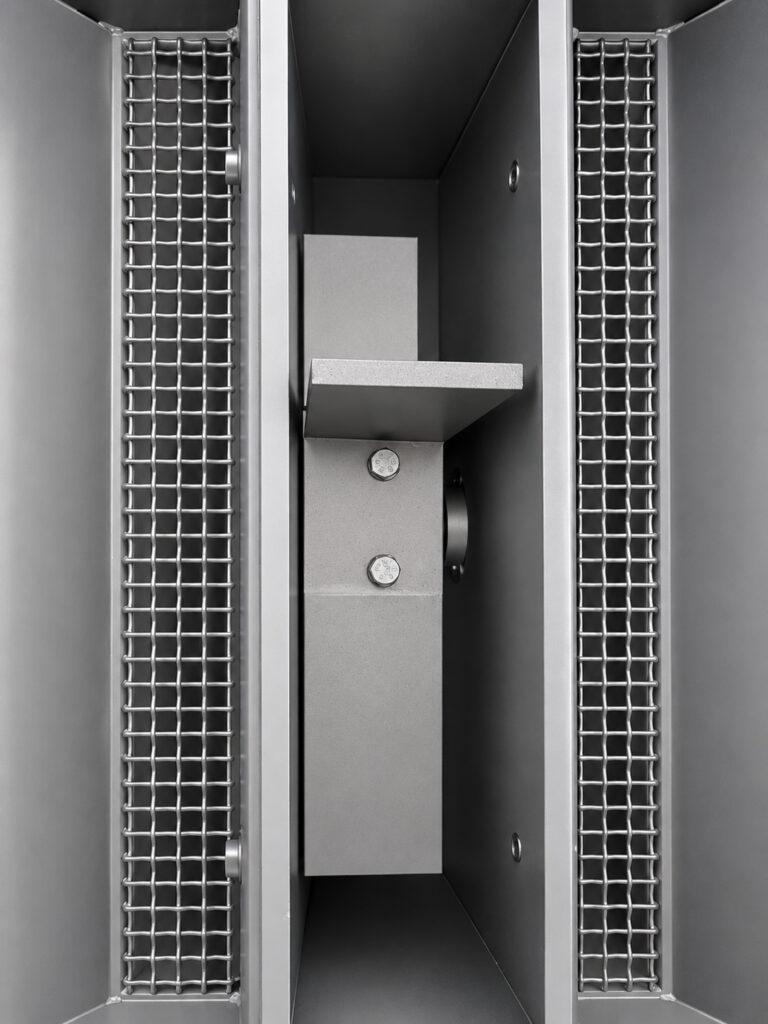

  • LS TurboShot Blast Wheel Design – High Volume, Bi-Directional, Medium Velocity Blast Wheel. Robust Design with Easy Maintenance. Belt Driven to Protect Motor.

* Can change based on customer cleaning needs
** Dimension of machine doesn’t include dust collector
***Height is with door open on clamp shell doors

Work Envelope (CU. FT. of Basket): 13.59 cuft

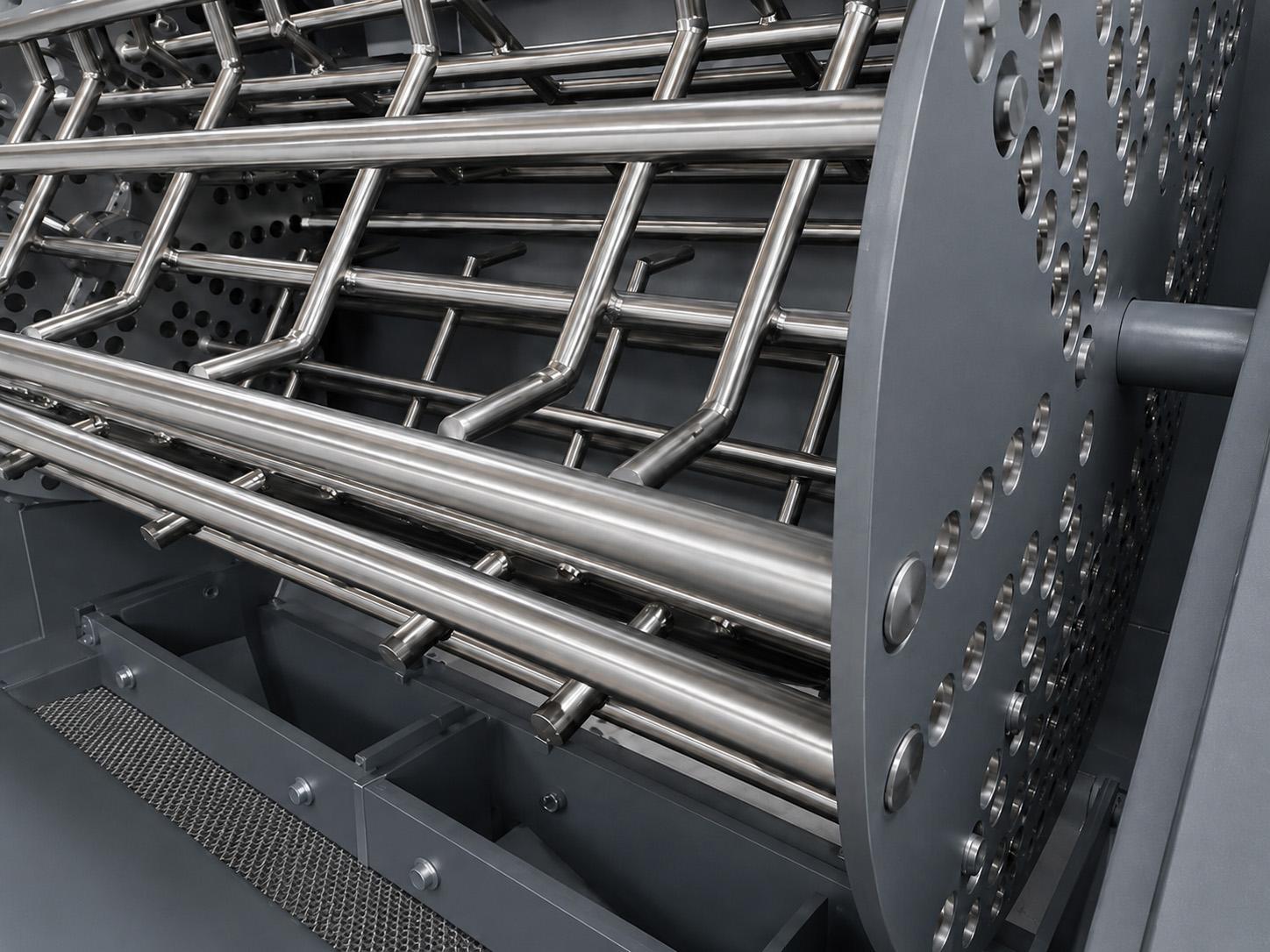

Basket Dimensions (L x Diam.): 46″ x 25.5″
Overall Dimensions (L x W x H***): 84″ x 52″ x 81″

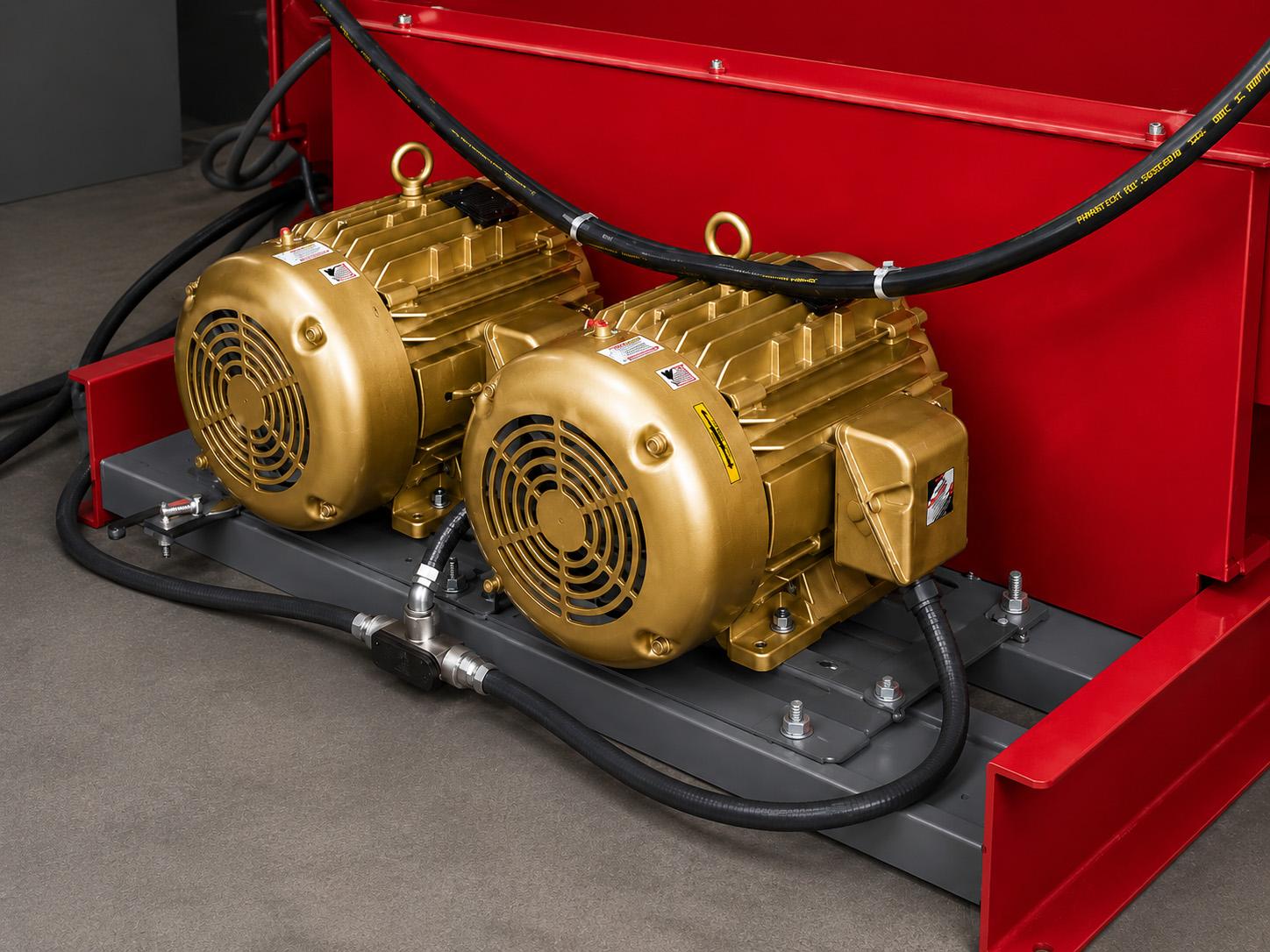

HP of Blast Wheels (STD*): 2ea x 7.5 HP
Basket HP (STD): ½ HP (0.37 kw)
Basket Weight Capacity (Approx): 500 lbs.
Dust Collector Std**: DC-2 (2 HP)

Technical Specifications
