RB700

Category: Rod Boring & Grinding Tags: Aerospace, Diesel Rebuilder, Drag Racing, Engine Building, Gas Compression Engine, Marine Workboat, Motorcycle Engine, Oil and Gas, Performance Racing, Power Generation, Remanufacturing, Small Engine

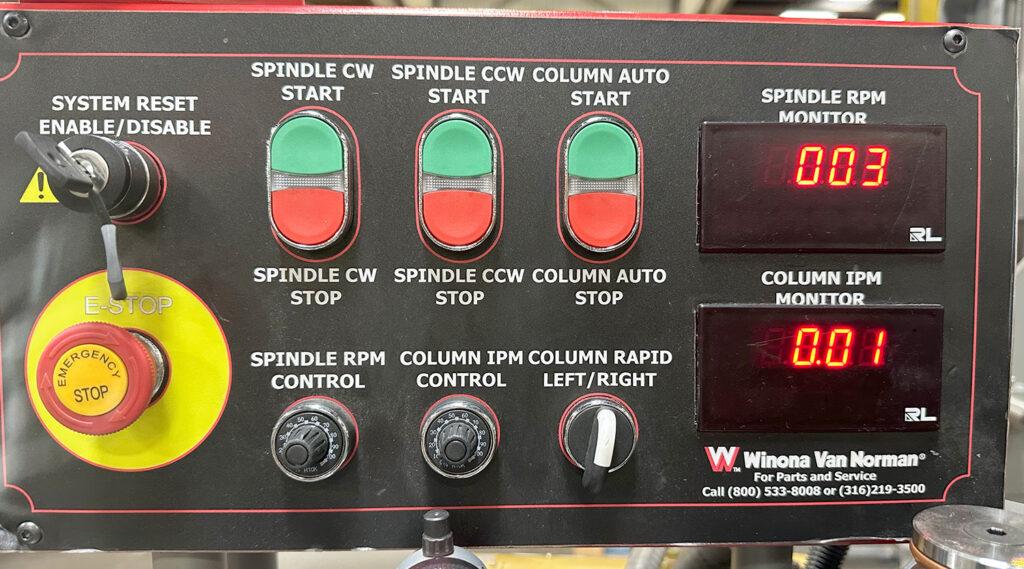

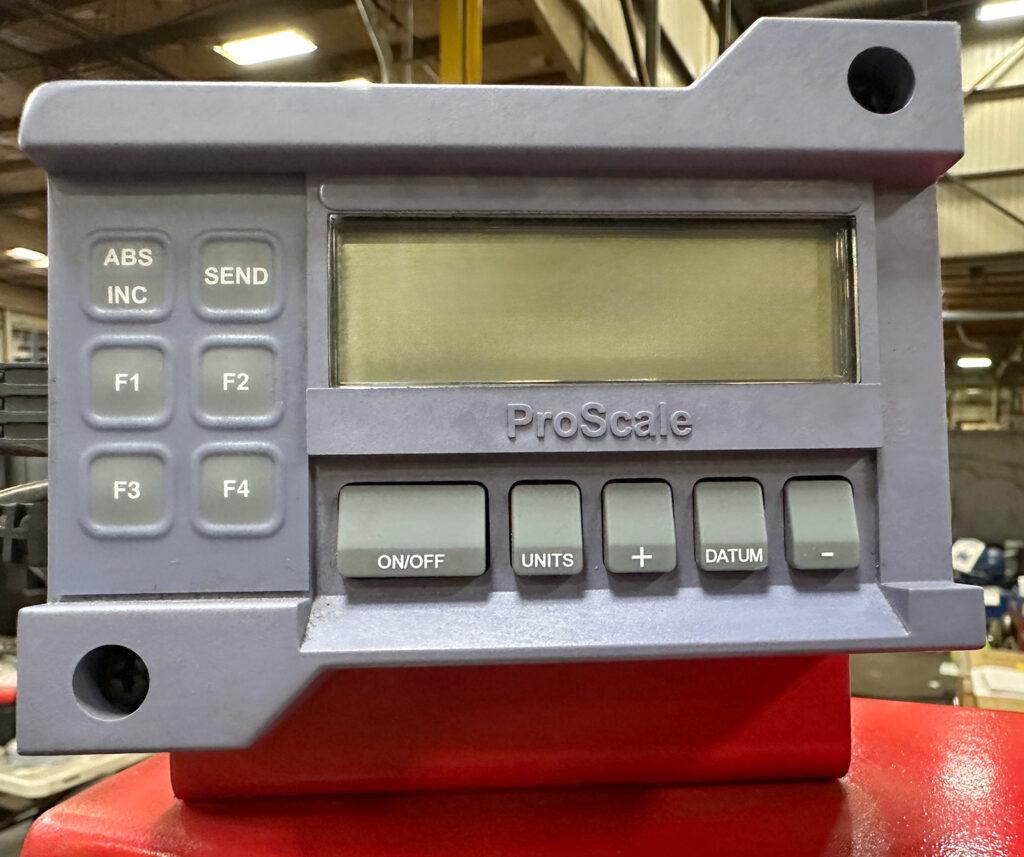

Variable boring spindle speed with electronic varistor and digital readout

Request a Quote

Product Info

Operations

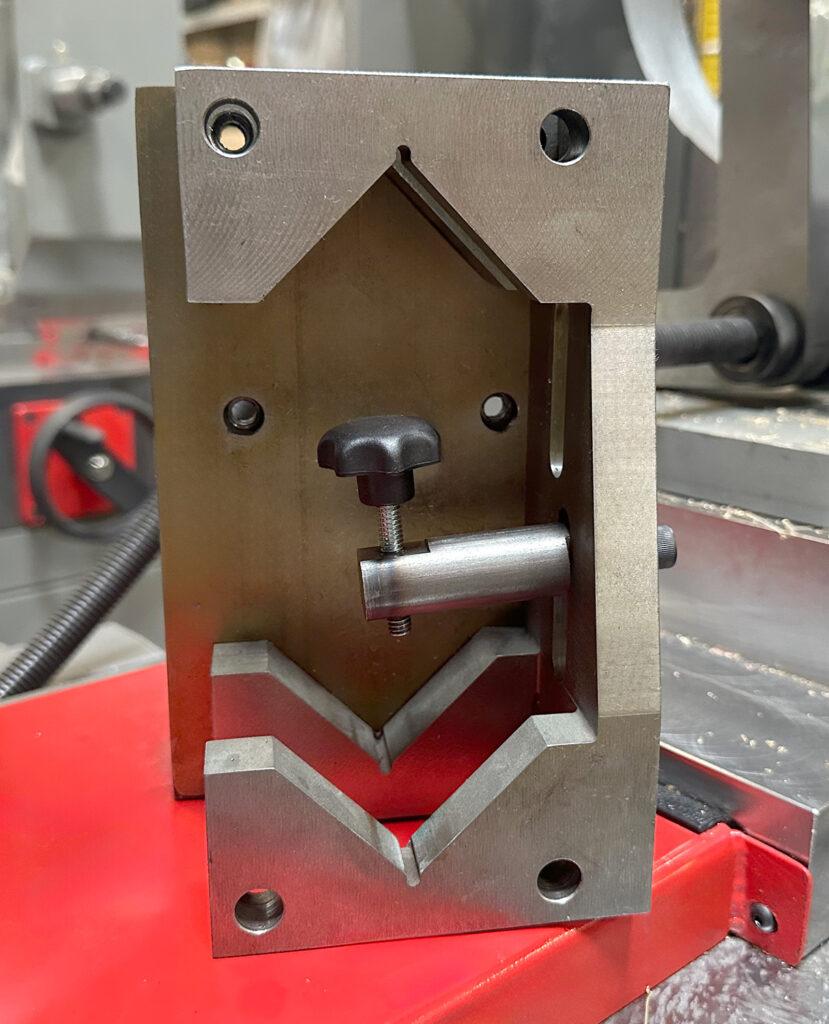

24V electrical control system, square with manual adjustment and variable automatic transversal adjustment for holding connecting rod, for fast and accurate centering.

Specifications

Spindle to Table Distance5.9 in150 mm

Minimum Boring Diameter0.6 in15 mm

Maximum Boring Diameter6.3 in160 mm

Minimum Grinding DiameterN/A

Maximum Grinding DiameterN/A

Minimum Center to Center Capacity3.15 in80 mm

Maximum Center to Center Capacity25.6 in650 mm

Spindle Rotation Speed0-1200 RPM

Grinding Wheel RevolutionsN/A

Grinding Wheel RotationN/A

Feed Rate0.47-5.9 in/min 12-150 mm/min

Grinding MovementN/A

Maximum Rod Carriage Travel12.6 in320 mm

Boring Motor2 HP

Table Motor0.1 HP

Rotation MotorN/A

Revolution MotorN/A

Coolant PumpN/A

Length55 in1400 mm

Width27.5 in700 mm

Height77 in1950 mm

Approx. Machine Weight1433 lbs. 650 kg

Approx. Shipping Weight1717 lbs. 780 kg

Features

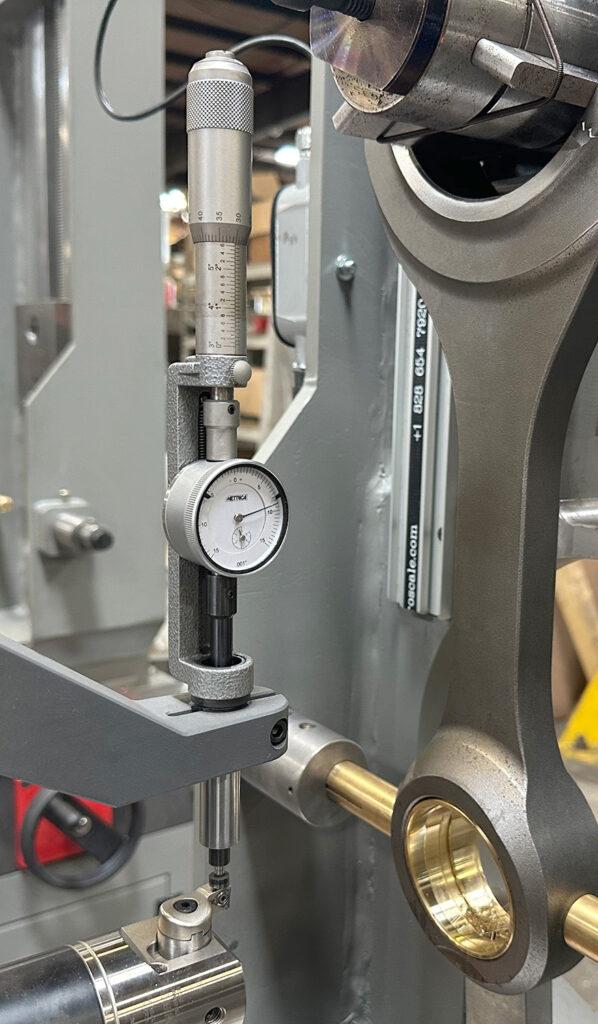

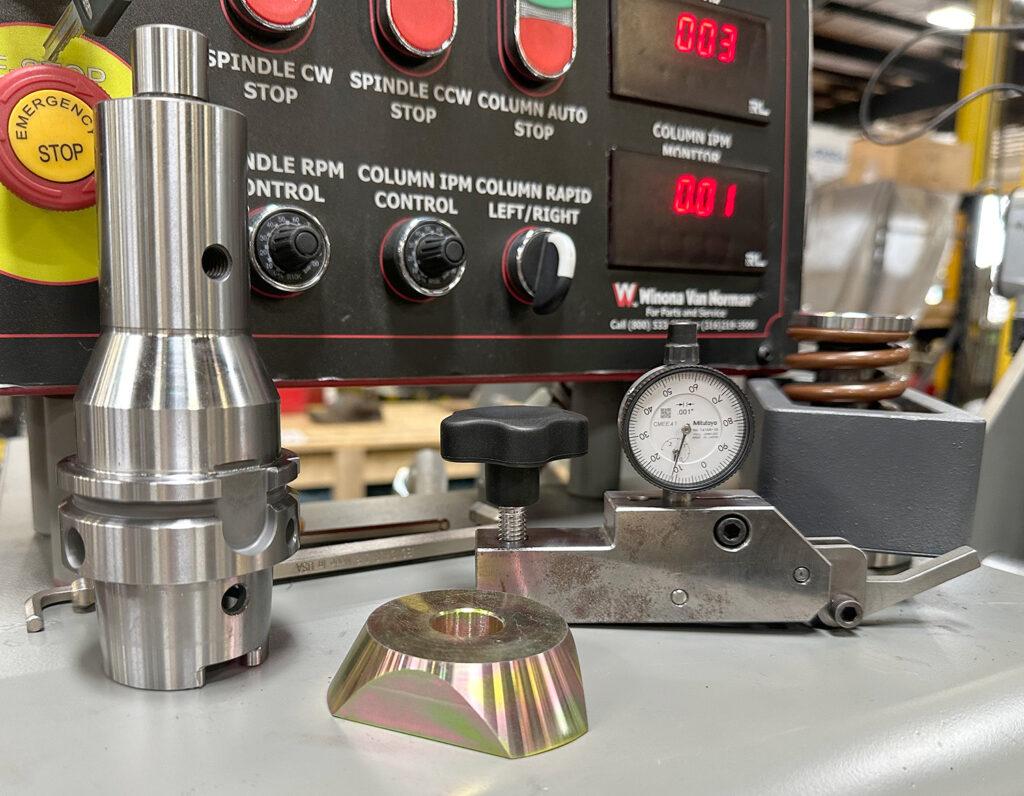

Electric limit switch to automatically set the boring depth. The standard version is equipped with an electronic variable feeding speed, centering device with dial gauge, and tool setting and calibrating device.

Standard Tooling

Demonstration
