CHTX

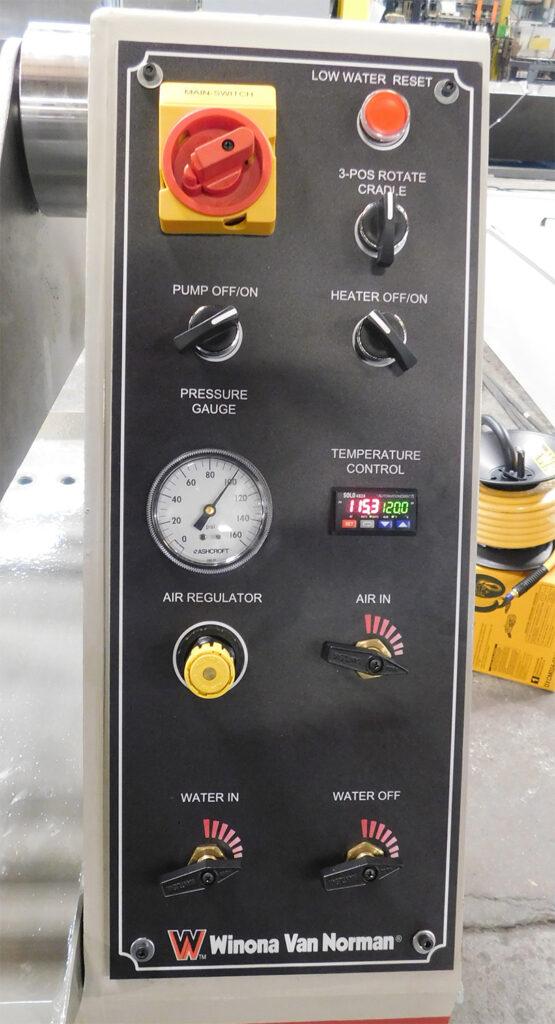

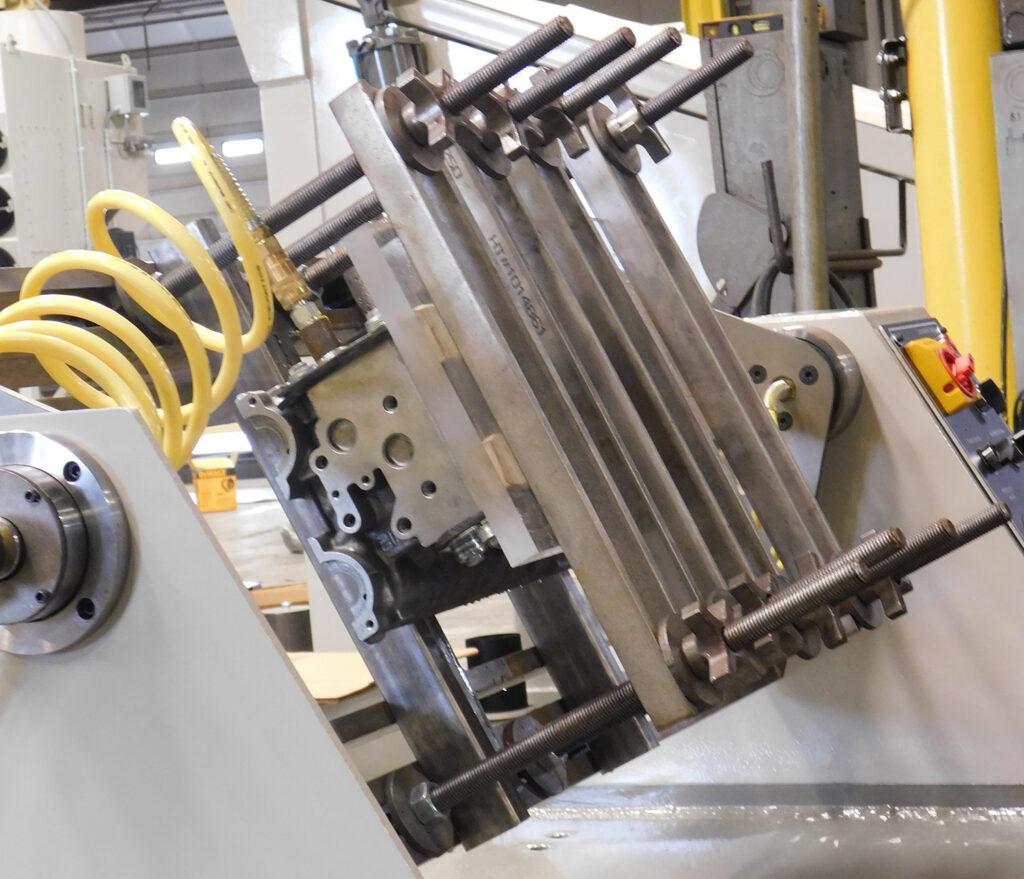

The Winona Van Norman CHTX pressure tester machine emulates a running engine for heads and blocks. Using high temperature along with high internal pressure through the work piece enables you to detect the smallest of hairline cracks. The LCD digital screen indicates power on, current temperatures, allows pre‐set temperatures and pressure alarms.

Product Information

Manual Controls: Water Circulation, Pressurization and Decompression.
Temperature Control Thermostat: 0 to 194 F, On Panel Air Pressure Regulation.

Specifications
TANK CAPACITY 14 Gal
HEATER6 KW
TEMPERATURE MAX194
PUMP4 HP
ELECTRICAL220 V 3 PH60 Hz
MAXIMUM CAPACITY (L x W x H)46 in x 14 in
OVER ALL DIMENSIONS (L x W x H)51 in x 12 in x 47 in
APPROX. MACHINE WEIGHT529 lbs
Demonstration
