CHTXL (CHT1240)

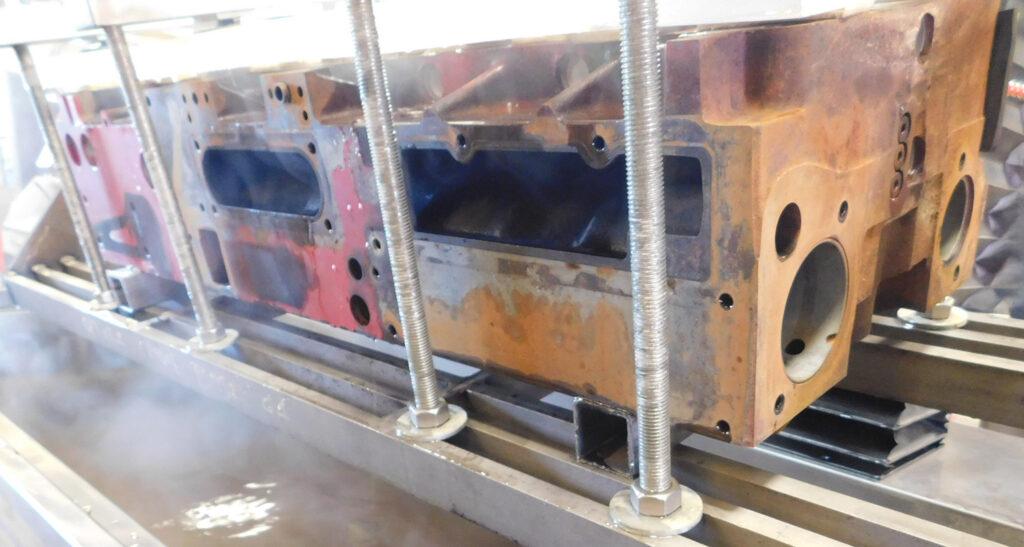

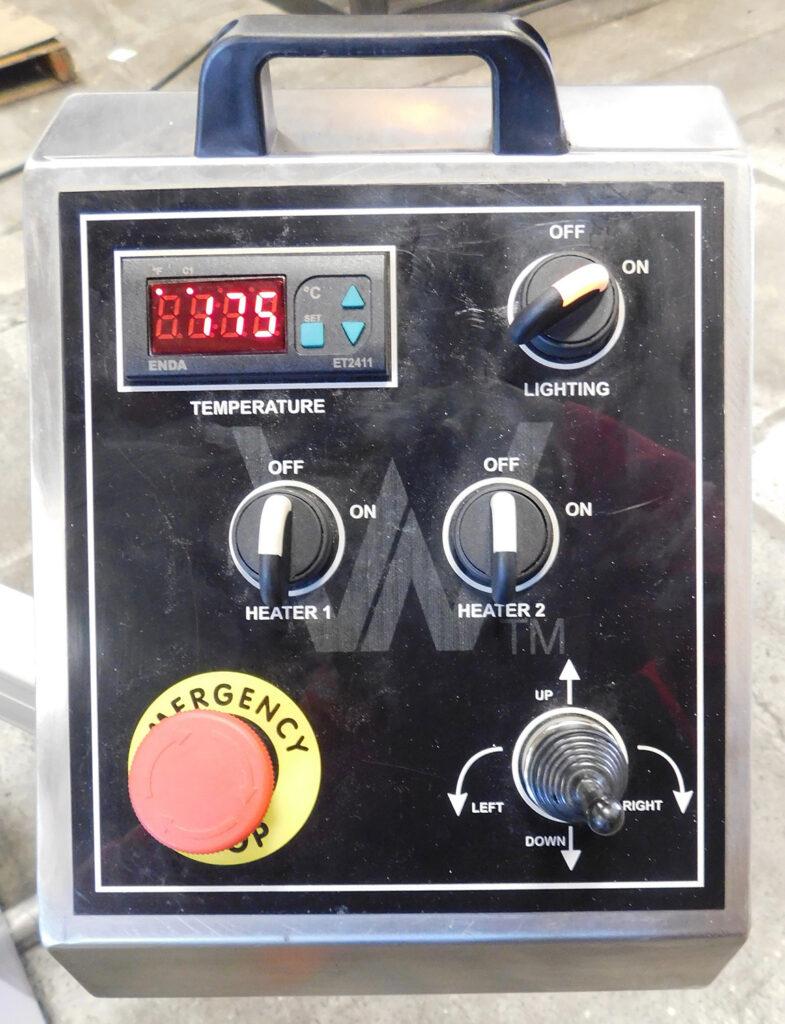

The CHTXL pressure tester allows for fast and easy detection of cylinder head condition. The machine is designed for easy operation, with minimum maintenance and optimized for safety. The machine comes standard with a preheating programmer. The heat is controlled by an electronic thermostat. Cylinder heads are able to be rotated 360° with the standard hydraulic system.

Product Information

Specifications
MAXIMUM STROKE23.6 in600 mm
ROTATION SPEED4 RPM
TANK CAPACITY110 Gal
HEATER4.5 KW
PUMP4 HP
CONTROL VOLTAGE24 VAC
ELECTRICAL220/380 V 3 PH50/60 HZ
MAXIMUM CAPACITY (L x W x H)47.2 in x 15.7 in x 11.8 in1143 mm x 762 mm x 635 mm
OVER ALL DIMENSIONS (L x W x H)70.8 in 15.7 in x 11.8 in635 mm x 762 mm x 635 mm
CAPACITY551 lbs 635 kg
APPROX. MACHINE WEIGHT896 lbs
