Stainless Steel Table Washer SSW7235

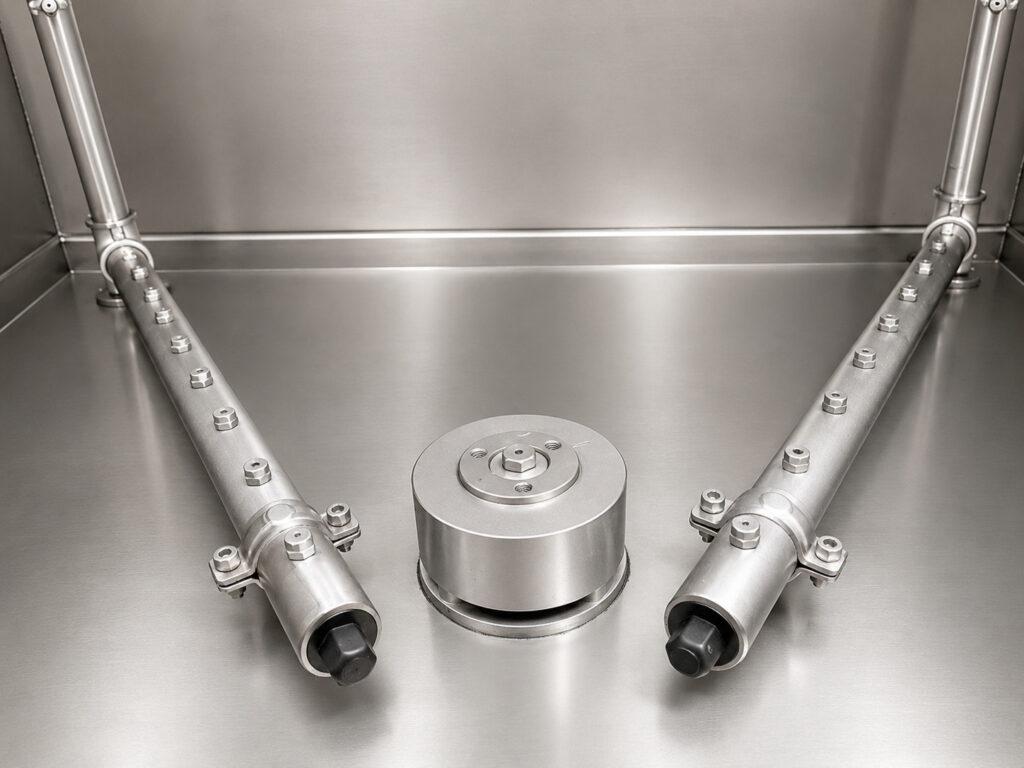

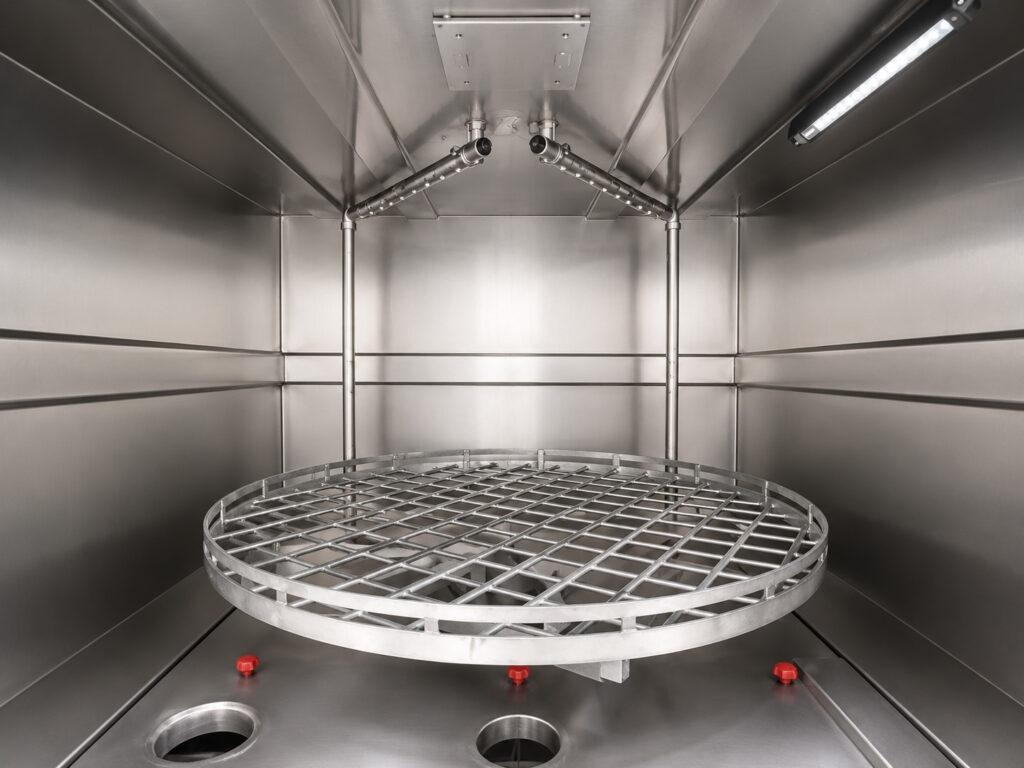

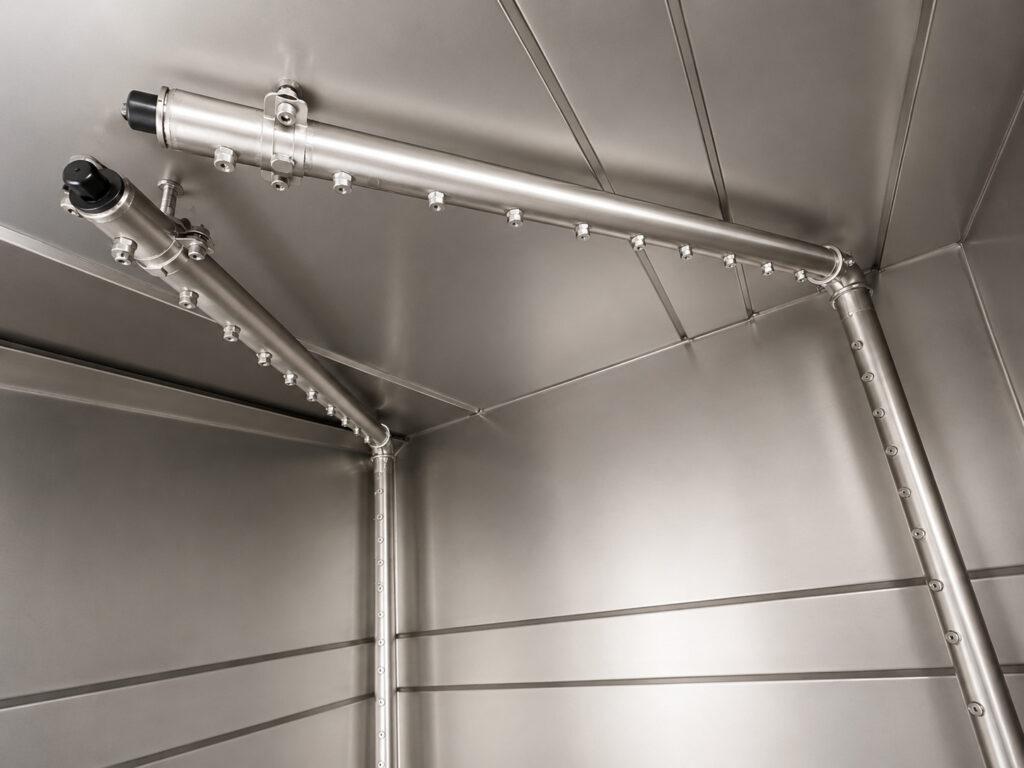

The Winona Van Norman SSW7235 Stainless Steel Washer is engineered for high-capacity, heavy-duty cleaning of the largest engine blocks, cylinder heads, transmission housings, and industrial components. Featuring an expansive 72-inch diameter by 35-inch high wash chamber, the SSW7235 delivers exceptional cleaning performance for engine rebuilding, remanufacturing, heavy equipment, and industrial manufacturing operations. Its powerful 360-degree high-pressure spray system thoroughly removes grease, oil, carbon, machining chips, and other contaminants, preparing parts for inspection, assembly, or additional processing.
Constructed entirely from corrosion-resistant stainless steel, the SSW7235 is built to withstand demanding production environments and aggressive cleaning solutions while providing years of dependable service. A recirculating filtration system continuously removes debris from the wash solution, helping maintain consistent cleaning performance, reduce maintenance, and extend solution life. Adjustable wash temperatures and programmable cycle timers allow operators to tailor each cleaning cycle to meet the specific requirements of every application.
Designed for professional machine shops and industrial facilities, the Winona Van Norman SSW7235 Stainless Steel Washer combines rugged construction, efficient operation, and repeatable cleaning performance to maximize productivity while minimizing downtime. Its large-capacity design, advanced cleaning technology, and user-friendly controls make it an ideal solution for shops that require fast, reliable, and consistently spotless parts day after day.
Request A Quote
Product Information
Operations
Specifications
Features
Specially designed for washing heads, blocks, and other engine components
60 minute cycle timer
4.9 – 18 kW electric heating elements guarantee quick solution heat up and maintain steady temperatures throughout use
Disk or belt oil skimmer
Low maintenance table. Direct drive table won’t slip
Double-lipped door seal prevents leaks, no clogs
Stainless steel construction fr long life
Side drains and full tank access at he front of the machine
Control solution temperature with adjustable thermostat
Often in stock and available for quick shipping
Operational temperature of 140 degree Fahrenheit
Easy to use controls
Standard Tooling
Features and Options
Overall Dimensions:
Tank Capacity:
Table Capacity:
Table Diameter:
Loading Cart:
Oil Skimmer:
97″ w x 87″ d x 85″ h
105 Gallons
1,870 lbs.
72.8″
Included
Included
