Vertical Hone VHX

The Winona Van Norman VHX is designed for efficiently solving any hydraulic cylinder, compressor, marine motors, plastic extrusion liner, etc…as well as for their use in production workshops.

Request A Quote

Fill out the form below to request a quote for the Vertical Hone VHX.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

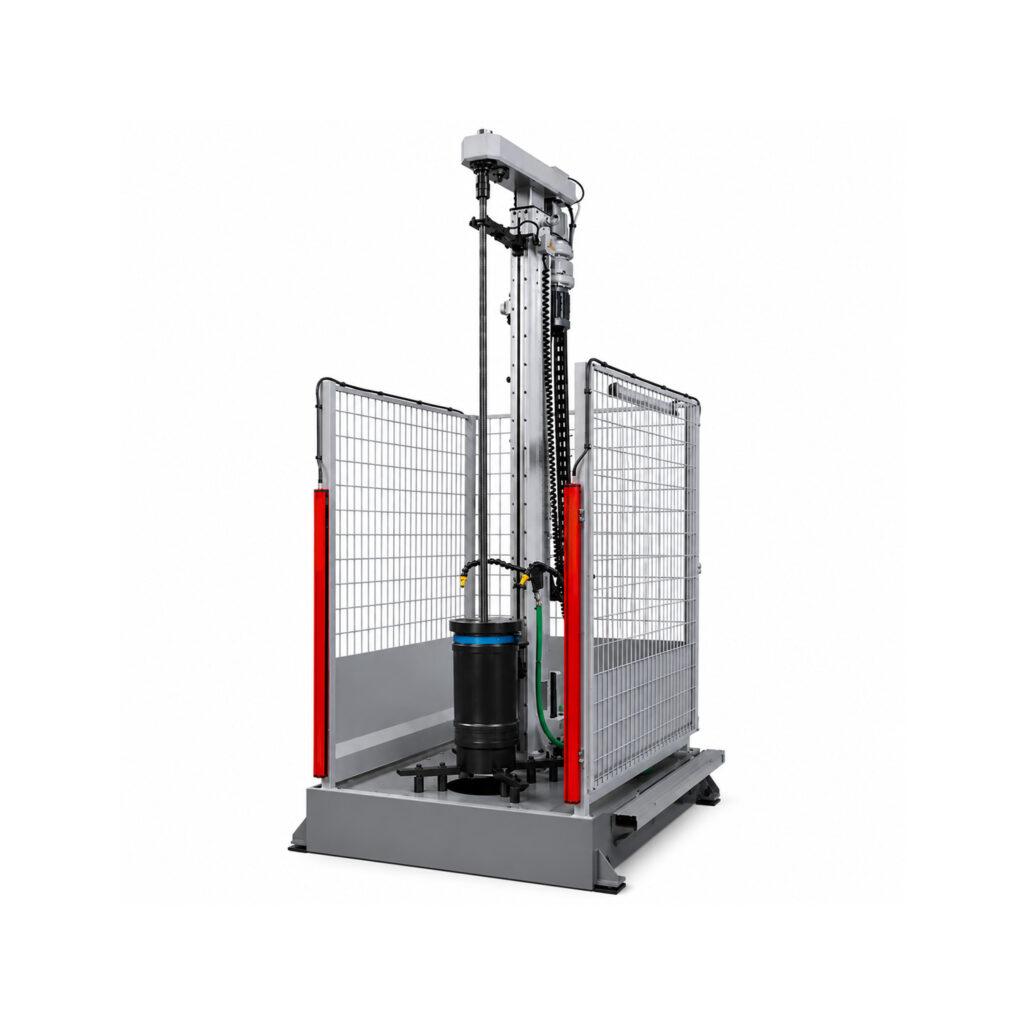

Vertical honing machine for honing parts from Ø 25 to 450 mm and a maximum length of 2000mm.

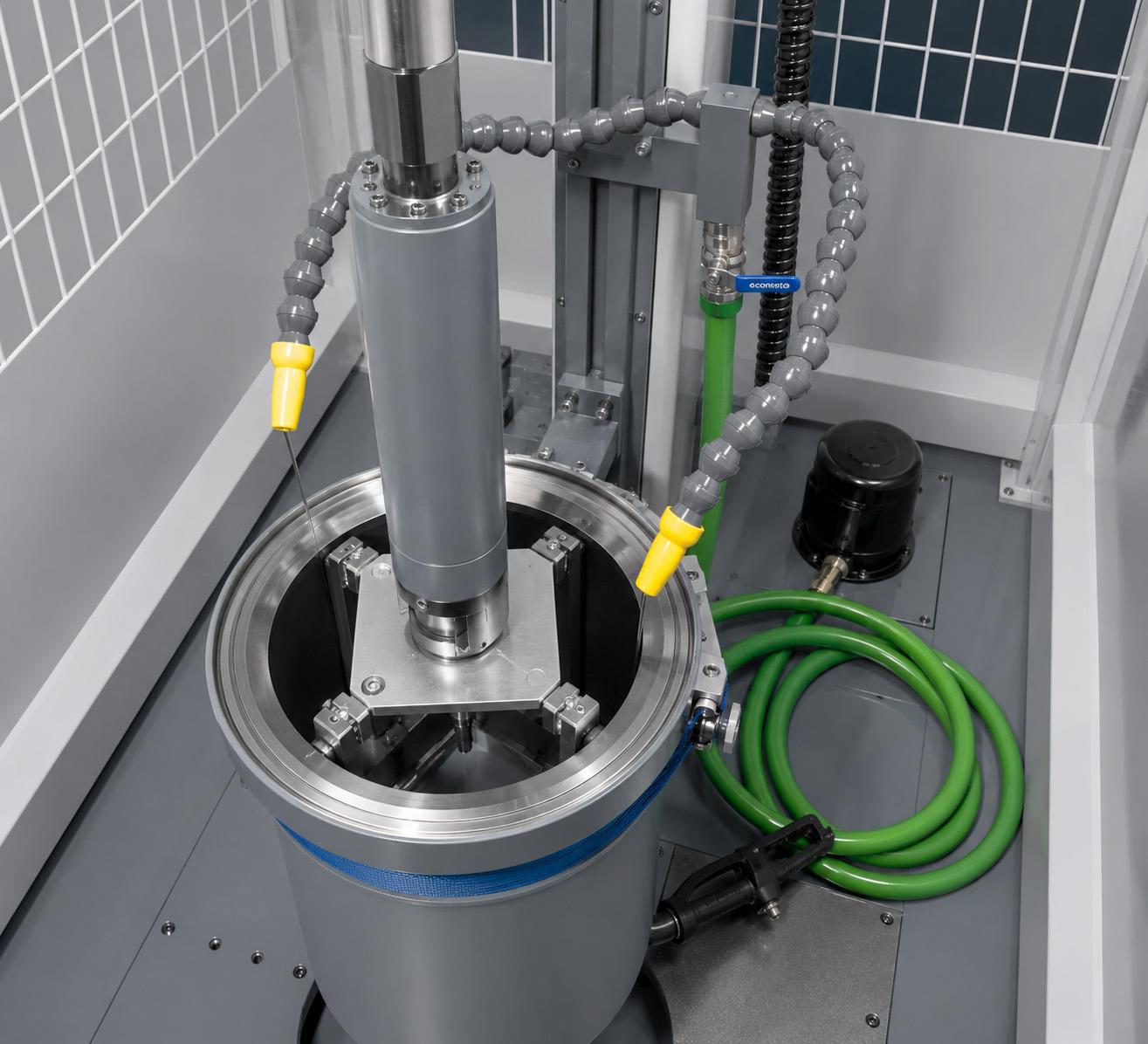

Suitable for repairing large compressors, marine engine liners, hydraulic cylinders as well as series of parts.

Due to its special design, the machine allows us to modify any parameter from the operation panel (except stroke).

The machine is equipped with safety panels, so its fulfils with the CEE regulations.

Currently we manufacture two types of expansion systems, the pneumatic system and the rotary system.

The pneumatic expansion system is designed for a short machine preparation time, ideal for repairs and pieces where cylindricity are relative.

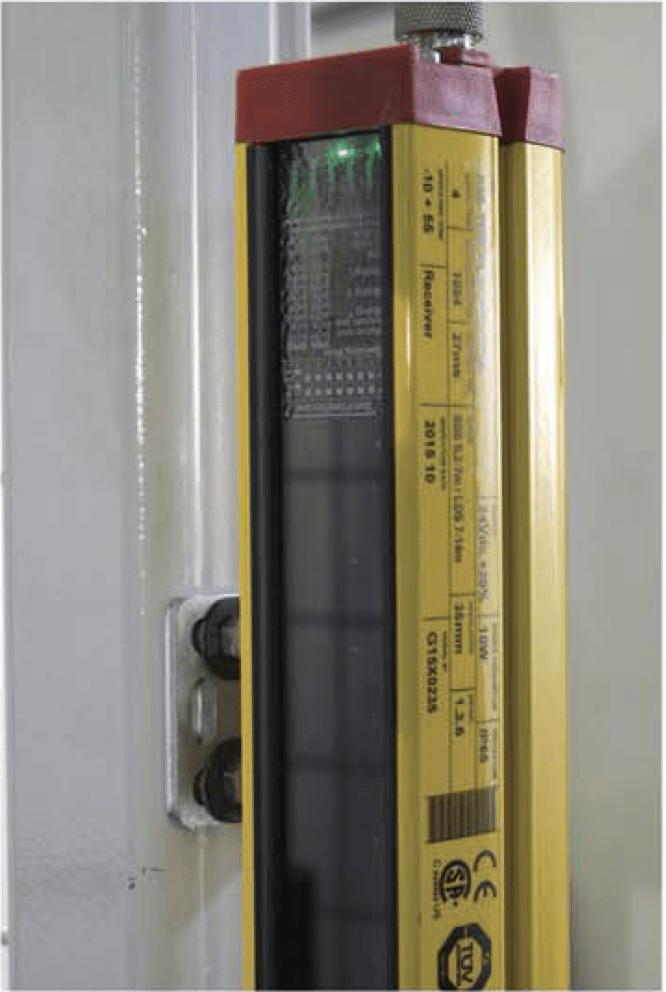

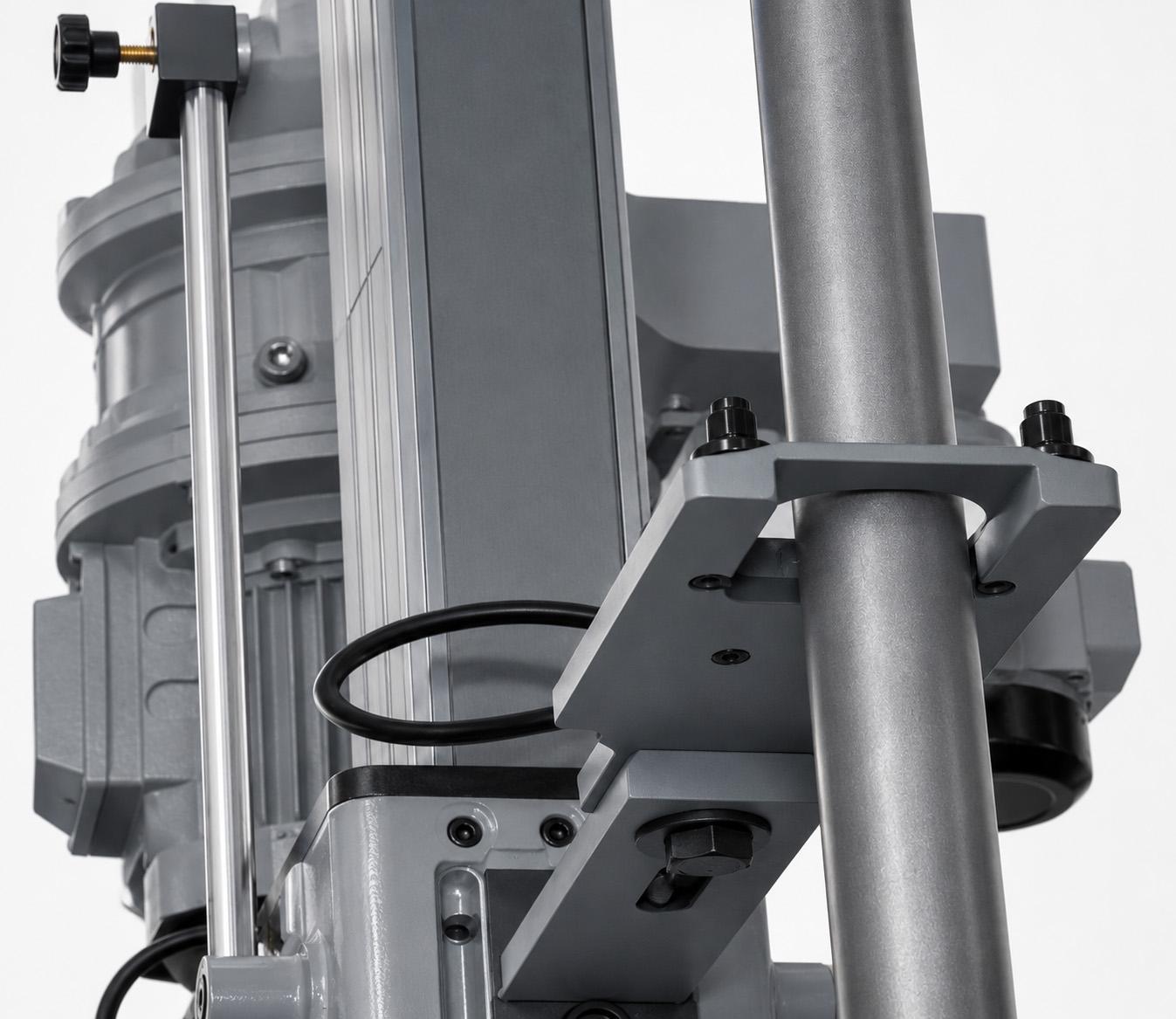

It is provided with a locking system of the U-joint. It also has one safety device for the honing bar. It also includes physical barriers around the machine as well as optical barriers that also works as emergency stop.

Optionally, a remote control is offered to raise and lower the head in manual mode with greater comfort of work.
