Agitation Washer PAX300
Category: Agitation Washers
Winona Van Norman PAX300 is a pneumatic driven platform agitation parts washer. It is ideal for use in many industries transportation, metalworking, printing, and reconditioning.
Request A Quote
Fill out the form below to request a quote for the Agitation Washer PAX300.
Product Information
Operations
The movement of parts within the liquid reduces dramatically the washing time and improves the cleaning efficiency, without affecting negatively the duration of the cleaning media.
Specifications
Winona Van Norman PAX300 are designed for the removal of oils, chips, and particulate from a wide range of components by using water based detergents and environmentally safe solvent chemistries. All controls have been doing by PLC control unit.
Features
Standard Tooling
Technical Specifications
LOADING CAPACITY
1763 lbs
800kg
INSIDE TANK MATERIAL STAINLESS STEEL
AISI316

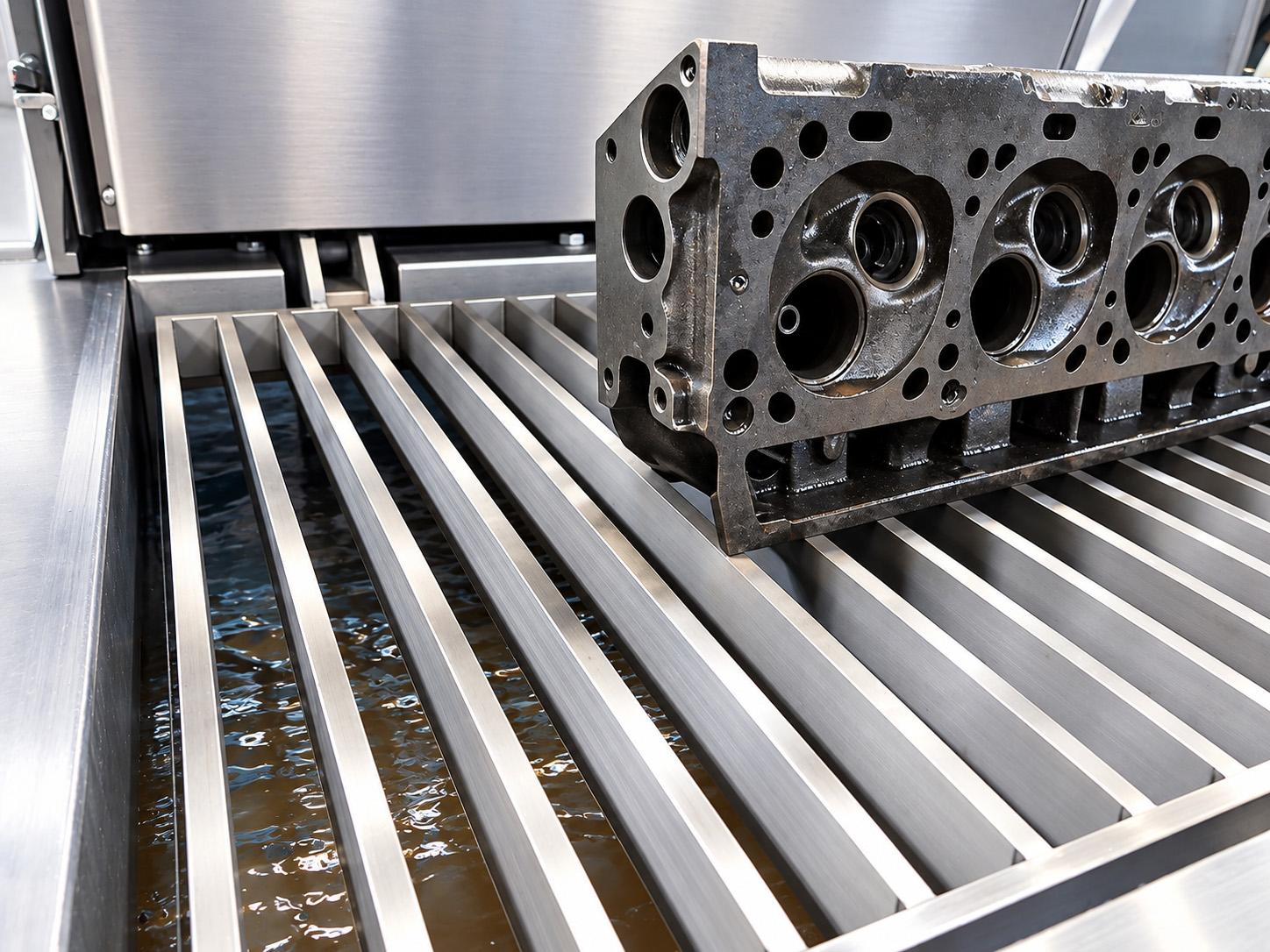

PLATFORM
43x27.5"
1100 x 700 mm
SOLUTION VOLUME
317 gal
1200 L
SOLUTION DEPTH
35.4"
900 mm
ELECTRICITY (V/Hz/Phase)
380-415-440 / 50-60 / 3
FILTERING SYSTEM
2 Hp circulation pump, 500 micron filter
PLATFORM MOVEMENT SYSTEM
By pneumatic pistons
PLATFORM MOVEMENT
19.6"
500 mm
HEATING RESISTANCE
7.5 x 4 Kw

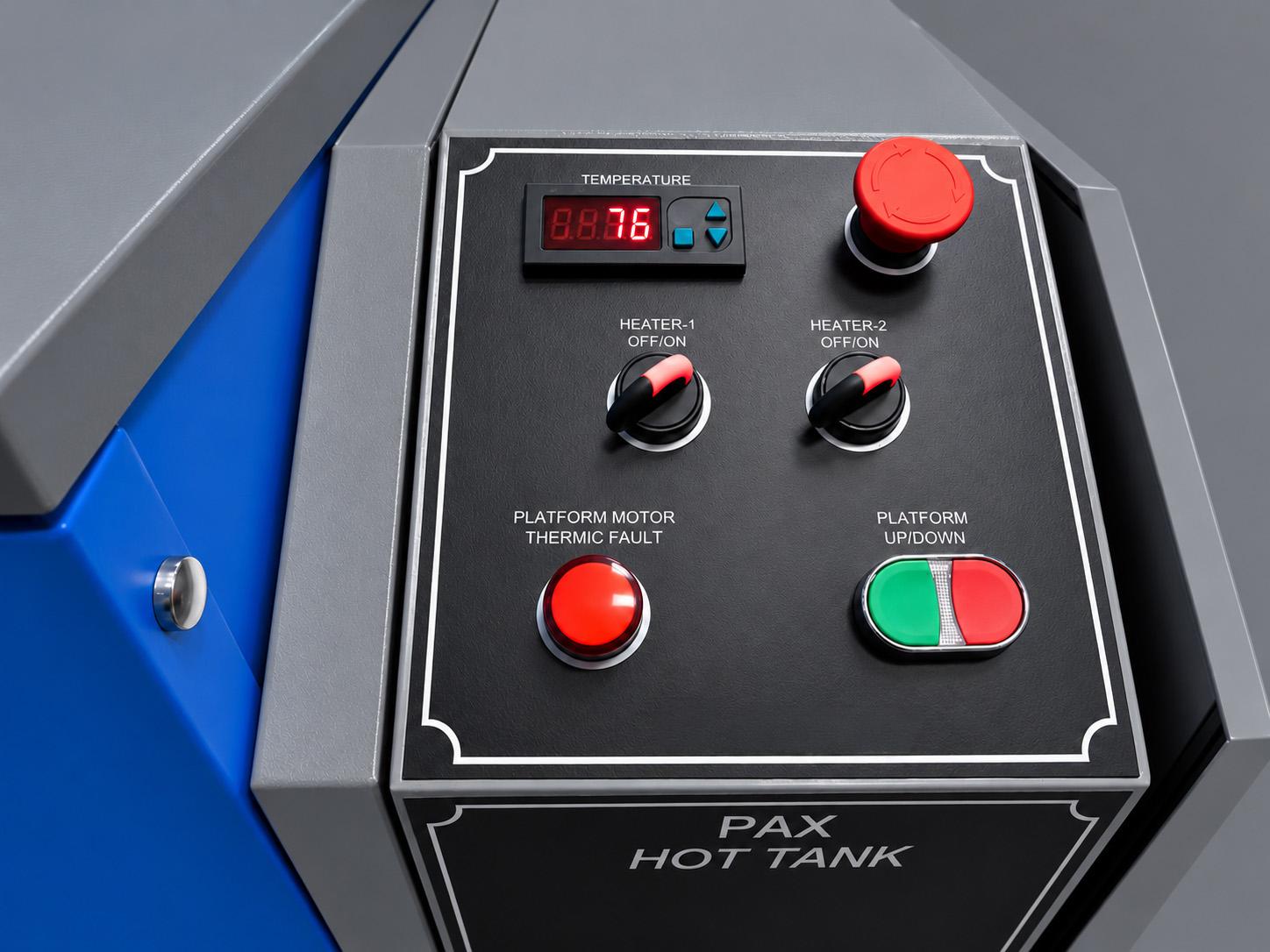

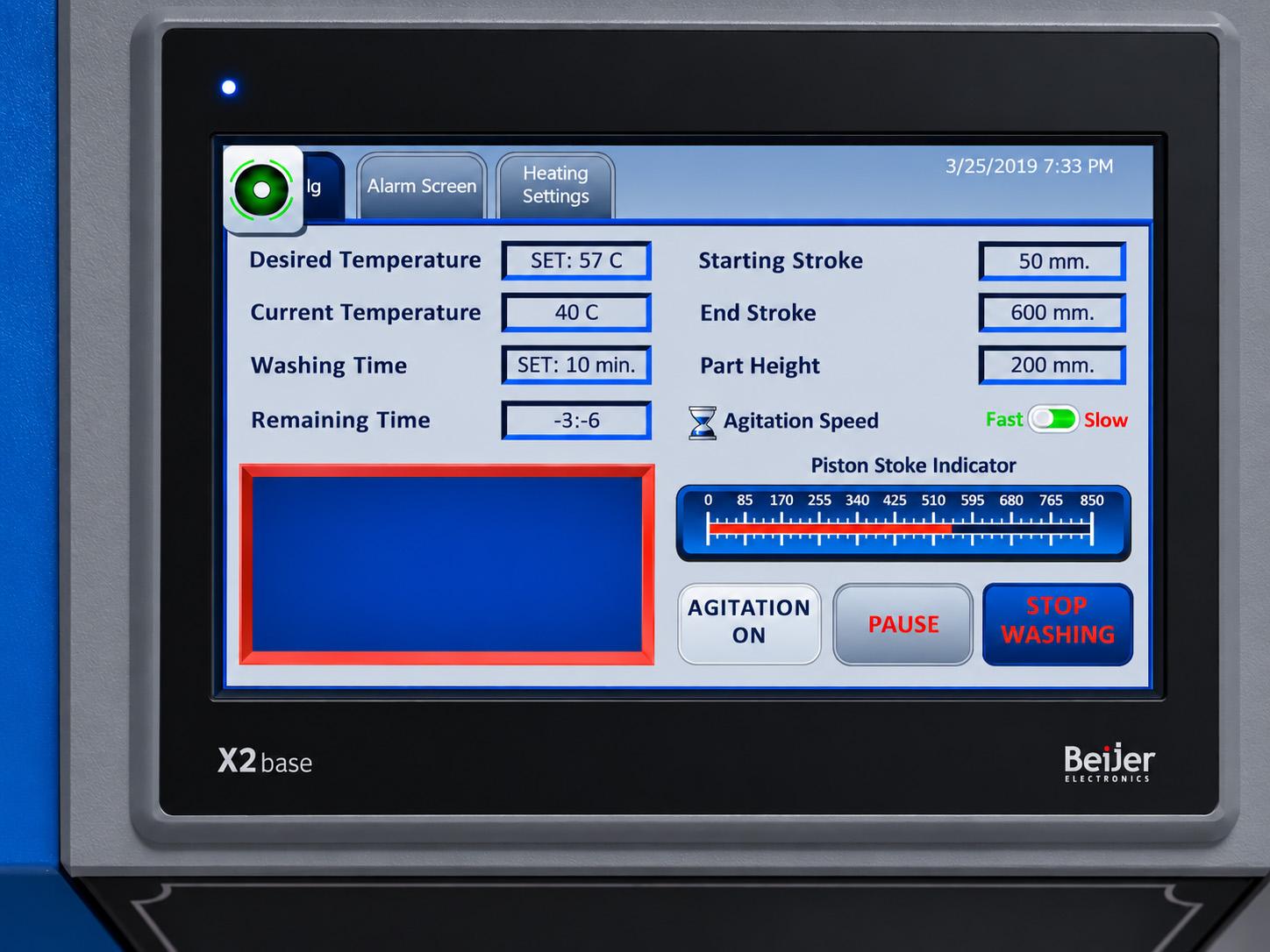

PLC CONTROL AND HMI
Standard
CYCLE
Adjustable through HMI
THERMOSTAT
32-194 F
0-90°C
CONTROL VOLTAGE
24 Volt DC
REQUIRED AIR PRESSURE
8-10
AGITATION
Fast or slow agitation speed
COVER LIFT SYSTEM
Standard
PACKING SIZE AND WEIGHT
71.6x52x92.5" 1212 lbs
1820x1330x2350 mm 550kg
