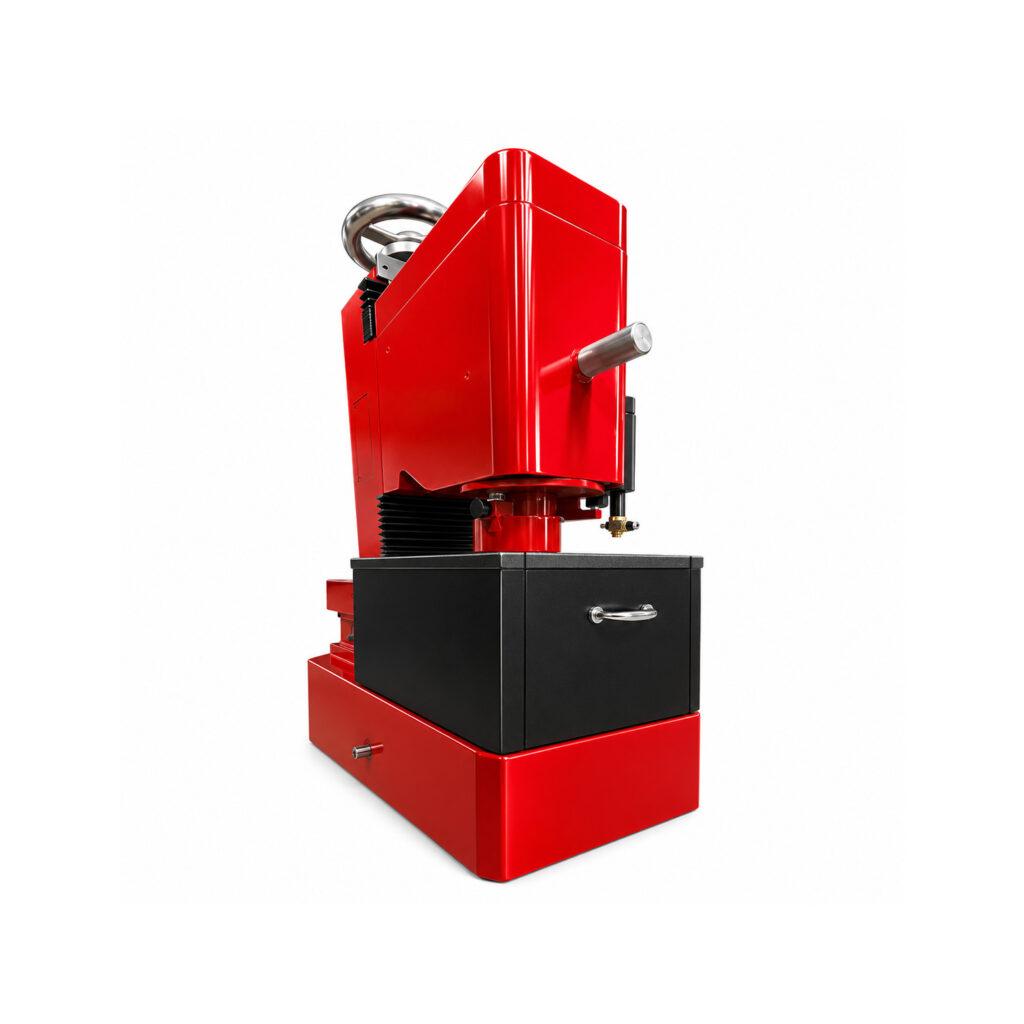

Flywheel Grinder FGX-4
The Winona Van Norman Flywheel Grinder is one of the newest and most advanced CBN grinders on the market, specifically designed for passenger cars, light trucks, and high-performance applications such as top fuel, funny cars, and pro stock teams. Capable of resurfacing 8–10 flywheels per day, this machine can quickly pay for itself, making it a valuable addition for both high-volume shops and those looking to expand service offerings. By integrating flywheel grinding, shops can boost productivity, increase profitability, and offer more specialized services.
Beyond flywheels, the WVN Flywheel Grinder restores flatness, enhances component performance, and extends the life of parts while supporting cost-effective maintenance. Its precision and versatility allow it to resurface other components such as pressure plates and brake rotors, making it an essential tool for automotive shops that demand accuracy, efficiency, and reliable results across a range of critical components.
Request A Quote
Product Information
Operations
A flywheel grinder is a specialized machine tool used to resurface the friction surface of flywheels, which are crucial components in automotive and industrial engines. The flywheel is a heavy, rotating disc that helps store and release energy, aiding in the smooth operation of the engine by maintaining consistent speed and power delivery. Over time, the friction surface of the flywheel can become worn, grooved, or damaged due to repeated engagement and disengagement of the clutch.
Specifications
16″ diameter grinding capacity
5HP enclosed grinding motor
12″ table diameter
Compact (20″ x 36″ D x 57″ T)
Stainless Steel coolant tank & shroud
Precision ball screw drive
Protected enclosed motor
1 minute simple setup
Constant torque (no chains/belts)
Features
Standard Tooling
Features and Options
Table Diameter:
Voltage:
Grinding Motor Speed:
Grinding Motor Power:
Coolant Capacity:
Shipping Weight:
16″
220V or 440V/3PH
35 RPM
10 HP
10 Gallons
1,500 lbs.
