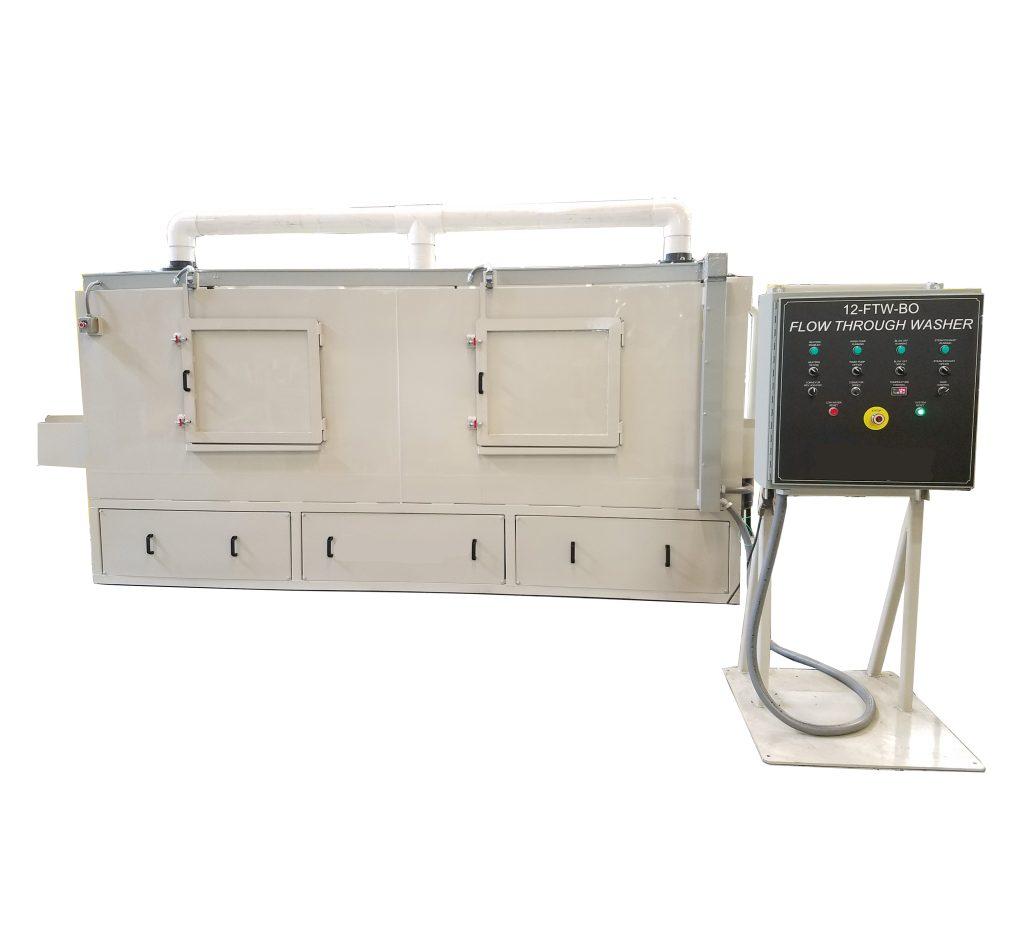

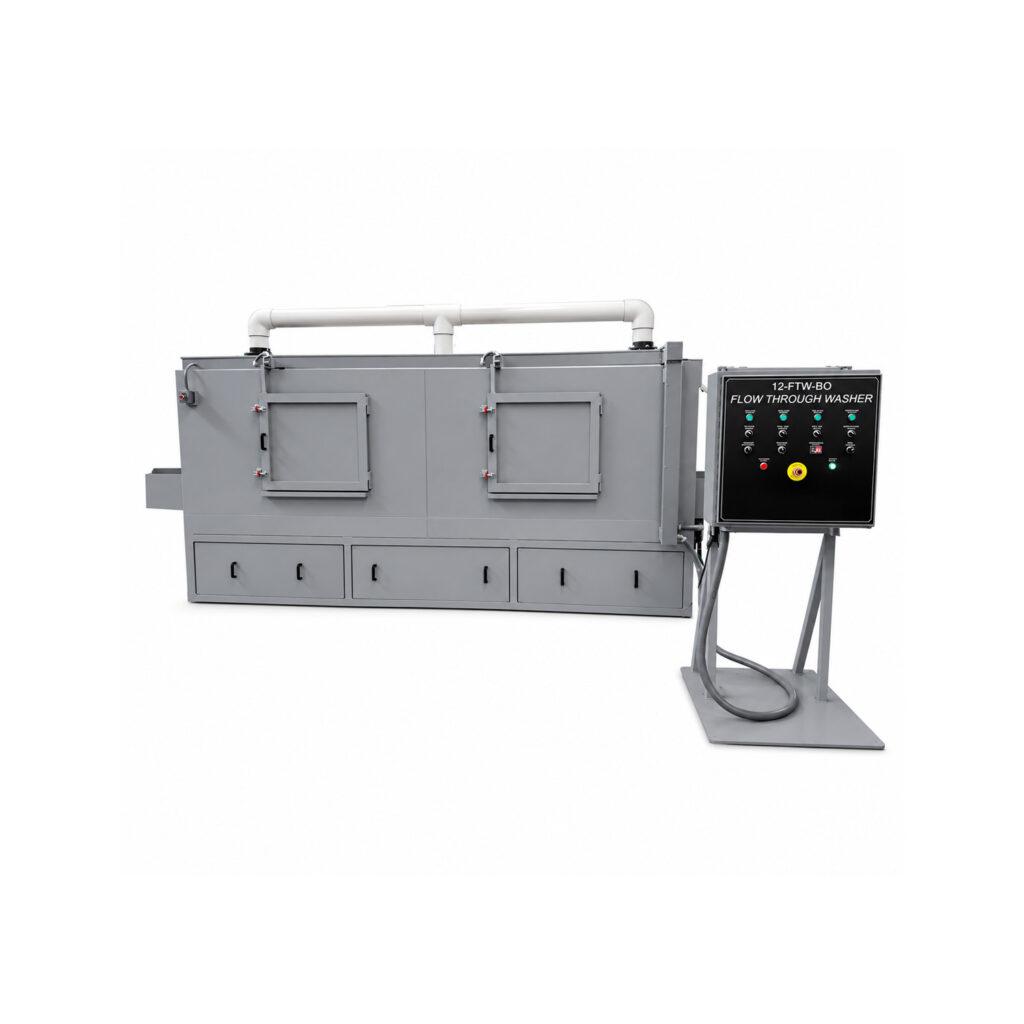

Flow Through Washer SS FTW-12

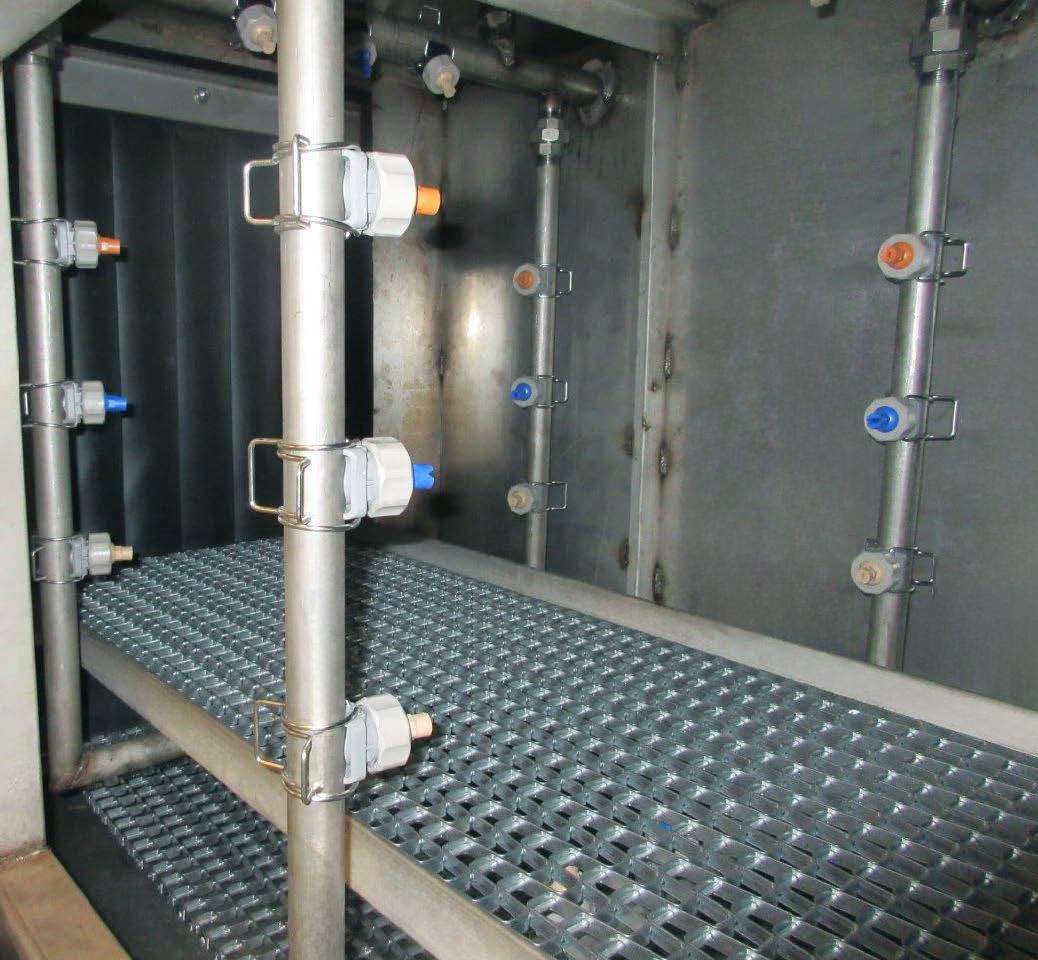

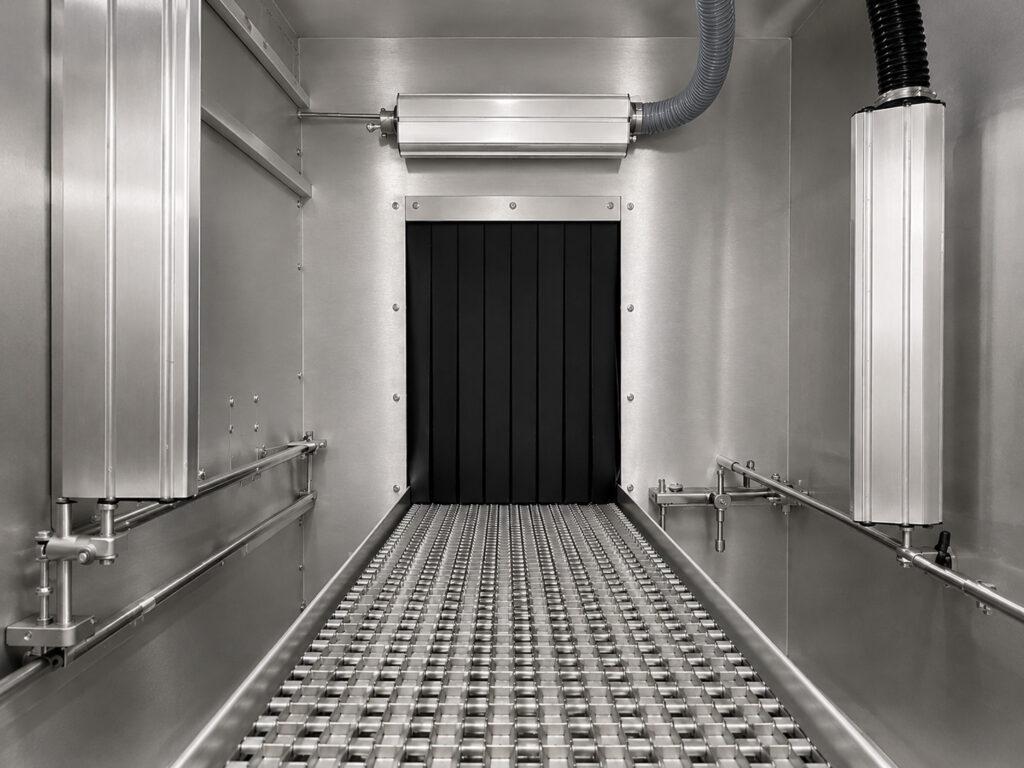

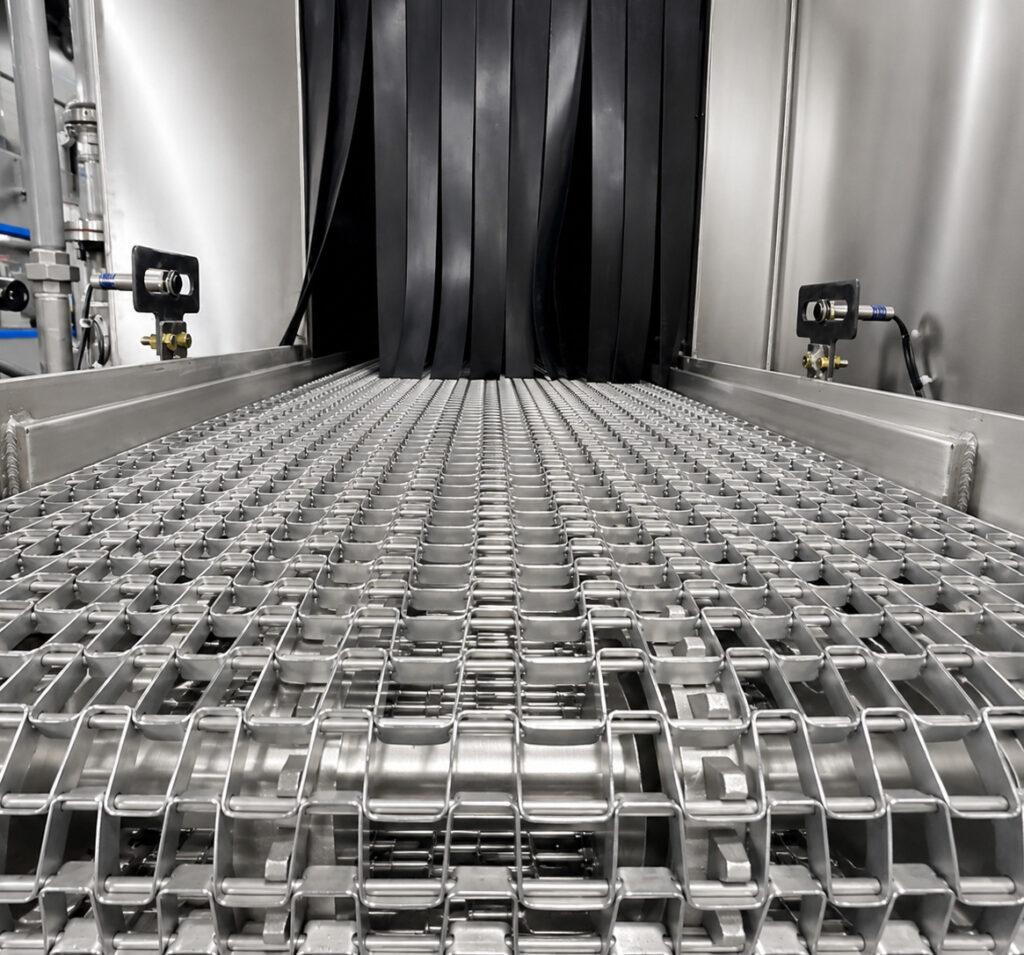

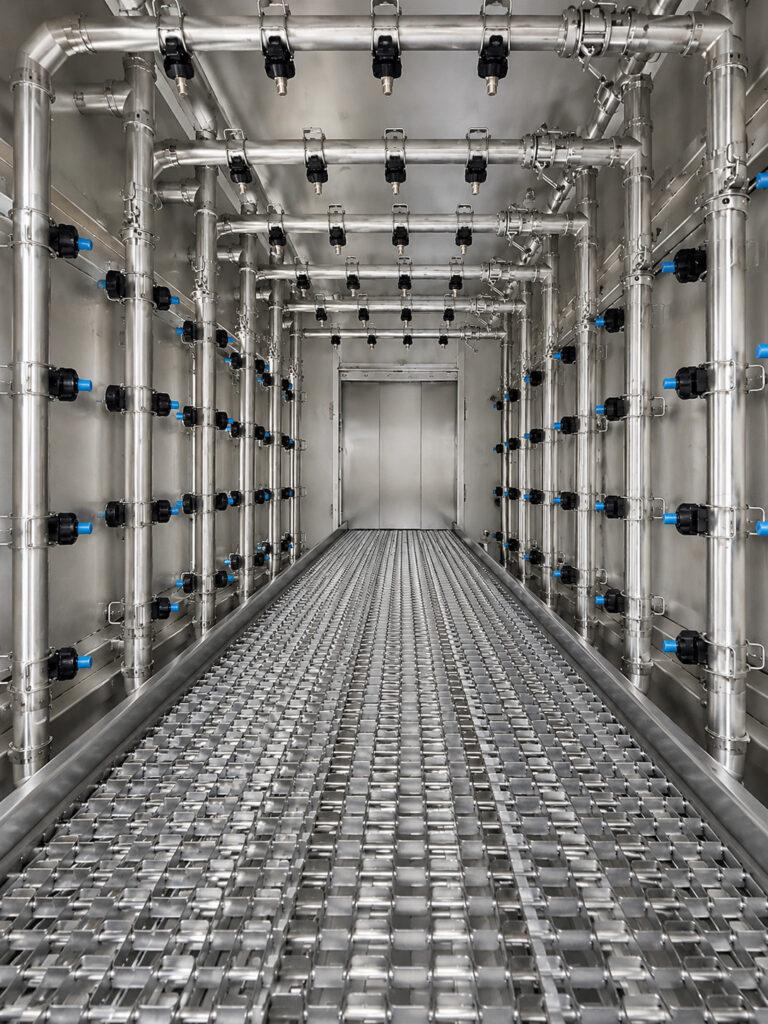

The Winona Van Norman 12-FTW Flow Through Washer is a high-capacity, automated cleaning system specifically designed for engine remanufacturing, automotive, and heavy-equipment production environments. Its 12-foot insulated wash chamber, equipped with precision-angled high-pressure spray nozzles, delivers complete 360-degree cleaning, effectively removing oil, grease, carbon, and debris from large or multiple components in a single pass. The heavy-duty conveyor ensures smooth, continuous movement of parts through wash, rinse, and blow-off stages, maintaining a seamless workflow that minimizes handling time and maximizes throughput.

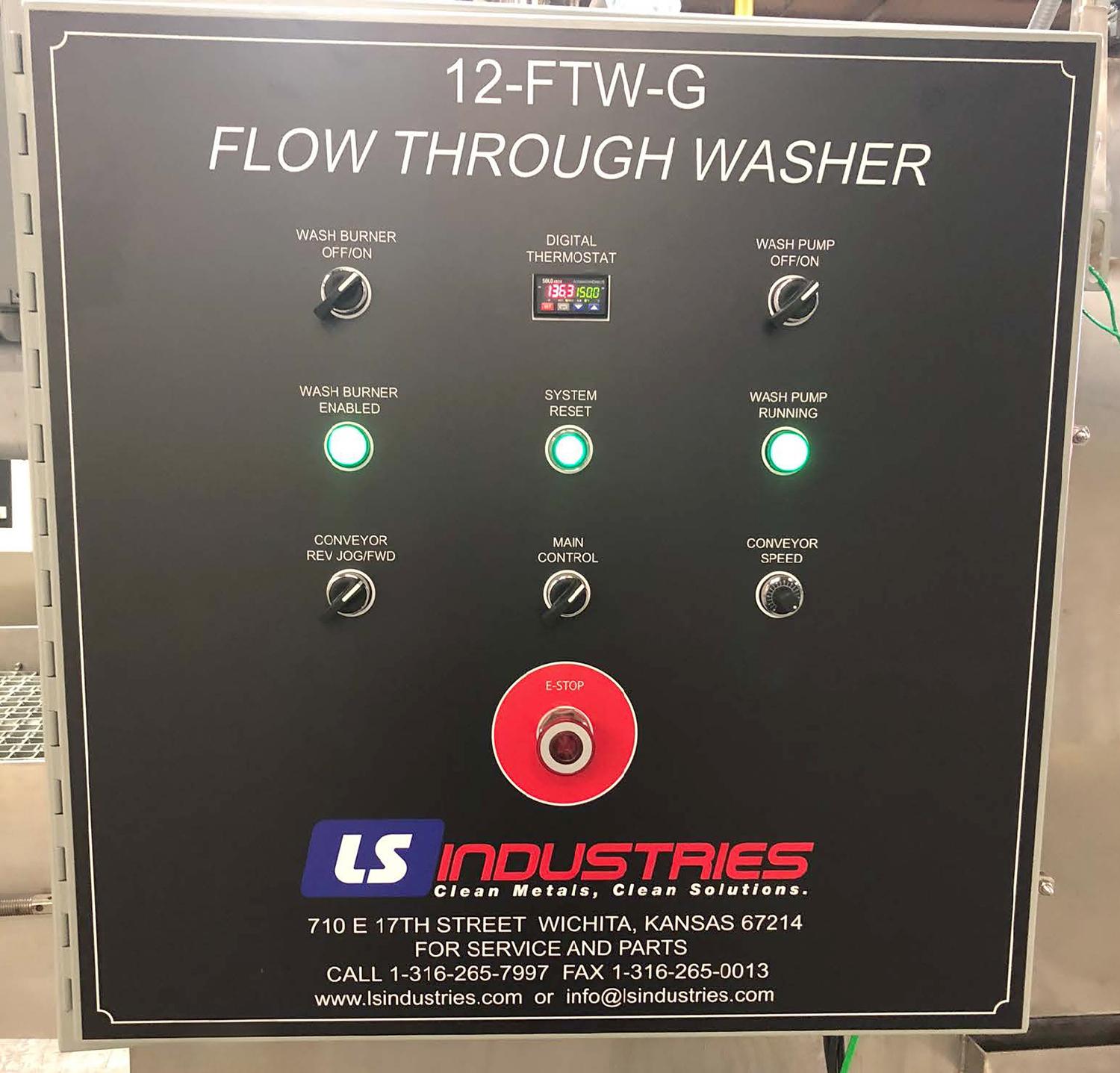

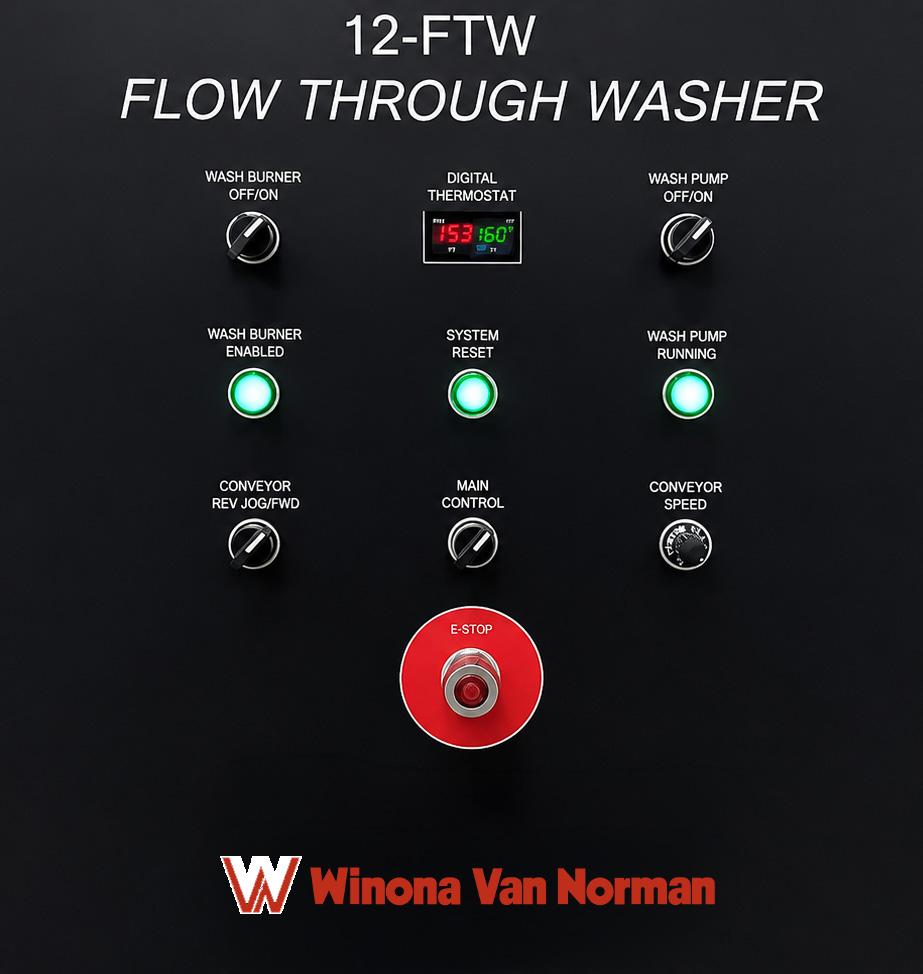

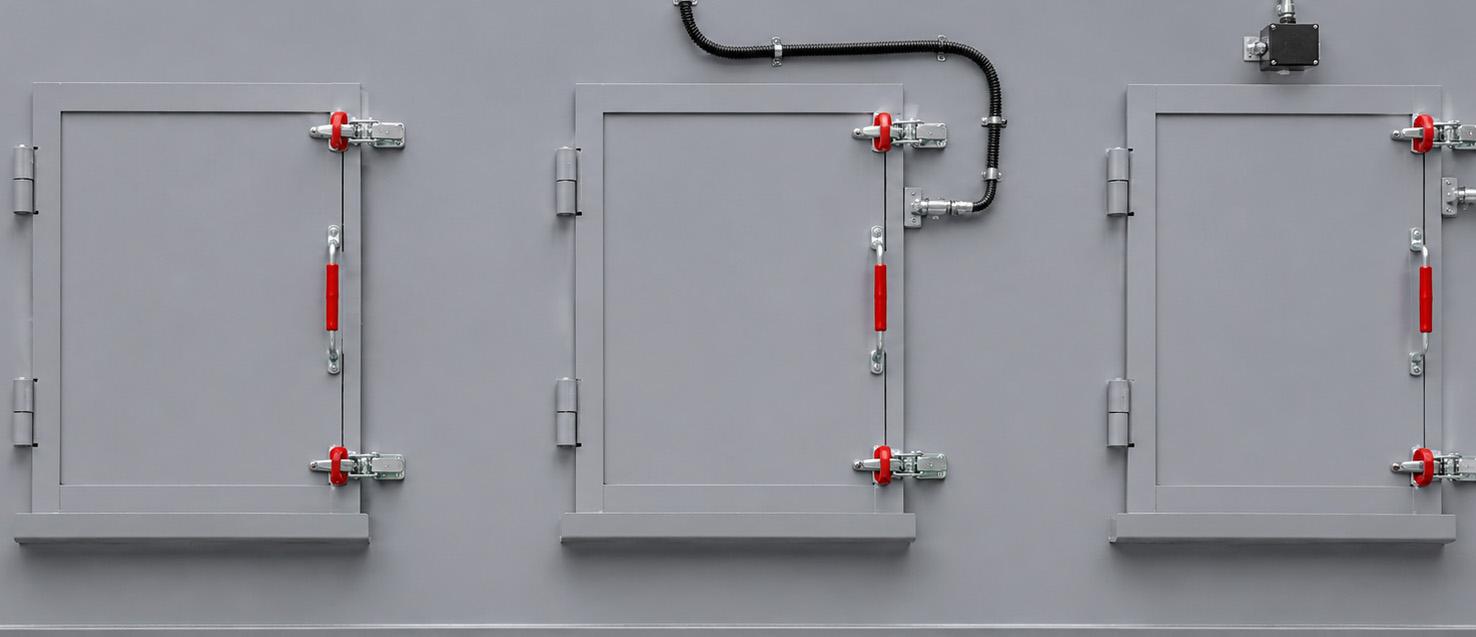

Built with durable stainless-steel and galvanized components, the 12-FTW washer combines long-lasting construction with energy-efficient heating and easy-access maintenance panels. User-friendly digital controls, including simple start/stop interfaces and amp meters, reduce training time while allowing operators to customize cycles for different part sizes and soil levels. By providing fast, reliable, and repeatable results, the Winona Van Norman 12-FTW Flow Through Washer helps shops increase productivity, lower operating costs, and ensure every part meets the highest standards of cleanliness.

Request A Quote

Fill out the form below to request a quote for the Flow Through Washer SS FTW-12.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Features and Options

Wash Tank Capacity:
Electrical:
Tunnel Opening:
Machine Length:
Wash Section with Vestibules:
Electric Heat:
Seal-less Pump:

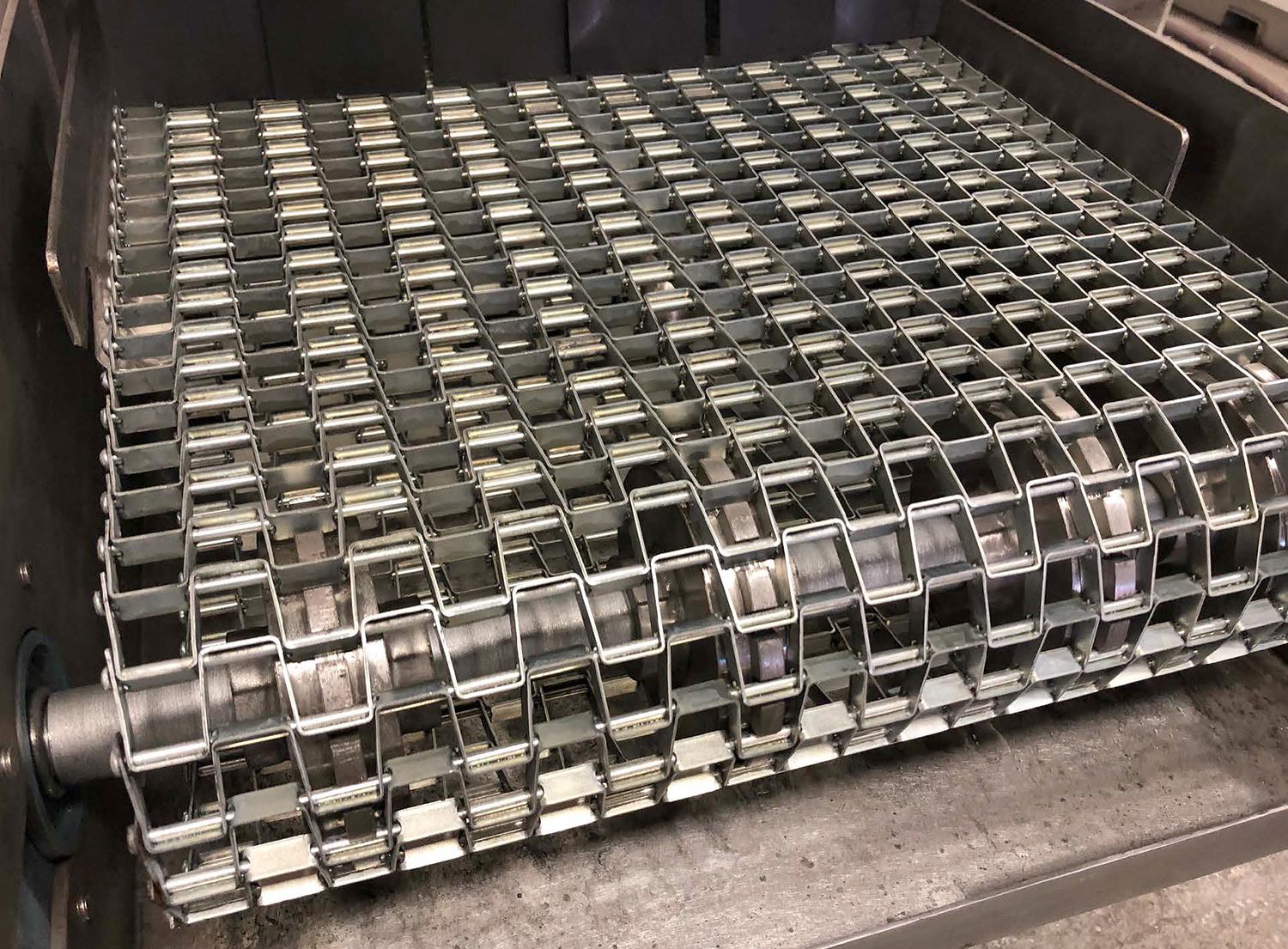

Conveyor Belt:
Conveyor Belt Drive:

220 Gallons
460V/3PH/60HZ
24″ x 24″
12′
8′
30 kW
180 GPM
24″ w
1 HP

Demonstration

Video coming soon
