Dust Collector Cartridge DCC-50-A

Category: Cartridge Dust Collectors, Dust Collectors

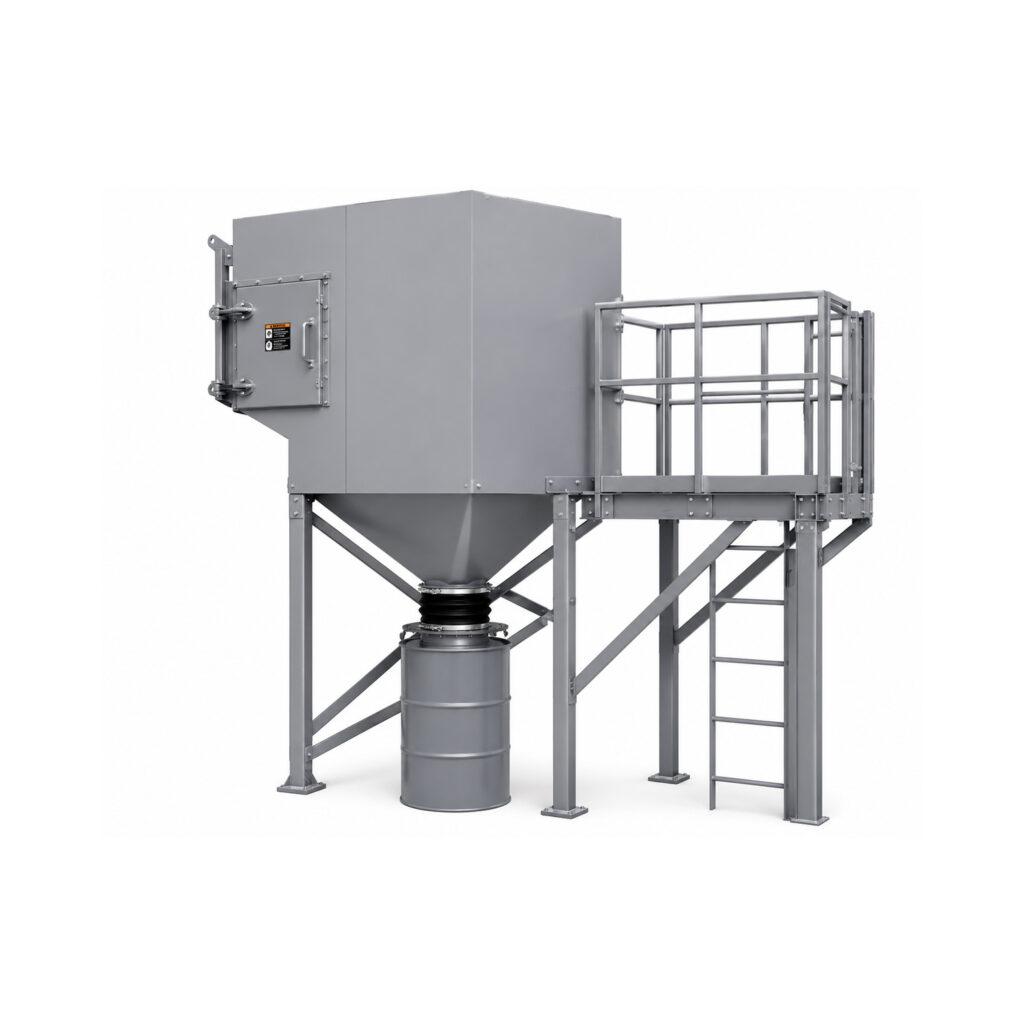

The Winona Van Norman DCC-50 is a 15,000 cfm cartridge dust collector. The Winona Van Norman DCC-50 uses twenty-four cartridges to collect dust and debris from shot blasting and other industrial applications.

Request A Quote

Fill out the form below to request a quote for the Dust Collector Cartridge DCC-50-A.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

Silencer: Optional

HEPA Filter: Optional

Rain Hood/Outdoor Kit: Optional

Fire Suppression System: Optional

Explosion Vent: Optional

Maintenance/Service Platform: Optional

Technical Specifications

Overall Dimensions blower mounted on the floor (L x W x H)
86" x 80" x 142"
2184 x 2032 x 3606 mm
Number of Cartridges/Filters
24
Filter Area
5352 (sq. ft.)
Blower
50 HP
Approx. Blower
19000 CFM
Duct Size
26 in
Approx. Air Velocity
5156 ft./min.
1456 m/min
Gallon Size for Dust
2 x 55 Gal.
2 x 208.2 L
Standard Filter Part Number
903287
Washable Filter Part Number (Optional)
903374

Demonstration

Video coming soon
