Dust Collector Cartridge DCC-10-A

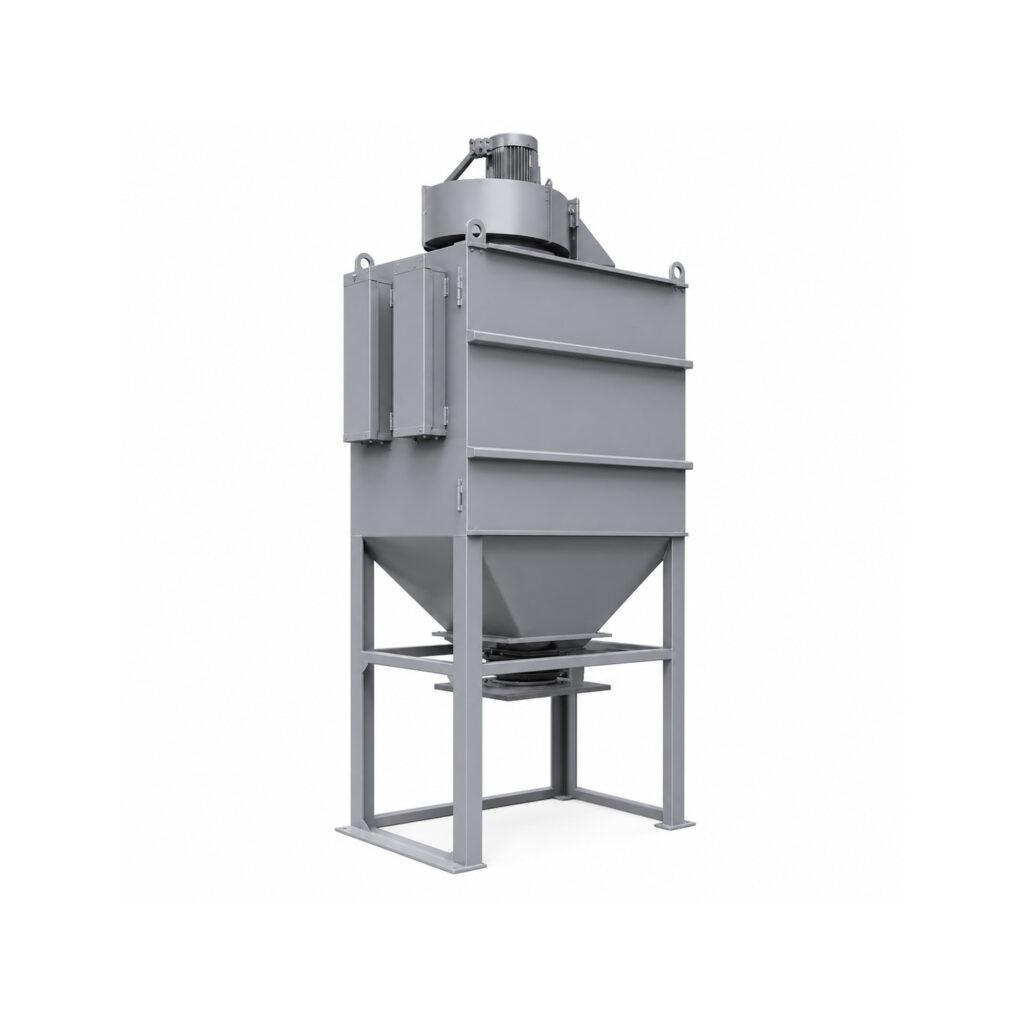

The Winona Van Norman DCC-5 is a 4,000 cfm cartridge style dust collector. The Winona Van Norma DCC-5 uses four cartridges to collect dust and debris from shot blasting and other industrial processes.
Request A Quote
Fill out the form below to request a quote for the Dust Collector Cartridge DCC-10-A.
Product Information
Operations
Specifications
Features
Filter Removal Rack: Optional
Silencer: Optional
HEPA Filter: Optional
Rain Hood/Outdoor Kit: Optional
Fire Suppression System: Optional
Explosion Vent: 903383
Maintenance/Service Platform: Optional
Spark Arrestor: 920061
Standard Tooling
Technical Specifications
Overall Dimensions
56 in x 42 in x 153 in
1422 x 1067 x 3886 mm
Number of Cartridges/Filters
4
Filter Area
1000 (sq. ft.)
Blower
10 HP
Approx. Blower
4000 CFM
Approx. Shipping Weight
1550 lbs.
703 kg
Duct Size
12 in
254 mm
Approx. Air Velocity
5096 ft./min.
2236 m/min
Gallon Size for Dust
55 Gal.
208.2 L
Standard Filter Part Number
903238
Washable Filter Part Number (Optional)
903373
