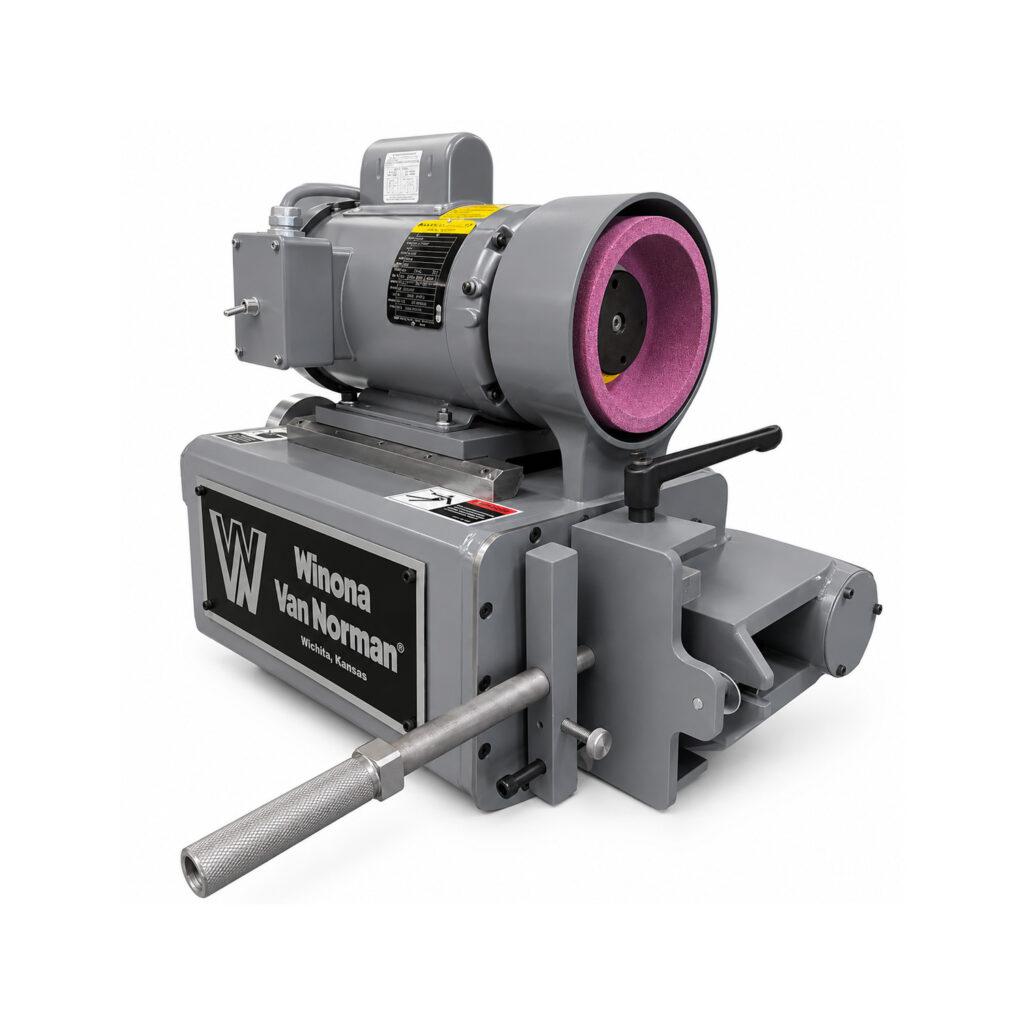

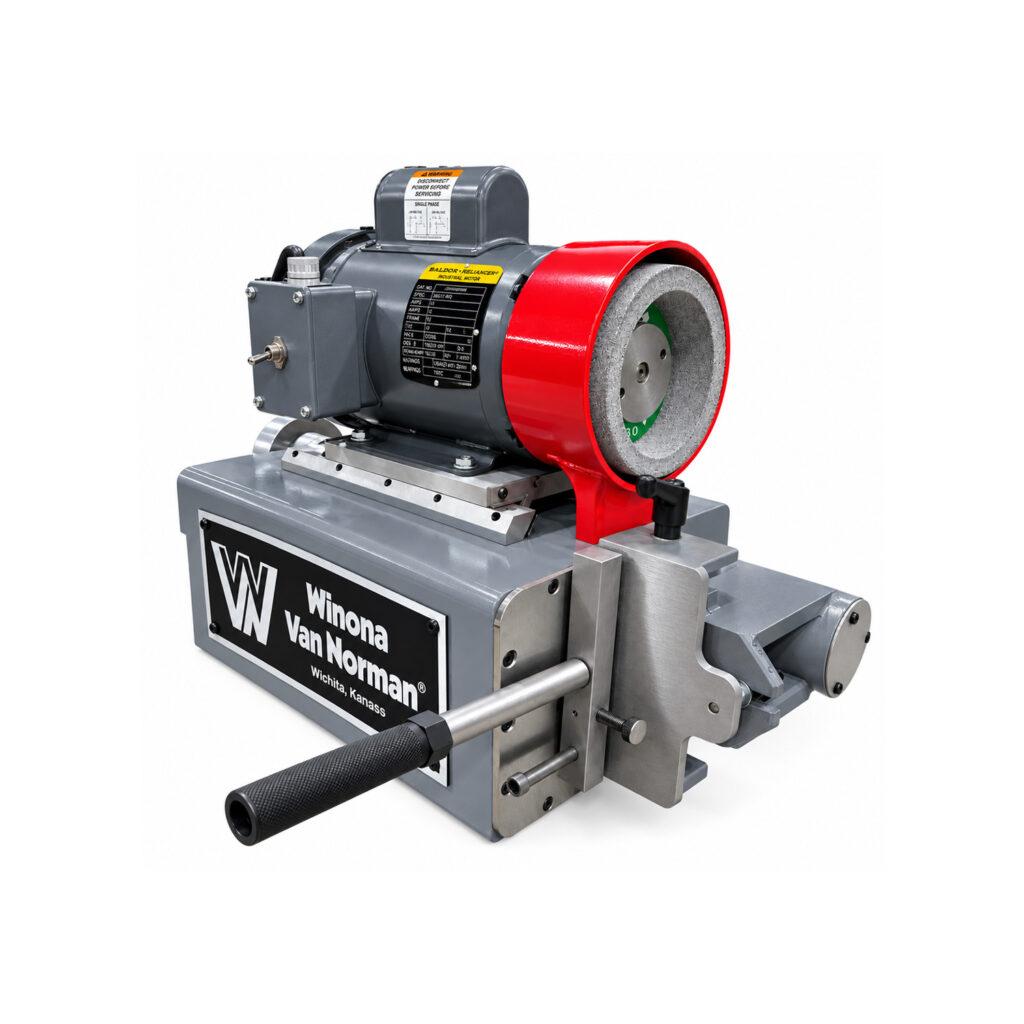

Cap and Rod Grinder CRG170

Category: Cap & Rod Grinders, Rod Reconditioning Equipment

The CRG170 is designed for resurfacing the parting face of connecting rods and main bearing caps.

Request A Quote

Fill out the form below to request a quote for the Cap and Rod Grinder CRG170.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

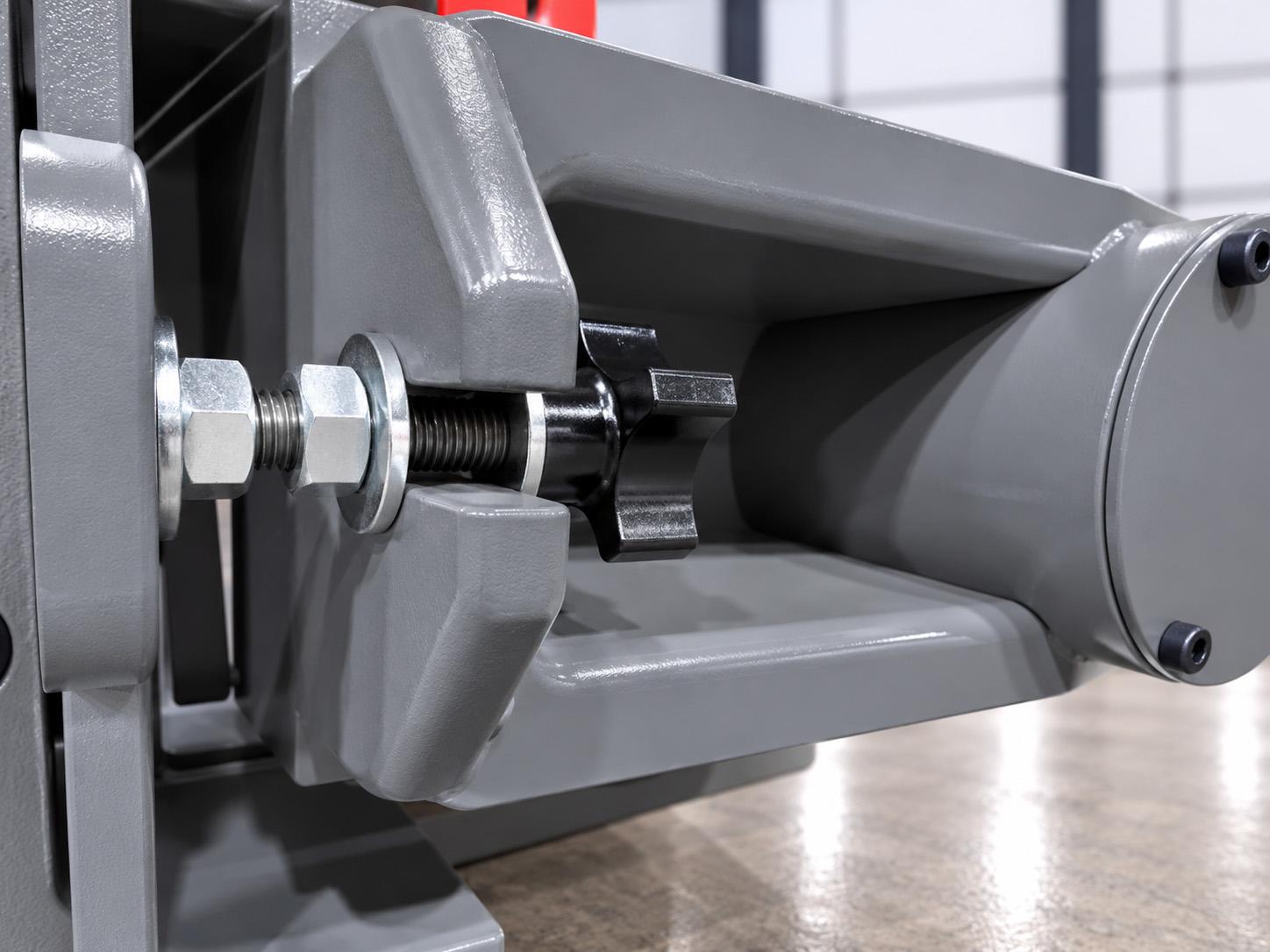

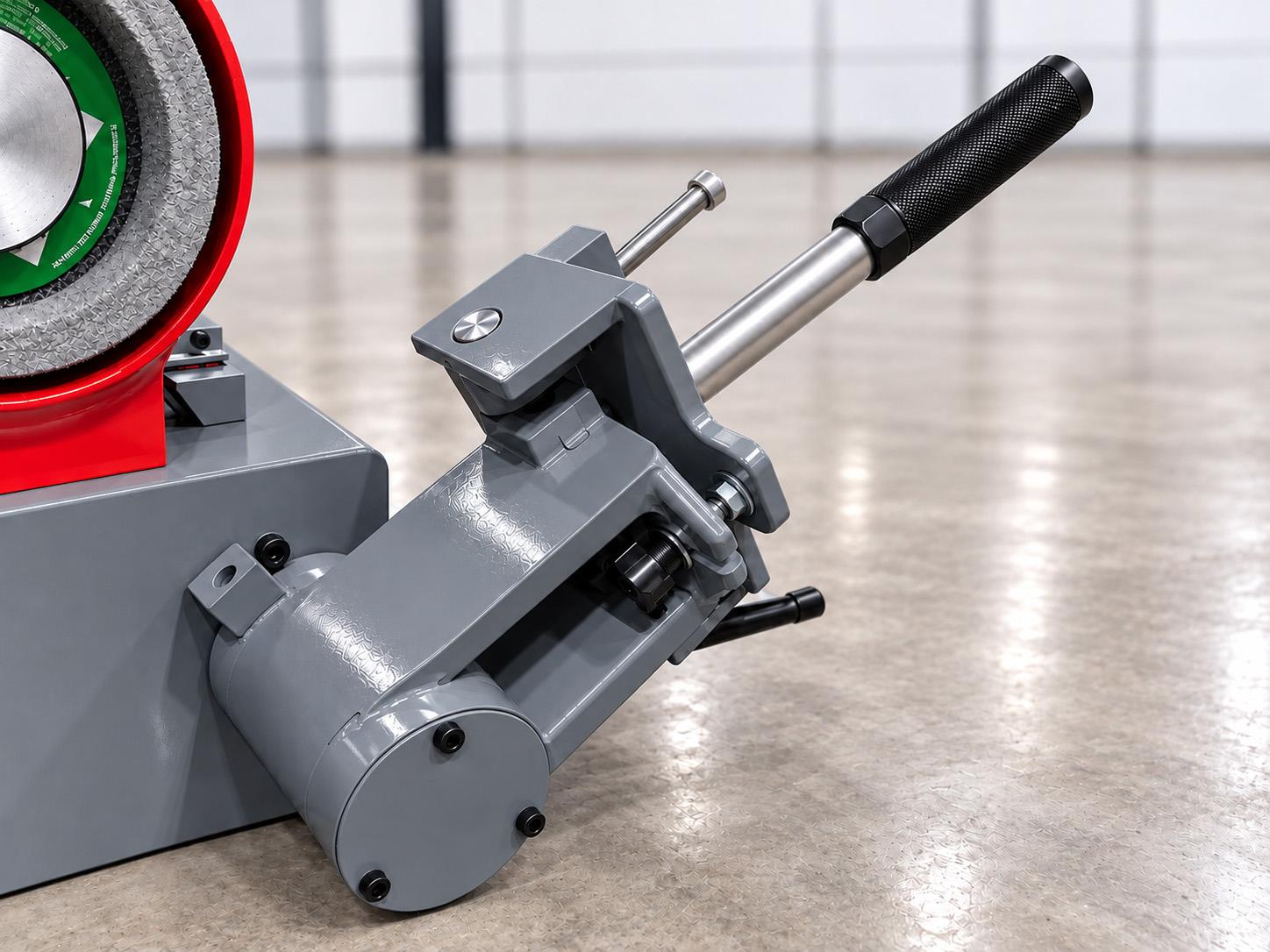

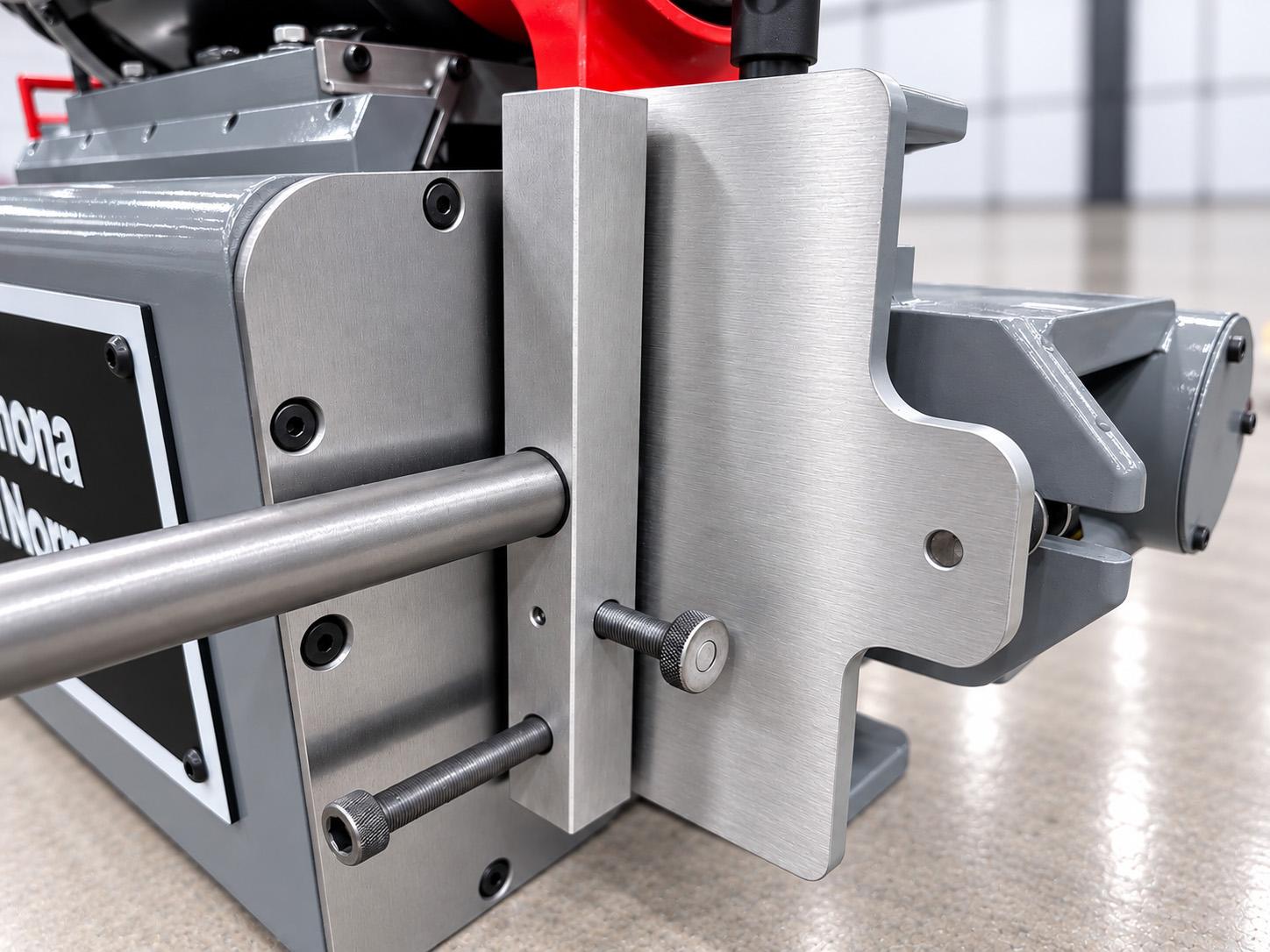

The large capacity and robust construction make it ideally suited for both automotive and heavy-duty diesel applications. The adjustable clamping mechanism allows the operator to surface caps on the original parting line even when the clamping surface is not square with this area. These features make it the ideal companion for rod and main bore resizing equipment.

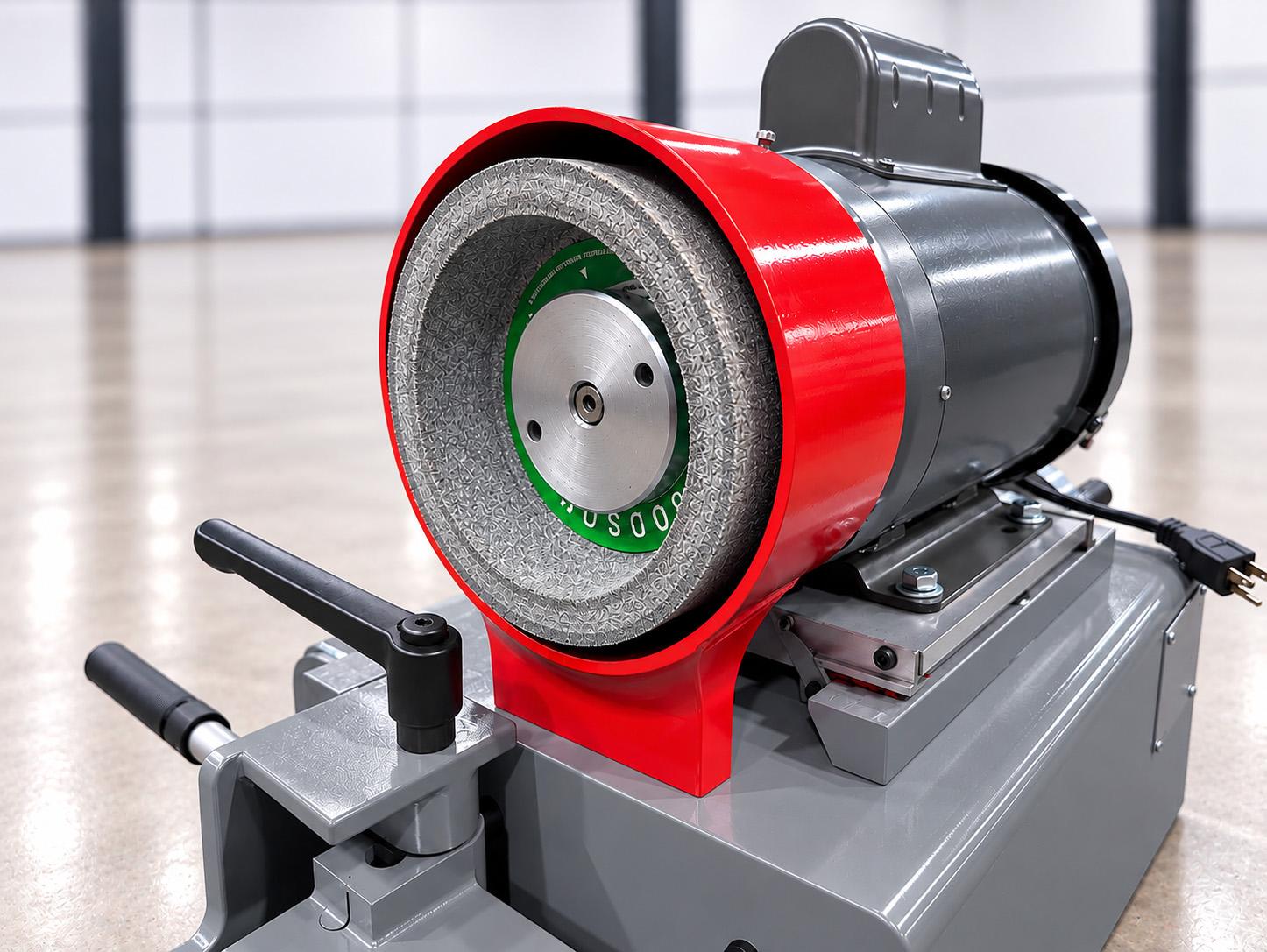

Grinding wheel diameter          6″(152mm)

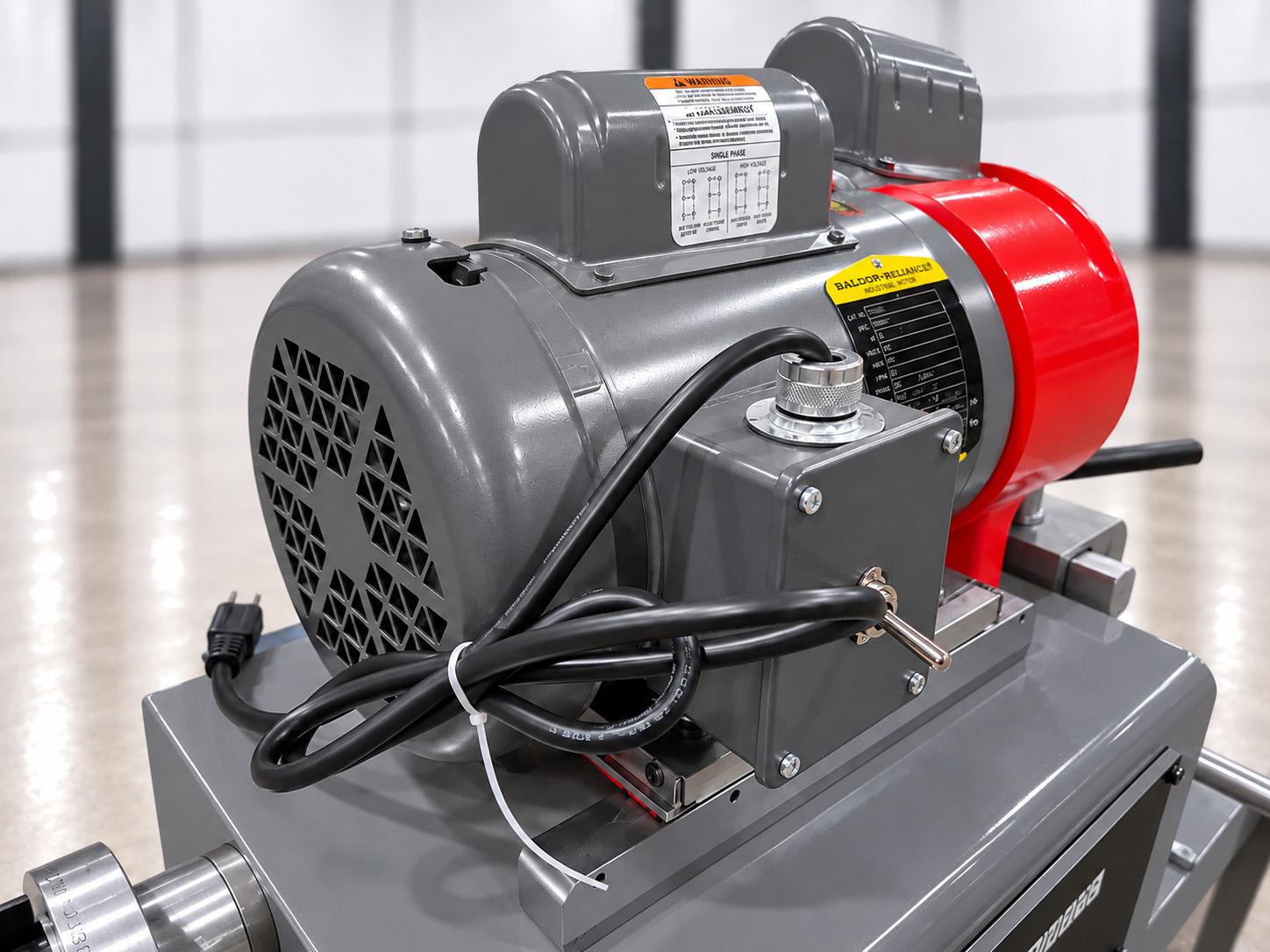

Motor HP                                      3/4 HP

Voltage                                           115/230V, 1Ph, 60Hz/50Hz

Net weight                                      176 lbs (80Kg)

Shipping weight                             250 lbs (114Kg)

Crated shipping weight                 370 lbs (168Kg)

860776          115/230V, 60Hz, 1Ph

863195          115/230V, 50Hz, 1Ph

860811          Cup grinding wheel, 6″ diameter

860745          Wheel dressing diamond

Technical Specifications

Cabinet
No, Optional Stand
Cup Grinding Wheel Diameter
6”
Grinding Wheel Motor Power
0.750 HP
Wheel Rotation Speed
3600 RPM
Approx. Machine Weight
160 lbs.
72 kg
Approx. Shipping Weight
200 lbs.
90 kg
