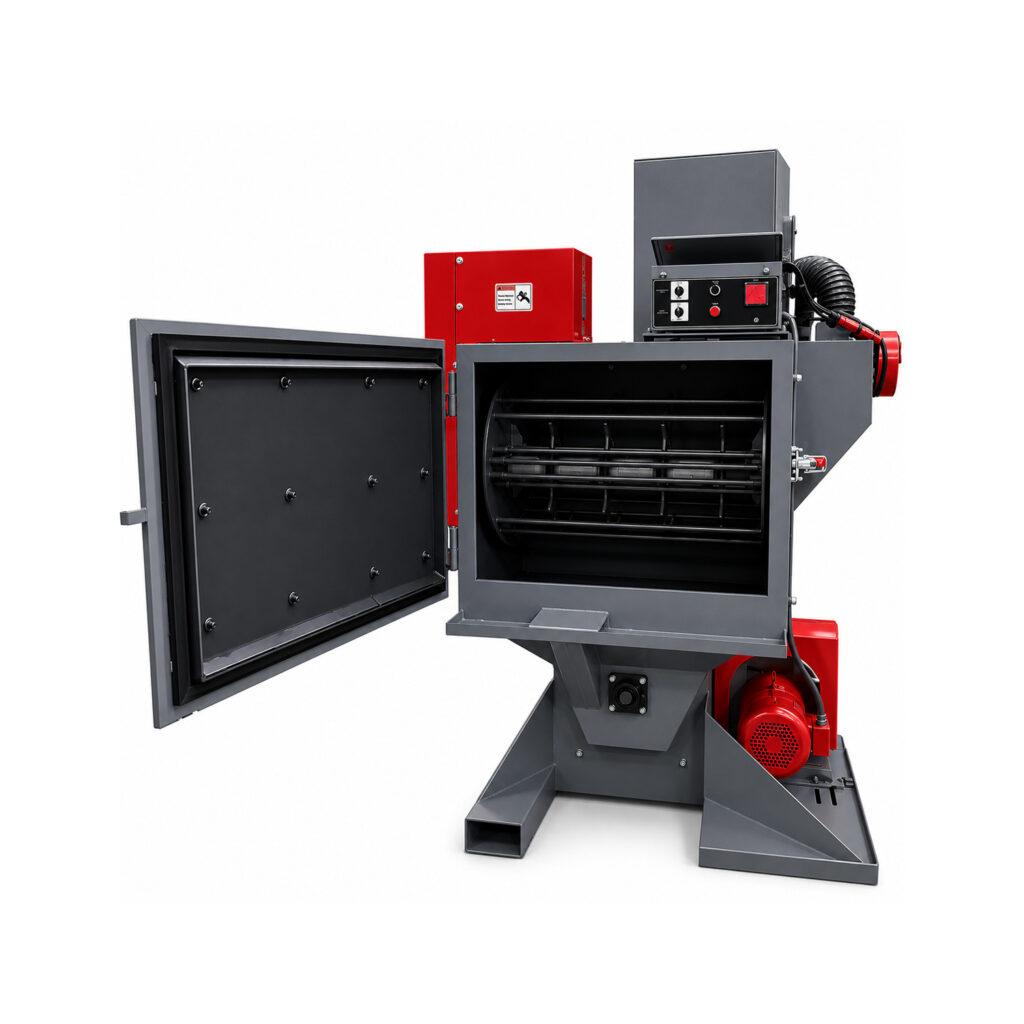

Fixtured Basket Blaster BH-02
WVN Fixtured Basket Blasters, like the WVNBH‐02, have easily replaceable cabinet liners and is versatile with easy basket jigging setup for any shape parts. Originally designed to accommodate engine blocks and heads but much more versatile than just automotive applications.
The simple one button push operation with adjustable cycle times doesn’t require extensive training. Dual hand safety controls on the clamshell design protects operators and a door locking valve prevents the door from closing in case of loss of air pressure. The TurboShot™ blast wheel is belt driven to protect the motor and make it easy to maintain. The blades on the TurboShot™ wheel are bi‐directional allowing for reversing blasting for an all angle clean.
Request A Quote
Product Information
Operations
Specifications
Features
Door available as manual swing or automatic lift up for overhead loading

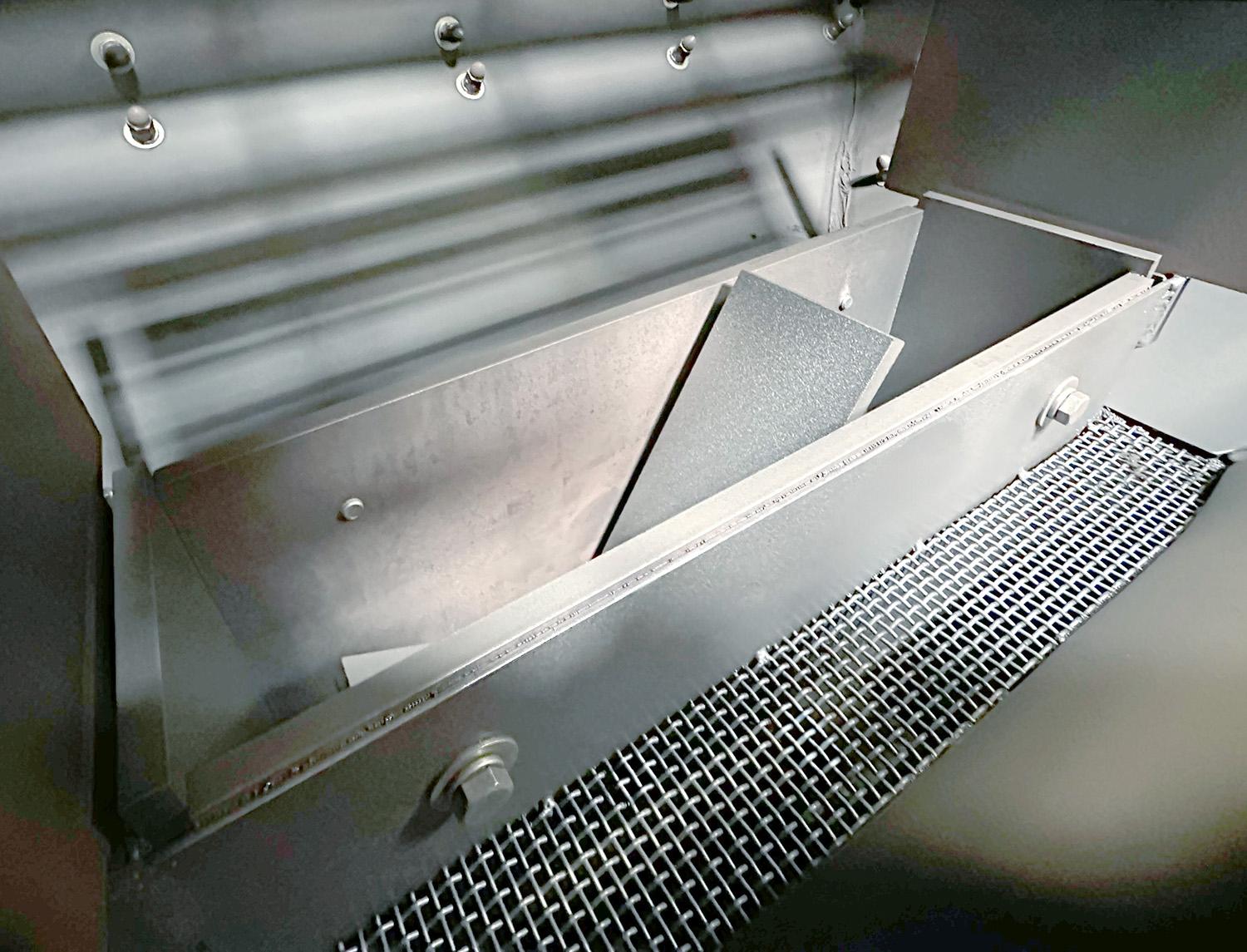

TurboShot blast wheel design
Door safety switch

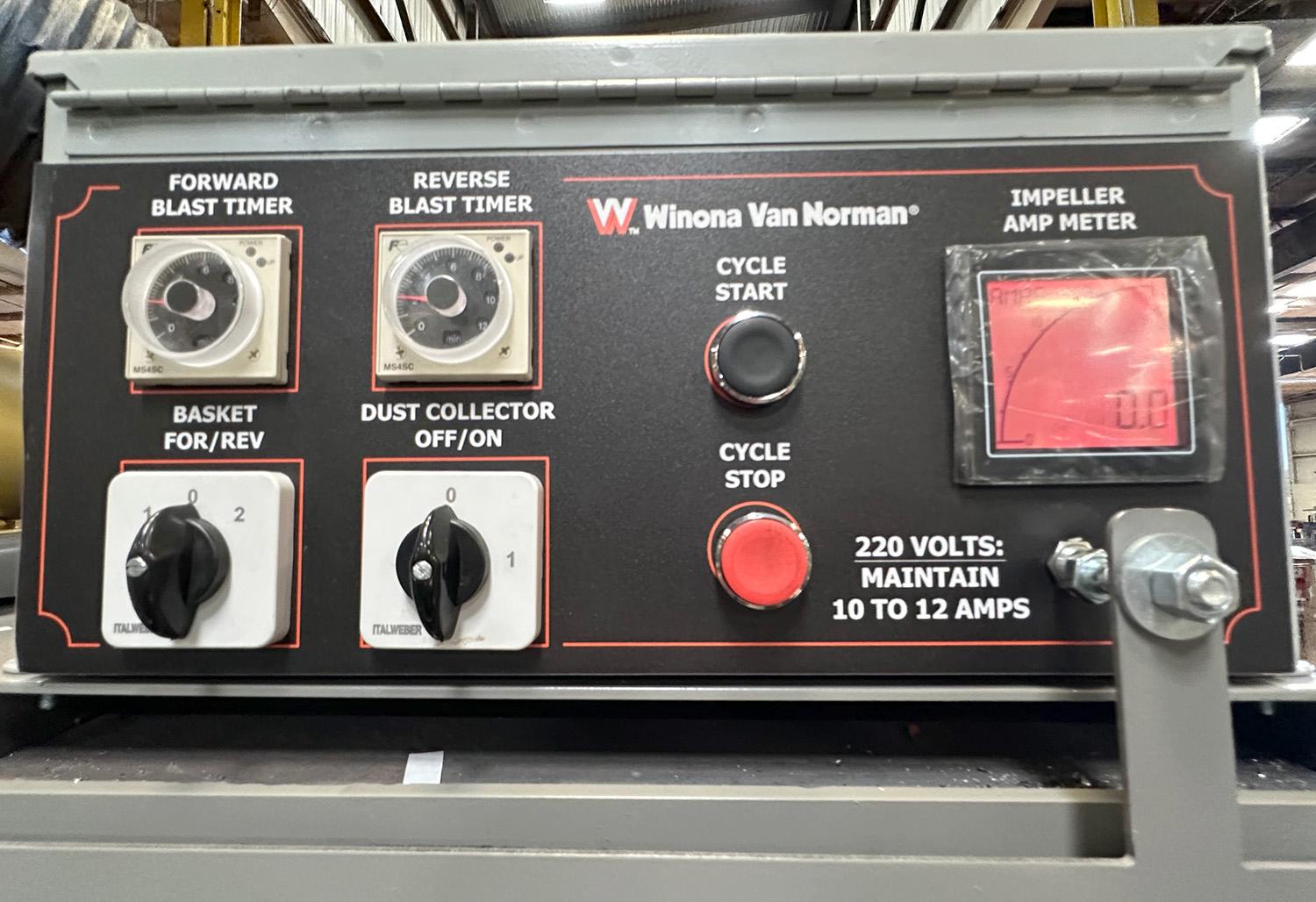

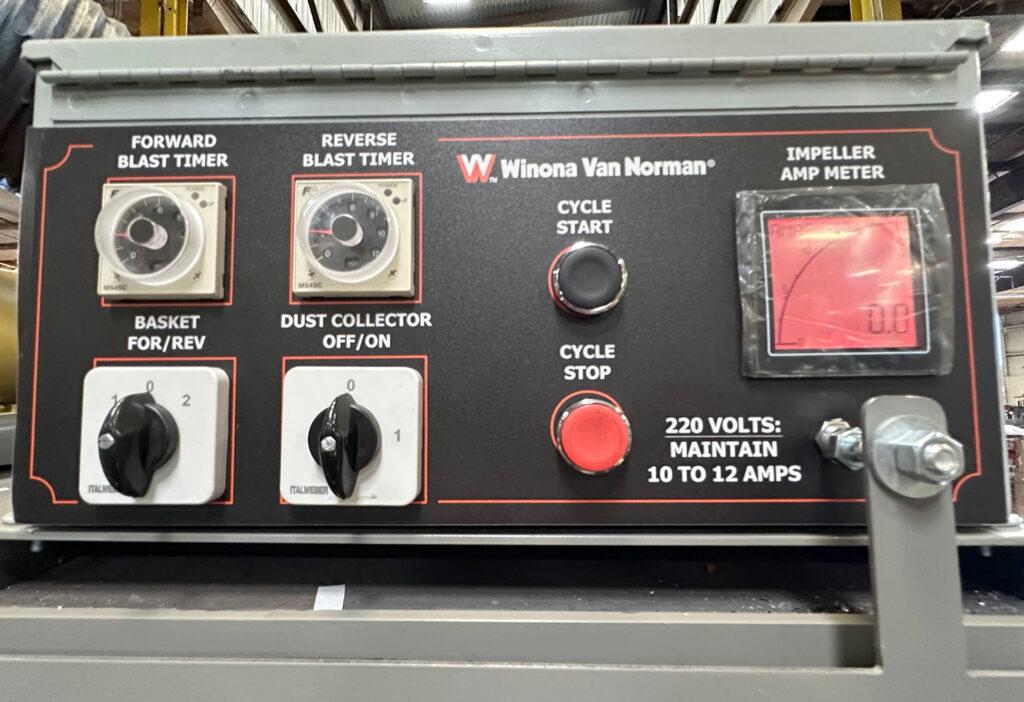

One button push operation with adjustable cycle times
Easily replaceable cabinet/liners

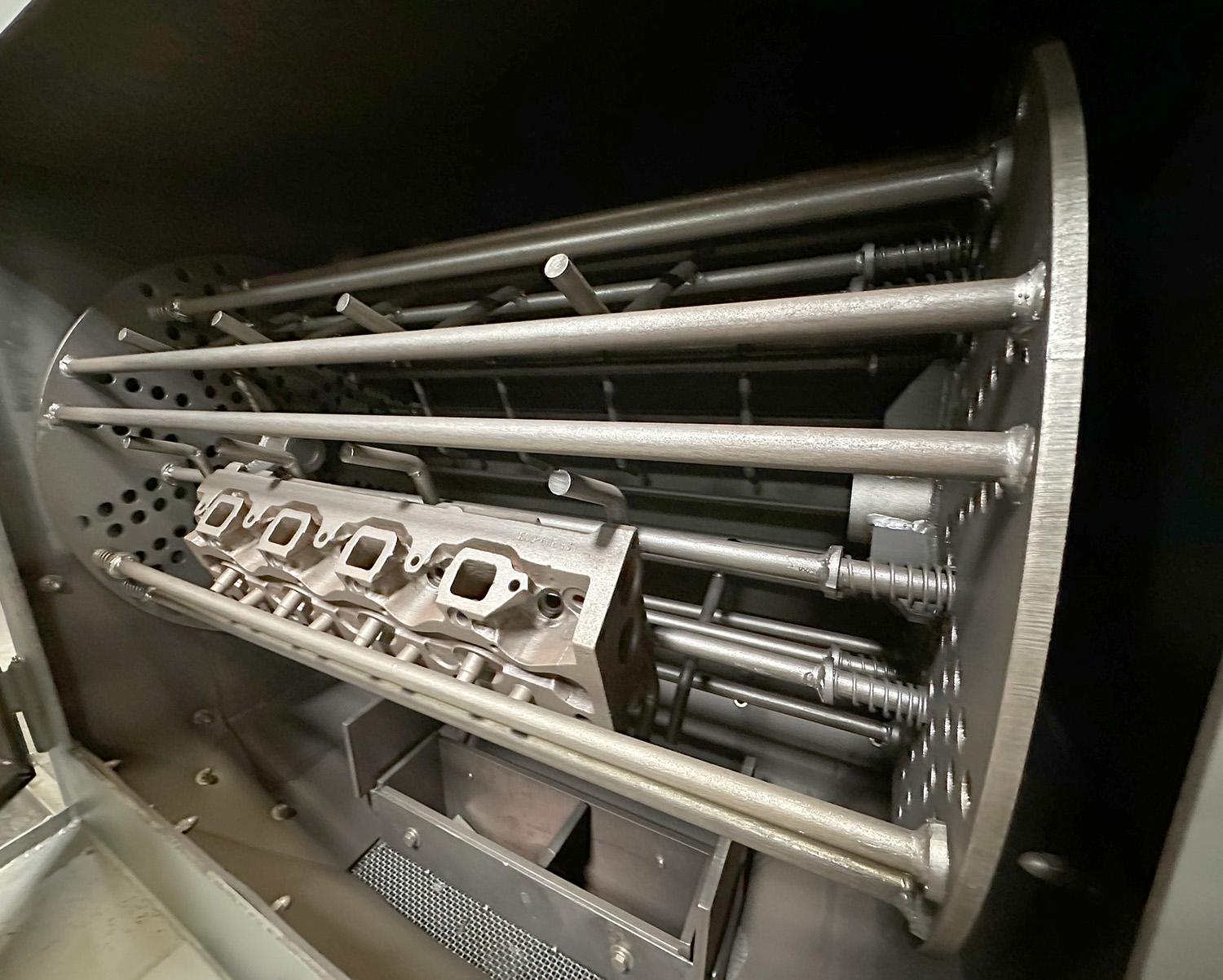

Easy basket jigging set-up for any shape parts – spring loaded rods
Automatic reversing cycle for thorough cleaning
Full load of steel shot abrasive media included; customer choice of S70 – S330
Shot load amp meter to maintain proper shot load
Standard Tooling
Features and Options
Work Envelope:
Basket Dimensions:
Overall Dimensions:
HP of Blast Wheels:
Basket Motor:
Approx. Basket Weight Capacity:
Dust Collector:
3.69 cubic feet
32″ l x 23″ diameter
66″ l x 36.5″ w x 75″ h
1 – 10HP
0.5 HP
500 lbs.
DC-1
