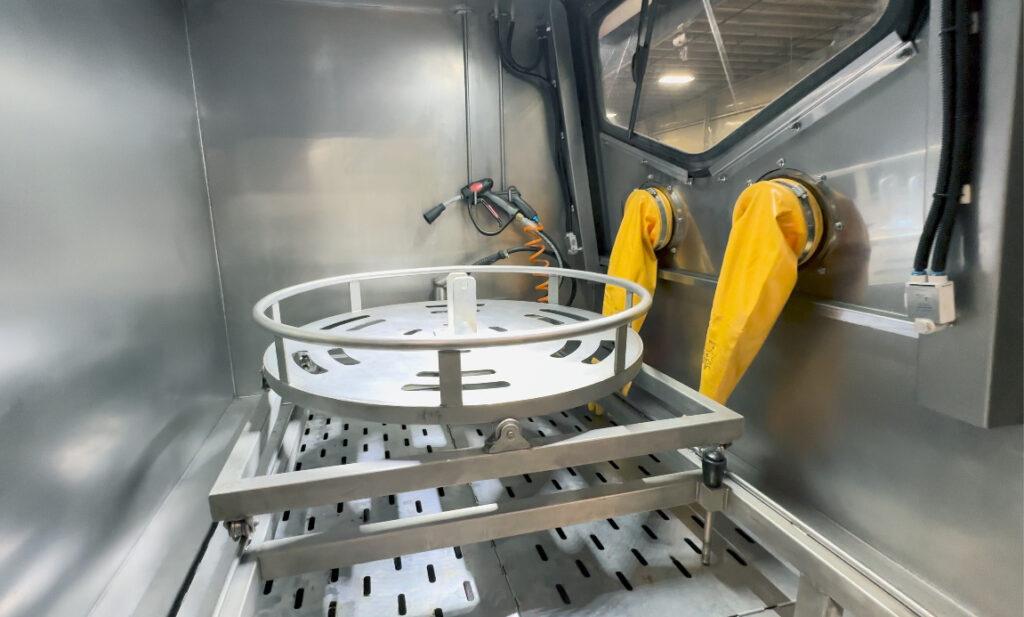

The Winona Van Norman WVN‐PWX‐SS Hand Washer is a stainless steel high pressure hand washer. This machine is designed to clean difficult projects in a quick and efficient manner. The washer is operated with a foot pedal, while your hands are inside the gloves that enter the sealed cabinet.An automatic windshield wiper keeps the part visible while the washer is in operation.

Product Information


Pressure Regulating Valves: Standard

Manometer: Standard

Foot Switch: Standard

High Pressure Water Gun: Standard

Stainless Steel Filter Basket: Standard

Air Gun for Drying: Standard

Interior Lighting: Standard

Air Jet Cleaning Window: Standard

Cleaning Wiper: Standard

Articulated Upper Cabinet: Standard

Stainless Steel Body Material: Standard

Magnetic Front Door Locking System: Standard

Work Envelope32 x 22 in800 x 550 mm
Loading Height of Part32 in800 mm
Loading Capacity150 lbs. 70 kg
Tank Capacity18 Gal68 L
Pressure Pump800 PSI 55 Bar
Pump Capacity3 HP
Pump Flow3.7 Gal/Min 14 L/Min
Heater7.5 kW
Electric230V / 3PH / 60Hz
Air Supply100 (7)
Temperature0-122 °F 0-50 °C
