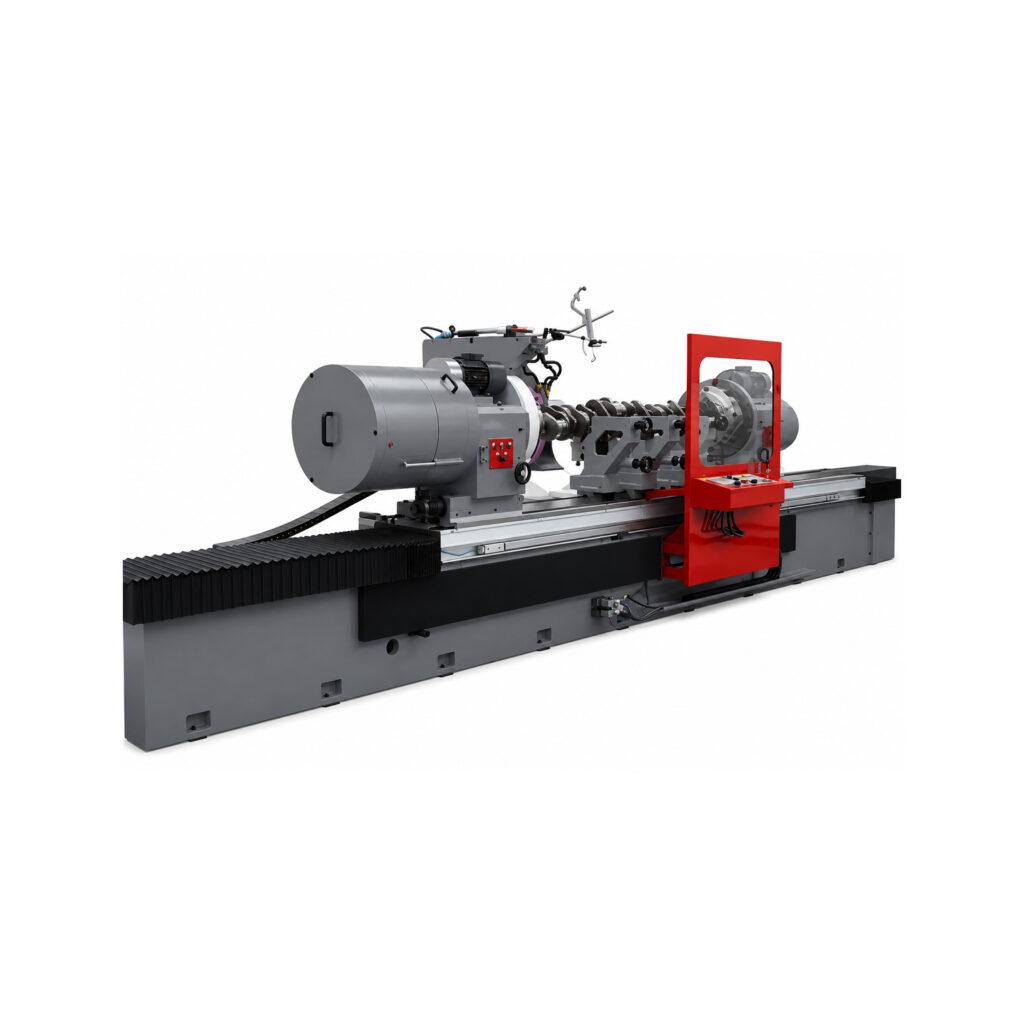

Crankshaft Grinding Machine CGX270-2000

The CGX model is an entry level crankshaft grinding machine suitable for rebuilding of crankshafts or for low productivity manufacturing. The machine is equipped with PLC control system. X and Z axes are moved by ballscrews on guideways and controlled by linear encoder. The lubricant system is centralized and there is automatic dressing cycle with automatic positioning of the grinding wheel. Complete with a fully automatic balancing system and vibration detector for best cutting condition of the grinding wheel. 3D Touch probe fixed on grinding wheel‐head permit the longitudinal setup of the workpiece and the position of grinding wheel. The Z axes travels 2,550 mm and the X axes travels 315 mm. The grinding wheel diameter is 710 mm.

Request A Quote

Fill out the form below to request a quote for the Crankshaft Grinding Machine CGX270-2000.
Request Quote

Dimensions

Electrical

Production

Contact Info

Product Information

One full stroke of this lever moves the wheelhead precisely .0004,” and it can be used in steps to move the wheelhead .0001,” .0002,” or .0003.” The superior accuracy of this machine allows double plunge grinding precisely to the same size leaving no lap line.

Linear encoders for X-Z axis and digital readout XYZ

Wheel side tapering dresser

Hydraulic wheel tapering dresser

Set of auxiliary counterweights

Narrow steady rest dia 20-105 mm

Standard steady rest dia 25-155 mm

Technical Specifications

Height of Centers on Table
270 mm
Maximum Distance Between Centers
2000 mm
Maximum Distance Between Self Centering Chucks
1640 mm
Maximum Diameter Admitted on Table
540 mm
Maximum Head Offset
120 mm
Maximum Diameter Ground Using a New Grinding Wheel
400 mm
Maximum Diameter Admitted in Steadyrest
160 mm
Diameter of Grinding Wheel
710 mm
Standard Grinding Wheel Thickness
25 mm
Maximum Grinding Wheel Thickness
50 mm
Minimum Grinding Wheel Thickness
20 mm
Maximum Weight Admitted Between Centers
300 kg
Maximum Weight Admitted Between Steadyrest
600 kg
Diameter of Self Centering Chucks
200 mm
Variable Headstock Rotation Speeds
80 RPM
Grindhead Motor Power
4 kW
Head Stock Motor Power
2, 5 kW
Z Axis Motor Power
2, 5 kW
X Axis Motor Power
1,95 ÷ 2,27 kW
Air Pressure for Head Displacement
6 bar
Overall Dimensions
4372 mm L x 2234 mm W x 1856 mm H
